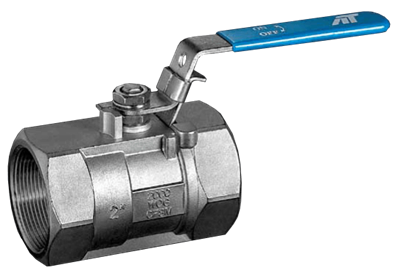

20 Series Manual Ball Valve

Brand: A-T Controls, Inc.
Features
  • Two Piece Design, Investment Cast
  • Available in Stainless Steel Only
  • Full Port 1000 PSI
  • Blowout Proof Stem
  • Threaded Ends Only
show more
Features
  • Two Piece Design, Investment Cast
  • Available in Stainless Steel Only
  • Full Port 1000 PSI
  • Blowout Proof Stem
  • Threaded Ends Only
17 models matching criteria
NS20-TH-0150-XXX
A-T CONTROLS Series 20 Ball Valve, 2-Pce, NPT, 1.5", Full Port, RTFE Seats, 1000psi WOG, NSF 61/372 View More
  • NS20: Series 20 Full Port, 2-Piece, Threaded Valve
  • TH: NPT Ends
  • 0150: 1.5" Valve Size
  • X: Reinforced TFE Seats (RTFE)
  • XX: No Specials
  • Certifications:
    • NSF/ANSI 61-2016
    • NSF/ANSI 372-2011 for up to 60°C service

In Stock 1 - 2 weeks
$130.89USD
$19.01 Shipping
20-TH-0050-XXX
A-T CONTROLS Series 20 Ball Valve, 2-Piece Design Full-Port, Threaded Ends, 0.5", RTFE View More
  • 20: 2pc Full Port, 1000 WOG
  • TH: NPT Ends
  • 0050: 0.5" Valve Size
  • X: Reinforced TFE Seats (RTFE)
  • XX: No Specials
  • Maximum Pressure Rating: 1000 psi
2 - 4 weeks
$25.59USD
$19.01 Shipping
NS20-TH-0025-XXX
A-T CONTROLS Series 20 Ball Valve, 2-Pce, NPT, 1/4", Full Port, RTFE Seats, 1000psi WOG, NSF 61/372 View More
  • NS20: Series 20 Full Port, 2-Piece, Threaded Valve
  • TH: NPT Ends
  • 0025: 1/4-Inch
  • X: Reinforced TFE Seats (RTFE)
  • XX: No Specials
  • Certifications:
    • NSF/ANSI 61-2016
    • NSF/ANSI 372-2011 for up to 60°C service

1 - 2 weeks
$31.44USD
$19.01 Shipping
NS20-TH-0075-XXX
A-T CONTROLS Series 20 Ball Valve, 2-Pce, NPT, 3/4", Full Port, RTFE Seats, 1000psi WOG, NSF 61/372 View More
  • NS20: Series 20 Full Port, 2-Piece, Threaded Valve
  • TH: NPT Ends
  • 0075: 3/4-Inch
  • XXX:
    • Reinforced TFE Seats (RTFE)
    • No Specials

  • Certifications:
    • NSF/ANSI 61-2016
    • NSF/ANSI 372-2011 for up to 60°C service

1 - 2 weeks
$48.99USD
$19.01 Shipping
20-TH-0100-XXX
A-T CONTROLS Series 20 Ball Valve, 2-Piece Design Full-Port, Threaded Ends, 1", RTFE View More
  • 20: 2pc Full Port, 1000 WOG
  • TH: NPT Ends
  • 0100: 1" Valve Size
  • X: Reinforced TFE Seats (RTFE)
  • XX: No Specials
  • Maximum Pressure Rating: 1000 psi
2 - 4 weeks
$59.96USD
$19.01 Shipping
NS22-TH-0025-XXX
A-T CONTROLS Series 20 Ball Valve, 2-Pce, NPT, 1/4", Direct Mount RTFE Seats, 1000psi WOG,NSF61/372 View More
  • NS22: Series 20 Full Port, Direct Mount 2-Piece, Threaded Valve
  • TH: NPT Ends
  • 0025: 1/4-Inch
  • XXX:
    • Reinforced TFE Seats (RTFE)
    • No Specials

  • Certifications:
    • NSF/ANSI 61-2016
    • NSF/ANSI 372-2011 for up to 60°C service

2 - 3 weeks
$67.27USD
$19.01 Shipping
NS22-TH-0050-XXX
A-T CONTROLS Series 20 Ball Valve, 2-Pce, NPT, 1/2", Direct Mount RTFE Seats, 1000psi WOG,NSF61/372 View More
  • NS22: Series 20 Full Port, Direct Mount 2-Piece, Threaded Valve
  • TH: NPT Ends
  • 0050: 1/2-Inch
  • XXX:
    • Reinforced TFE Seats (RTFE)
    • No Specials

  • Certifications:
    • NSF/ANSI 61-2016
    • NSF/ANSI 372-2011 for up to 60°C service

1 - 2 weeks
$76.05USD
$19.01 Shipping
NS20-TH-0125-XXX
A-T CONTROLS Series 20 Ball Valve, 2-Pce, NPT 1-1/4", Full Port, RTFE Seats 1000psi WOG, NSF 61/372 View More
  • NS20: Series 20 Full Port, 2-Piece, Threaded Valve
  • TH: NPT Ends
  • 0125: 1-1/4-Inch
  • XXX:
    • Reinforced TFE Seats (RTFE)
    • No Specials

  • Certifications:
    • NSF/ANSI 61-2016
    • NSF/ANSI 372-2011 for up to 60°C service

1 - 2 weeks
$89.21USD
$19.01 Shipping
NS22-TH-0075-XXX
A-T CONTROLS Series 22 Ball Valve, 2-Pce, NPT, 3/4", Direct Mount RTFE Seats, 1000psi WOG,NSF61/372 View More
  • NS22: Series 22 Full Port, Direct Mount 2-Piece, Threaded Valve
  • TH: NPT Ends
  • 0075: 3/4-Inch
  • XXX:
    • Reinforced TFE Seats (RTFE)
    • No Specials

  • Certifications:
    • NSF/ANSI 61-2016
    • NSF/ANSI 372-2011 for up to 60°C service

1 - 2 weeks
$100.18USD
$19.01 Shipping
NS22-TH-0100-XXX
A-T CONTROLS Series 20 Ball Valve, 2-Pce, NPT 1" Direct Mount RTFE Seats, 1000psi WOG,NSF61/372 View More
  • NS22: Series 20 Full Port, Direct Mount 2-Piece, Threaded Valve
  • TH: NPT Ends
  • 0100: 1-Inch
  • XXX:
    • Reinforced TFE Seats (RTFE)
    • No Specials

  • Certifications:
    • NSF/ANSI 61-2016
    • NSF/ANSI 372-2011 for up to 60°C service

1 - 2 weeks
$116.26USD
$19.01 Shipping

Specifications

Direct Mount

  • No

Enclosure, Body Material

  • 316 Stainless Steel

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1/4” NPT Female
  • 1-1/2” NPT Female
  • 1-1/4” NPT Female
  • 2” NPT Female
  • 2-1/2” NPT Female
  • 3” NPT Female
  • 3/4” NPT Female
  • 3/8” NPT Female

Port

  • Full

Pressure Rating

  • psig: 1,000

Pyramidal Stem Packing

  • No

Seat / Seal Material

  • RTFE (Reinforced Teflon)

Standard Features

  • 2-Piece General-purpose with Locking Handle

TA-Luft Certified

  • No

Trim Material

  • 316 Stainless Steel

Valve Type

  • Manual

Typical Applications

  • For General Industrial and Chemical Applications
