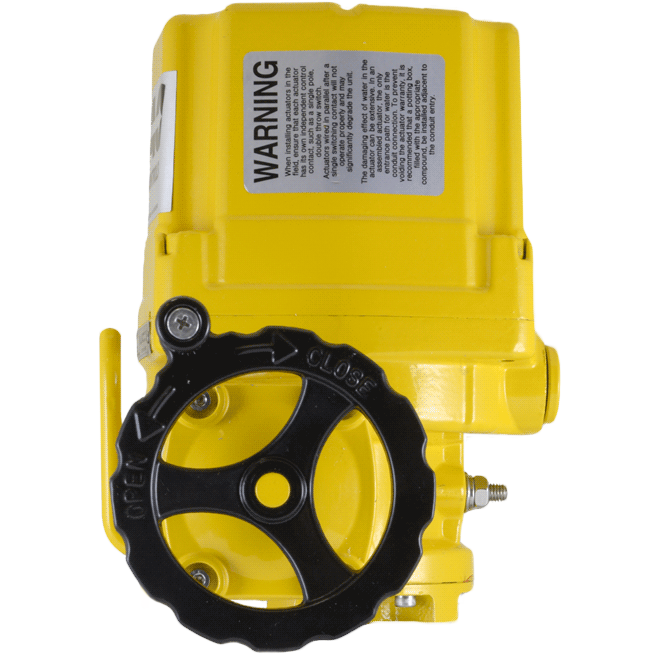

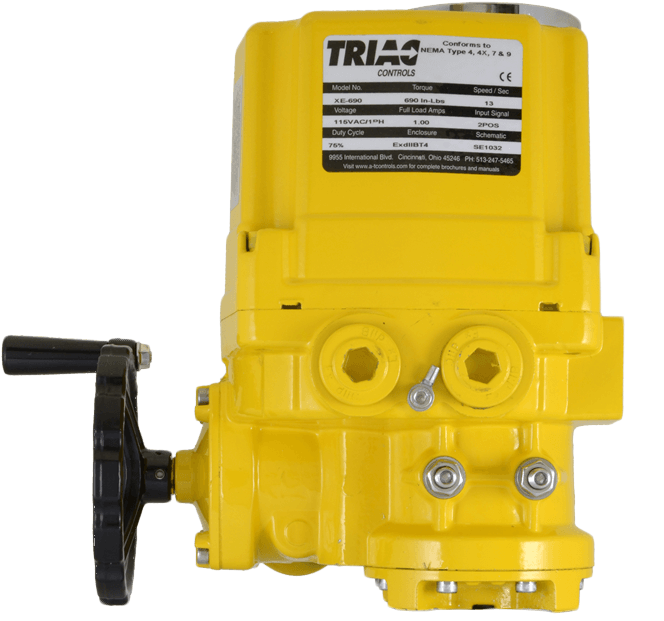

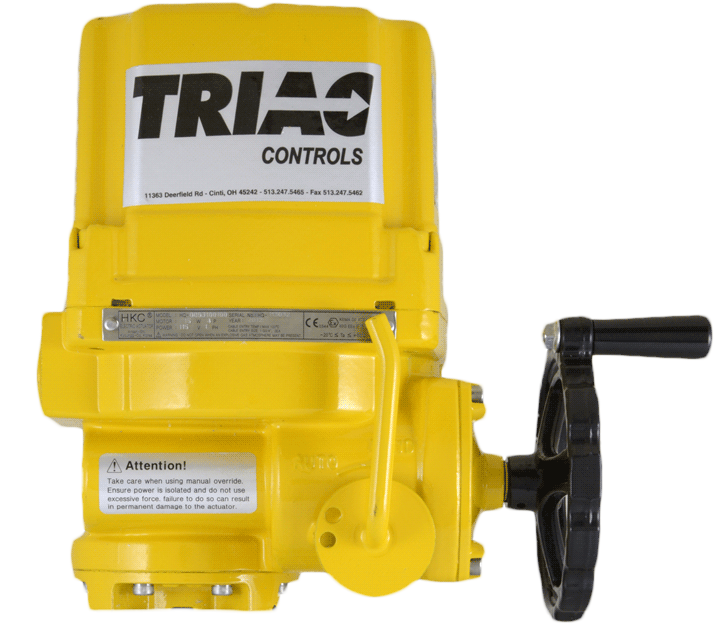

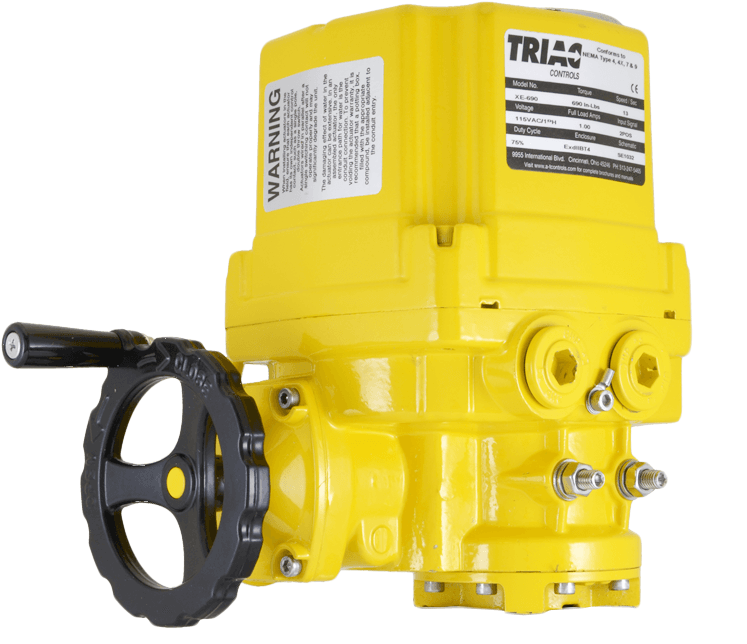

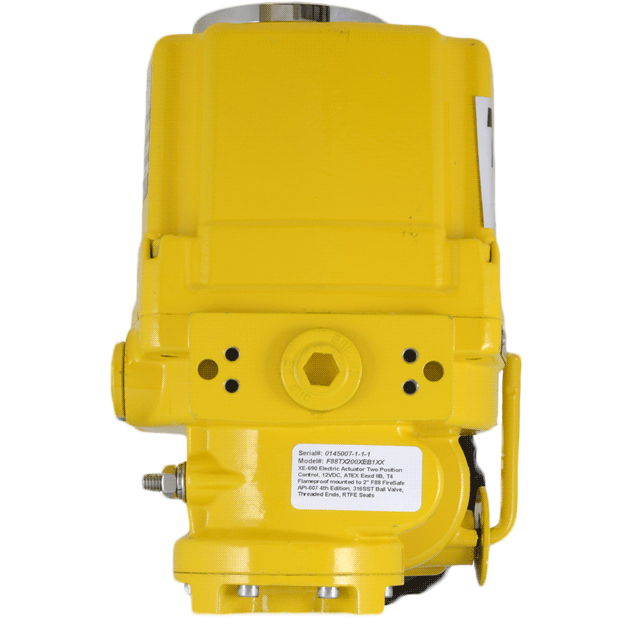

WE/XE/SE/FE Series Electric Actuator

Brand: A-T Controls, Inc.
WE Series - Weatherproof and XE Series - explosion-proof electric actuators are specially designed for quarter turn operating applications such as Ball valves, Butterfly valves, Plug valves, Dampers and similar valve automation usages.
Features
  • High corrosion resistance due to anodizing on the inside and outside and polyester powder coating on the outside.
  • Available in 1 Phase / 3 Phase, all motors are custom built for high-torque, low current raw and the highest duty cycle ratings offered. Fan Cooled Motor is standard on model XE 690.
  • Easy mounting base standard to ISO 5211
  • Standard four Limit Switches- (2) Auxiliary Limit Switches
  • A drain slot is provided to eliminate water build up on window
  • Torque Switch System
  • Double reduction worm gear assembly is self-locking with minimum blacklash.
  • Option: Illuminated Red (Close), Green (Open), Yellow (Over Torque)
show more
Images are representations only.
WE Series - Weatherproof and XE Series - explosion-proof electric actuators are specially designed for quarter turn operating applications such as Ball valves, Butterfly valves, Plug valves, Dampers and similar valve automation usages.
Features
  • High corrosion resistance due to anodizing on the inside and outside and polyester powder coating on the outside.
  • Available in 1 Phase / 3 Phase, all motors are custom built for high-torque, low current raw and the highest duty cycle ratings offered. Fan Cooled Motor is standard on model XE 690.
  • Easy mounting base standard to ISO 5211
  • Standard four Limit Switches- (2) Auxiliary Limit Switches
  • A drain slot is provided to eliminate water build up on window
  • Torque Switch System
  • Double reduction worm gear assembly is self-locking with minimum blacklash.
  • Option: Illuminated Red (Close), Green (Open), Yellow (Over Torque)
30 models matching criteria
4-20 mA Position Transmitter
A-T CONTROLS 4-20mA Position Transmitter; POT-102, MKT-175, XMA-107
2 - 4 weeks
$542.00USD
$9.99 Shipping
available on backorder
TMC3-115
A-T CONTROLS Modulating card for 115VAC Electric Actuators
1 - 2 weeks
$830.00USD
$9.99 Shipping
available on backorder
WE-1350
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 1350 In-Lbs, 110VAC
2 - 4 weeks
$1,327.00USD
$9.99 Shipping
available on backorder
WE-690A
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 620 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$1,389.00USD
$9.99 Shipping
available on backorder
XE-690-A
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 690 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$1,413.00USD
$9.99 Shipping
available on backorder
WE-690-XXL
A-T CONTROLS Series WE Electric Actuator, 690 In-Lbs, Low Temperature
2 - 4 weeks
$1,500.00USD
$9.99 Shipping
available on backorder
WEM-500
A-T CONTROLS WE Series Electric Actuator, Weatherproof, Modulating, 500 In-Lbs, 110VAC
2 - 4 weeks
$1,506.00USD
$9.99 Shipping
available on backorder
XE-1700
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 1700 In-Lbs, 110VAC
2 - 4 weeks
$1,516.00USD
$9.99 Shipping
available on backorder
XE-690-A-X
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 690 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$1,523.00USD
$9.99 Shipping
available on backorder
XE-690XHS2XXY
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 690 In-Lbs, 110VAC, High Speed
2 - 4 weeks
$1,547.00USD
$9.99 Shipping
available on backorder
WE-1350P
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 1350 In-Lbs, 110VAC, 10K Ohm Potentiometer
2 - 4 weeks
$1,562.00USD
$9.99 Shipping
available on backorder
WE-1350A
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 1350 In-Lbs, 24VDC/24VAC
2 - 4 weeks
$1,584.00USD
$9.99 Shipping
available on backorder
XE-1700C2
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 1700 In-Lbs, 24VDC
2 - 4 weeks
$1,684.00USD
$9.99 Shipping
available on backorder
WE-1350-XXL
A-T CONTROLS Series WE Electric Actuator, 1350 In-Lbs, Low Temperature
2 - 4 weeks
$1,718.00USD
$9.99 Shipping
available on backorder
XE-1700C
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 1700 In-Lbs, 24VDC
2 - 4 weeks
$1,773.00USD
$9.99 Shipping
available on backorder
XE-2640
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 2640 In-Lbs, 110VAC
1 - 3 weeks
$1,868.00USD
$9.99 Shipping
available on backorder
WE-690XFY
A-T CONTROLS Series WE Electric Actuator, 690 In-Lbs, 115 VAC/1PH
2 - 4 weeks
$2,069.00USD
$9.99 Shipping
available on backorder
WE-2640A
A-T CONTROLS Series WE Electric Actuator, 2640In-Lbs, 24VAC/1PH
2 - 4 weeks
$2,073.00USD
$9.99 Shipping
available on backorder
XE-2640A
A-T CONTROLS Series XE Electric Actuator, ATEX Explosion-Proof, 90°, 2640 In-Lbs. 24V AC/DC
2 - 4 weeks
$2,125.00USD
$9.99 Shipping
available on backorder
WEM-690
A-T CONTROLS WE Series Electric Actuator, Weatherproof, Modulating, 690 In-Lbs, 110VAC
2 - 4 weeks
$2,160.00USD
$9.99 Shipping
available on backorder
WE-1350CRCM/24VDC
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 1350 In-Lbs, 24VDC, RCM-101
2 - 4 weeks
$2,245.00USD
$9.99 Shipping
available on backorder
WE-4400
A-T CONTROLS Series WE Electric Actuator, 4400 In-Lbs, 110 VAC / 1 Phase
2 - 4 weeks
$2,258.00USD
$9.99 Shipping
available on backorder
XE-2640XHS1
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 2050 In-Lbs, 110VAC, High Speed
2 - 4 weeks
$2,260.00USD
$9.99 Shipping
available on backorder
WE-2640CRCM/24VDC
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 2120 In-Lbs, 24VDC, RCM-101
2 - 4 weeks
$2,518.00USD
$9.99 Shipping
available on backorder
WE-4400H
A-T CONTROLS Series WE Electric Actuator, 4400 In-Lbs, 440VAC/3PH
2 - 4 weeks
$2,530.00USD
$9.99 Shipping
available on backorder

WE/XE/SE/FE

Model

Control Type

  • view details

Actuator Performance

Actuator Size

Actuator Size

Motor Voltage

  • view details

Control Options

  • view details

High Speed Options

Transmitter

Potentiometer

Operation

Temperature Options

Indicator

  • view details

Switch Option

  • view details

Specifications

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F), Optional -40° C (-40° F) Low Temp Kit

Approvals & Certifications

  • ATEX/IECEx Ex D IIB T4 Gb
  • CSA

Conduit Connection

  • 2 x 3/4" NPT

Electrical Connectors

  • Terminal Block: Spring Loaded Lever Push Typical

Electrical Rating

  • 16 A at 1/2 hp 125/250 Vac, 0.6 A at 125 Vdc, 0.3 A at 250 Vdc

Enclosure Finish

  • Anodizing Treatment Before Dry Powder, Polyester

Environmental Protection

  • CSA 4, 4X, 6
  • CSA 4X
  • CSA 6
  • IP67
  • Submersible Enclosure IP68

Heater

  • 7-10 W Anti-Condensation Space Heater

Humidity

  • 90% Relative Humidity, Maximum

Indication

  • Continuous Position Indicator Lamps (Open, Close, Torque)

Materials of Construction

  • Al Bronze
  • Aluminum Alloy
  • Polycarbonate
  • Steel

Motor Type

  • Class F Reversible Induction Motor

Motor Voltages

  • 115 Vac / 1-Phase
  • 12 Vdc
  • 220 Vac / 1-Phase
  • 220 Vac / 3-Phase
  • 24 Vac / 1-Phase
  • 24 Vac/Vdc
  • 24 Vdc (Requires Additional Relays for Customer Supplied Wiring)
  • 380 Vac / 3-Phase
  • 440 Vac / 3-Phase
  • 460 Vac / 3-Phase
  • 480 Vac / 3-Phase

Mounting

  • Easy Mounting Base ISO 5211 Standard

Operation

  • 120°
  • 180°
  • 270°

Options

  • 1,000 ohm Potentiometer
  • 10,000 ohm Potentiometer
  • -40° C (-40° F) Low Temp Kit
  • 5,000 ohm Potentiometer

Override

  • Manual Override: Declutching Mechanism

Stopper

  • Mechanical Stopper: Open/Close (External Adjustable Screws)

Switch Type

  • Open/Close SPDT

Torque

  • 690 to 80,000 In/Lbs

Vibration

  • XYZ 10 G, 0.2~34 Hz, 30 minutes
