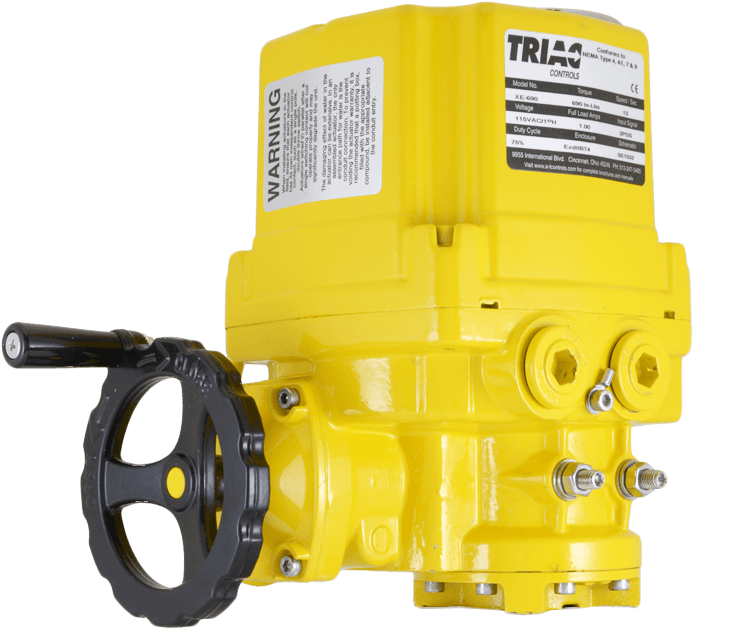

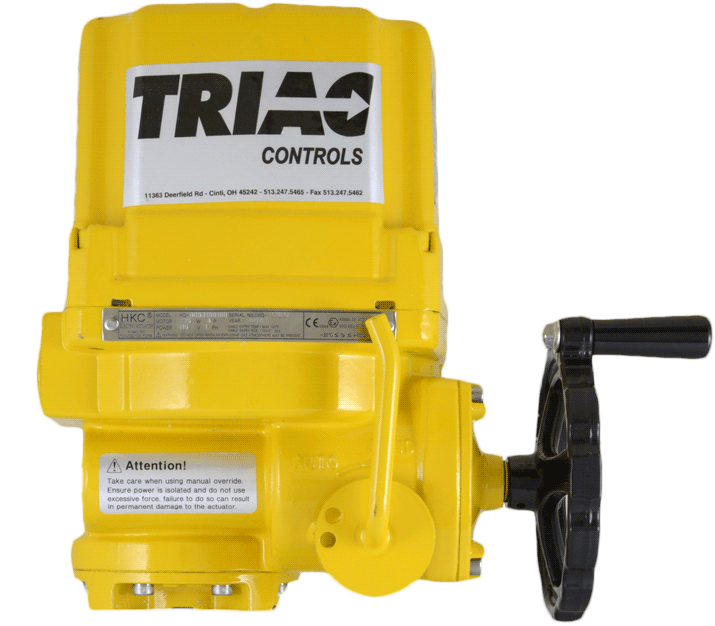

WE/XE/SE/FE Series Electric Actuator

Brand: A-T Controls, Inc.
WE Series - Weatherproof and XE Series - explosion-proof electric actuators are specially designed for quarter turn operating applications such as Ball valves, Butterfly valves, Plug valves, Dampers and similar valve automation usages.
Features
  • High corrosion resistance due to anodizing on the inside and outside and polyester powder coating on the outside.
  • Available in 1 Phase / 3 Phase, all motors are custom built for high-torque, low current raw and the highest duty cycle ratings offered. Fan Cooled Motor is standard on model XE 690.
  • Easy mounting base standard to ISO 5211
  • Standard four Limit Switches- (2) Auxiliary Limit Switches
  • A drain slot is provided to eliminate water build up on window
  • Torque Switch System
  • Double reduction worm gear assembly is self-locking with minimum blacklash.
  • Option: Illuminated Red (Close), Green (Open), Yellow (Over Torque)
show more
WE Series - Weatherproof and XE Series - explosion-proof electric actuators are specially designed for quarter turn operating applications such as Ball valves, Butterfly valves, Plug valves, Dampers and similar valve automation usages.
Features
  • High corrosion resistance due to anodizing on the inside and outside and polyester powder coating on the outside.
  • Available in 1 Phase / 3 Phase, all motors are custom built for high-torque, low current raw and the highest duty cycle ratings offered. Fan Cooled Motor is standard on model XE 690.
  • Easy mounting base standard to ISO 5211
  • Standard four Limit Switches- (2) Auxiliary Limit Switches
  • A drain slot is provided to eliminate water build up on window
  • Torque Switch System
  • Double reduction worm gear assembly is self-locking with minimum blacklash.
  • Option: Illuminated Red (Close), Green (Open), Yellow (Over Torque)
31 models matching criteria
CURRENT POSITION TRANSMITTER
A-T CONTROLS 4-20mA Position Transmitter; POT-102, MKT-175, XMA-107 View More
Parts Required for attaching to A-T Controls Electric Actuator, XE Series
  • POT-102:

    • Vishay Sfernice Potentiometer, 1000 Ohm, 340 Deg Electrical Range, Temp Range -55 C to 125 C, Conductive plastic track

  • MKT-175:
    • WE-1350 thru WE-25900 Series Potentiometer mounting kit

  • XMA-107:
    • 4-20mA loop powered Transmitter


2 - 4 weeks
$414.87USD
$14.78 Shipping
WE-1350
A-T CONTROLS Series WE Electric Actuator, 1350 In-Lbs
2 - 4 weeks
$1,016.10USD
$14.78 Shipping
WE-690-XXL
A-T CONTROLS Series WE Electric Actuator, 690 In-Lbs, Low Temperature View More
  • WE: Weather Proof, IP67, TYPE 4, 4X, 6

    • Control: (2) Position Control (Open / Close)

  • 690: Actuator Size - 690 In-Lbs
  • X: Voltage: 120 VAC / 1 Phase
    • CycleTime: 21 Seconds
    • Motor: 40 Watts

  • X: No Options
  • L: -40F Low Temperature Option
2 - 4 weeks
Non-Cancellable / Non-Refundable
$1,047.16USD
$14.78 Shipping
XE-690-A
A-T CONTROLS Series XE Electric Actuator, ATEX Explosion-Proof, 690 In-Lbs, 24 VAC/VDC Motor View More
  • XE: Explosion Proof Design, ATEX & IECEx Ex d IIB T4 Gb, IP67

    • Electric Actuator: Two-Position Control - Open/Close
    • Temperature Range: -4°F to +158°F (-20°C to +70°C)
    • Indication: Manual Position and LED Open/Close

  • 690: Torque Switch Setting 690 In-Lb
  • A: 24VDC/VAC - On/Off
2 - 4 weeks
$1,081.91USD
$14.78 Shipping
WE-690A
A-T CONTROLS Series WE Electric Actuator, 90°, 690 In-Lbs, 24V AC/DC View More
  • WE: Weather Proof, CSA TYPE 4, 4X, IP67

    • Control: (2) Position Control (Open / Close)

  • 6900: Actuator Size - 690 In-Lbs
  • A: Voltage: 24V AC/DC
    • CycleTime: 13 Seconds
    • Motor: 15 Watts

2 - 4 weeks
$1,119.63USD
$14.78 Shipping
XE-690-X-X-L
A-T CONTROLS Series XE Electric Actuator, ATEX Explosion-Proof, 90°, 690 In-Lbs, 110 VAC On/Off, -40 View More
  • XE: Explosion Proof Design, ATEX & IECEx Ex d IIB T4 Gb, IP67

    • Electric Actuator: Two-Position Control - Open/Close
    • Temperature Range: -4°F to +158°F (-20°C to +70°C)
    • Indication: Manual Position and LED Open/Close

  • 690: Torque Switch Setting 690 In-Lb
  • X: 110 VAC - On/Off
  • X: No Options
  • L: -40° Low Temp. Option
2 - 4 weeks
$1,133.68USD
$14.78 Shipping
XE-1700
A-T CONTROLS Series XE Electric Actuator, ATEX Explosion-Proof, 1700 In-Lbs, 115VAC/1PH View More
  • XE: Explosion Proof Design, ATEX & IECEx Ex d IIB T4 Gb, IP67

    • Electric Actuator: Two-Position Control - Open/Close
    • Temperature Range: -4°F to +158°F (-20°C to +70°C)
    • Indication: Manual Position and LED Open/Close

  • 1700: 1700 In-Lbs Torque
  • (Blank): 115VAC/1PH Motor
2 - 4 weeks
$1,161.04USD
$14.78 Shipping
XE-690-A-X
A-T CONTROLS Series XE Electric Actuator, ATEX Explosion-Proof, 90°, 690 In-Lbs, 24 V Motor View More
  • XE: Explosion Proof Design, ATEX & IECEx Ex d IIB T4 Gb, IP67

    • Electric Actuator: Two-Position Control - Open/Close
    • Temperature Range: -4°F to +158°F (-20°C to +70°C)
    • Indication: Manual Position and LED Open/Close

  • 690: Torque Switch Setting 690 In-Lb
  • A: 24VDC/VAC - On/Off
  • X: No Options
2 - 4 weeks
$1,166.22USD
$14.78 Shipping
XE-690XHS2XXY
A-T CONTROLS Series XE Electric Actuator, ATEX Explosion-Proof, 690 In-Lbs, 115 VAC/1PH, High Speed View More
  • XE: Explosion Proof Design, ATEX & IECEx Ex d IIB T4 Gb, IP67

    • Control: (2) Position Control (Open / Close)

  • 6900: Actuator Size - 690 In-Lbs
  • X: Voltage: 115VAC/1PH
    • CycleTime: 13 Seconds
    • Motor: 15 Watts

  • HS2: High Speed Options:
    • Output Torque (In-Lbs): 290
    • Speed (60Hz) (seconds): 4.5

  • Y: 180º Operation
2 - 4 weeks
$1,184.71USD
$14.78 Shipping
WEM-500
A-T CONTROLS Series WE Electric Actuator, 500 In-Lbs, Modulating, 2 x 1/2" NPT, 12 Second Operation View More
Enclosure: Weatherproof enclosure IP67, Type 4, 4X, CSA General Purpose

Power Supply: 110/220V AC 1PH, 50/60Hz, ± 10%

Duty cycle: 70%

Motor: Class F Reversible motor

Limit switches: Open/Close, SPDT, 5A 125 VAC, 3A 250 VAC, 0.4A125 VDC, 0.2A 250 VDC

Add’l limit switches: Open/Close, SPDT, 5A 125 VAC, 3A 250 VAC, 0.4A 125 VDC, 0.2A 250 VDC

Space heater: 2W (110/220V AC) Anti-condensation

Manual override: Drive Nut (hexagon design)

Cable conduit: Two 1/2” NPT

Movement angle: 320º ±10º

Ambient temperature: -4ºF - 158ºF

External coating: Polyester powder coating
2 - 4 weeks
$1,192.10USD
$14.78 Shipping

Specifications

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F), Optional -40° C (-40° F) Low Temp Kit

Approvals & Certifications

  • ATEX/IECEx Ex d IIB T4 Gb
  • CSA

Conduit Connection

  • 2 × 3/4" NPT

Electrical Connectors

  • Terminal Block: Spring Loaded Lever Push Typical

Electrical Rating

  • 16 A at 1/2 hp 125/250 Vac, 0.6 A at 125 Vdc, 0.3 A at 250 Vdc

Enclosure Finish

  • Anodizing Treatment Before Dry Powder, Polyester

Environmental Protection

  • Type 4, 4X, 6 & 7
  • IP67
  • Submersible Enclosure IP68

Heater

  • 7-10 W Anti-Condensation Space Heater

Humidity

  • 90 % Relative Humidity, Maximum

Indication

  • Continuous Position Indicator Lamps (Open, Close, Torque)

Materials of Construction

  • Al Bronze
  • Aluminum Alloy
  • Polycarbonate
  • Steel

Motor Type

  • Class F Reversible Induction Motor

Motor Voltages

  • 115 Vac / 1-Phase
  • 12 Vdc
  • 220 Vac / 1-Phase
  • 220 Vac / 3-Phase
  • 24 Vac / 1-Phase
  • 24 Vac/Vdc
  • 24 Vdc (Requires Additional Relays for Customer Supplied Wiring)
  • 380 Vac / 3-Phase
  • 440 Vac / 3-Phase
  • 460 Vac / 3-Phase
  • 480 Vac / 3-Phase

Mounting

  • Easy Mounting Base ISO 5211 Standard

Operation

  • 120°
  • 180°
  • 270°

Options

  • 1,000 ohm Potentiometer
  • 10,000 ohm Potentiometer
  • -40° C (-40° F) Low Temp Kit
  • 5,000 ohm Potentiometer

Override

  • Manual Override: Declutching Mechanism

Stopper

  • Mechanical Stopper: Open/Close (External Adjustable Screws)

Switch Type

  • Open/Close SPDT

Torque

  • 690 to 80,000 In/Lbs

Vibration

  • XYZ 10 G, 0.2~34 Hz, 30 minutes

Typical Applications

For use in Oil, Gas, Chemical & Power Gen applications.
