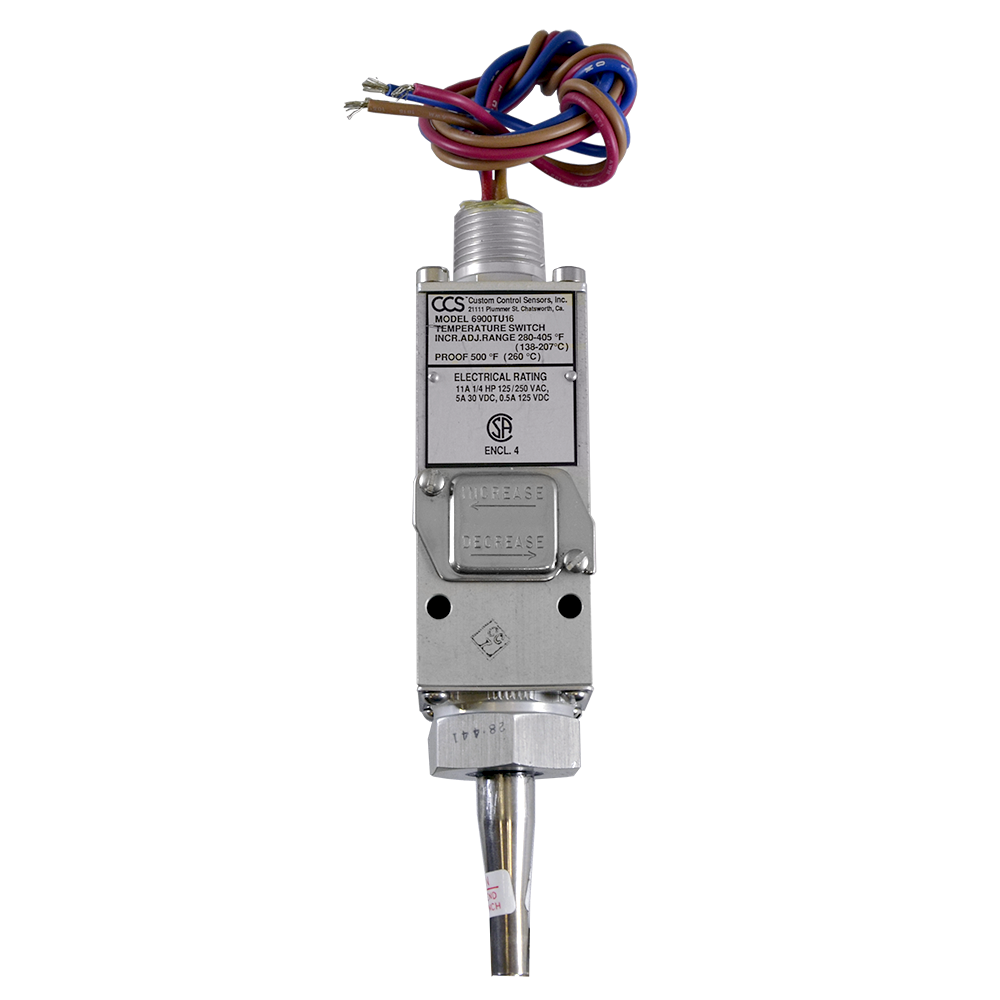

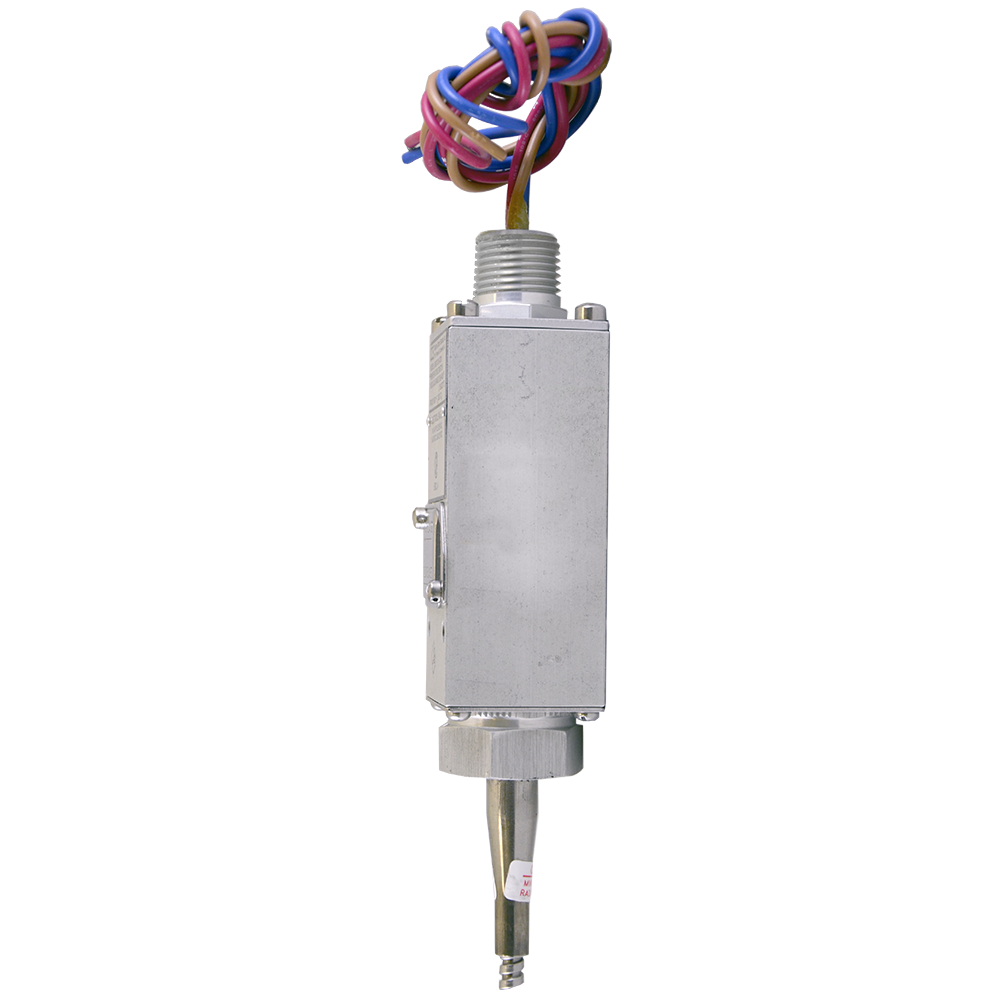

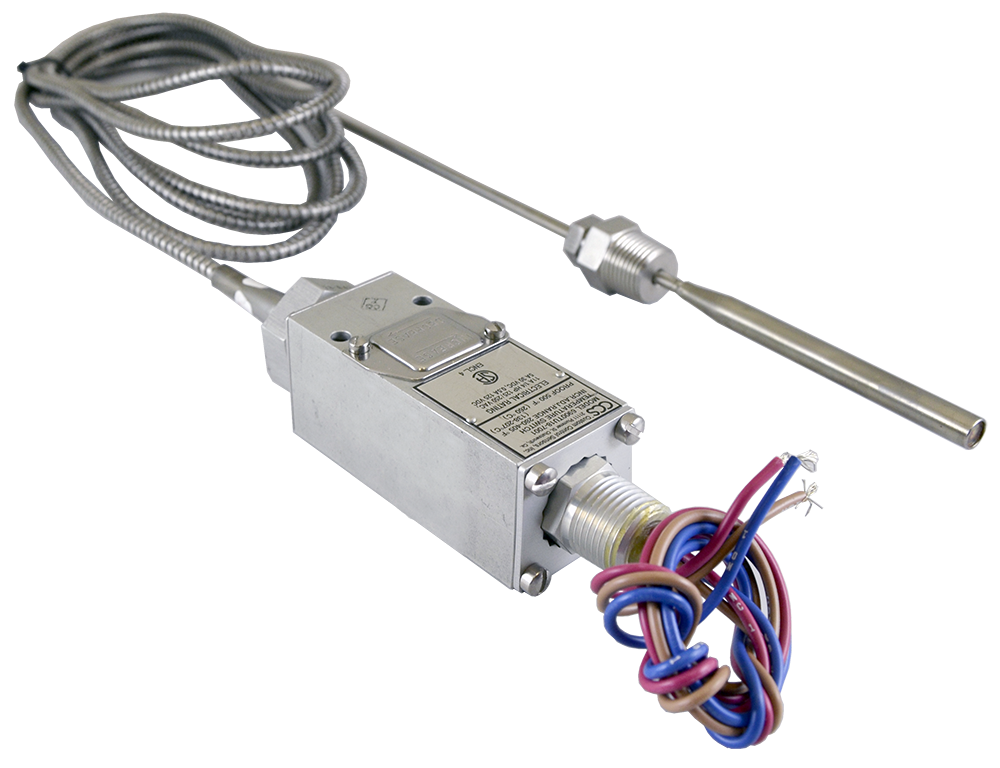

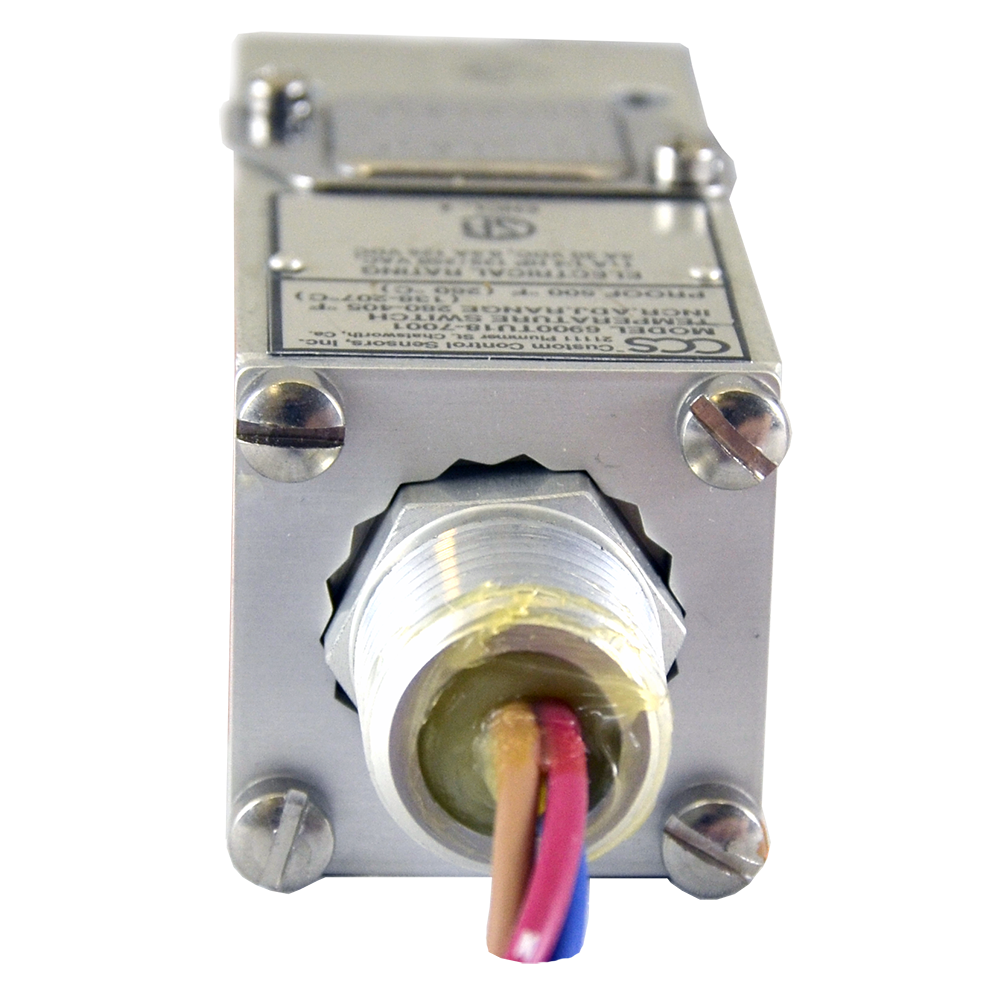

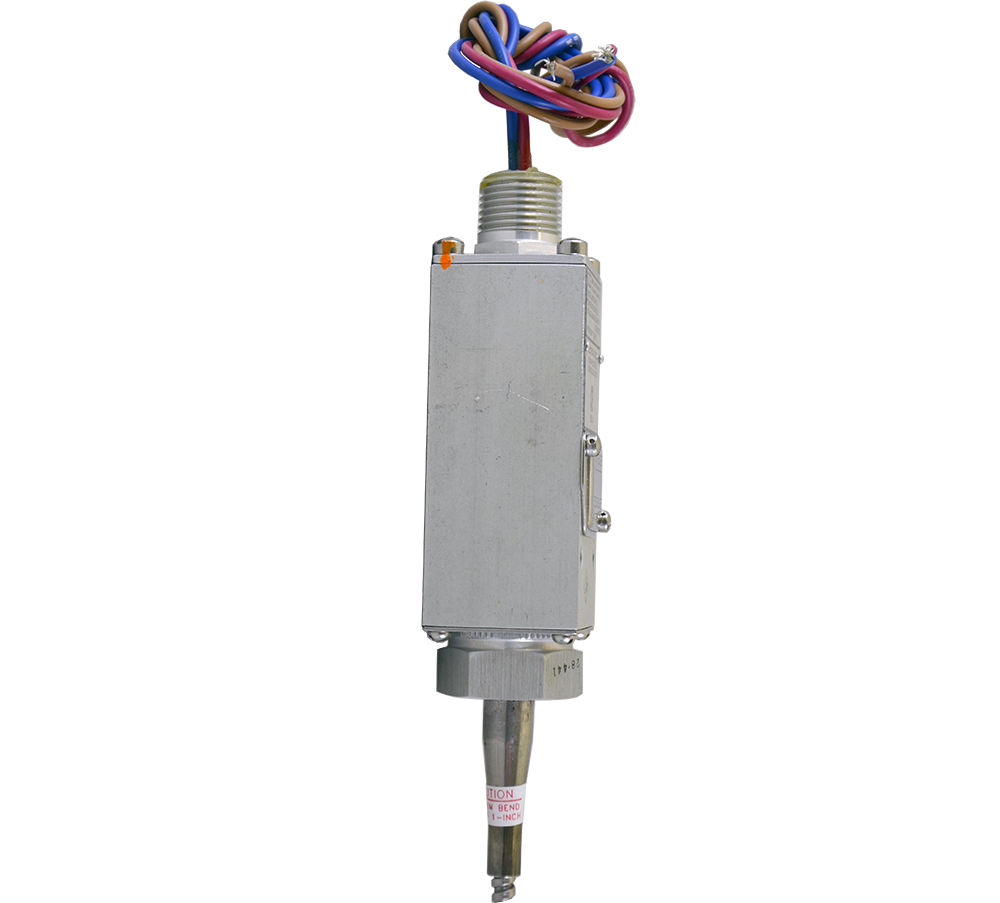

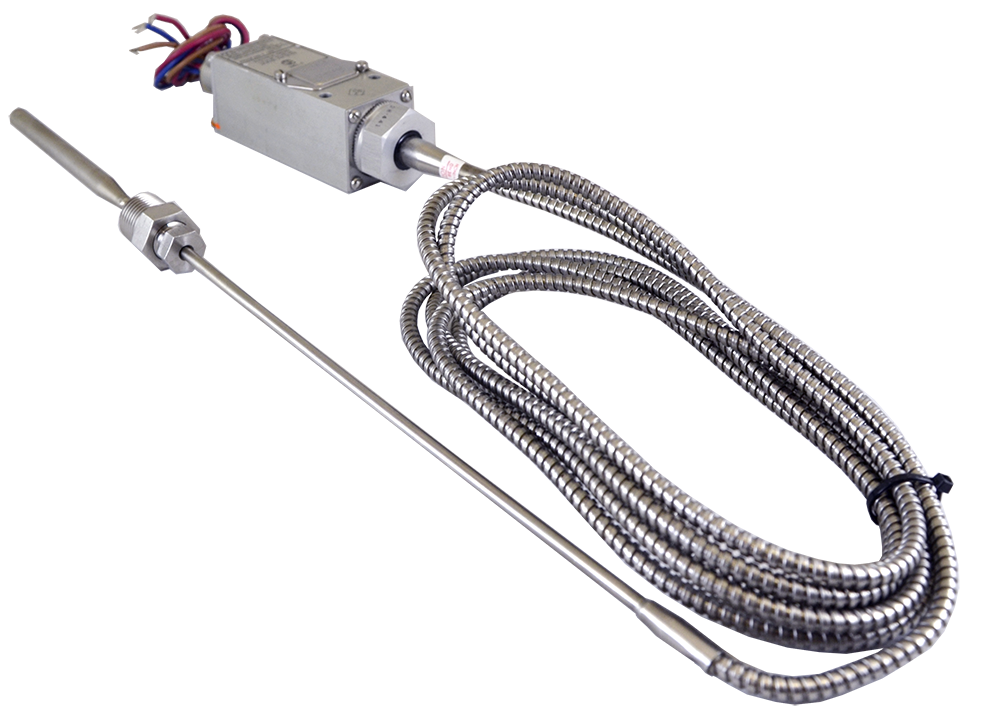

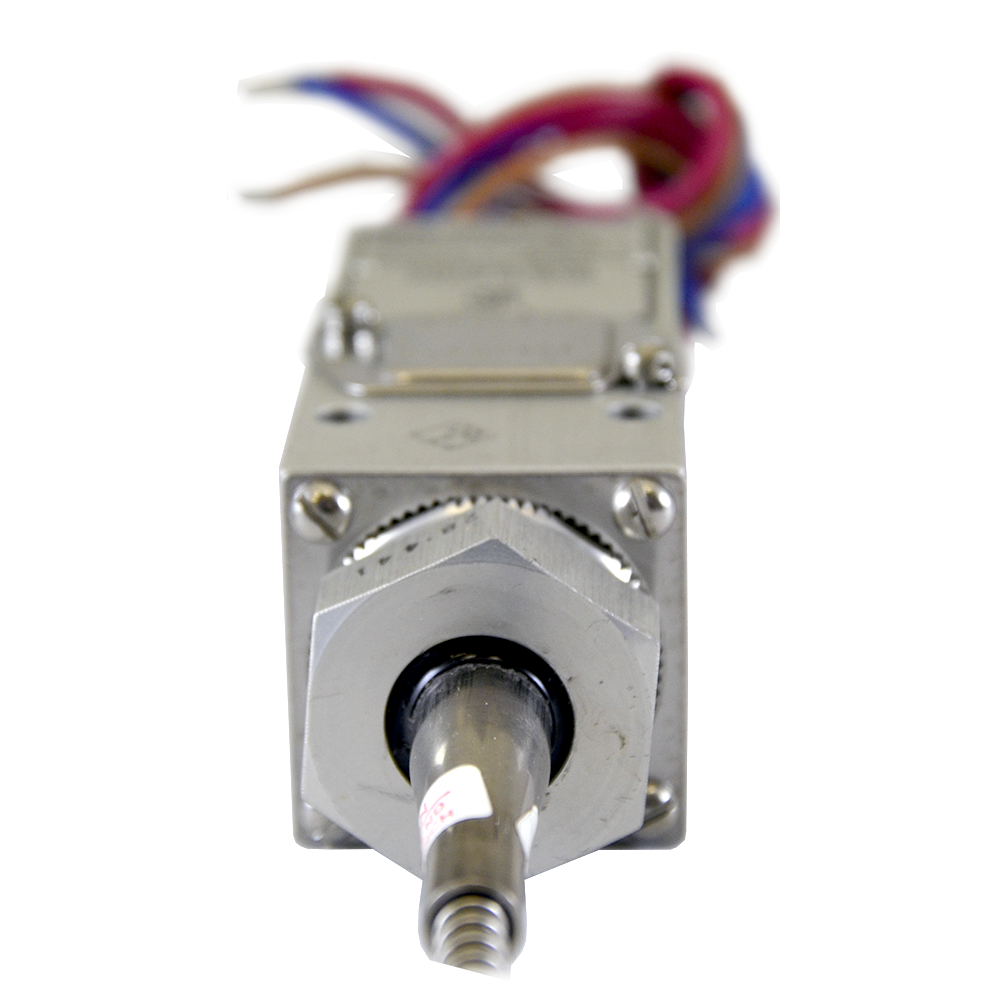

6900TU Series Temperature Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Adjustable Set Point Range:
    • Increasing: +20°F to +650°F, -7°C to +343°C
    • Decreasing: +0°F to +640°F, -18°C to +338°C
  • Deadband: Approximately
    • At Bottom of Range: +20°F to +25°F , +11°C to +14°C
    • At Top of Range: +5°F to +10°F, +4°C to +5°C
  • Probe Temperature (Maximum): +200°F to +700°F, +93°C to +371°C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel
    • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
  • Relay: SPDT or DPDT
  • CSA, CE Mark, General Purpose, CRN
show more
Features
  • Adjustable Set Point Range:
    • Increasing: +20°F to +650°F, -7°C to +343°C
    • Decreasing: +0°F to +640°F, -18°C to +338°C
  • Deadband: Approximately
    • At Bottom of Range: +20°F to +25°F , +11°C to +14°C
    • At Top of Range: +5°F to +10°F, +4°C to +5°C
  • Probe Temperature (Maximum): +200°F to +700°F, +93°C to +371°C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel
    • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
  • Relay: SPDT or DPDT
  • CSA, CE Mark, General Purpose, CRN
Close

Displaying prices & availability for United States in USD. Change location or currency

31 models matching criteria
6900TU16-7002
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST, 15-foot Capillary, SPDT, Approvals: CSA, CE, CCC, EAC
Available Add-Ons: Stainless Steel Tag
Contact For Inventory
$2,225.46 USD
Does not ship to US
6900TU18-7001
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST, 10-foot Capillary, SPDT, Approvals: CSA, CE, CCC, EAC
Available Add-Ons: Stainless Steel Tag
Contact For Inventory
$2,647.43 USD
Does not ship to US
6900TU12
CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST, 5` Capillary View More
  • Adjustable Set Point Range:
    • Increasing: +20°F to +120°F, -7°C to +49°C
    • Decreasing: +0°F to +113°F, -18°C to +45°C
    • Deadband: Approximately
      • At Bottom of Range: 20°F, 11°C
      • At Top of Range: 5°F, 4°C
    • Probe Temperature (Maximum): +200°F, +93°C
    • Wetted Materials:
      • Temperature Probe: 300 Stainless Steel
      • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
    • Relay: SPDT
    • CSA, CE Mark, General Purpose
    Available Add-Ons: Stainless Steel Tag
    Contact For Inventory
    6900TU14
    CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST, 5` Capillary View More
    • Adjustable Set Point Range:
      • Increasing: +80°F to +205°F, +27°C to +96°C
      • Decreasing: +60°F to +198°F, +16°C to +92°C
      • Deadband: Approximately
        • At Bottom of Range: 20°F, 11°C
        • At Top of Range: 5°F, 4°C
      • Probe Temperature (Maximum): +300°F, +149°C
      • Wetted Materials:
        • Temperature Probe: 300 Stainless Steel
        • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
      • Relay: SPDT
      • CSA, CE Mark, General Purpose, CRN
      Available Add-Ons: Stainless Steel Tag
      Contact For Inventory
      6900TU14-7001
      CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST, 10` Capillary View More
      • Adjustable Set Point Range:

        • Increasing: +80°F to +205°F, +27°C to +96°C
        • Decreasing: +60°F to +198°F, +16°C to +92°C
        • Deadband: Approximately
          • At Bottom of Range: 20°F, 11°C
          • At Top of Range: 5°F, 4°C
        • Probe Temperature (Maximum): +300°F, +149°C
        • Wetted Materials:
          • Temperature Probe: 300 Stainless Steel
          • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass
        • Relay: SPDT
        • CSA, CE Mark, General Purpose, CRN
        Available Add-Ons: Stainless Steel Tag
        Contact For Inventory
        6900TU16
        CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST, 5` Capillary View More
        • Adjustable Set Point Range:

          • Increasing: +185°F to +315°F, +85°C to +157°C
          • Decreasing: +165°F to +308°F, +74°C to +153°C
          • Deadband: Approximately
            • At Bottom of Range: 20°F, 11°C
            • At Top of Range: 5°F, 4°C
          • Probe Temperature (Maximum): +400°F, +204°C
          • Wetted Materials:
            • Temperature Probe: 300 Stainless Steel
            • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
          • Relay: SPDT
          • CSA, CE Mark, General Purpose, CRN
          Available Add-Ons: Stainless Steel Tag
          Contact For Inventory
          6900TU16-7001
          CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST, 10` Capillary View More
          • Adjustable Set Point Range:
            • Increasing: +185°F to +315°F, +85°C to +157°C
            • Decreasing: +165°F to +308°F, +74°C to +153°C
            • Deadband: Approximately
              • At Bottom of Range: 20°F, 11°C
              • At Top of Range: 5°F, 4°C
            • Probe Temperature (Maximum): +400°F, +204°C
            • Wetted Materials:
              • Temperature Probe: 300 Stainless Steel
              • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass
            • Relay: SPDT
            • CSA, CE Mark, General Purpose, CRN
            Available Add-Ons: Stainless Steel Tag
            Contact For Inventory
            6900TUM14
            CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST, 5` Capillary, DPDT View More
            • Adjustable Set Point Range:
              • Increasing: +80°F to +205°F, +27°C to +96°C
              • Decreasing: +60°F to +198°F, +16°C to +92°C
              • Deadband: Approximately
                • At Bottom of Range: 20°F, 11°C
                • At Top of Range: 5°F, 4°C
              • Probe Temperature (Maximum): +300°F, +149°C
              • Wetted Materials:
                • Temperature Probe: 300 Stainless Steel
                • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
              • Relay: DPDT
              • CSA, CE Mark, General Purpose
              Available Add-Ons: Stainless Steel Tag
              Contact For Inventory
              6900TU12-7003
              CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST, 25` Capillary View More
            • Adjustable Set Point Range:

            • Increasing: +80°F to +205°F, +27°C to +96°C

              • Decreasing: +60°F to +198°F, +16°C to +92°C

              • Deadband: Approximately

                • At Bottom of Range: 20°F, 11°C
                • At Top of Range: 5°F, 4°C

              • Probe Temperature (Maximum): +300°F, +149°C

              • Wetted Materials:

                • Temperature Probe: 300 Stainless Steel
                • Capillary Tube: 25' Stainless Steel Graphite & Lubricated Glass

              • Relay: SPDT

              • CSA, CE Mark, General Purpose
                • Available Add-Ons: Stainless Steel Tag
                Contact For Inventory
                6900TU14-7002
                CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST, 15` Capillary View More
                • Adjustable Set Point Range:
                  • Increasing: +80°F to +205°F, +27°C to +96°C
                  • Decreasing: +60°F to +198°F, +16°C to +92°C
                  • Deadband: Approximately
                    • At Bottom of Range: 20°F, 11°C
                    • At Top of Range: 5°F, 4°C
                  • Probe Temperature (Maximum): +300°F, +149°C
                  • Wetted Materials:
                    • Temperature Probe: 300 Stainless Steel
                    • Capillary Tube: 15' Stainless Steel Graphite & Lubricated Glass
                  • Relay: SPDT
                  • CSA, CE Mark, General Purpose
                  Available Add-Ons: Stainless Steel Tag
                  Contact For Inventory
                  Show More Models (20)
                  Close
                  Close

                  Specifications

                  Brand

                  Adjustment Type

                  • Field Adjustable

                  Approvals & Certifications

                  • CE
                  • CRN
                  • CRN - Alberta
                  • CRN - British Columbia
                  • CRN - Manitoba
                  • CRN - N.W. Territories
                  • CRN - Saskatchewan
                  • CSA
                  • LVD
                  • PED
                  • RoHS

                  Capillary Length

                  • 10 feet (3 meters)
                  • 15 feet
                  • 25 feet
                  • 5 feet (1.524 meters)

                  Capillary Material

                  • Stainless Steel, Graphite & Lubricated Glass Fiber

                  Deadband, Approximate - Bottom of Range

                  • 11° to 14° C (52° to 57° F)
                  • -7° to -4° C (20° to 25° F)

                  Deadband, Approximate - Top of Range

                  • -15° to -12° C (5° to 10° F)
                  • 4° to 5° C (39° to 41° F)

                  Electrical - Free Leads

                  • 18" (45 cm) Free Leads
                  • 18" (45 cm) Teflon Leadwire

                  Electrical Connectors

                  • 1/2" NPT Male
                  • 4-Blades, Conforms to DIN-43650

                  Electrical Contacts

                  • Gold
                  • Silver

                  Electrical Enclosure Certification

                  • CSA Listed by Canadian Standard Association (CSA) Testing Laboratories (File No. LR22665) for Enclosure

                  Electrical Rating

                  • 1 A at 125 Vac, 50/60 Hz
                  • 11 A at 125/250 Vac

                  Enclosure, Body Material

                  • Aluminum
                  • Stainless Steel

                  Environmental Protection

                  • IP54
                  • IP66
                  • NEMA 13
                  • NEMA 4, 13 / IP54, 66

                  Maximum Sensor, Probe Temperature

                  • 93° to 371° C (200° to 700° F)

                  NACE & NIST

                  • NACE

                  NPT Connection

                  • 1/2" NPT Male

                  Operating Temperature

                  • -40° to 86° C (-40° to 187° F)

                  O-Ring Material

                  • None

                  Proof Pressure

                  • bar: 103.4
                  • kPa: 10,342
                  • psig: 1,500

                  Sensor, Probe Material

                  • 300 Stainless Steel

                  Set Point - Decreasing

                  • -18° to 338° C
                  • -18° to 338° C (0° to 640° F)

                  Set Point - Increasing

                  • -7° to 343° C
                  • -7° to 343° C (20° to 650° F)

                  Standard Features

                  • Weatherproof

                  Switch Type

                  • DPDT
                  • SPDT

                  System Pressure

                  • bar: 86
                  • kPa: 8,618
                  • psig: 1,250
                  Close

                  Typical Applications

                  • Power Generation
                  • Rail Car
                  • Fluid Management
                  • Manufacturing Process
                  • Utilities, Water Treatment and Waste
                  • Chemical Refining and Processing
                  • Heavy Vehicles
                  • Safety Systems
