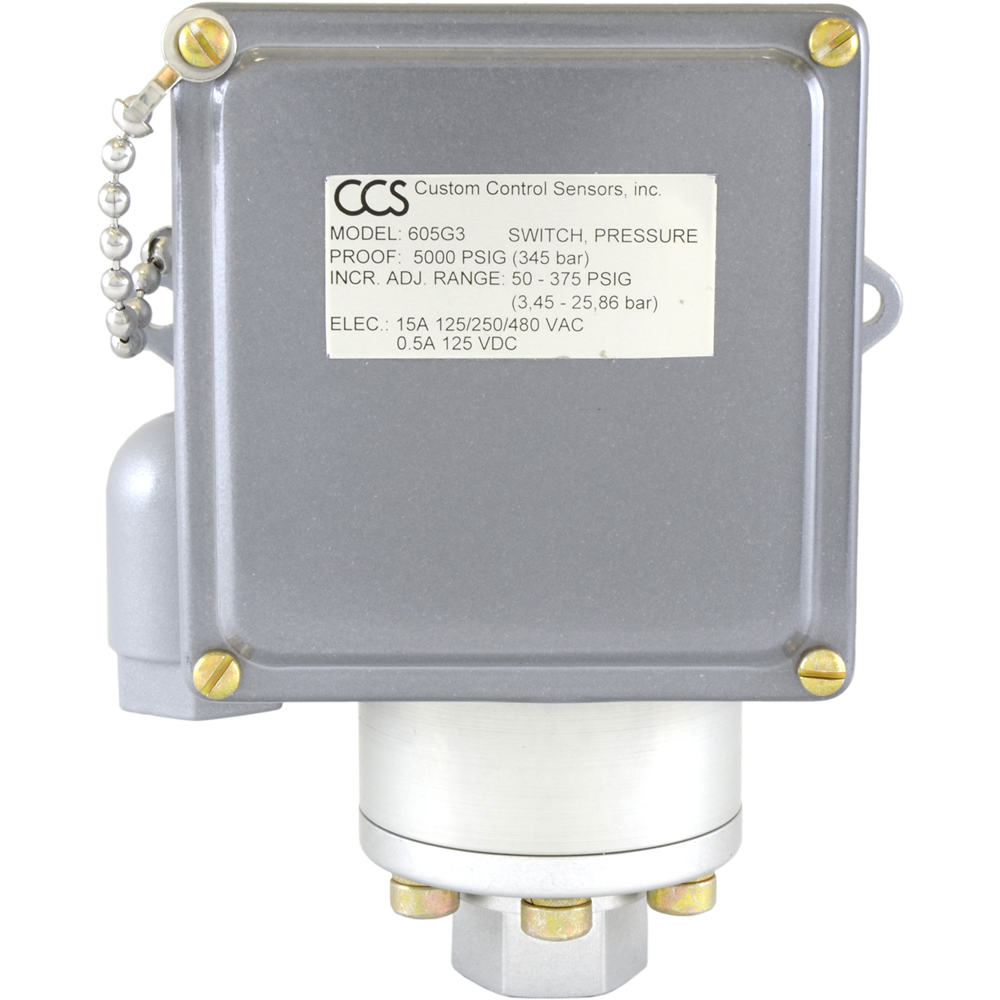

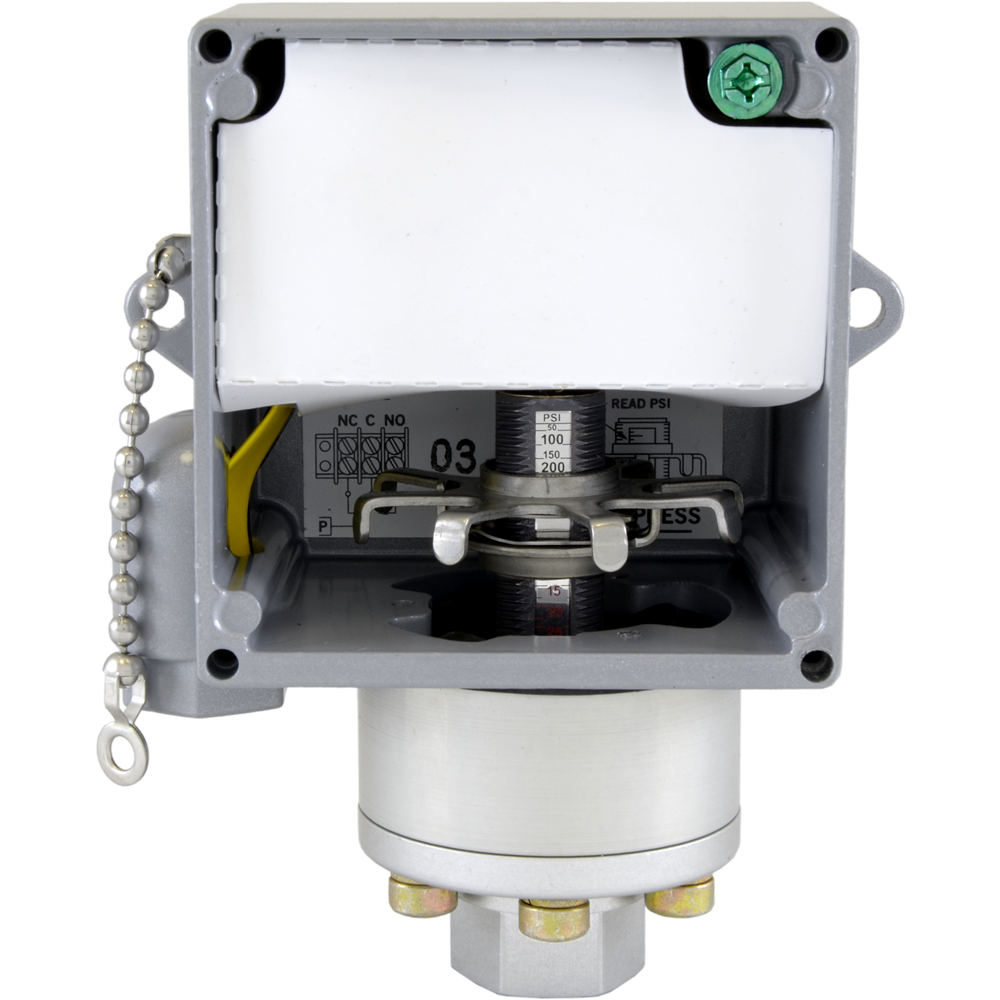

605G Series Pressure Switch

Brand: Custom Control Sensors
The 605G Series is a weather resistant, general purpose gage pressure switch.

It is modelled after the 604 Series, designed specifically for high ingress and corrosion resistant applications.

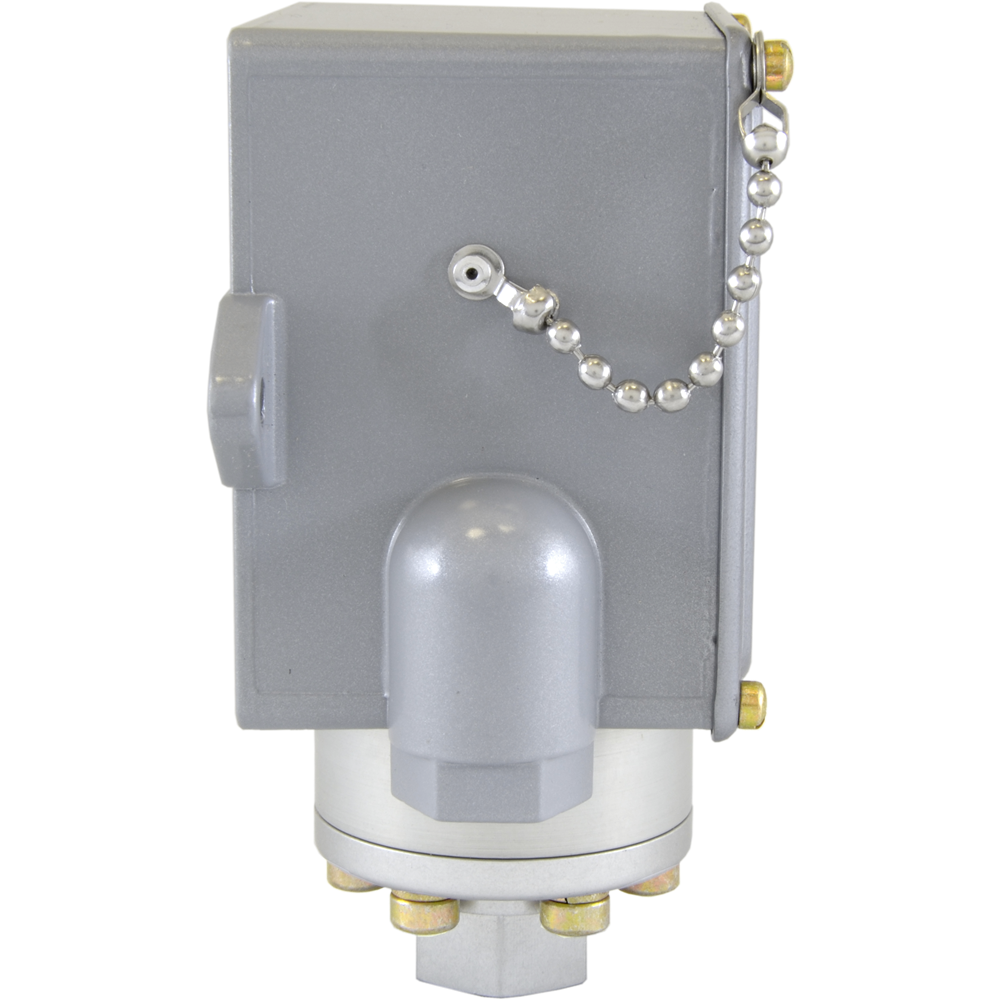

It has a modified face down side port electrical connection preventing any liquids from seeping into the inner workings of the switch.

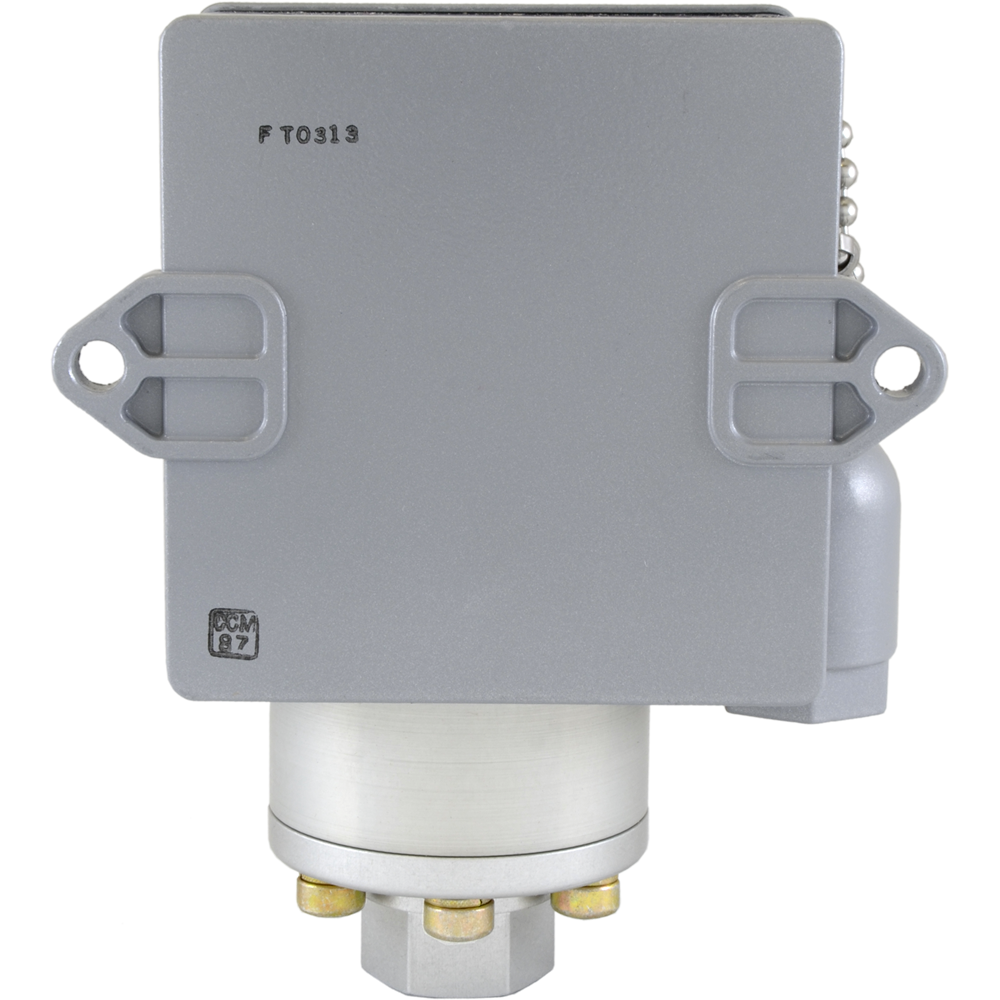

The 605G Series is easily mounted to bulkheads and ideal for extreme wet conditions, rated to NEMA 4X and IP66.
Features
  • Adjustable Set Point Range:
    • Increasing: 1 to 1000 psig, 6.89 to 6894.7 kPa, 0.07 to 68.9 bar
    • Decreasing: 0.3 to 935 psig, 2.1 to 6446.5 kPa, 0.02 to 64.5 bar
  • Deadband: Approximately 0.7 to 65 psi, 4.9 to 448.1 kPa, 0.05 to 4.5 bar
  • System Pressure (Maximum): 500 to 3000 psig, 3337.4 to 20,684.2 kPa, 34.5 to 207 bar
  • Proof Pressure: 750 to 5000 psig, 5171.1 to 34,473.7 kPa, 51.7 to 345 bar
  • Wetted Materials:

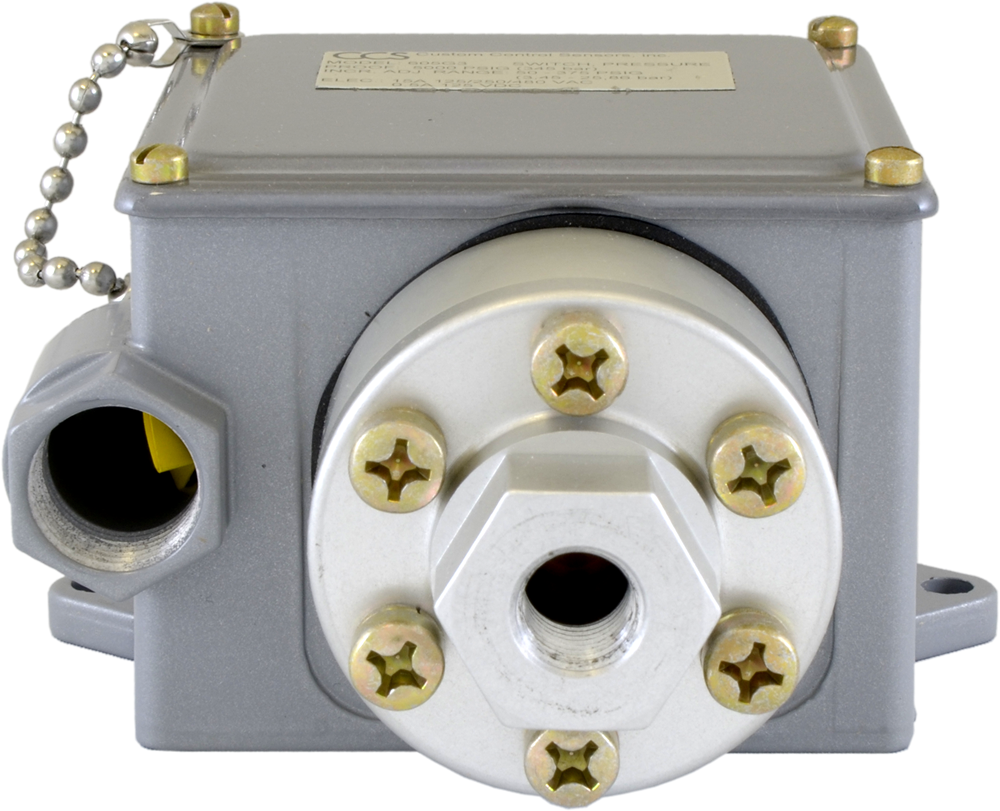

    • Pressure Port: 1/4" Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • CRN, CE Mark, General Purpose
show more
The 605G Series is a weather resistant, general purpose gage pressure switch.

It is modelled after the 604 Series, designed specifically for high ingress and corrosion resistant applications.

It has a modified face down side port electrical connection preventing any liquids from seeping into the inner workings of the switch.

The 605G Series is easily mounted to bulkheads and ideal for extreme wet conditions, rated to NEMA 4X and IP66.
Features
  • Adjustable Set Point Range:
    • Increasing: 1 to 1000 psig, 6.89 to 6894.7 kPa, 0.07 to 68.9 bar
    • Decreasing: 0.3 to 935 psig, 2.1 to 6446.5 kPa, 0.02 to 64.5 bar
  • Deadband: Approximately 0.7 to 65 psi, 4.9 to 448.1 kPa, 0.05 to 4.5 bar
  • System Pressure (Maximum): 500 to 3000 psig, 3337.4 to 20,684.2 kPa, 34.5 to 207 bar
  • Proof Pressure: 750 to 5000 psig, 5171.1 to 34,473.7 kPa, 51.7 to 345 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • CRN, CE Mark, General Purpose
6 models matching criteria
605G1
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 1 to 16 psig, 6.89 to 110.3 kPa, 0.07 to 1.1 bar
    • Decreasing: 0.3 to 15.3 psig, 2.1 to 105.4 kPa, 0.02 to 1.05 bar
  • Deadband: Approximately 0.7 psi, 4.83 kPa, 0.05 bar
  • System Pressure (Maximum): 500 psig, 3337.38 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • CRN, CE Mark, General Purpose
Contact For Inventory
$395.46 USD
Does not ship to US
605G2
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 8 to 75 psig, 55.2 to 517.1 kPa, 0.6 to 5.2 bar
    • Decreasing: 3 to 70 psig, 20.7 to 482.6 kPa, 0.2 to 4.8 bar
  • Deadband: Approximately 5 psi, 34.47 kPa, 0.34bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • CRN, CE Mark, General Purpose
Contact For Inventory
$395.46 USD
Does not ship to US
605G3
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 50 to 375 psig, 344.8 to 2585.5 kPa, 3.5 to 25.9 bar
    • Decreasing: 22 to 347 psig, 151.7 to 2392.4 kPa, 1.5 to 23.9 bar
  • Deadband: Approximately 28 psi, 193.05 kPa, 1.9 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna
  • Relay: SPDT
  • CRN, CE Mark, General Purpose
Contact For Inventory
$395.46 USD
Does not ship to US
605G5
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 330 to 1000 psig, 2275.3 to 6894.7 kPa, 22.8 to 68.9 bar
    • Decreasing: 265 to 935 psig, 1827.2 to 6446.5 kPa, 18.3 to 64.5 bar
  • Deadband: Approximately 65 psi, 448.16 kPa, 4.5 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • CRN, CE Mark, General Purpose
Contact For Inventory
$395.46 USD
Does not ship to US
605G11
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 20 to 150 psig, 137.9 to 1034.2 kPa, 1.4 to 10.3 bar
    • Decreasing: 8 to 138 psig, 55.2 to 951.4 kPa, 0.6 to 9.5 bar
  • Deadband: Approximately 12 psi, 82.74 kPa, 0.8 bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • CRN, CE Mark, General Purpose
Contact For Inventory
$585.44 USD
Does not ship to US
605GM2
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, DPDT View More
  • Adjustable Set Point Range:
    • Increasing: 8 to 75 psig, 55.2 to 517.1 kPa, 0.6 to 5.2 bar
    • Decreasing: 3 to 70 psig, 20.7 to 482.6 kPa, 0.2 to 4.8 bar
  • Deadband: Approximately 5 psi, 34.47 kPa, 0.34bar
  • System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
  • Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: DPDT
  • CRN, CE Mark, General Purpose
Contact For Inventory
$723.46 USD
Does not ship to US

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Saskatchewan
  • EMC
  • LVD
  • PED
  • RoHS

Deadband, Approximate

  • bar: 0.05 to 4.5
  • kPa: 4.9 to 448.1
  • psig: 0.7 to 65

Diaphragm Material

  • Polyimide

Electrical Connectors

  • 1/2" NPT Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 4X, 13 / IP54, 66
  • NEMA 4X
  • Non-Hazardous Area

Manual Reset

  • Manual Reset on Increasing Pressure

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N
  • Ethylene Propylene (EPR)
  • Viton

Proof Pressure

  • bar: 51.7 to 345
  • kPa: 5,171 to 34,473
  • psig: 750 to 5,000

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.02 to 64.5
  • kPa: 2.1 to 6,446
  • psig: 0.3 to 935

Set Point - Increasing

  • bar: 0.07 to 68.9
  • kPa: 6.9 to 6,895
  • psig: 1 to 1,000

Standard Features

  • Internal Case Ground
  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 34.5 to 207
  • kPa: 3,447 to 20,684
  • psig: 500 to 3,000

Typical Applications

  • Chemical Refining & Processing
  • Fluid Management
  • Heavy Vehicles
  • Manufacturing Process
  • Rail Car
  • Power Generation
  • Safety Systems
  • Utilities, Water Treatment & Waste
