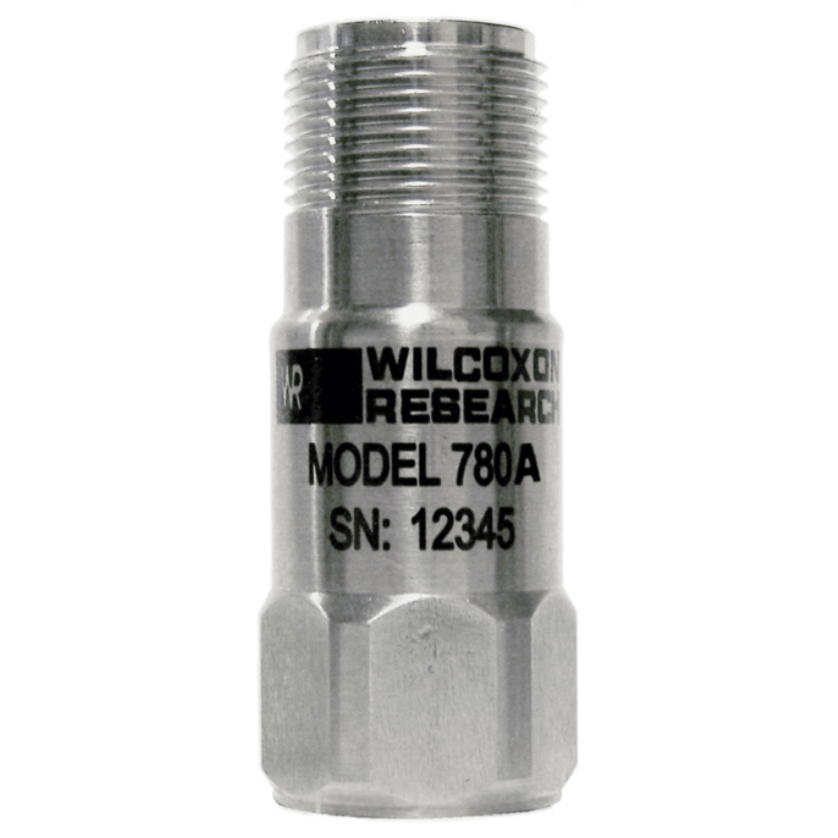

Model 780A General Purpose Compact Accelerometer

Brand: Wilcoxon Sensing Technologies
Wilcoxon’s top-exit 100 mV/g sensor is designed for monitoring areas with limited space. The general-purpose accelerometer is ideal for monitoring machine vibration on a wide range of rotating equipment such as motors, pumps, fans, compressors, turbines and generators.

A 316L stainless steel casing provides rugged durability for most extreme environments. The sensing element is housed in a case-isolated Faraday shield, providing maximum protection against ground loops and RF interference.
Features
  • Lightweight for walkaround programs
  • Prevents ground loops in permanent mount applications with proper cabling
  • Can be submersed with proper connector
  • Hermetically sealed
  • ESD protected
  • Reverse wiring protection
  • Manufactured in an approved ISO 9001 facility
show more
Wilcoxon’s top-exit 100 mV/g sensor is designed for monitoring areas with limited space. The general-purpose accelerometer is ideal for monitoring machine vibration on a wide range of rotating equipment such as motors, pumps, fans, compressors, turbines and generators.

A 316L stainless steel casing provides rugged durability for most extreme environments. The sensing element is housed in a case-isolated Faraday shield, providing maximum protection against ground loops and RF interference.
Features
  • Lightweight for walkaround programs
  • Prevents ground loops in permanent mount applications with proper cabling
  • Can be submersed with proper connector
  • Hermetically sealed
  • ESD protected
  • Reverse wiring protection
  • Manufactured in an approved ISO 9001 facility

Specifications

Approvals & Certifications

  • ISO 9001

Approvals & Certifications

  • CE

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Cable (J10 / J9T2A)

Element

  • Sensing Element Design: PZT, Shear

Enclosure, Body Material

  • 316L Stainless Steel

Frequency

  • Frequency Response (± 10%): 1 to 9,000 Hz
  • Frequency Response (± 3 dB): 0.5 to 14,000 Hz
  • Frequency Response (± 5%): 3 to 5,000 Hz
  • Resonance Frequency: 30 kHz

Mounting

  • 1/4-28 UNF Tapped Hole

Noise

  • Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 700 µg
  • Electrical Noise, Equivalent G (Spectral: 10 Hz): 10 µg/√Hz
  • Electrical Noise, Equivalent G (Spectral: 100, 1,000 Hz): 5 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum 100 Ω

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range: 80 G Peak

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity, Maximum
  • Electromagnetic Sensitivity, Equivalent G, Maximum
  • Sensitivity, ± 5%, 25° C (77° F): 100 mV/g
  • Transverse Sensitivity: Maximum 5% of axial

Shock

  • Shock Limit: 5,000 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage: 12 Vdc
