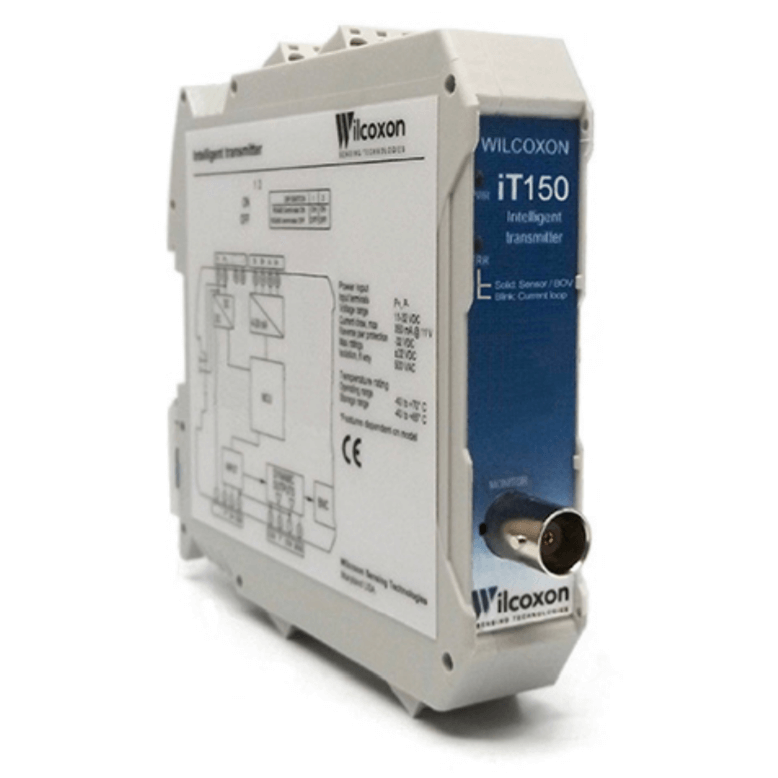

Model iT150 Series 4-20 mA Vibration Transmitter Module

Brand: Wilcoxon Sensing Technologies
Features:
  • Temperature measurement
  • Slim 22.5 mm case
  • Reverse wiring protection
  • ESD protection
  • Front panel BNC for dynamic signal output
show more
Images are representations only.
Features:
  • Temperature measurement
  • Slim 22.5 mm case
  • Reverse wiring protection
  • ESD protection
  • Front panel BNC for dynamic signal output

Model iT150 Series

Input Type

Sensitivity

Detector Type

Output Type

Units

Full Scale

Full Scale

Full Scale

Full Scale

Full Scale

Full Scale

Minimum Frequency

Maximum Frequency

Specifications

Accuracy

  • ± 0.2% of Full Scale

Ambient Temperature Range

  • -40° to 70° C (-40° to 158° F)

Approvals & Certifications

  • CE

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Frequency

  • Frequency Response (Acceleration): 0.2 Hz to 20 kHz (-3 dB, -0.1 dB)
  • Frequency Response (Velocity): 0.2 Hz to 5 kHz

Input

  • Maximum 20 Volts peak-to-peak

Load Resistance

  • Maximum 500 Ω

Mounting

  • Snap Into 35 mm DIN Rail

Operating Temperature

  • -40° to 70° C (-40° to 158° F)

Output

  • Output, Buffered Dynamic (Noise RTO, Broadband, 1 Hz to 10 kHz, RMS): ≤ 0.0001 V

Power

  • Current Draw: 158 mA at 24 Vdc (3.8 W, Maximum)
  • Sensor Powering (Constant-Current): 4.5 mA, ± 20%
  • Sensor Powering (Open Circuit Voltage): 24 Vdc, ± 5%
  • Voltage (Vin): 11-32 Vdc

Sensitivity

  • Sensor Sensitivities Accepted (Accelerometer): 10 to 500 mV/g
  • Sensor Sensitivities Accepted (Dual Output): 10 mV / °C
  • Sensor Sensitivities Accepted (Piezovelocity): 10 to 500 mV/ips

Sensor, Probe Type

  • Sensor Typical: IEPE Accelerometers, IEPE Piezo Velocity Transducers, IEPE Dual Output (Vibration & Temperature) Sensors

Turn-On Time

  • < 30 seconds
