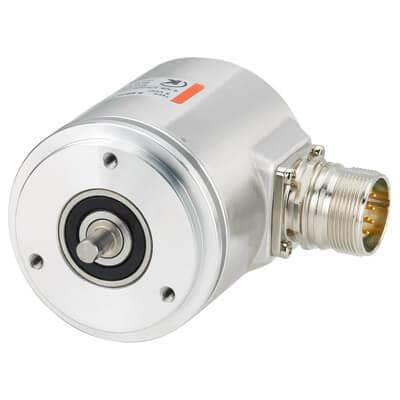

580X (Shaft) Incremental Encoder

Brand: Turck, Inc.
Features:
  • Sturdy model to industry standard, ø58 mm housing
  • Many variations, also customized versions
  • Short-circuit proof outputs
  • Reverse connection protection (at UB = 10-30 Vdc)
  • Highly flexible PUR-cable
  • Resolution up to 36,000 ppr
  • High shaft load
  • show more
    Images are representations only.
    Features:
  • Sturdy model to industry standard, ø58 mm housing
  • Many variations, also customized versions
  • Short-circuit proof outputs
  • Reverse connection protection (at UB = 10-30 Vdc)
  • Highly flexible PUR-cable
  • Resolution up to 36,000 ppr
  • High shaft load
  • Specifications

    Brand

    Approvals & Certifications

    • CE Requirements According to EN 61000-6-2, EN 61000-6-4, EN 61000-6-3
    • RoHS Compliant According to EU Guideline 2002/95/EG
    • UL (C,US): File 224618

    Cable Length

    • 3 feet (1 Meter)

    Cable Material

    • Polyurethane (PUR)

    Capacity

    • Axial Load Capacity of Shaft: 40 N
    • Radial Load Capacity of Shaft: 80 N

    Communication

    • RS-422 (TTL-Compatible)

    Consumption

    • Power Consumption (No Load) with Inverted Signal for Push-Pull: 80 mA Typical (150 mA - Maximum)
    • Power Consumption (No Load) with Inverted Signal for Rs-422 (TTL Compatible): 40 mA Typical (90 mA - Maximum)
    • Power Consumption (No Load) with Inverted Signals for Sine Wave: 65 mA Typical (110 mA - Maximum)
    • Power Consumption (No Load) without Inverted Signal for Push-Pull: 55 mA Typical (125 mA - Maximum)

    Diameter

    • Clamping & Synchro Flange: 2.28" (58 mm)

    Electrical Connectors

    • 10-Pin Plug, "MIL"-Specified without Mating Connector, Radial
    • 7-Pin Plug, "MIL"-Specified without Mating Connector, Radial
    • Axial 12-Pin Plug without Mating Connector

    Electrical Protection

    • Short Circuit Proof Outputs

    Environmental Protection

    • IP65

    Flange Type - Other

    • Clamping Flange
    • Synchro Flange

    Frequency

    • -3 dB Frequency: ≤ 180 kHz
    • Pulse Frequency: 300 kHz, Maximum

    Load

    • Permissible Load / Channel for Push-Pull: ± 30 mA - Maximum
    • Permissible Load / Channel for RS-422 (TTL Compatible): ± 20 mA - Maximum

    Measuring Time

    • Rise & Fall Time for Push-Pull: 1 microsecond, Maximum
    • Rise & Fall Time for RS-422 (TTL-Compatible): 200 Nanoseconds, Maximum

    Operating Temperature

    • -20° to 105° C (-4° to 221° F) for Model 5803
    • Constant Flexing: -20° to 70° C (-4° to 158° F)
    • Non-Condensing, for Continuous Operation 3,000 Min⁻¹, Ventilated: -20° to 85° C (-4° to 185° F)

    Pulse Range

    • 25 to 36,000 Pulses

    Reverse Polarity Protection

    • Yes (Only for 10-30 Vdc)

    Shaft Material

    • Stainless Steel

    Shock

    • Shock Resistance According to DIN-IEC 68-2-27: 1,000 m/sec², 6 milliseconds

    Speed

    • Speed with Seal: Maximum

    Supply Voltage

    • RS-422 (TTL Compatible) & Push-Pull: 5-30 Vdc
    • RS-422 (TTL Compatible) & Sine Wave: 5 V (± 5%)
    • RS-422 (TTL Compatible), Push-Pull & Sine Wave: 10-30 Vdc

    Torque

    • Starting Torque: < 0.01 Nm

    Vibration

    • Vibration Resistance According to IEC 68-2-6: 100 m/sec², 10 to 2,000 Hz
