SK-SQ Limit Switch Box Series

Brand: Soldo Controls - by Rotork
Request Information
Favorite

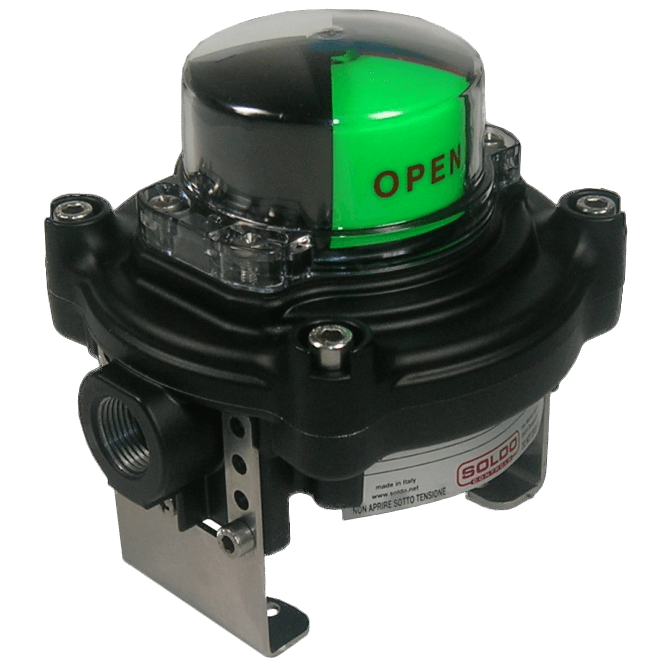

Compact limit switch box, designed for hazardous areas, provides a visual and electrical remote position feedback on automated valves.

Available in either die cast aluminum or 316L stainless steel, the explosionproof enclosure matches the Exd IIC T6 standards.

The SK-SQ switch box series offer a ready to mount solution thanks to the integrated Namur mounting kit.

The ideal compact solution for oil and gas, both on-shore and off-shore, and petrochemical industries.
Features
  • Twin shaft design, ensuring a complete sealed device. The shaft is split in two parts, each fitted and sealed into the body and cover for the best weather insulation even during opening operation
  • Integrated Mounting Kit for Namur Actuators
  • Two Cable Entries, Either Metric or Imperial
  • Enhanced Corrosion Resistance Due to the Thick Polyester Powder Coating on Aluminum Housings
  • 316L Stainless Steel Housing for the Maximum Protection in Hostile and Corrosive Environments (SQ Series)
  • Enhanced Corrosion Resistance Thanks to the Thick Polyester Powder Coating on Aluminum Housings (SK Series)
  • Easy Wiring through the Terminal PCB Board
  • NOVA V3 Switch option ensures extreme durability and high power switching capabilities
  • Concentric flame path design providing a self-centering system aligning shafts for a precise engagement
  • Captive Bolts on the Screwed Lid
show more
Compact limit switch box, designed for hazardous areas, provides a visual and electrical remote position feedback on automated valves.

Available in either die cast aluminum or 316L stainless steel, the explosionproof enclosure matches the Exd IIC T6 standards.

The SK-SQ switch box series offer a ready to mount solution thanks to the integrated Namur mounting kit.

The ideal compact solution for oil and gas, both on-shore and off-shore, and petrochemical industries.
Features
  • Twin shaft design, ensuring a complete sealed device. The shaft is split in two parts, each fitted and sealed into the body and cover for the best weather insulation even during opening operation
  • Integrated Mounting Kit for Namur Actuators
  • Two Cable Entries, Either Metric or Imperial
  • Enhanced Corrosion Resistance Due to the Thick Polyester Powder Coating on Aluminum Housings
  • 316L Stainless Steel Housing for the Maximum Protection in Hostile and Corrosive Environments (SQ Series)
  • Enhanced Corrosion Resistance Thanks to the Thick Polyester Powder Coating on Aluminum Housings (SK Series)
  • Easy Wiring through the Terminal PCB Board
  • NOVA V3 Switch option ensures extreme durability and high power switching capabilities
  • Concentric flame path design providing a self-centering system aligning shafts for a precise engagement
  • Captive Bolts on the Screwed Lid
Close

Displaying prices & availability for United States in USD. Change location or currency

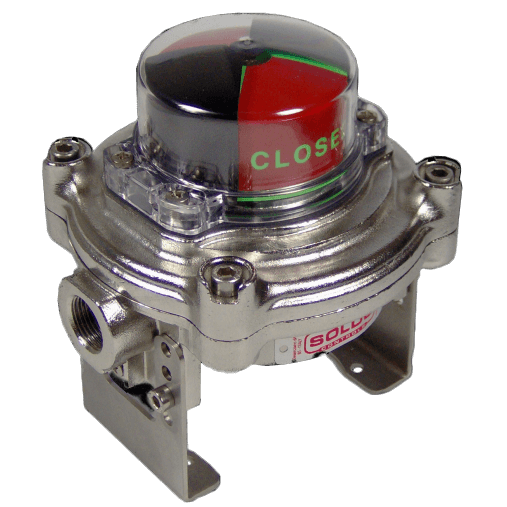

SQN120E-20X23A7
