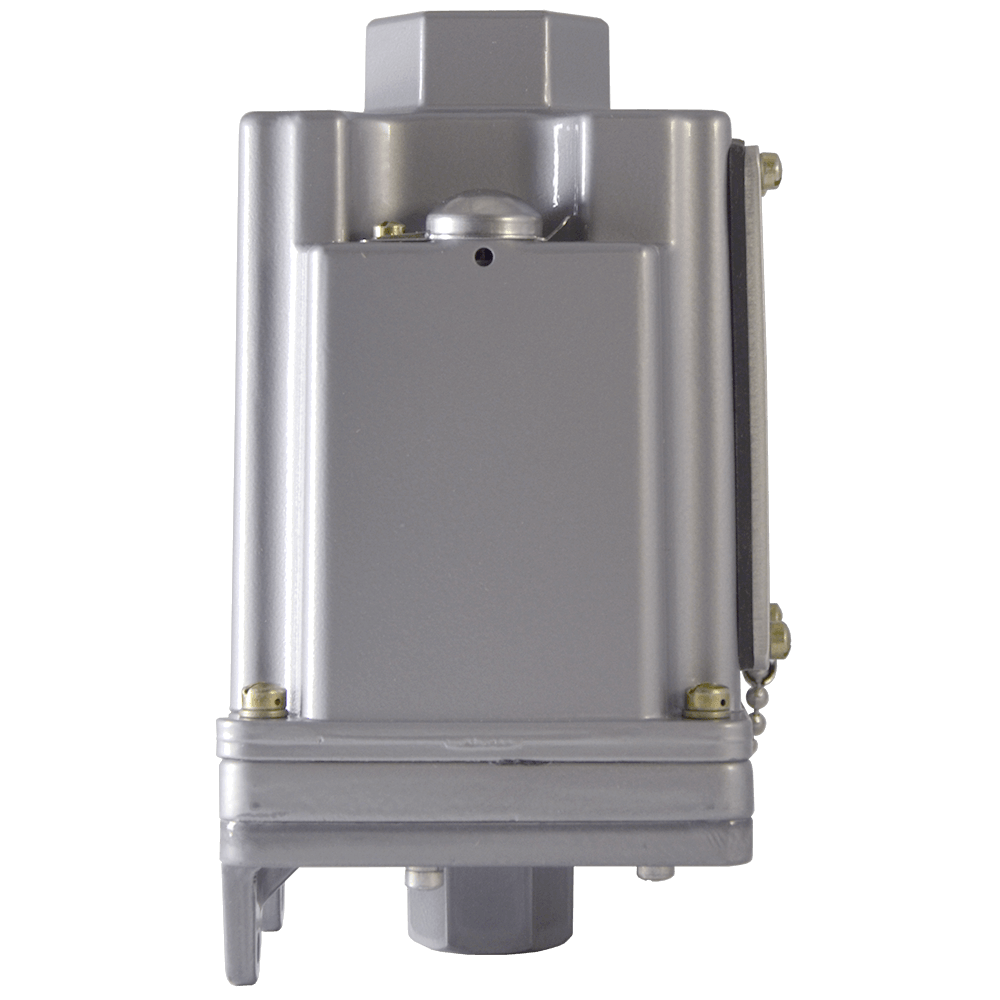

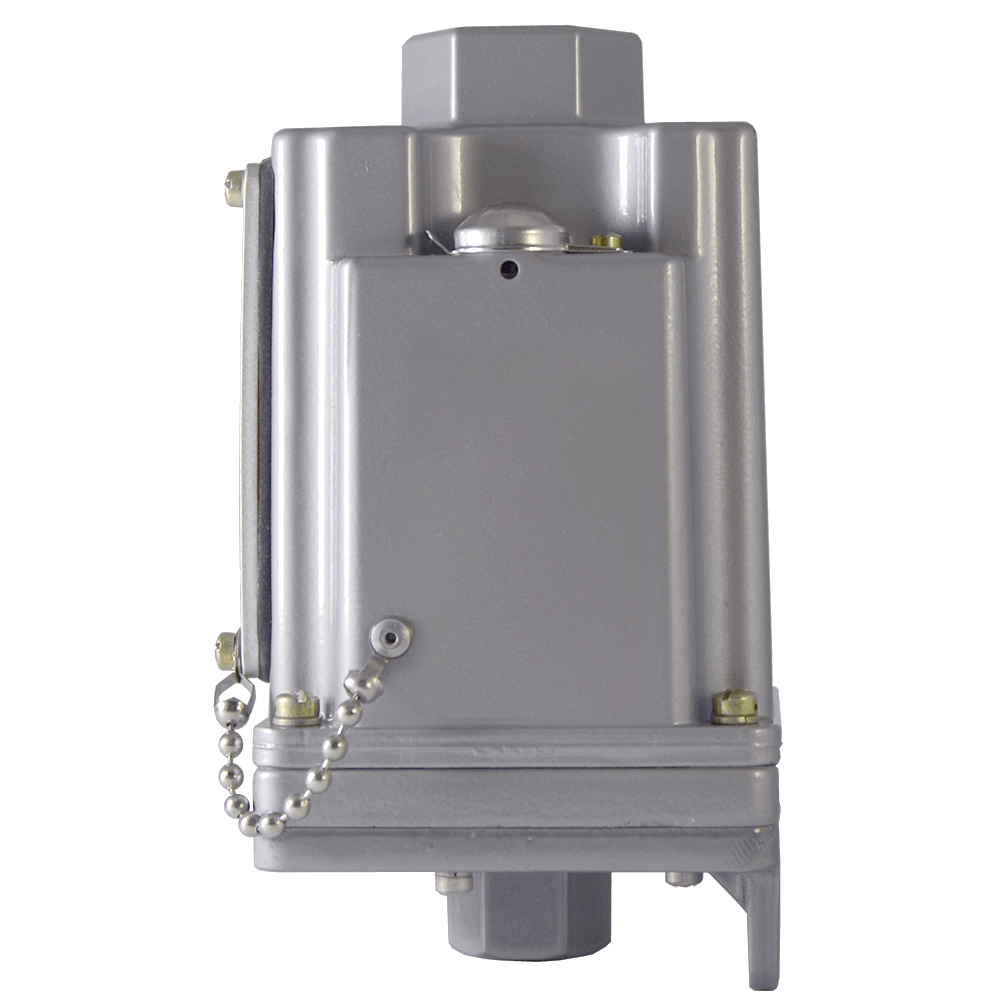

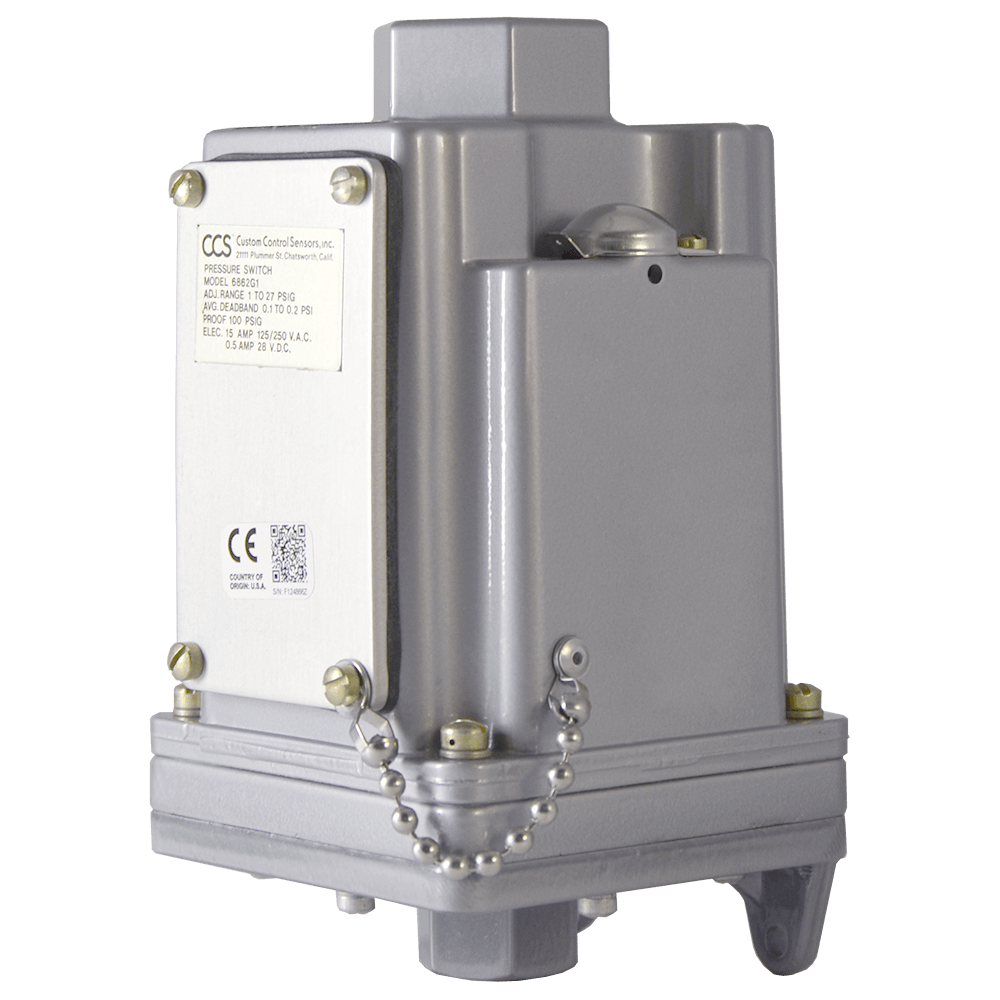

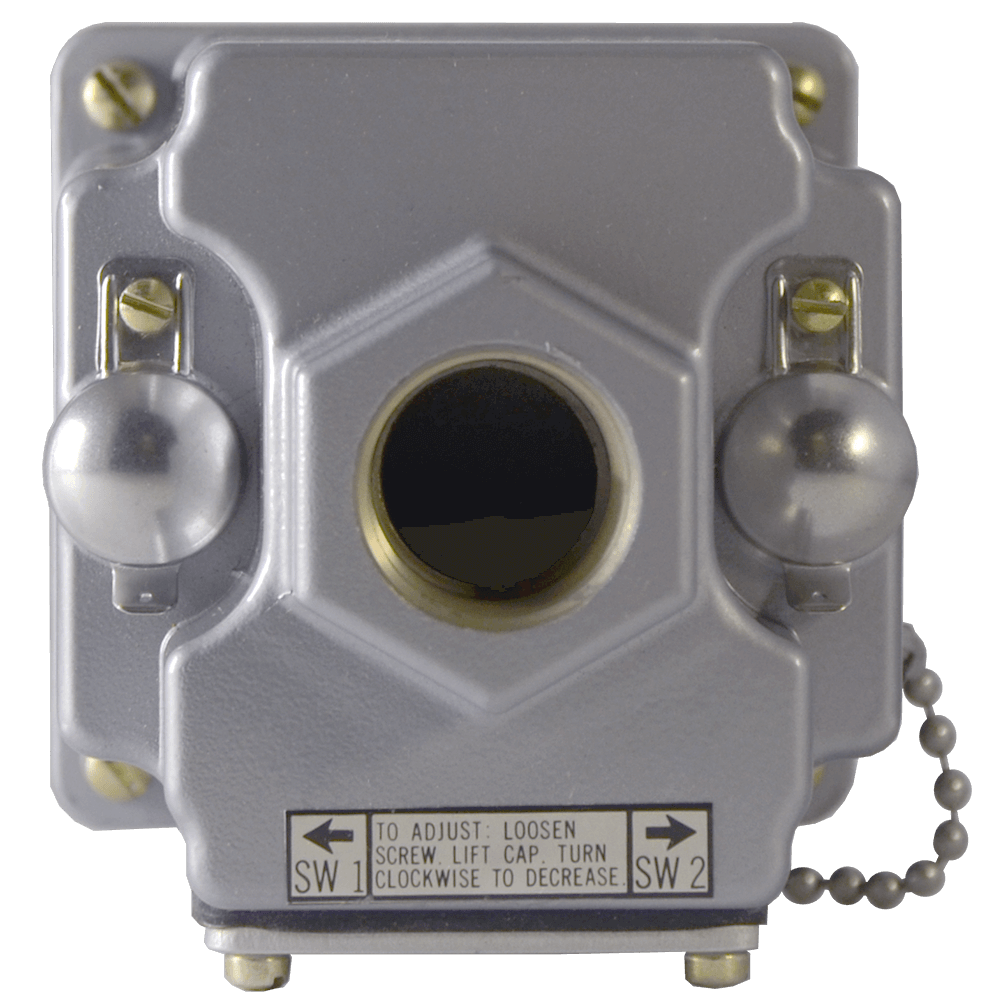

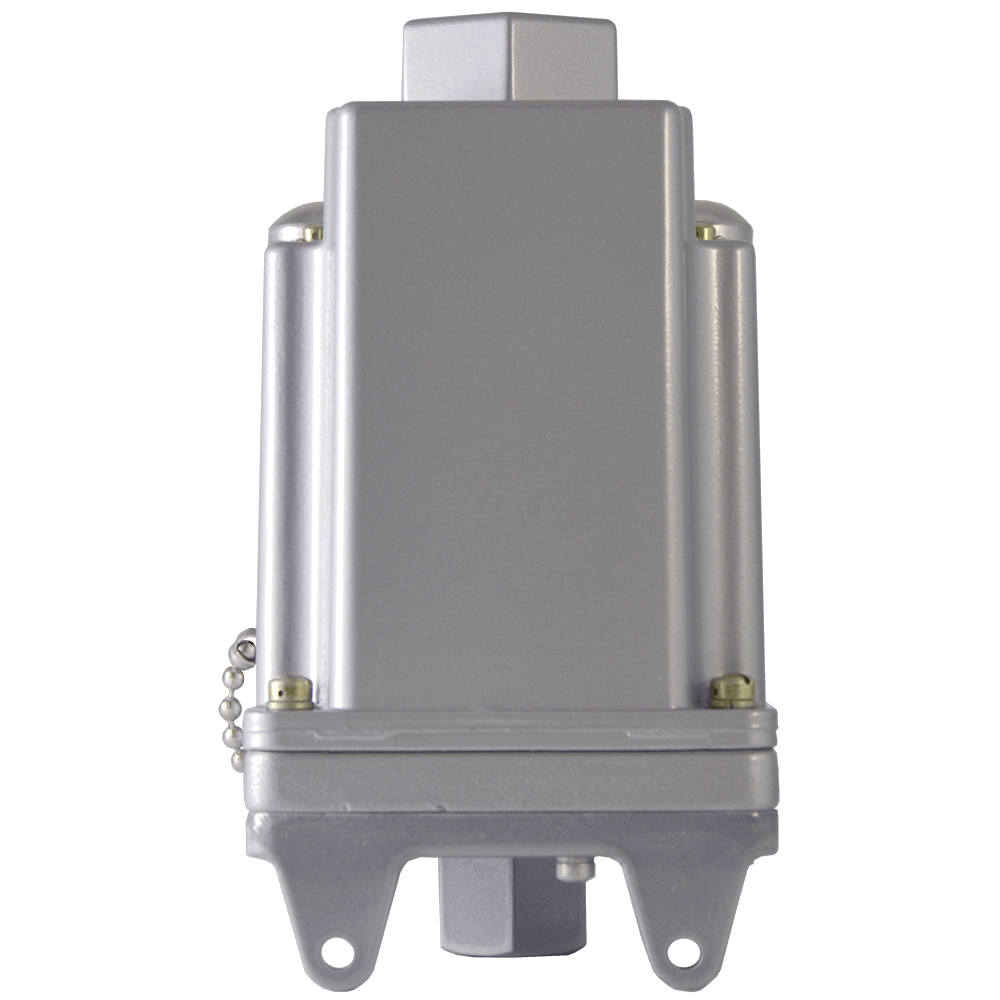

6860G Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Rigid and internally adjustable for convenient field set point adjustment.
  • Repeatable and stable set points.
  • High cycle life.
  • High over-pressure capability.
  • Allows for dual set points.
show more
Features
  • Rigid and internally adjustable for convenient field set point adjustment.
  • Repeatable and stable set points.
  • High cycle life.
  • High over-pressure capability.
  • Allows for dual set points.
Close

Displaying prices & availability for United States in USD. Change location or currency

6860G0
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 5 to 80 Inches H20, 12.4 to 199.3 mbar
    • Decreasing: 1.5 to 76.5 Inches H20, 3.74 to 191 mbar

  • Deadband: Approximately: 2.5 Inches H20, 6.23 mbar
  • System Pressure (Maximum): 35 psig, 241.32, 2.41 bar
  • Proof Pressure: 50 psig, 344.74, 3.45bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • CE Mark, Genera Purpose
Contact For Inventory
6860G1
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 1-27psi, 6.9-186.1 kPa, 0.069-1.86 bar
    • Decreasing: 0.95-26.75 psi, 6.6-184.4 kPa, 0.065-1.84 bar

  • Deadband: 0.1-0.2 psi, 0.69-1.37 kPa, 6.89-13.79 mbar
  • System Pressure (Maximum): 75 psi, 517.11 kPa, 5.17 bar
  • Proof Pressure: 100 psi, 689.47 kPa, 6.89 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • CE Mark, Genera Purpose
Contact For Inventory
6860G3
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 3-100 psi
    • Decreasing: 2.8-98.5 psi

  • Deadband: 0.2-1 psi,
  • System Pressure (Maximum): 200 psi, 13.79 bar
  • Proof Pressure: 250 psi
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • CE Mark, Genera Purpose
Contact For Inventory
Close
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Saskatchewan
  • EMC
  • LVD
  • RoHS

Deadband, Approximate

  • Inches WC: 2.5
  • mbar: 6.23 to 68.9
  • psi: 0.1 to 1

Diaphragm Material

  • Polyimide

Electrical Connectors

  • 3/4” NPT Female

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • Gold Contacts Option: 1 A Max.
  • SPDT: 15 A at 125/250/480 Vac Res, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • NEMA 13
  • NEMA 4
  • Non-Hazardous Area

NPT Connection

  • 1/4” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N

Proof Pressure

  • bar: 3.45 to 17.24
  • kPa: 344.8 to 1,724
  • psig: 50 to 250

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.065 to 6.791
  • Inches WC: 1.5 to 76.5
  • kPa: 06.55 to 679.1
  • mbar: 3.74 to 191
  • psi: 00.95 to 98.5

Set Point - Increasing

  • bar: 0.069 to 6.895
  • Inches WC: 5 to 80
  • kPa: 6.895 to 689.5
  • mbar: 12.4 to 199.3
  • psig: 1 to 100

Standard Features

  • Weatherproof

System Pressure

  • bar: 2.41 to 13.79
  • kPa: 241.4 to 1,379
  • psig: 35 to 200
