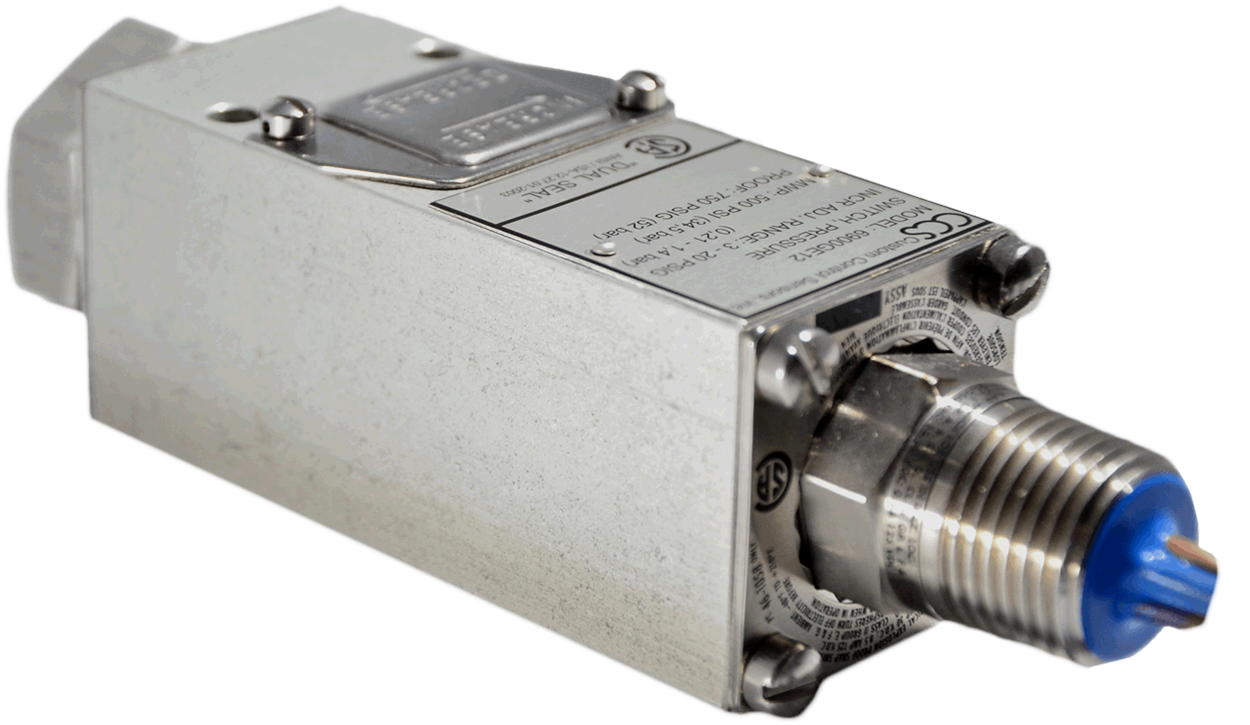

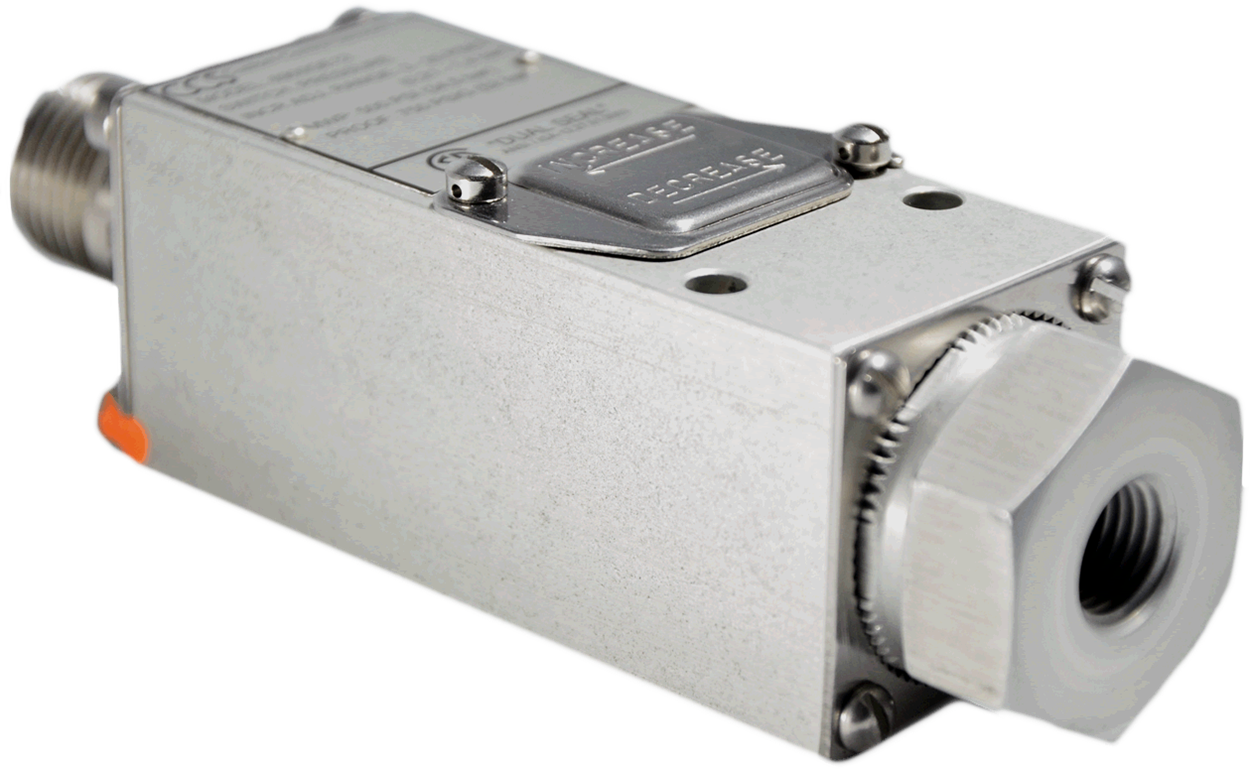

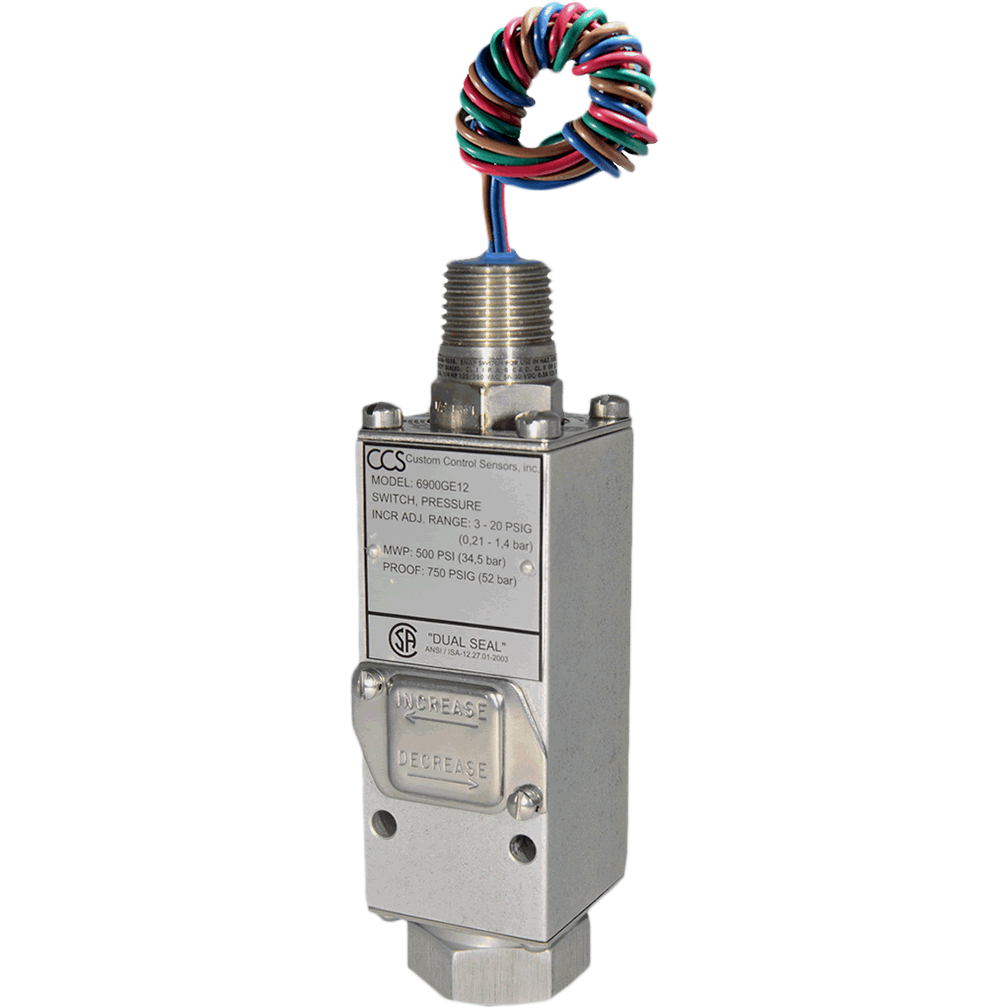

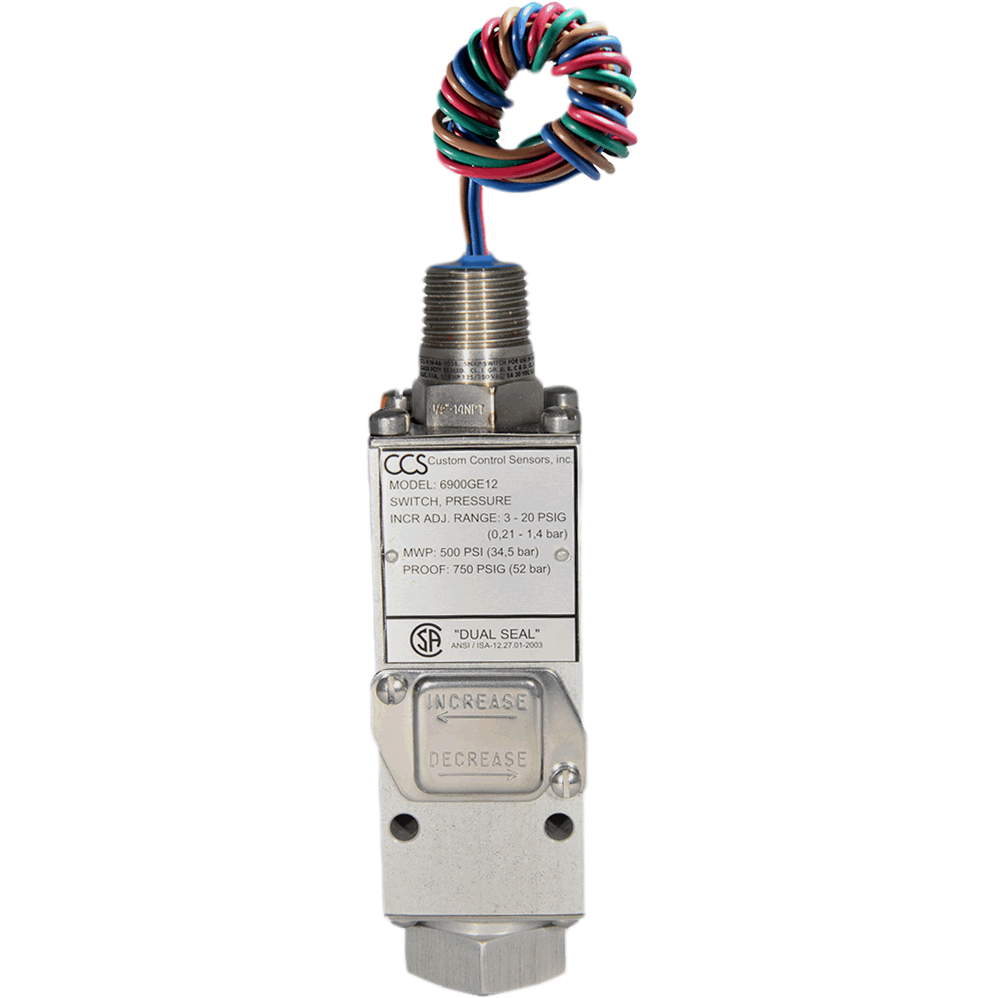

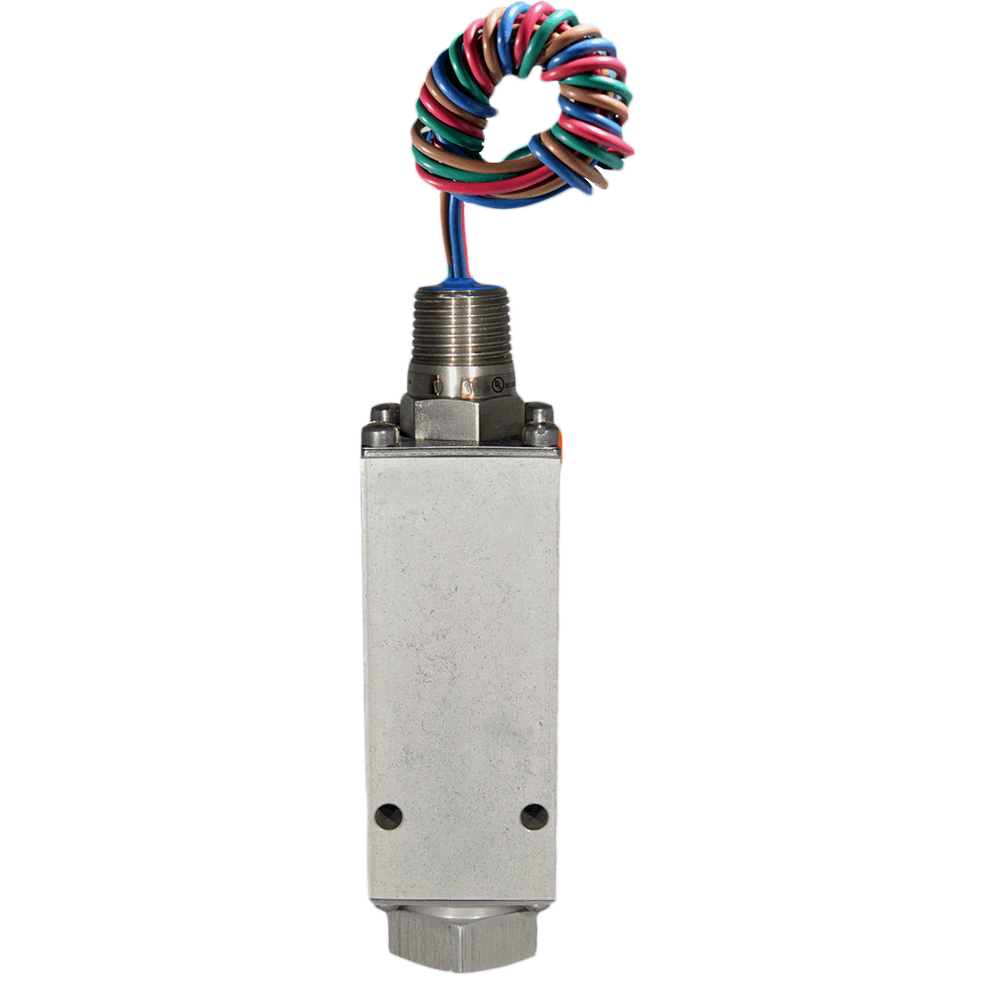

6900GE Series Pressure Switch

Brand: Custom Control Sensors, LLC
Does not ship to Virginia, United States
The hazardous locations 6900GE Series is the most popular, all-around, all-aluminum gage pressure switch.

The series is UL/CSA explosion proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G certified. NEMA 4X and IP66 rating is optimum for wet conditions.

It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability.

It comes with high over-pressure capabilities and still relatively compact in size to conveniently mount on panels. It meets the demand for all applications commercial, industrial and otherwise.
Features
  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 20.7 to 23,442.15 kPa, 0.21 to 234 bar
    • Decreasing: 1 to 3180 psig, 6.9 to 21,925.3 kPa, 0.07 to 219 bar
  • Deadband: Approximately 2 to 220 psi, 13.8 to 1516.8 kPa, 0.14 to 5.2 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3447.38 to 34,473.75 kPa, 34.5 to 345 bar
  • Proof Pressure: 750 to 7500 psig, 5171.07 to 51,710.63 kPa, 51.7 to 517 bar
  • Wetted Materials:

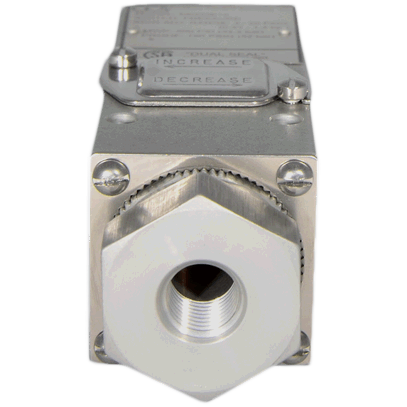

    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NEMA
show more
The hazardous locations 6900GE Series is the most popular, all-around, all-aluminum gage pressure switch.

The series is UL/CSA explosion proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G certified. NEMA 4X and IP66 rating is optimum for wet conditions.

It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability.

It comes with high over-pressure capabilities and still relatively compact in size to conveniently mount on panels. It meets the demand for all applications commercial, industrial and otherwise.
Features
  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 20.7 to 23,442.15 kPa, 0.21 to 234 bar
    • Decreasing: 1 to 3180 psig, 6.9 to 21,925.3 kPa, 0.07 to 219 bar
  • Deadband: Approximately 2 to 220 psi, 13.8 to 1516.8 kPa, 0.14 to 5.2 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3447.38 to 34,473.75 kPa, 34.5 to 345 bar
  • Proof Pressure: 750 to 7500 psig, 5171.07 to 51,710.63 kPa, 51.7 to 517 bar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NEMA
9 models matching criteria
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N show more
  • Adjustable Set Point Range
    • Increasing: 30 to 375 psig, 206.9 to 2585.5 kPa, 2 to 25.9 bar
    • Decreasing: 10 to 355 psig, 69 to 2447.6 kPa, 0.7 to 24.4 bar
  • Deadband: Approximately 20 psi, 137.89 kPa, 1.4 bar
  • System Pressure (Maximum): 1500 psig, 10,342.13 kPa, 103 bar
  • Proof Pressure: 2000 psig, 13,789.51 kPa, 138 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark, CRN
25+ In Stock
Does not ship to Virginia, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N show more
  • Adjustable Set Point Range
    • Increasing: 700 to 2200 psig, 4826.4 to 15,268 kPa, 48.3 to 152 bar
    • Decreasing: 600 to 2100 psig, 4136.9 to 14,478 kPa, 41.4 to 145 bar
  • Deadband: Approximately 100 psi, 689.47 kPa, 6.9 bar
  • System Pressure (Maximum): 3000 psig, 20,684.27 kPa, 207 bar
  • Proof Pressure: 4500 psig, 31,026.41 kPa, 310 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, CRN
50+ In Stock
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N show more
  • Adjustable Set Point Range
    • Increasing: 3 to 20 psig, 20.7 to 137.8 kPa, 0.21 to 1.4 bar
    • Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar
  • Deadband: Approximately 2 psi, 13.79 kPa, 0.14 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark, CRN
50+ In Stock
Does not ship to Virginia, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N show more
  • Adjustable Set Point Range
    • Increasing: 6 to 75 psig, 41.4 to 517.1 kPa, 0.41 to 5.1 bar
    • Decreasing: 2 to 71 psig, 13.8 to 489.5 kPa, 0.14 to 4.9 bar
  • Deadband: Approximately 4 psi, 27.58 kPa, 0.28 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, CRN
50+ In Stock
Does not ship to Virginia, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N show more
  • Adjustable Set Point Range
    • Increasing: 12 to 150 psig, 82.8 to 1034.2 kPa, 0.8 to 10.3 bar
    • Decreasing: 4 to 142 psig, 27.6 to 979.1 kPa, 0.28 to 9.8 bar
  • Deadband: Approximately 8 psi, 55.16 kPa, 0.6 bar
  • System Pressure (Maximum): 1500 psig, 10,342.14 kPa, 103 bar
  • Proof Pressure: 2000 psig, 13,789.51 kPa, 138 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark, CRN
50+ In Stock
Does not ship to Virginia, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N show more
  • Adjustable Set Point Range
    • Increasing: 300 to 1000 psig, 2068.5 to 6894.7 kPa, 20.7 to 68.9 bar
    • Decreasing: 250 to 950 psig, 1723.7 to 6550.0 kPa, 17.2 to 65.5 bar
  • Deadband: Approximately 50 psi, 344.74 kPa, 3.5 bar
  • System Pressure (Maximum): 2000 psig, 13,789.51 kPa, 138 bar
  • Proof Pressure: 3000 psig, 20,684.27 kPa, 207 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
25+ In Stock
Does not ship to Virginia, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, DPDT show more
  • Adjustable Set Point Range
    • Increasing: 6 to 75 psig, 41.4 to 517.1 kPa, 0.41 to 5.1 bar
    • Decreasing: 2 to 71 psig, 13.8 to 489.5 kPa, 0.14 to 4.9 bar
  • Deadband: Approximately 4 psi, 27.58 kPa, 0.28 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark, CRN
6 In Stock
Does not ship to Virginia, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, DPDT show more
  • Adjustable Set Point Range
    • Increasing: 12 to 150 psig, 82.8 to 1034.2 kPa, 0.83 to 10.3 bar
    • Decreasing: 4 to 142 psig, 27.6 to 979.1 kPa, 0.28 to 9.8 bar
  • Deadband: Approximately 8 psi, 55.16 kPa, 0.6 bar
  • System Pressure (Maximum): 1500 psig, 10,342.14 kPa, 103 bar
  • Proof Pressure: 2000 psig, 13,789.51 kPa, 138 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark
28 - 35 weeks
Does not ship to Virginia, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, DPDT show more
  • Adjustable Set Point Range
    • Increasing: 3 to 20 psig, 20.7 to 137.8 kPa, 0.21 to 1.4 bar
    • Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar
  • Deadband: Approximately 2 psi, 13.79 kPa, 0.14 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
  • Wetted Materials
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CE Mark, CRN
28 - 35 weeks
Does not ship to Virginia, United States

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • cUL
  • Dual Seal
  • IEC Ex
  • LVD
  • PED
  • RoHS
  • RTN
  • UL

Deadband, Approximate

  • bar: 0.14 to 15.2
  • kPa: 13.8 to 1,517
  • psi: 2 to 220

Diaphragm Material

  • Hastelloy C-276
  • Monel
  • Polyimide
  • Stainless Steel

Electrical - Free Leads

  • 18” (45 cm) Free Leads
  • 18” (45 cm) Teflon Leadwire

Electrical Assembly

  • 316 Stainless Steel
  • Hermetic Seal

Electrical Certification

  • ATEX - SIRA Certified for Potentially Explosive Atmospheres. Models 6****Y, II 2 GD Ex d IIC, 08-ATEX-
  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories
  • IECEx - SIRA Certified, SIR 10,0193X (Option Y)

Electrical Connectors

  • 1/2” NPT Male
  • M20 Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum
  • Stainless Steel

Environmental Protection

  • Hazardous Area
  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 7, 9, 13 / IP54, 66
  • NEMA 7
  • NEMA 9

NPT Connection

  • 1/2” NPT Female Welded Diaphragm - Internal with Port Cavity
  • 1/4” NPT Female

O-Ring Material

  • Buna-N
  • Ethylene Propylene (EPR)
  • None
  • Viton

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

Process Connection Material

  • 316 Stainless Steel
  • Aluminum
  • Hastelloy C-276
  • Monel

Proof Pressure

  • bar: 51.7 to 310
  • kPa: 5,171 to 31,026
  • psig: 750 to 4,500

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.07 to 219
  • kPa: 6.9 to 21,925
  • psig: 1 to 3,180

Set Point - Increasing

  • bar: 0.21 to 234
  • kPa: 20.7 to 23,442
  • psig: 3 to 3,400

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 34.5 to 207
  • kPa: 3,447 to 20,684
  • psig: 500 to 3,000

Typical Applications

  • Boilers & Burners
  • Chemical & Petrochemical Plants
  • Chemical Refining & Processing
  • Degreasers & Evaporators
  • Fluid Management
  • Ground Support Equipment
  • Hydraulic & Lubrication Systems
  • Heating & Air Conditioning
  • Manufacturing Process
  • Oil & Gas
  • Pipelines
  • Power Generation
  • Power Plants
  • Pulp & Paper Mills
  • Pumps, Compressors & Turbines
  • Recovery Systems
  • Refineries
  • Reverse Osmosis Systems & Filters
  • Safety Systems
  • Specialized OEM Equipment
  • Steel Mills
  • Utilities
  • Water Treatment, Waste & Sewage Treatment Facilities
