Bourdon Tube Pressure Gauge, Stainless Steel - NewPG23HP-P

Brand: WIKA Alexander Wiegand SE & Co. KG

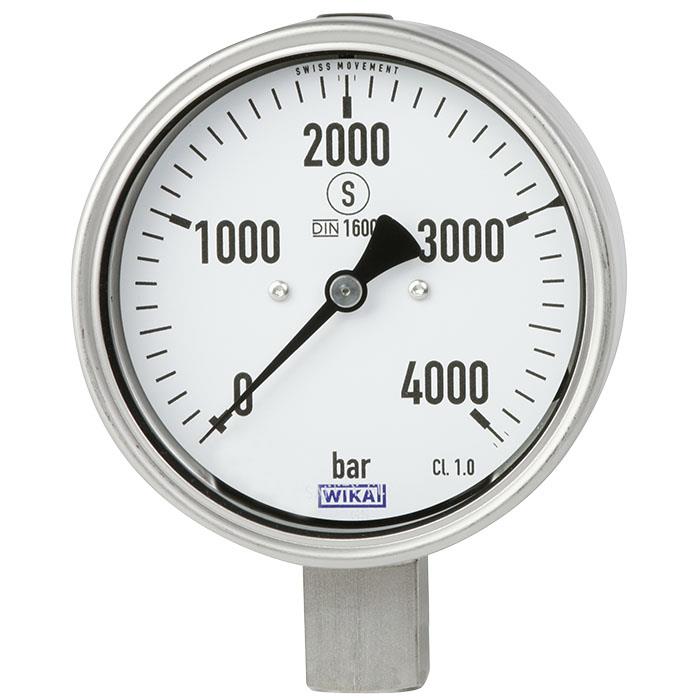

The model PG23HP-S Bourdon tube pressure gauge has been designed specifically for high-pressure applications up to 3,000 bar.

Typical measuring points for this pressure gauge can be found in water jet cutting, high-pressure cleaning and test bench construction.
Features
  • Safety pressure gauge with solid baffle wall designed in compliance with the requirements and test conditions of the DIN 16001 high-pressure standard.
  • High load cycle stability, even with dynamic pressure profiles.
  • High indication accuracy of 1%, optional 0.6%.
  • Scale ranges from 0 ... 2,000 bar to 0 … 6,000 bar.
The model PG23HP-S Bourdon tube pressure gauge has been designed specifically for high-pressure applications up to 3,000 bar.

Typical measuring points for this pressure gauge can be found in water jet cutting, high-pressure cleaning and test bench construction.
Features
  • Safety pressure gauge with solid baffle wall designed in compliance with the requirements and test conditions of the DIN 16001 high-pressure standard.
  • High load cycle stability, even with dynamic pressure profiles.
  • High indication accuracy of 1%, optional 0.6%.
  • Scale ranges from 0 ... 2,000 bar to 0 … 6,000 bar.
Close

Specifications

Brand

Design

  • DIN 16001

Nominal Size in mm

  • 160
  • 100

Accuracy Class

  • 1.6

Pressure Limitation

  • Short Time: Full Scale Value
  • Fluctuating: 2/3 x Full Scale Value
  • Steady: 3/4 x Full Scale Value

Permissible Temperature

  • +100° C Max. with filled instruments
  • Medium: +200° C Max. with unfilled instruments
  • Ambient: -40° to +60° C

Temperature Effect

  • When the temperature of the measuring system deviates from the reference temperature (+20° C): Max. ± 0.4 %/10 K of Full Scale Value

Ingress Protection

  • IP65 per IEC/EN 60529

Process Connection

  • Others on Request
  • 5/8 - 18 UNF x 27 (Female) with inner Sealing cone 60°
  • 9/16 - 18 UNF (Female) with 60° Sealing cone
  • M16 x 1.5 (Female) with inner Sealing cone 60° Subsequent threads per "Autoclave Engineers"
  • G 1/2 B (up to Max. 2,500 bar)
  • NS 160: Lower Mount (Radial)
  • NS 100: Lower Mount (Radial) or Back Mount
  • 316L Stainless Steel

Pressure Element

  • 316L Stainless Steel, Helical Type

Movement

  • Stainless Steel

Dial

  • Aluminium, White, Black Lettering

Pointer

  • Aluminium, Black

Case

  • Stainless Steel, with solid baffle wall (Solidfront) and blow-out back

Window

  • Laminated Safety Glass

Ring

  • Bayonet Ring, Stainless Steel

Case Filling (Option)

  • Silicone oil M50
Close

Applications

  • For liquid media in high-pressure applications (e.g. water, hydraulic oil)
  • Test benches (e.g. for hydraulic components)
  • Water jet cutting
  • High-pressure cleaning
  • High-pressure generation
Close
