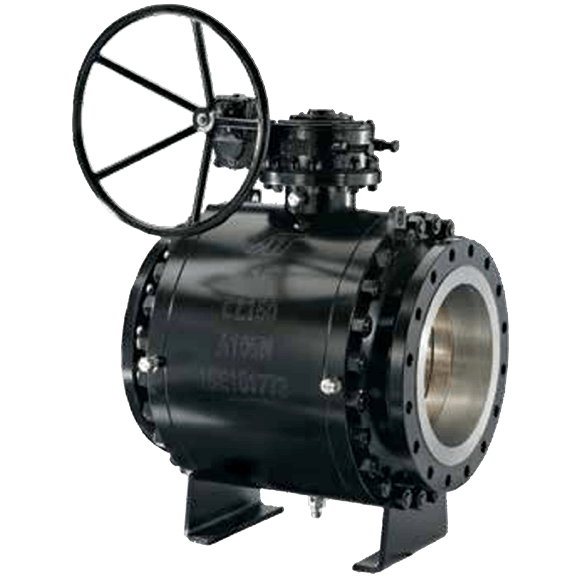

TS Series Trunnion Mounted Ball Valve

Brand: A-T Controls, Inc.
SIL 3 Capable Trunnion mounted ball valves are designed for high pressure applications.

Our valves are designed in accordance with the leading industry standards such as API 6D, API 598 and ASME B16.34. To ensure product reliability, the valve designs are validated by actual prototype testing that includes a high cycle testing. The valves are produced by employing state-of-the-art manufacturing technology and under strict quality control standards.
Features
  • Soft Seat or Metal Seat
  • Full Bore, 2 or 3-piece body offered in various material options
  • Flanged or Welded end connections
  • ANSI Class 150/300/600
  • Single Piston (SPE) or Double Piston (DPE)
  • Blowout proof stem design
  • ISO 5211 mounting design
  • Standard Fire-safe design
  • SIL 3 Capable Trunnion mounted ball valves are designed for high pressure applications
show more
Images are representations only.
SIL 3 Capable Trunnion mounted ball valves are designed for high pressure applications.

Our valves are designed in accordance with the leading industry standards such as API 6D, API 598 and ASME B16.34. To ensure product reliability, the valve designs are validated by actual prototype testing that includes a high cycle testing. The valves are produced by employing state-of-the-art manufacturing technology and under strict quality control standards.
Features
  • Soft Seat or Metal Seat
  • Full Bore, 2 or 3-piece body offered in various material options
  • Flanged or Welded end connections
  • ANSI Class 150/300/600
  • Single Piston (SPE) or Double Piston (DPE)
  • Blowout proof stem design
  • ISO 5211 mounting design
  • Standard Fire-safe design
  • SIL 3 Capable Trunnion mounted ball valves are designed for high pressure applications

TS Series

Base Model

Body Material

End Connection

ANSI Class

Pipe Schedule

Valve Size

Ball Type

Seat Material

  • view details
  • view details
  • view details

Seal Material

Packing Material

Port

Fire Proofing

Actuation Adjustment Means

Testing Options

Bypass Pipe

Mounting

Specifications

Approvals & Certifications

  • ANSI 150, 300, 600, 900, 1,500, 2,500
  • API 607 Firesafe, API 6D
  • ASME B16.34, ASME B16.10, ASME B16.5
  • CE 97/23/EC
  • ISO 5211, ISO 9001:2008
  • SIL 3

Ball Material

  • 316 Stainless Steel, Tungsten Carbide Coated 316 Stainless Steel, Chrome Carbide Coated 316 Stainless Steel
  • LF2/ENP, A105N/ENP

Enclosure, Body Material

  • A216 WCB, A352 LCB, A352 LCC, A105N, A217 WC6, A217 WC9, A350 LF2
  • CF8M 316, CF3M 316L, CD3MN Duplex, CE3MN Super Duplex, A182 F316

Flange Size - 10" (DN250)

  • 10" (DN250) - 150# (Raised Face, Ring Typical Joint)
  • 10" (DN250) - 1500# (Raised Face, Ring Typical Joint)
  • 10" (DN250) - 2500# (Raised Face, Ring Typical Joint)
  • 10" (DN250) - 300# (Raised Face, Ring Typical Joint)
  • 10" (DN250) - 600# (Raised Face, Ring Typical Joint)
  • 10" (DN250) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 12" (DN300)

  • 12" (DN300) - 150#
  • 12" (DN300) - 1500# (Raised Face, Ring Typical Joint)
  • 12" (DN300) - 2500# (Raised Face, Ring Typical Joint)
  • 12" (DN300) - 300# (Raised Face, Ring Typical Joint)
  • 12" (DN300) - 600# (Raised Face, Ring Typical Joint)
  • 12" (DN300) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 14" (DN350)

  • 14" (DN350) - 150# (Raised Face, Ring Typical Joint)
  • 14" (DN350) - 1500# (Raised Face, Ring Typical Joint)
  • 14" (DN350) - 2500# (Raised Face, Ring Typical Joint)
  • 14" (DN350) - 300# (Raised Face, Ring Typical Joint)
  • 14" (DN350) - 600# (Raised Face, Ring Typical Joint)
  • 14" (DN350) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 16" (DN400)

  • 16" (DN400) - 150# (Raised Face, Ring Typical Joint)
  • 16" (DN400) - 1500# (Raised Face, Ring Typical Joint)
  • 16" (DN400) - 2500# (Raised Face, Ring Typical Joint)
  • 16" (DN400) - 300# (Raised Face, Ring Typical Joint)
  • 16" (DN400) - 600# (Raised Face, Ring Typical Joint)
  • 16" (DN400) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 18" (DN450)

  • 18" (DN450) - 150#
  • 18" (DN450) - 1500# (Raised Face, Ring Typical Joint)
  • 18" (DN450) - 2500# (Raised Face, Ring Typical Joint)
  • 18" (DN450) - 300# (Raised Face, Ring Typical Joint)
  • 18" (DN450) - 600# (Raised Face, Ring Typical Joint)
  • 18" (DN450) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 2" (DN50)

  • 2" (DN50) - 150# (Raised Face, Ring Typical Joint)
  • 2" (DN50) - 1500# (Raised Face, Ring Typical Joint)
  • 2" (DN50) - 2500# (Raised Face, Ring Typical Joint)
  • 2" (DN50) - 300# (Raised Face, Ring Typical Joint)
  • 2" (DN50) - 600# (Raised Face, Ring Typical Joint)
  • 2" (DN50) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 20" (DN500)

  • 20" (DN500) - 150# (Raised Face, Ring Typical Joint)
  • 20" (DN500) - 1500# (Raised Face, Ring Typical Joint)
  • 20" (DN500) - 2500# (Raised Face, Ring Typical Joint)
  • 20" (DN500) - 300# (Raised Face, Ring Typical Joint)
  • 20" (DN500) - 600# (Raised Face, Ring Typical Joint)
  • 20" (DN500) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 24" (DN600)

  • 24" (DN600) - 150# (Raised Face, Ring Typical Joint)
  • 24" (DN600) - 1500# (Raised Face, Ring Typical Joint)
  • 24" (DN600) - 2500# (Raised Face, Ring Typical Joint)
  • 24" (DN600) - 300# (Raised Face, Ring Typical Joint)
  • 24" (DN600) - 600# (Raised Face, Ring Typical Joint)
  • 24" (DN600) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 3" (DN80)

  • 3" (DN80) - 150# (Raised Face, Ring Typical Joint)
  • 3" (DN80) - 1500# (Raised Face, Ring Typical Joint)
  • 3" (DN80) - 2500# (Raised Face, Ring Typical Joint)
  • 3" (DN80) - 300# (Raised Face, Ring Typical Joint)
  • 3" (DN80) - 600# (Raised Face, Ring Typical Joint)
  • 3" (DN80) - 900#

Flange Size - 30" (DN750)

  • 30" (DN750) - 150# (Raised Face, Ring Typical Joint)
  • 30" (DN750) - 1500# (Raised Face, Ring Typical Joint)
  • 30" (DN750) - 2500# (Raised Face, Ring Typical Joint)
  • 30" (DN750) - 300# (Raised Face, Ring Typical Joint)
  • 30" (DN750) - 600# (Raised Face, Ring Typical Joint)
  • 30" (DN750) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 36" (DN900)

  • 36" (DN900) - 150# (Raised Face, Ring Typical Joint)
  • 36" (DN900) - 1500# (Raised Face, Ring Typical Joint)
  • 36" (DN900) - 2500# (Raised Face, Ring Typical Joint)
  • 36" (DN900) - 300# (Raised Face, Ring Typical Joint)
  • 36" (DN900) - 600# (Raised Face, Ring Typical Joint)
  • 36" (DN900) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 4" (DN100)

  • 4" (DN100) - 150# (Raised Face, Ring Typical Joint)
  • 4" (DN100) - 1500# (Raised Face, Ring Typical Joint)
  • 4" (DN100) - 2500# (Raised Face, Ring Typical Joint)
  • 4" (DN100) - 300# (Raised Face, Ring Typical Joint)
  • 4" (DN100) - 600# (Raised Face, Ring Typical Joint)
  • 4" (DN100) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 42" (DN1050)

  • 42" (DN1050) - 150# (Raised Face, Ring Typical Joint)
  • 42" (DN1050) - 1500# (Raised Face, Ring Typical Joint)
  • 42" (DN1050) - 2500# (Raised Face, Ring Typical Joint)
  • 42" (DN1050) - 300# (Raised Face, Ring Typical Joint)
  • 42" (DN1050) - 600# (Raised Face, Ring Typical Joint)
  • 42" (DN1050) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 48" (DN1200)

  • 48" (DN1200) - 150# (Raised Face, Ring Typical Joint)
  • 48" (DN1200) - 1500# (Raised Face, Ring Typical Joint)
  • 48" (DN1200) - 2500# (Raised Face, Ring Typical Joint)
  • 48" (DN1200) - 300# (Raised Face, Ring Typical Joint)
  • 48" (DN1200) - 600# (Raised Face, Ring Typical Joint)
  • 48" (DN1200) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 6" (DN150)

  • 6" (DN150) - 150# (Raised Face, Ring Typical Joint)
  • 6" (DN150) - 1500# (Raised Face, Ring Typical Joint)
  • 6" (DN150) - 2500# (Raised Face, Ring Typical Joint)
  • 6" (DN150) - 300# (Raised Face, Ring Typical Joint)
  • 6" (DN150) - 600# (Raised Face, Ring Typical Joint)
  • 6" (DN150) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 8" (DN200)

  • 8" (DN200) - 150# (Raised Face, Ring Typical Joint)
  • 8" (DN200) - 1500# (Raised Face, Ring Typical Joint)
  • 8" (DN200) - 2500# (Raised Face, Ring Typical Joint)
  • 8" (DN200) - 300# (Raised Face, Ring Typical Joint)
  • 8" (DN200) - 600# (Raised Face, Ring Typical Joint)
  • 8" (DN200) - 900# (Raised Face, Ring Typical Joint)

NACE & NIST

  • NACE MR-0175, NACE MR-0103

Port

  • Full
  • Reduced (Standard, Regular)

Seat/Seal Material

  • 316 Stainless Steel / Stellite, Tungsten Carbide Coated 316 Stainless Steel, Chrome Carbide Coated 316 Stainless Steel
  • DEVLON
  • PEEK®
  • RTFE (Reinforced Teflon)

Valve Type

  • Manual

Welded Connection

  • 10" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 12" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 14" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 16" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 18" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 2" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 20" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 24" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 3" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 30" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 36" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 4" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 42" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 48" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 6" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 8" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
