14670 Directional Valve

Brand: Bifold Group
As the 14550 directional control valve, but with an actuator so that it can be operated remotely through a pneumatic signal (but with the handle providing an override option). In the closed position, the plunger makes a leak-free seal with the seat. A module can be readily withdrawn from the base of the valve body for servicing or renewing the seat or seals. Total handle movement of 90° gives positive detented selections at 45° intervals.
Features
  • Can be operated remotely through a pneumatic signal
  • Dynamically biased towards closing - seal becomes tighter as pressure rises
  • Suitable for a wide range of fluids - up to psi: 10,000 (kPa: 69,000, bar: 690)
  • Light torque to operate handle - readily provided by actuator
  • Made with 316 stainless steel
show more

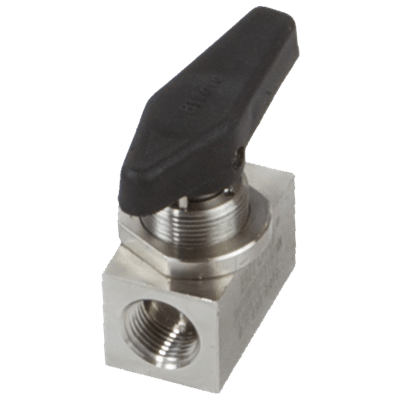

Images are representations only.
As the 14550 directional control valve, but with an actuator so that it can be operated remotely through a pneumatic signal (but with the handle providing an override option). In the closed position, the plunger makes a leak-free seal with the seat. A module can be readily withdrawn from the base of the valve body for servicing or renewing the seat or seals. Total handle movement of 90° gives positive detented selections at 45° intervals.
Features
  • Can be operated remotely through a pneumatic signal
  • Dynamically biased towards closing - seal becomes tighter as pressure rises
  • Suitable for a wide range of fluids - up to psi: 10,000 (kPa: 69,000, bar: 690)
  • Light torque to operate handle - readily provided by actuator
  • Made with 316 stainless steel

Specifications

Brand

BSP Connection

  • 1/4" BSP Female

Enclosure, Body Material

  • 316 Stainless Steel
