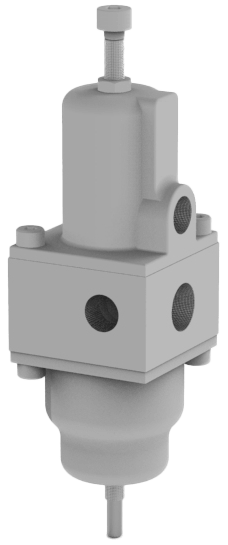

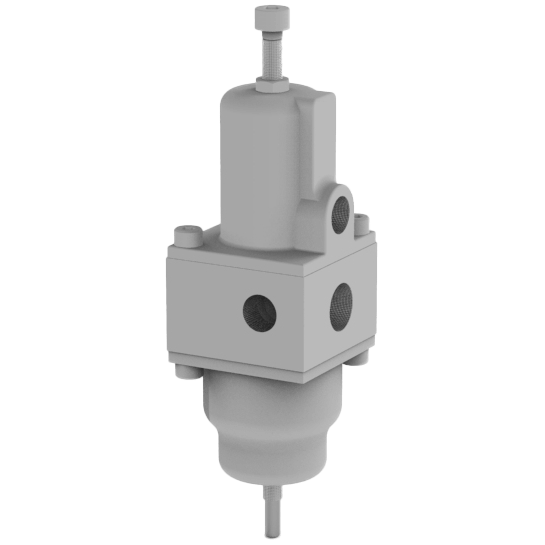

SH Filter Regulator

Brand: Bifold Group
Features:
  • Heavy duty all 316 stainless steel - Rugged and corrosion resistant
  • Large flow paths - High flow from 0.5 bar dp
  • High stability - Precision adjustment
  • Mounting options: Panel, Pillar, Bracket thread
  • Milled ports - Leak tight joints
  • Elastomer seals - Tight shut off
  • Modular design - In line maintenance
show more
Images are representations only.
Features:
  • Heavy duty all 316 stainless steel - Rugged and corrosion resistant
  • Large flow paths - High flow from 0.5 bar dp
  • High stability - Precision adjustment
  • Mounting options: Panel, Pillar, Bracket thread
  • Milled ports - Leak tight joints
  • Elastomer seals - Tight shut off
  • Modular design - In line maintenance

SH

Model

Port Size

Model Type

Relief

Drain

Output Pressure

  • view details
  • view details
  • view details
  • view details
  • view details

Filter

Connection

Button

Gauge

Mounting Kit

Bug Vent

Tamper Proof

Specifications

Brand

Adjustment

  • Black Plastic Buttons
  • M8 Socket Set Screw

Bonnet Material

  • 316L Stainless Steel - Bonnet & Bowl

Bowl

  • 25 ml (1.52"³) - Bowl Retention Capacity (Manual Drain)
  • 50 ml (3.05"³) - Bowl Retention Capacity (Auto Drain)

BSP Connection

  • 1" BSPP Female
  • 1/2" BSPP Female
  • 1/4" BSPP Female
  • 3/4" BSPP Female
  • 3/8" BSPP Female

Diaphragm Material

  • Silicone

Differential Pressure

  • psi: 2.176 (kPa: 15, bar: 0.15) at psi: 29 (kPa: 200, bar: 2) secondary Pressure (Relieving Typical Only)

Electrical Connectors

  • M8 Socket Set Screw

Element

  • Sintered 316 Stainless Steel

Enclosure, Body Material

  • 316L Stainless Steel

Fill Material

  • Glycerin

Filter

  • 10 to 30 microns Standard
  • 40 to 50 microns

Flow Capacity

  • 1.0 Cv - 1/4"
  • 11.2 Cv - 1"
  • 168 scfm (285.43 m³/hour) - 1/2"
  • 2.6 Cv - 1/2"
  • 36 scfm (61.16 m³/hour) - 1/4"
  • 4.2 Cv - 1/2" High Flow Version
  • 429 scfm (728.87 m³/hour) - 1"
  • 94 scfm (159.7 m³/hour) - 1/2"

Flow Rate

  • 1.5 cm³/second - Typical Bleed Flow at psi: 29 (kPa: 200, bar: 2) secondary Pressure

Materials of Construction

  • 18/10 Stainless Steel - Fasteners

Media

  • Air
  • Inert Gas
  • Natural Gas
  • Sweet & Sour Gas

Mounting

  • Bracket
  • Lug - Standard
  • Panel Mount
  • Pillar

Mounting Position

  • Any Orientation

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1/8" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female

Pressure Range

  • bar: 0.03 to 10
  • kPa: 3 to 1,000
  • psi: 0.43 to 145

Relief

  • Non-Relieving
  • Self-Relieving

Seat/Seal Material

  • Seal: Viton - Standard

Spring Material

  • 302S26 Stainless Steel to BS 2056
  • Inconel® X-750 AMS5699 - Regulating Spring

Supply Pressure

  • psi: 145 (kPa: 1,000, bar: 10) - Inlet Pressure
  • psi: 87 (kPa: 600, bar: 6) - secondary Pressure with psi: 14.5 (kPa: 100, bar: 1) Pressure Drop Using 40 to 50 micron Element

Supply Pressure - Maximum

  • psi: 232 (kPa: 1,600, bar: 16) - Maximum
  • psi: 290 (kPa: 2,000, bar: 20) - Maximum
  • psi: 580 (kPa: 4,000, bar: 40) - Maximum

Temperature Range

  • -20° to 180° C (-4° to 356° F) - Working Temperatures

Vent

  • 1/8" NPT

Window Material

  • Polycarbonate - Window & Blow-Out Device
