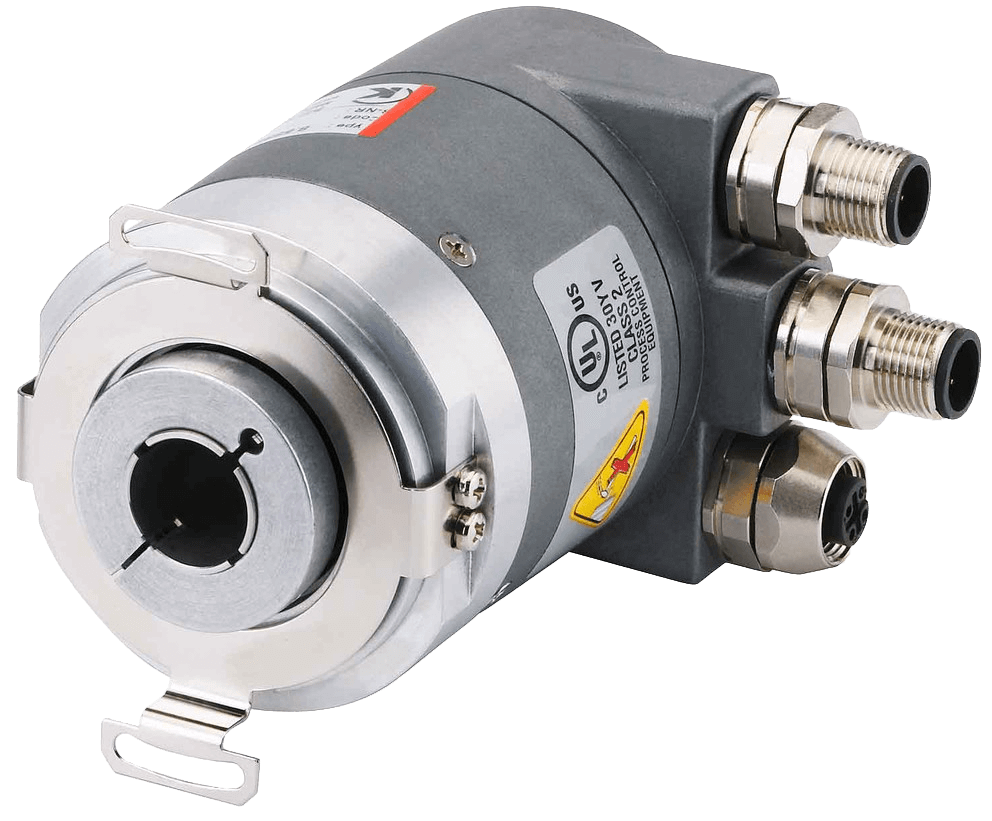

5888 (Hollow Shaft) Absolute Encoder

Brand: Turck, Inc.
he multiturn encoders Sendix 5888 with PROFINET interface and optical sensor technology are ideal for use in all applications with a PROFINET interface. The encoder supports the isochronous (IRT) mode and is therefore ideal for real-time applications. Easy start-up thanks to the "Ezturn for PROFINET" software supplied with the encoder. Reliable:
  • Ideally suited for all PROFINET applications thanks to the use of encoder profile 4.1
  • Perfect for use in harsh outdoor environments, as a result of IP 67 protection and rugged housing construction
Flexible:
  • IRT-Mode
  • Cycle time ≤1 Millisecond
  • Firmware updater allows for easy expansion of characteristics without having to disassemble the encoder.
  • Faster, easier error-free connection thanks to M12 connectors
show more
Images are representations only.
he multiturn encoders Sendix 5888 with PROFINET interface and optical sensor technology are ideal for use in all applications with a PROFINET interface. The encoder supports the isochronous (IRT) mode and is therefore ideal for real-time applications. Easy start-up thanks to the "Ezturn for PROFINET" software supplied with the encoder. Reliable:
  • Ideally suited for all PROFINET applications thanks to the use of encoder profile 4.1
  • Perfect for use in harsh outdoor environments, as a result of IP 67 protection and rugged housing construction
Flexible:
  • IRT-Mode
  • Cycle time ≤1 Millisecond
  • Firmware updater allows for easy expansion of characteristics without having to disassemble the encoder.
  • Faster, easier error-free connection thanks to M12 connectors

5888 (Hollow Shaft)

Flange

Hollow Shaft

Interface / Power supply

Type of Connection

Field Bus Profile

Specifications

Brand

Approvals & Certifications

  • CE Compliant: EMC Guideline 2004/108/EC
  • Ex Approval for Hazardous Area: Zone 2 & 22
  • RoHS Compliant: Guideline 2011/65/EU
  • UL (C,US): File 224618

Capacity

  • Axial Load Capacity of Shaft: 40 N
  • Radial Load Capacity of Shaft: 80 N

Communication

  • Profinet IO

Configuration

  • Ezturn Software for PROFINET

Consumption

  • Power Consumption (No Load): 200 mA - Maximum

Cycling Rate

  • ≤ 1 millisecond

Diameter

  • Blind Hollow Shaft: 0.39" to 0.59"
  • Stator Coupling: 2.48" (63 mm)
  • Stator Coupling: 2.56" (65 mm)

Display

  • LED Display

Electrical Connectors

  • 3 x M12 Connector, 4-Pin

Enclosure, Body Material

  • Zinc Die Cast Housing

Environmental Protection

  • IP65
  • IP67

Flange Material

  • Aluminum

Flange Type - Other

  • Flange with Spring Element Long
  • Flange with Stator Coupling

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Power Supply

  • 10-30 Vdc

Resolution

  • Multiturn Resolution: Maximum
  • Singleturn Resolution: 1 to 65,535 (16-bits), Scaleable
  • Total Resolution: 1 to 268.435.456 (28-bits), Scaleable

Reverse Polarity Protection

  • Yes

Shaft Material

  • Stainless Steel

Shock

  • Shock Resistance According to EN 60068-2-27: 2,500 m/sec², 6 milliseconds

Speed

  • Maximum

Torque

  • Starting Torque (IP67): < 0.05 Nm
  • Starting Torque: < 0.01 Nm

Vibration

  • Vibration Resistance According to EN 60068-2-6: 100 m/sec², 55 to 2,000 Hz
