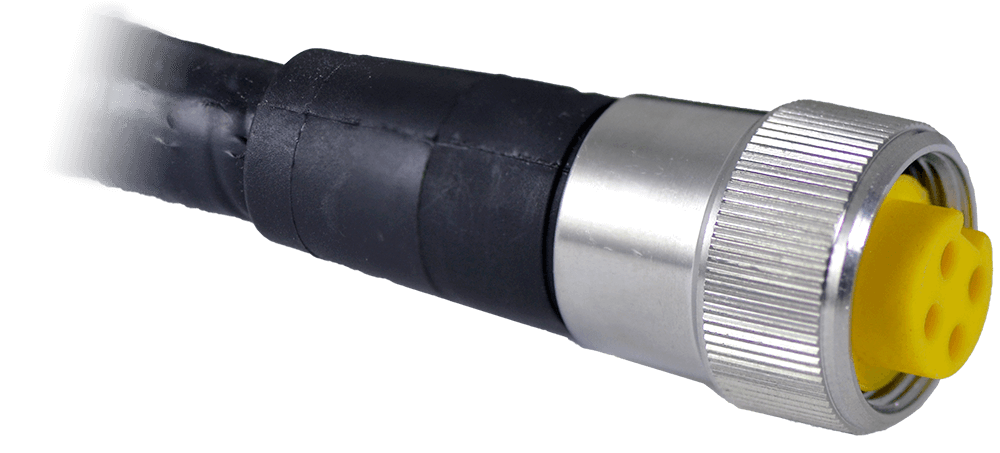

40A-952 Analog/Discrete HART minifast Cable

Brand: Turck
Features
  • Process Cable:
    • Discrete Circuits
  • Connector:
    • "minifast" Series
    • Female Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 3 x #18 AWG Wires
    • (14.5 mm) = 1/2"-14 Male NPT Threads
  • Wires:
    • 105 C, 300 V
    • (2) x # 18 AWG Circuits
    • (1) x # 18 AWG Ground wire
    • Interlocking Aluminum Armor
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
show more
Features
  • Process Cable:
    • Discrete Circuits
  • Connector:
    • "minifast" Series
    • Female Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 3 x #18 AWG Wires
    • (14.5 mm) = 1/2"-14 Male NPT Threads
  • Wires:
    • 105 C, 300 V
    • (2) x # 18 AWG Circuits
    • (1) x # 18 AWG Ground wire
    • Interlocking Aluminum Armor
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
76 models matching criteria
P-RKV 40A-952-20M/CS16806
TURCK Discrete minifast Cable, Single-ended, 4-Pin, Female, Armored, PVC/Black, SST, 20m, NCNR View More
  • Process Cable:

    • Analog/Discrete Circuits
  • Connector:
    • "minifast" Series
    • Female Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 3 x #18 AWG Wires
    • (14.5mm) = 1/2"-14 MNPT Threads
  • Wires:
    • 105 C, 300 V
    • (3) x # 18 AWG Circuits
    • (1) x # 20 AWG Ground wire
    • (1) Shielded Twisted Pair, (1) Ground, (1) Drain
    • Interlocking Aluminum Armor
    • Black PVC Jacket
  • Length of Wires:
    • 20 Meters
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
  • CS16806: Custom Label, Custom packaging
2 - 8 weeks
P-RKV 40A-952-1M
TURCK Discrete minifast Cable, Single-ended, 4-Pin, Female, Armored, PVC/Black, SST, 1m, NCNR View More
  • Process Cable:
    • Analog/Discrete Circuits
  • Connector:
    • "minifast" Series
    • Female Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 3 x #18 AWG Wires
    • (14.5mm) = 1/2"-14 MNPT Threads
  • Wires:
    • 105 C, 300 V
    • (3) x # 18 AWG Circuits
    • (1) x # 20 AWG Ground wire
    • (1) Shielded Twisted Pair, (1) Ground, (1) Drain
    • Interlocking Aluminum Armor
    • Black PVC Jacket
  • Length of Wires:
    • 1 Meter
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
2 - 8 weeks
$87.98 USD
$15.70 Shipping
P-RKV 40A-952-2M
TURCK Discrete minifast Cable, Single-ended, 4-Pin, Female, Armored, PVC/Black, SST, 2m, NCNR View More
  • Process Cable:
    • Analog/Discrete Circuits
  • Connector:
    • "minifast" Series
    • Female Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 3 x #18 AWG Wires
    • (14.5mm) = 1/2"-14 MNPT Threads
  • Wires:
    • 105 C, 300 V
    • (3) x # 18 AWG Circuits
    • (1) x # 20 AWG Ground wire
    • (1) Shielded Twisted Pair, (1) Ground, (1) Drain
    • Interlocking Aluminum Armor
    • Black PVC Jacket
  • Length of Wires:
    • 2 Meters
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
2 - 8 weeks
$105.27 USD
$15.70 Shipping
P-RSV 40A-952-6M
TURCK minifast Drop Cordset, 4-Pin, 1-End, Male, PVC/Black, Armored, SST, 6m, NCNR View More
  • Process Cable:

    • Analog/Discrete Circuits
  • Connector:
    • "minifast" Series
    • Male Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 3 x #18 AWG Wires
    • (14.5mm) = 1/2"-14 MNPT Threads
  • Wires:
    • 105 C, 300 V
    • (3) x # 18 AWG Circuits
    • (1) x # 20 AWG Ground wire
    • (1) Shielded Twisted Pair, (1) Ground, (1) Drain
    • Interlocking Aluminum Armor
    • Black PVC Jacket
  • Length of Wires:
    • 6 Meters
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
2 - 4 weeks
$174.40 USD
$15.70 Shipping
P-RSV RKV 40A-952-1M
TURCK minifast Drop Cordset, 4-Pin, Male/Female, PVC/Black, Armored, 7/8"-16UN, SST, 1m, NCNR View More
  • Process Cable:
    • Analog/Discrete Circuits
  • Connector:
    • "minifast" Series
    • Male x Female Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 3 x #18 AWG Wires
    • (14.5mm) = 1/2"-14 MNPT Threads
  • Wires:
    • 105 C, 300 V
    • (3) x # 18 AWG Circuits
    • (1) x # 20 AWG Ground wire
    • (1) Shielded Twisted Pair, (1) Ground, (1) Drain
    • Interlocking Aluminum Armor
    • Black PVC Jacket
  • Length of Wires:
    • 1 Meter
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
2 - 8 weeks
$175.18 USD
$15.70 Shipping
P-RSV RKV 40A-952-0.5M
TURCK minifast Drop Cordset, 4-Pin, Male/Female, PVC/Black, Armored, 7/8"-16UN, SST, 0.5m, NCNR View More
  • Process Cable:
    • Analog/Discrete Circuits
  • Connector:
    • "minifast" Series
    • Male x Female Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 3 x #18 AWG Wires
    • (14.5mm) = 1/2"-14 MNPT Threads
  • Wires:
    • 105 C, 300 V
    • (3) x # 18 AWG Circuits
    • (1) x # 20 AWG Ground wire
    • (1) Shielded Twisted Pair, (1) Ground, (1) Drain
    • Interlocking Aluminum Armor
    • Black PVC Jacket
  • Length of Wires:
    • 0.5 Meters
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
2 - 8 weeks
$175.18 USD
$15.70 Shipping
P-RSV RKV 40A-952-2M
TURCK minifast Drop Cordset, 4-Pin, Male/Female, PVC/Black, Armored, 7/8"-16UN, SST, 2m, NCNR View More
  • Process Cable:
    • Analog/Discrete Circuits
  • Connector:
    • "minifast" Series
    • Male x Female Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 3 x #18 AWG Wires
    • (14.5mm) = 1/2"-14 MNPT Threads
  • Wires:
    • 105 C, 300 V
    • (3) x # 18 AWG Circuits
    • (1) x # 20 AWG Ground wire
    • (1) Shielded Twisted Pair, (1) Ground, (1) Drain
    • Interlocking Aluminum Armor
    • Black PVC Jacket
  • Length of Wires:
    • 2 Meters
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
2 - 8 weeks
$175.18 USD
$15.70 Shipping
P-RKV 40A-952-7M
TURCK Discrete minifast Cable, Single-ended, 4-Pin, Female, Armored, PVC/Black, SST, 7m, NCNR
2 - 8 weeks
$208.96 USD
$15.70 Shipping
P-RKV 40A-952-8M
TURCK Discrete minifast Cable, Single-ended, 4-Pin, Female, Armored, PVC/Black, SST, 8m, NCNR View More
  • Process Cable:
    • Analog/Discrete Circuits
  • Connector:
    • "minifast" Series
    • Female Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 3 x #18 AWG Wires
    • (14.5mm) = 1/2"-14 MNPT Threads
  • Wires:
    • 105 C, 300 V
    • (3) x # 18 AWG Circuits
    • (1) x # 20 AWG Ground wire
    • (1) Shielded Twisted Pair, (1) Ground, (1) Drain
    • Interlocking Aluminum Armor
    • Black PVC Jacket
  • Length of Wires:
    • 8 Meters
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
2 - 8 weeks
$208.96 USD
$15.70 Shipping
P-RSV 40A-952-8M
TURCK minifast Drop Cordset, 4-Pin, 1-End, Male, PVC/Black, Armored, SST, 8m, NCNR View More
  • Process Cable:

    • Analog/Discrete Circuits
  • Connector:
    • "minifast" Series
    • Male Receptacle
    • 316 Stainless Steel Housing
    • 4 Contacts / 3 x #18 AWG Wires
    • (14.5mm) = 1/2"-14 MNPT Threads
  • Wires:
    • 105 C, 300 V
    • (3) x # 18 AWG Circuits
    • (1) x # 20 AWG Ground wire
    • (1) Shielded Twisted Pair, (1) Ground, (1) Drain
    • Interlocking Aluminum Armor
    • Black PVC Jacket
  • Length of Wires:
    • 8 Meters
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: ACIC, 90C, 300V
2 - 4 weeks
$208.96 USD
$15.70 Shipping

Specifications

Brand

Approvals & Certifications

  • CSA
  • cUL
  • UL

Connection Material

  • Stainless Steel

Connection Pin-Out

  • 4-Pin

Connection Style

  • minifast

Connector Shape

  • Straight

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1, 3, 4, 6P / IP10, 54, 66
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 3-Wire
  • 40A-952: 3 x 18 AWG BU, BN, GN/YE, ITC/PLTC Armor
