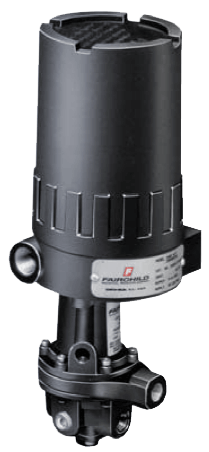

Model 2400XC/2400XS Explosion-Proof M/P Converter

Brand: Fairchild Industrial Products
The Rotork Fairchild 24XC and 24XS M/P Converters are motor driven pneumatic regulators with motor assemblies enclosed in a NEMA 4X Explosion-proof enclosure.

AC Control Unit (24XC):
The AC Control unit for the 24XC unit is a continuous operation motor available in 115 Vac. A feedback potentiometer option is available for these units.

DC Pulse Input Unit (24XS):
The DC pulse input assembly for the 24 XS unit is a Clock Generator/Translator board available for the 12 Vdc or 24 Vdc pulse input. This allows the use of an external Controller with a 12 Vdc or 24 Vdc output.

DC Analog Input Unit (24XS):
The DC Analog input assembly is an Amplifier (Proportional Control) and Translator board which allows operation with a 4-20 mA or 1-5 Vdc Analog input. Minimum-maximum limit switches are standard on this unit.
Reverse action and split ranging on the Analog unit can be achieved in the field.

TTL Input (+5vD) (24XS):
The TTL input unit is equipped with a Translator board only. The user is required to supply the digital input pulses.

The control assembly for the 24XS unit is a stepper motor with an integral Translator board which converts 12 Vdc or 24 Vdc digital input pulses supplied by the customer into control logic to drive the stepper motor.
show more
Images are representations only.
The Rotork Fairchild 24XC and 24XS M/P Converters are motor driven pneumatic regulators with motor assemblies enclosed in a NEMA 4X Explosion-proof enclosure.

AC Control Unit (24XC):
The AC Control unit for the 24XC unit is a continuous operation motor available in 115 Vac. A feedback potentiometer option is available for these units.

DC Pulse Input Unit (24XS):
The DC pulse input assembly for the 24 XS unit is a Clock Generator/Translator board available for the 12 Vdc or 24 Vdc pulse input. This allows the use of an external Controller with a 12 Vdc or 24 Vdc output.

DC Analog Input Unit (24XS):
The DC Analog input assembly is an Amplifier (Proportional Control) and Translator board which allows operation with a 4-20 mA or 1-5 Vdc Analog input. Minimum-maximum limit switches are standard on this unit.
Reverse action and split ranging on the Analog unit can be achieved in the field.

TTL Input (+5vD) (24XS):
The TTL input unit is equipped with a Translator board only. The user is required to supply the digital input pulses.

The control assembly for the 24XS unit is a stepper motor with an integral Translator board which converts 12 Vdc or 24 Vdc digital input pulses supplied by the customer into control logic to drive the stepper motor.

Model 2400XC/2400XS

Control Type

Model

Connection Type

Voltage

Pressure Range

Pressure Range

Pressure Range

Pressure Range

Motor Speed

Enclosure

Specifications

Approvals & Certifications

  • FM Class I Division 1, Groups A, B, C, D

Consumption

  • 21 W at 12-24 Vdc

Enclosure, Body Material

  • Aluminum
  • Brass
  • Nylon
  • Steel

Environmental Protection

  • Dust Ignition-Proof for Class II
  • Explosion-proof
  • NEMA 4X

Exhaust Capacity - Relieving Units Only

  • 5.5 scfm (9.4 m³/hour)

Flow Capacity

  • 14 scfm (23.8 m³/hour)
  • 2.5 scfm (4.25 m³/hour)
  • 40 scfm (68 m³/hour)

Input Power

  • Input to Amplifier/Translator: 4-20 mA

Motor Voltages

  • DC Analog Input: 12-24 Vdc
  • DC Pulse Input to Clock Generator / Translator Board: 23-26 Vdc @ 800 Ma

NPT Connection

  • 1/4" NPT Female
  • 1/8" NPT Female

Power Options

  • DC Pulse / Analog

Pressure Range

  • bar: 0 to 7
  • kPa: 0 to 700
  • psig: 0 to 100

Temperature Range

  • -40° to 93° C (-40 to 200° F)
