Description

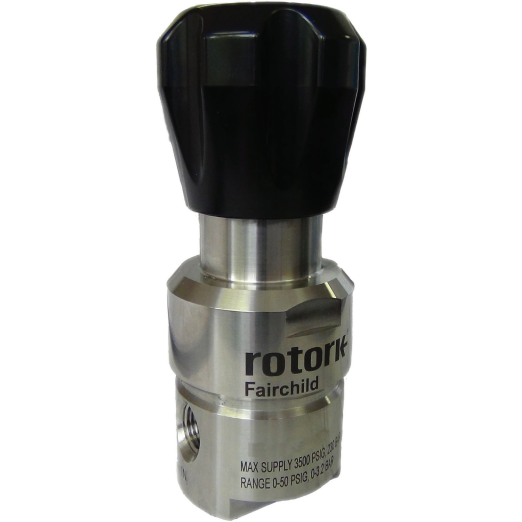

The Rotork Fairchild HPP is a High Pressure Regulator designed for applications that have high supply pressures and require a much lower output pressure.
The HPP pressure regulator is constructed of rugged 316L Stainless Steel for corrosion resistance and durability. The HPP is available in a 2 or 4 port configuration.
The Fairchild HPP pressure regulator will handle a 6000 psi, 414 BAR, maximum supply pressure and offers four (3) output pressure ranges from 0-1,000 psi, 0-68.9 BAR, 0-6,890 kPa, up to 0-3,000 psi, 0-206.8 BAR, 0-20,680 kPa.
The HPP high pressure regulator also offers a supply valve Cv of 0.06.
The Rotork Fairchild HPD incorporates a new patented valve and valve seat to prevent leakage, which commonly occurs with high supply pressures.
Features- High Supply Pressure of 6,000 psig
- Three Seat Material Choices (PEEK, CTFE, Vespel)
- Tamper Proof Option
- Three Pressure Ranges Available
- Ambient Temperature Range of -40° to 500° F
- Panel Mounting Option
Configure
Specifications
Specifications
Actuator Type
- Knob Adjust
- Tamper-Proof
Ambient Temperature Range
- -40° to 260° C (-40° to 500° F)
BSP Connection
- 1/4” BSPT Female
Elastomers
- Viton-A
Enclosure, Body Material
- 316L Stainless Steel
Exhaust Capacity - Relieving Units Only
- 0.02 Cv
Flow Capacity
- 0.06 Cv
Media
- Compressed Air
- Gas
Mounting
- None
- Panel Mount
NPT Connection
- 1/4” NPT Female
Pressure Range
- bar: 0 to 206.8
- kPa: 0 to 20,684
- psig: 0 to 3,000
Relief
- Non-Relieving
- Relieving
Seat / Seal Material
- CTFE
- PEEK
- Vespel
Supply Pressure - Maximum
- bar: 414
- kPa: 41,368
- psig: 6,000
Supply Pressure Effect
- Less than 0.137 bar
- Less than psi: 1.99 (bar: 0.14, kPa: 13.7)
- Less than psig: 2 (bar: 0.137, kPa: 13.7) Change for psig: 100 (bar: 7.0, kPa: 700) Change in Supply Pressure
- Less than psig: 2 (bar: 0.14, kPa: 14)
Trim Material
- 316L Stainless Steel
