Description

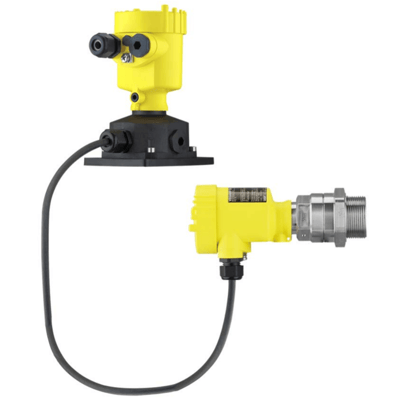

The VEGAMIP T61 is the emitting unit, the VEGAMIP R62 the receiving unit of the microwave barrier in separate version for level detection of bulk solids and liquids.
Typical applications are the detection of bulk solids in silos, bunkers and crushers as well as of liquids in pipelines and vessels.
The non-contact measuring principle has no direct contact with the medium and ensures continuous wear-free and maintenance free operation.
Features- Reliable Measurement Even With Very Abrasive Products
- Separate Instrument Version Enables Mounting for Hardly Accessible Installation Locations
- Reliable Measurement Even with Changing Product Properties
Specifications
Specifications
Brand
Ambient Temperature Range
- -40° to 80° C (-40° to 176° F)
Approvals & Certifications
- ATEX
- CSA
- FM
- IEC
Consumption
- 1 to 8 VA (AC) Approximately
- 1.5 W (DC) Approximately
Enclosure, Body Material
- Aluminum
- Plastic
- Stainless Steel
Environmental Protection
- IP67
Frequency
- 50/60 Hz
Hysteresis
- 1.33 dB
Operating Voltages
- 20-253 Vac
- 20-72 Vdc
Output Format
- Relay Output
- Transistor Output
Power Requirement
- 10 mV - Min.
- 253 Vac - Max.
- 253 Vdc
- 50 mW-750 Vac, 54 W DC
- Minimum 10 µA, Max.
Pressure Range
- psig: -14.5 to 58 (kPa: -100 to 400, bar: -1 to 4)
Process Temperature
- -40° to 450° C (-40° to 842° F)
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Temperature Range
- -40° to 80° C (-40° to 176° F)
Wetted Materials
- 316L Stainless Steel
- PTFE
