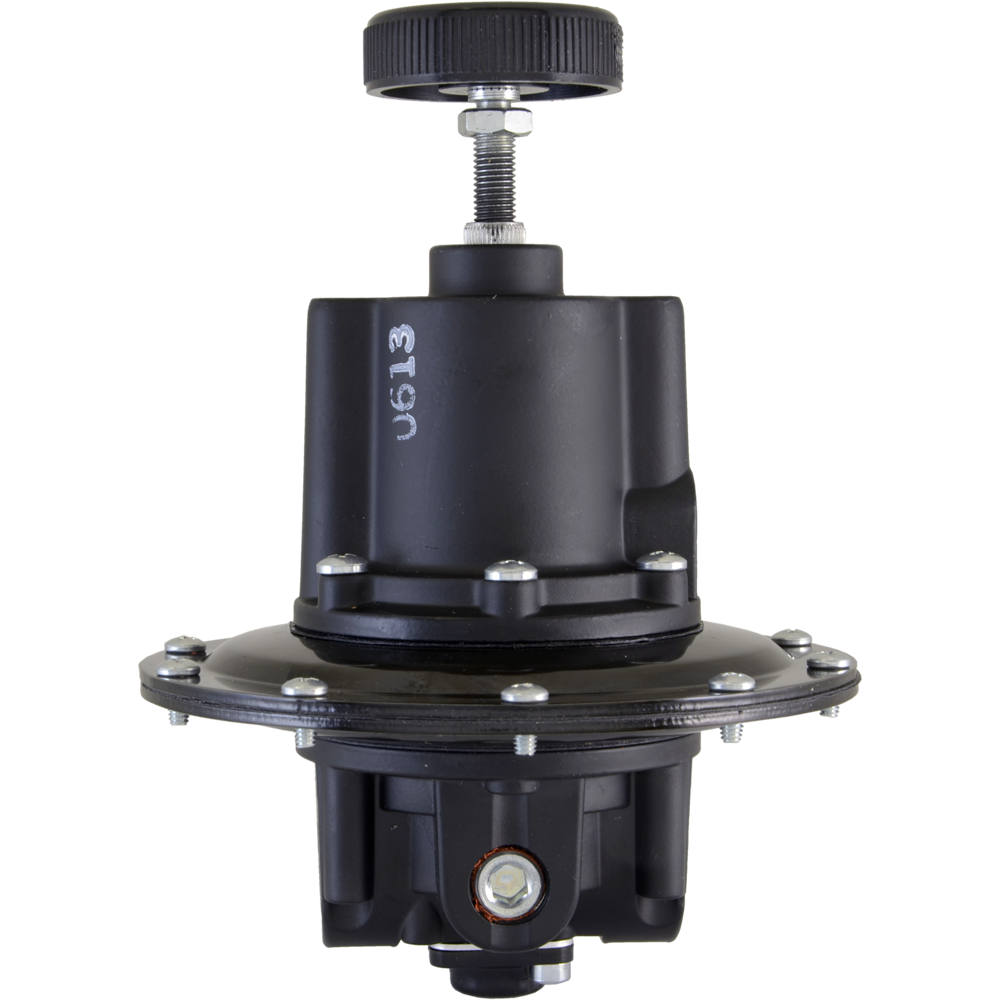

Model 11 Pneumatic Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 11 is a Low Pressure Precision Pressure Regulator designed for applications that require high performance and accurate process control at very low pressures down to 3 inches water column.

The Fairchild Model 11 pneumatic low pressure regulator features control sensitivity of less than 0.05" water column and high flow capacity to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 11 high precision pressure regulator will handle a 150 psi, 10 BAR maximum supply pressure and offers five (5) output pressure ranges from 0-0.5 psi, 0-0.034 BAR, 0-3.4 kPa up to 0-12 psi, 0-0.83 BAR, 0-83 kPa.

The Model 11 has a flow capacity of 27 SCFM, 40.7 m3/hr.
Features
  • Sensitivity of 0.05" WC for Precision Control in low pressure applications
  • Relief Valve provides high exhaust flows
  • Optional Low Bleed seat minimizes air consumption
  • An Aspirator Tub compensates for downstream pressure droop under flow conditions
show more
The Rotork Fairchild Model 11 is a Low Pressure Precision Pressure Regulator designed for applications that require high performance and accurate process control at very low pressures down to 3 inches water column.

The Fairchild Model 11 pneumatic low pressure regulator features control sensitivity of less than 0.05" water column and high flow capacity to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 11 high precision pressure regulator will handle a 150 psi, 10 BAR maximum supply pressure and offers five (5) output pressure ranges from 0-0.5 psi, 0-0.034 BAR, 0-3.4 kPa up to 0-12 psi, 0-0.83 BAR, 0-83 kPa.

The Model 11 has a flow capacity of 27 SCFM, 40.7 m3/hr.
Features
  • Sensitivity of 0.05" WC for Precision Control in low pressure applications
  • Relief Valve provides high exhaust flows
  • Optional Low Bleed seat minimizes air consumption
  • An Aspirator Tub compensates for downstream pressure droop under flow conditions
14 models matching criteria
11122NNKRSB
FAIRCHILD Model 11 Pneumatic Regulator, 0-2 psig, 1/4" FNPT, Nitrile, Knob, Relieving, Straight View More
  • 11: Catalog No.

  • 1: Revision

  • 2: Range: 0-2 psig

  • 2: Port Size: 1/4"

  • N: Thread: NPTF

  • N: Elastomer: Nitrile

  • K: Actuator: Knob

  • R: Relief: Relieving, Normal Bleed

  • S: Vent: Straight

  • B: Mounting: Bonnet (2 x 1/4-20 UNC)

  • 6 - 8 weeks
    $509.53USD
    $14.78 Shipping
    11132NNKRSB
    FAIRCHILD Model 11 Pneumatic Regulator, 0-4 psig, 1/4" FNPT, Nitrile, Knob, Relieving, Straight View More
    • 11: Catalog No.
    • 1: Revision
    • 3: Range: 0-4 psig
    • 2: Port Size: 1/4"
    • N: Thread: NPTF
    • N: Elastomer: Nitrile
    • K: Actuator: Knob
    • R: Relief: Relieving, Normal Bleed
    • S: Vent: Straight
    • B: Mounting: Bonnet (2 x 1/4-20 UNC)
    6 - 8 weeks
    $509.53USD
    $14.78 Shipping
    11154NNKBEB
    FAIRCHILD Model 11 Low Pressure Pneumatic Regulator, 0-12 psig, 1/2" FNPT, Nitrile Elastomer, Knob Adjust, Low Bleed, Tapped Exhaust, Bonnet Mount View More
  • 11: Catalog No.

  • 1: Revision

  • 5: Range: 0-12 psig

  • 4: Port Size: 1/2"

  • N: Thread: NPTF

  • N: Elastomer: Nitrile

  • K: Actuator: Knob

  • B: Relief: Low Bleed

  • E: Vent: Tapped (1/4" NPT, BSPT)

  • B: Mounting: Bonnet (2 x 1/4-20 UNC)

  • Out of Stock
    $523.58USD / Each
    $14.78 Shipping
    Out of Stock
    $611.58USD
    $14.78 Shipping
    11134NNKRSB
    FAIRCHILD Model 11 Pneumatic Regulator, 0-4 psig, 1/2" FNPT, Nitrile, Knob, Relieving, Straight View More
    • 11: Catalog No.
    • 1: Revision
    • 3: Range: 0-4 psig
    • 4: Port Size: 1/2"
    • N: Thread: NPTF
    • N: Elastomer: Nitrile
    • K: Actuator: Knob
    • R: Relief: Relieving, Normal Bleed
    • S: Vent: Straight
    • B: Mounting: Bonnet (2 x 1/4-20 UNC)
    6 - 8 weeks
    $546.50USD
    $14.78 Shipping
    11122NNKBEB
    FAIRCHILD Model 11 Pneumatic Regulator, 0-2 psig, 1/4" FNPT, Nitrile, Knob, Low Bleed, Tapped View More
  • 11: Catalog No.

  • 1: Revision

  • 2: Range: 0-2 psig

  • 2: Port Size: 1/4"

  • N: Thread: NPTF

  • N: Elastomer: Nitrile

  • K: Actuator: Knob

  • B: Relief: Low Bleed

  • E: Vent: Tapped (1/4" NPT, BSPT)

  • B: Mounting: Bonnet (2 x 1/4-20 UNC)

  • 6 - 8 weeks
    $574.60USD
    $14.78 Shipping
    11113UNKNEB
    FAIRCHILD Model 11 Pneumatic Regulator, 0-0.5 psig, 3/8" BSPT, Nitrile, Knob Non-Relieving,Tapped View More
    • 11: Catalog No.
    • 1: Revision
    • 1: Range: 0-0.5 psig, 0-35 mBar, 0-3.5 kPa
    • 3: Port Size: 3/8"
    • U: Thread: BSPT (at exhaust & gage ports)
    • N: Elastomer: Nitrile
    • K: Actuator: Knob
    • N: Relief: Non-Relieving
    • E: Vent: Tapped Exhaust
    • B: Mounting: Bonnet (2 x 1/4-20 UNC)
    6 - 8 weeks
    $582.00USD
    $14.78 Shipping
    11112NJSRSB
    FAIRCHILD Model 11 Pneumatic Regulator, 0-0.5 psig, 1/4" FNPT, Fluorocarbon,Screw,Relieving,Straight View More
  • 11: Catalog No.

  • 1: Revision

  • 1: Range: 0-0.5 psig, 0-35 mBar, 0-3.5 kPa

  • 2: Port Size: 1/4"

  • N: Thread: NPTF

  • J: Elastomer: Fluorocarbon

  • S: Actuator: Screw Adjust

  • R: Relief: Relieving, Normal Bleed

  • S: Vent: Straight

  • B: Mounting: Bonnet (2 x 1/4-20 UNC)

  • 6 - 8 weeks
    $607.88USD
    $14.78 Shipping
    11154NNKSSB
    FAIRCHILD Model 11 Pneumatic Regulator, 0-12 psig, 1/2" FNPT, Nitrile, Knob, Relieving, No Bleed View More
    • 11: Catalog No.
    • 1: Revision
    • 5: Range: 0-12 psig
    • 4: Port Size: 1/2"
    • N: Thread: NPTF
    • N: Elastomer: Nitrile
    • K: Actuator: Knob
    • S: Relief: Relieving, No Bleed
    • S: Vent: Straight
    • B: Mounting: Bonnet (2 x 1/4-20 UNC)
    6 - 8 weeks
    $616.02USD
    $14.78 Shipping
    11122NNKNSB
    FAIRCHILD Model 11 Pneumatic Regulator, 0-2 psig, 1/4" FNPT, Nitrile, Knob, Non-Relieving, Straight View More
    • 11: Catalog No.
    • 1: Revision
    • 2: Range: 0-2 psig
    • 2: Port Size: 1/4"
    • N: Thread: NPTF
    • N: Elastomer: Nitrile
    • K: Actuator: Knob
    • N: Relief: Non-Relieving
    • S: Vent: Straight
    • B: Mounting: Bonnet (2 x 1/4-20 UNC)
    Out of Stock

    Specifications

    Actuator Type

    • Knob Adjust
    • Screwdriver Adjust
    • Tamper-Proof

    Ambient Temperature Range

    • -40° to 93° C (-40° to 200° F)

    BSP Connection

    • 1/2" BSPP Female
    • 1/2" BSPT Female
    • 1/4" BSPP Female
    • 1/4" BSPT Female
    • 3/8" BSPP Female
    • 3/8" BSPT Female

    Elastomers

    • Fluorocarbon (Viton)
    • Nitrile

    Enclosure, Body Material

    • Aluminum

    Exhaust Capacity - Relieving Units Only

    • 0.5 scfm
    • 0.5 scfm (0.85 m³/hour) where Downstream Pressure is psig: 0.1 (bar: 0.007, kPa: 0.7) Above psig: 1.0 (bar: 0.06, kPa: 6.8) Set Point
    • 0.85 m³/hour

    Flow Capacity

    • 24 scfm (40.7 m³/hour)
    • 24 scfm (40.7 m³/hour) at psig: 100 (bar: 7, kPa: 700) Supply & psig: 1 (bar: 0.06, kPa: 0.68) Set Point
    • 40.7 m³/hour

    Media

    • Compressed Air
    • Gas

    Mounting

    • Bonnet Mounting
    • Panel Mount

    NPT Connection

    • 1/2" NPT Female
    • 1/4" NPT Female
    • 3/8" NPT Female

    Output Options

    • None

    Pressure Range

    • bar: 0 to 0.82
    • bar: 0 to 1.36
    • kPa: 0 to 137
    • kPa: 0 to 82.7
    • psig: 0 to 12
    • psig: 0 to 20

    Relief

    • Low Bleed
    • Non-Relieving
    • Relieving

    Sensitivity

    • 0.05" WC (0.127 cm)

    Supply Pressure - Maximum

    • bar: 10
    • kPa: 1,000
    • psig: 150

    Supply Pressure Effect

    • Less than 0.0007 bar
    • Less than psi: 0.01 (bar: 0.0007, kPa: 0.07)
    • Less than psig: 0.01 (bar: 0.0007, kPa: 0.07) for psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure
    • Less than psig: 0.01 (bar: 0.007, kPa: 0.07)

    Trim Material

    • Brass
    • Zinc-Plated Steel

    Vent

    • Straight
    • Tapped Exhaust
