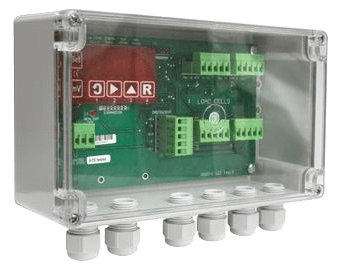

JBOX-LCI Smart Junction Box

Brand: Sensy S.A.
Smart junction box designed for parallel connecting of 2 to 4 load cells to a measurement electronics and ensuring the monitoring of their proper functioning.
Features
  • Control of
    • Load cell out of preset balance range
    • Load cell out of preset operating range
    • Low/high excitation
    • Open circuit to any load cell on each connection
    • Short circuit on any load cell connection
    • Internal load cell fault (bridge imbalance)
  • Ensure the positive safety for load-limitation systems based on multiple load cells parallel connected (hoisting devices)
  • Options
    • ABS housing available with Din rail mounting accessories
    • PCB available without ABS housing

show more
Images are representations only.
Smart junction box designed for parallel connecting of 2 to 4 load cells to a measurement electronics and ensuring the monitoring of their proper functioning.
Features
  • Control of
    • Load cell out of preset balance range
    • Load cell out of preset operating range
    • Low/high excitation
    • Open circuit to any load cell on each connection
    • Short circuit on any load cell connection
    • Internal load cell fault (bridge imbalance)
  • Ensure the positive safety for load-limitation systems based on multiple load cells parallel connected (hoisting devices)
  • Options
    • ABS housing available with Din rail mounting accessories
    • PCB available without ABS housing


Specifications

Brand

Applications

  • Hoisting
  • Industrial Weighing

Approvals & Certifications

  • CE

Display

  • 4-Digits

Electrical Connectors

  • 2 Part Plug-In Connector Wire, Maximum

Enclosure, Body Material

  • ABS
  • PCB

Environmental Protection

  • IP65

Input

  • 1 to 5 mV/V

Linearity

  • <± 0.0015% of Full Scale - Linearity Error

Mounting

  • DIN Rail Mounting
  • M4 Screw

Power Supply

  • 43 to 52 mA - Current from Excitation Supply
  • 8.2-10 Vdc
  • 9-12 Vdc - Volts from Excitation Supply

Resistance

  • 300 to 1,000 ohms - Bridge

Sensitivity

  • 1 to 5 mV/V - Bridge

Sensor Excitation

  • 10 Vdc ± 20%

Service Temperature

  • -40° to 85° C (-40° to 185° F)

Storage Temperature

  • -40° to 95° C (-40° to 203° F)

Temperature Coefficient

  • <± 0.005% of Full Scale/10° C (18° F)
