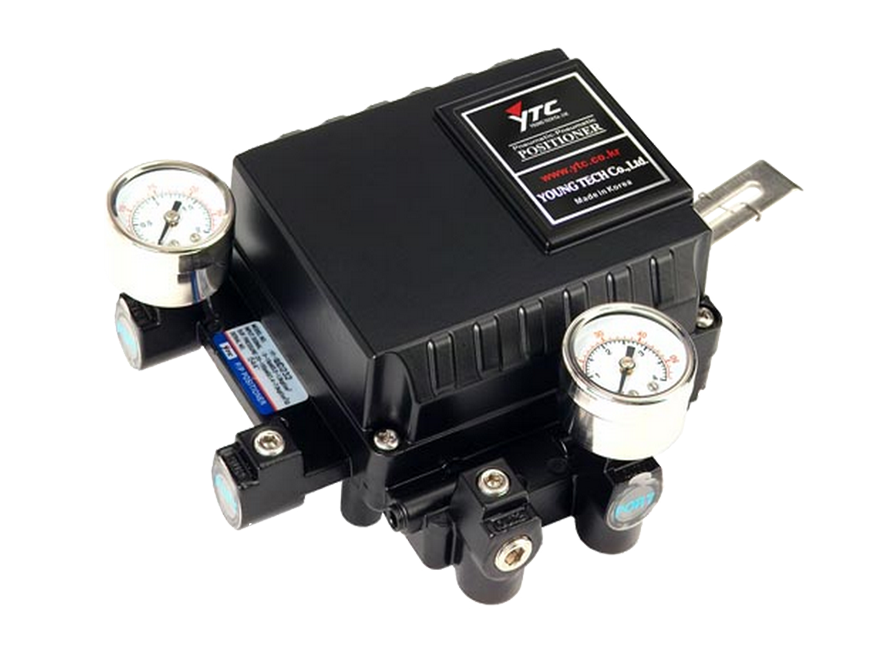

YT-1200L Linear Pneumatic Positioner

Brand: Young Tech Co., Ltd
The Pneumatic Positioner YT-1200L is used for pneumatic valve actuators by means of pneumatic controller or control systems with an output signal of 3 to 5 psi or split ranges.
Features
  • The product can operate normally in very extreme environment, such as vibration and temperature.
  • The durability has been proven after testing 2 million cycles at the minimum.
  • Response time is very short and accurate.
  • Simple part change can set 1/2 Split Range.
  • It is economical due to less air-consumption.
  • Direct / Reverse action can be set easily.
  • Zero & Span adjustment processes are simple.
  • Feedback connection is easy.
show more
Images are representations only.
The Pneumatic Positioner YT-1200L is used for pneumatic valve actuators by means of pneumatic controller or control systems with an output signal of 3 to 5 psi or split ranges.
Features
  • The product can operate normally in very extreme environment, such as vibration and temperature.
  • The durability has been proven after testing 2 million cycles at the minimum.
  • Response time is very short and accurate.
  • Simple part change can set 1/2 Split Range.
  • It is economical due to less air-consumption.
  • Direct / Reverse action can be set easily.
  • Zero & Span adjustment processes are simple.
  • Feedback connection is easy.

YT-1200L

Acting Type

Lever Type

Orifice Size

Connection

Temperature Range

Specifications

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)

Approvals & Certifications

  • CE

Enclosure, Body Material

  • Die Cast Aluminum

Environmental Protection

  • IP66

Flow Capacity

  • 80 LPM

Hysteresis

  • ± 1% of Full Scale

Independent Linearity

  • ± 1% of Full Scale (Single-Acting)
  • ± 2% of Full Scale (Double-Acting)

Input Signal

  • bar: 0.2 to 1

NPT Connection

  • 1/4" NPT Female

Orifice Size

  • Phi 1
  • Phi 2

PT/PF/PS (JIS) Connection

  • 1/4" PT Female

Repeatability

  • ± 0.5% of Full Scale

Supply Pressure

  • bar: 1.4 to 6.9
  • kPa: 140 to 690
  • psig: 20.3 to 100
