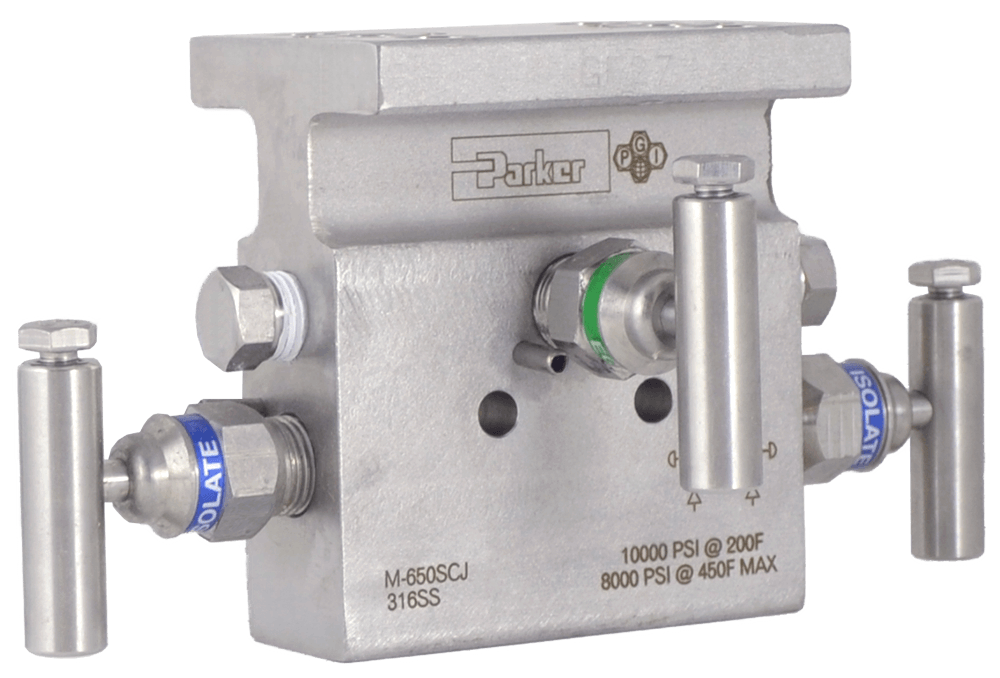

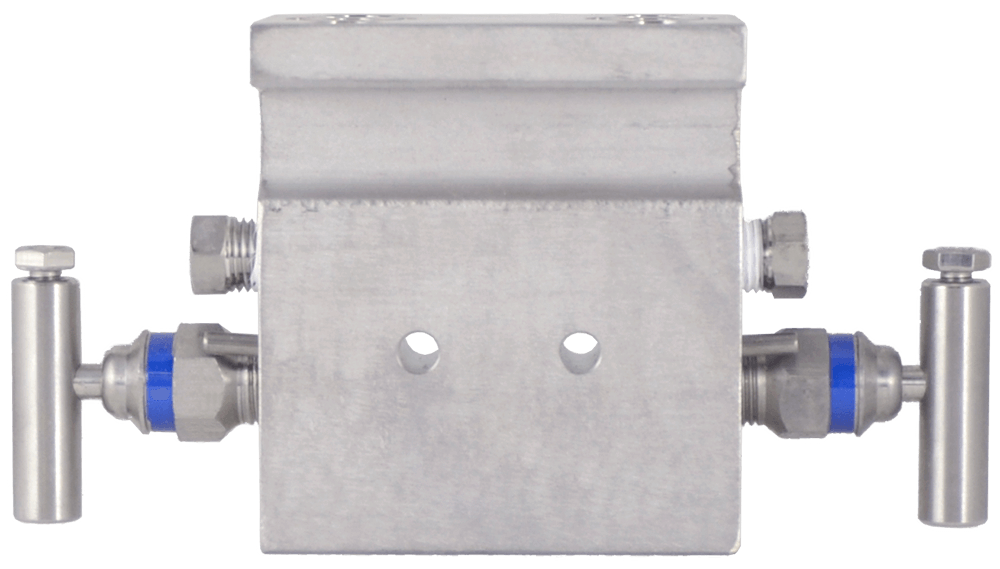

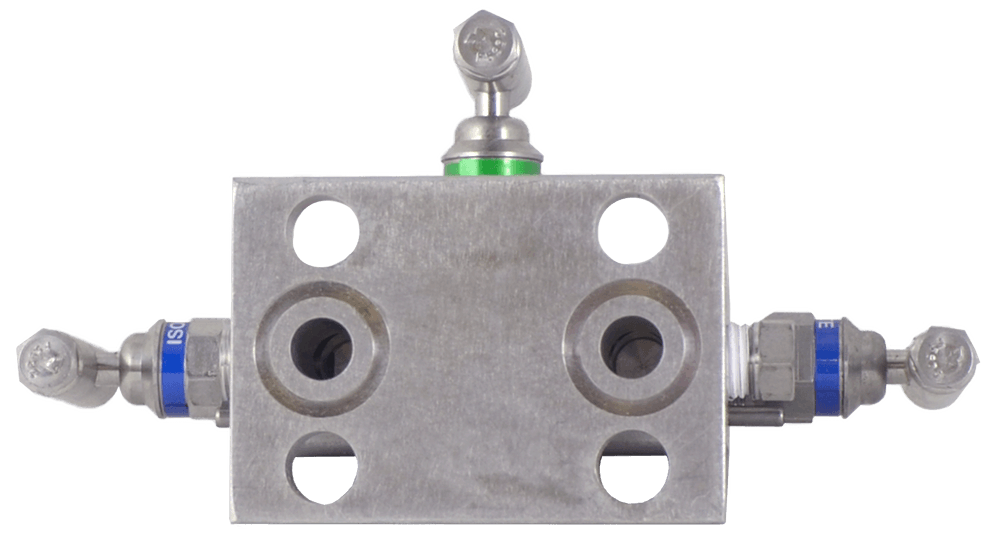

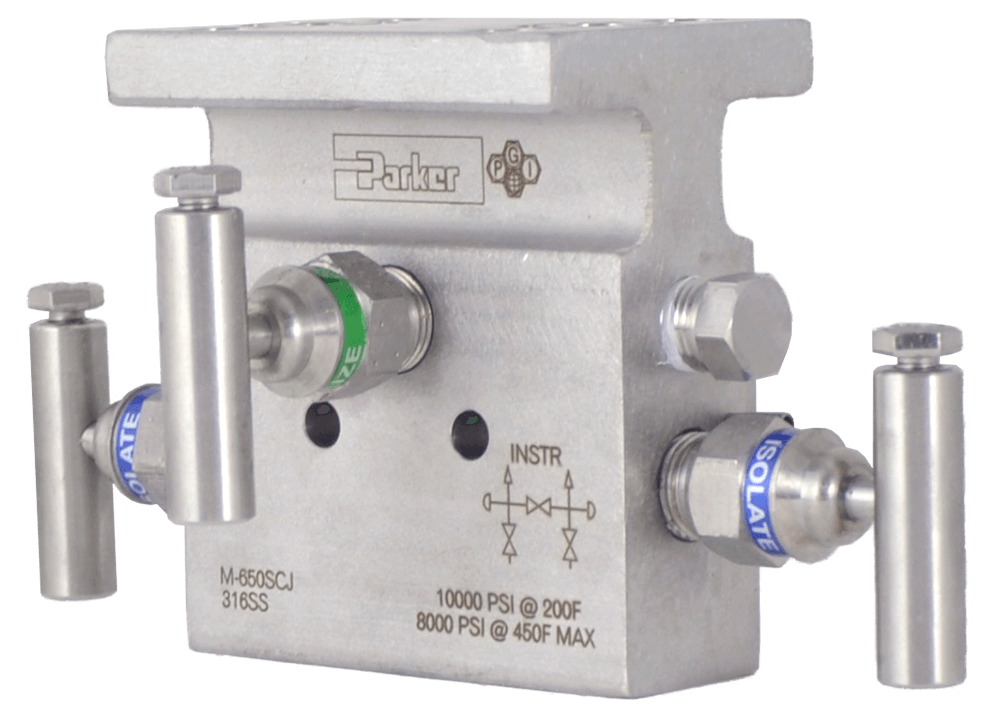

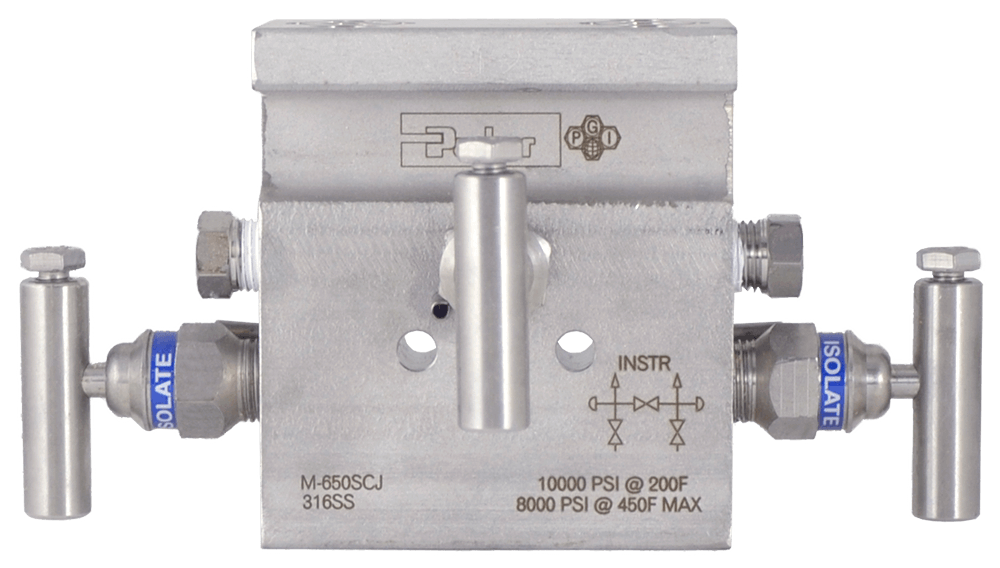

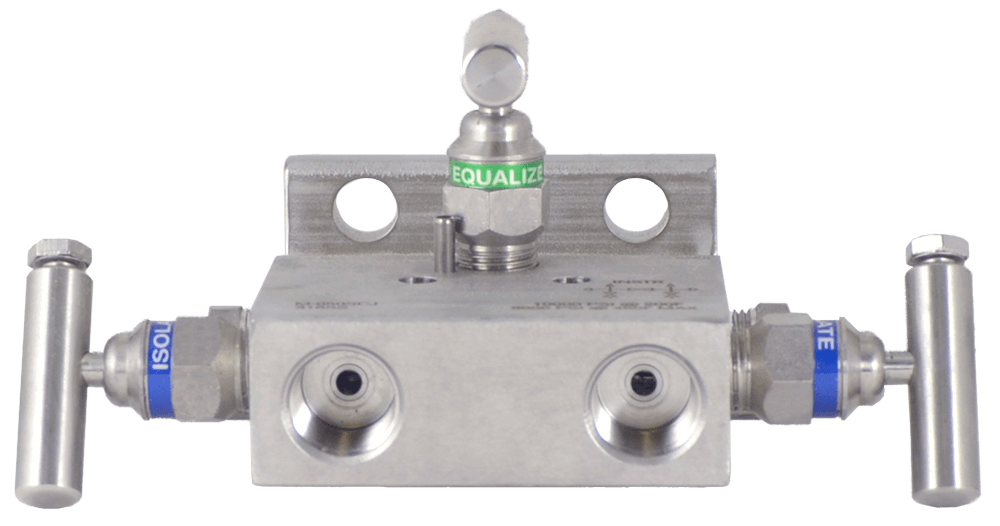

M-650 Three-Valve Manifold

Brand: PGI International
  • Design: Hard Seat Three-Valve Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: Flanged
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
show more
Images are representations only.
  • Design: Hard Seat Three-Valve Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: Flanged
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
5 models matching criteria
M-650-SCJ
PGI 3-Valve Manifold, 1/2" x Flanged, NACE
5 In Stock
$371.75USD
$8.27 Shipping
M-651-CDT
PGI 3-Valve Manifold, Soft Seat, Carbon Steel, Delrin Cone, Teflon Pressure Core
2 - 4 weeks
$221.89USD
$8.27 Shipping
M-650-SCJ-GJ
PGI 3-Valve Manifold, 1/2" x Flange, , Bonnet Lock Out, NACE
6 - 7 weeks
$1,120.23USD
$8.27 Shipping
M3-650-SCT
PGI 3-Valve Manifold, Hard Seat .375" Orifice, 316 SST, Carbide Ball, Teflon Pressure Core
6 - 7 weeks
$1,238.63USD
$8.27 Shipping
M-650-CCT
PGI 3-Valve Manifold, 1/2" x Flanged, SST NACE
2 - 4 weeks

M-650

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Body and Bonnet Material

Seat Material

Stem Packing Material
