Ultra-High Temperature Pasteurization (UHT) RTD Sensors

Brand: Pyromation

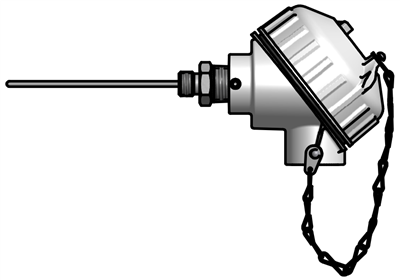

The types listed below are RTD temperature sensor assemblies designed to meet the stringent requirements of ultra-high temperature (UHT) pasteurization systems. In the UHT process the products are pasteurized at a higher temperature, typically 138° C for a shorter period of time - usually 2-3 seconds. The RTD sensor assemblies are available in a variety of accuracies, wire configurations, and termination options. They are also available with a variety of (4-20) mA transmitter options. All wetted parts are supplied with a surface finish that meets or exceeds 32μin Ra. Surface finishes of 15μin Ra or better are available upon request. These assemblies are supplied with a 9/16” -18 UNF-2A process connection and Viton O-ring on the face of the fitting.
show more
Images are representations only.
The types listed below are RTD temperature sensor assemblies designed to meet the stringent requirements of ultra-high temperature (UHT) pasteurization systems. In the UHT process the products are pasteurized at a higher temperature, typically 138° C for a shorter period of time - usually 2-3 seconds. The RTD sensor assemblies are available in a variety of accuracies, wire configurations, and termination options. They are also available with a variety of (4-20) mA transmitter options. All wetted parts are supplied with a surface finish that meets or exceeds 32μin Ra. Surface finishes of 15μin Ra or better are available upon request. These assemblies are supplied with a 9/16” -18 UNF-2A process connection and Viton O-ring on the face of the fitting.

UHT RTD Sensors

RTD Assemblies

Temerature Range

Tolerance

Tolerance

Tolerance

Temerature Range

Tolerance

Tolerance

Tolerance

Sheath O.D.

Sheath Material

Element Connection

Sheath Length

Head Mounting Fitting and Termination

Aditional Lead Length

Head Options
