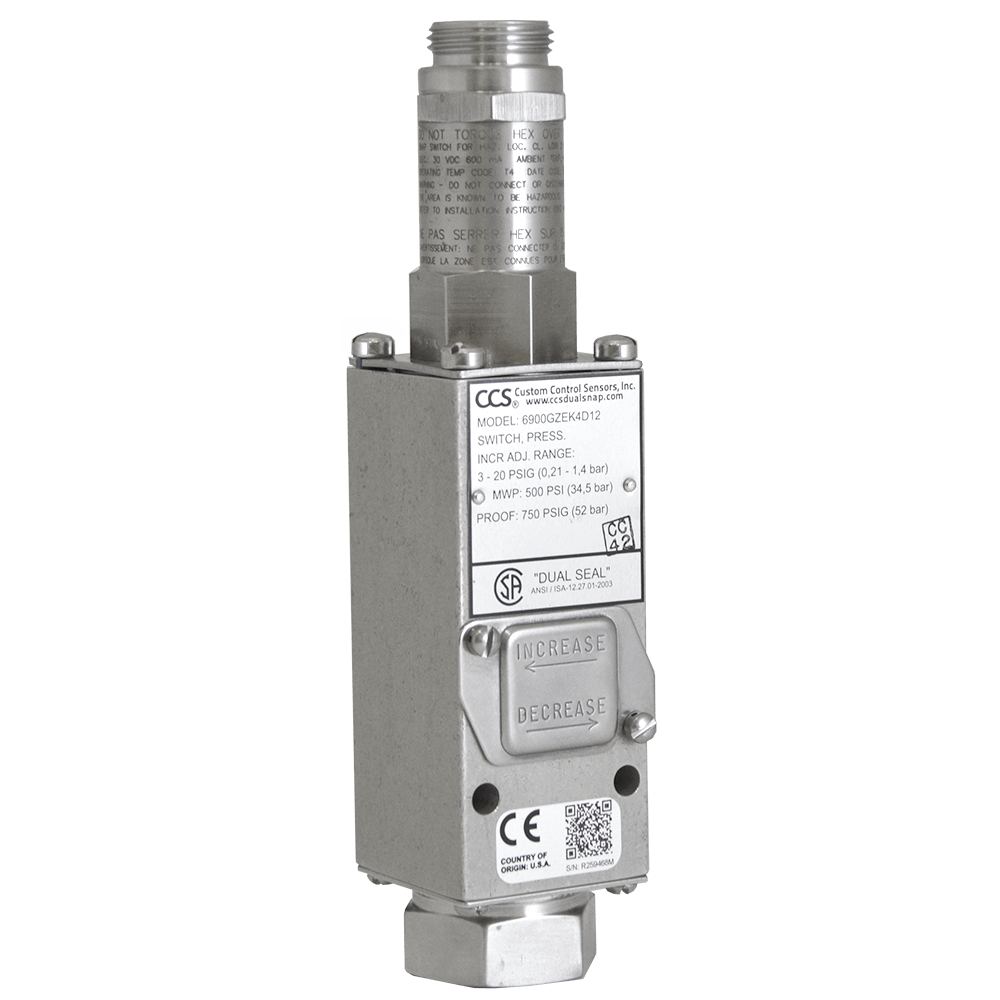

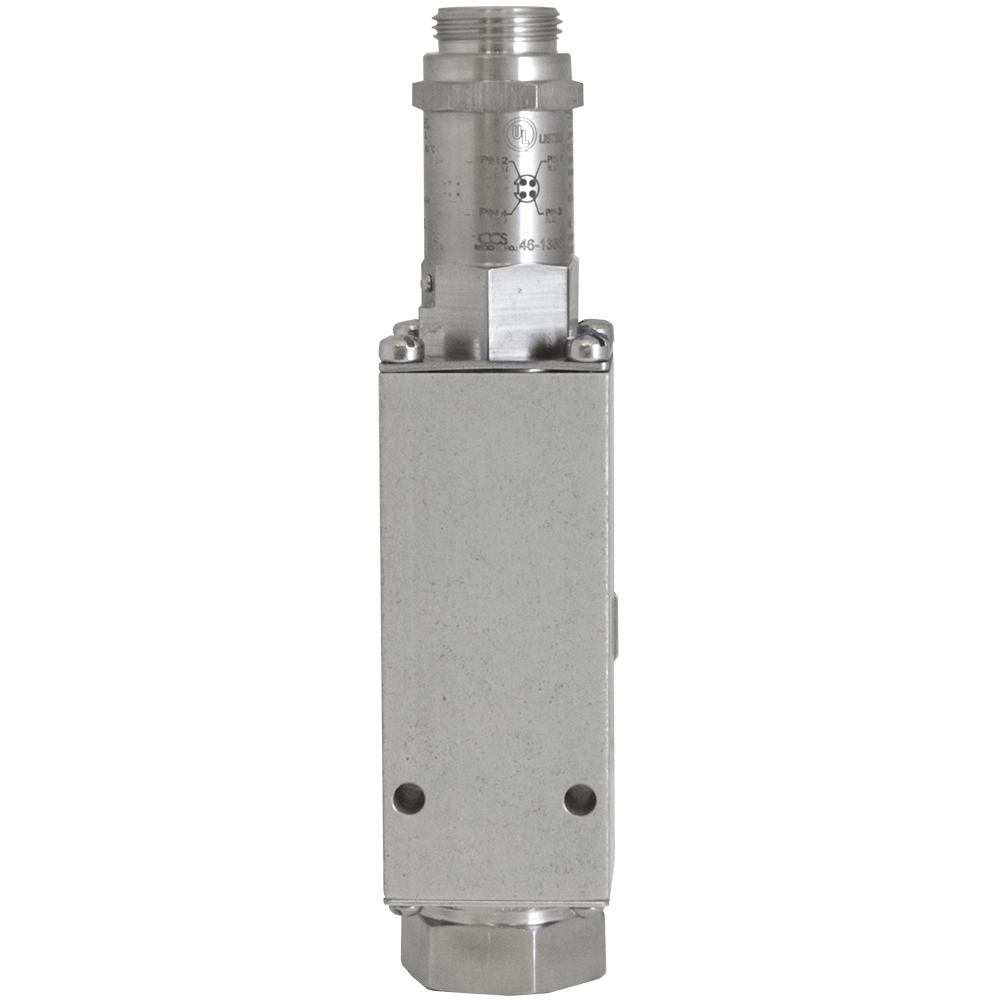

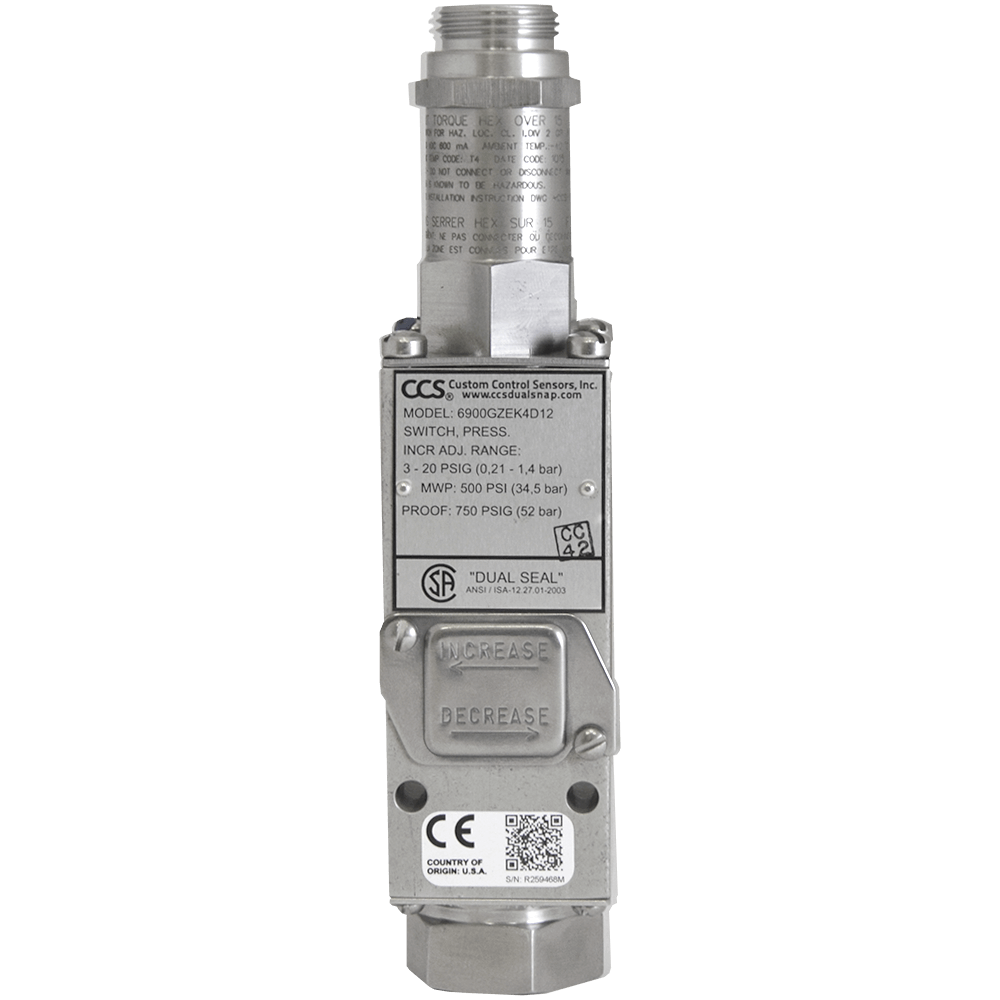

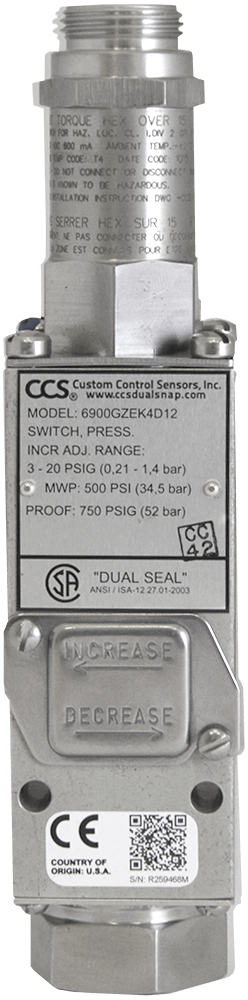

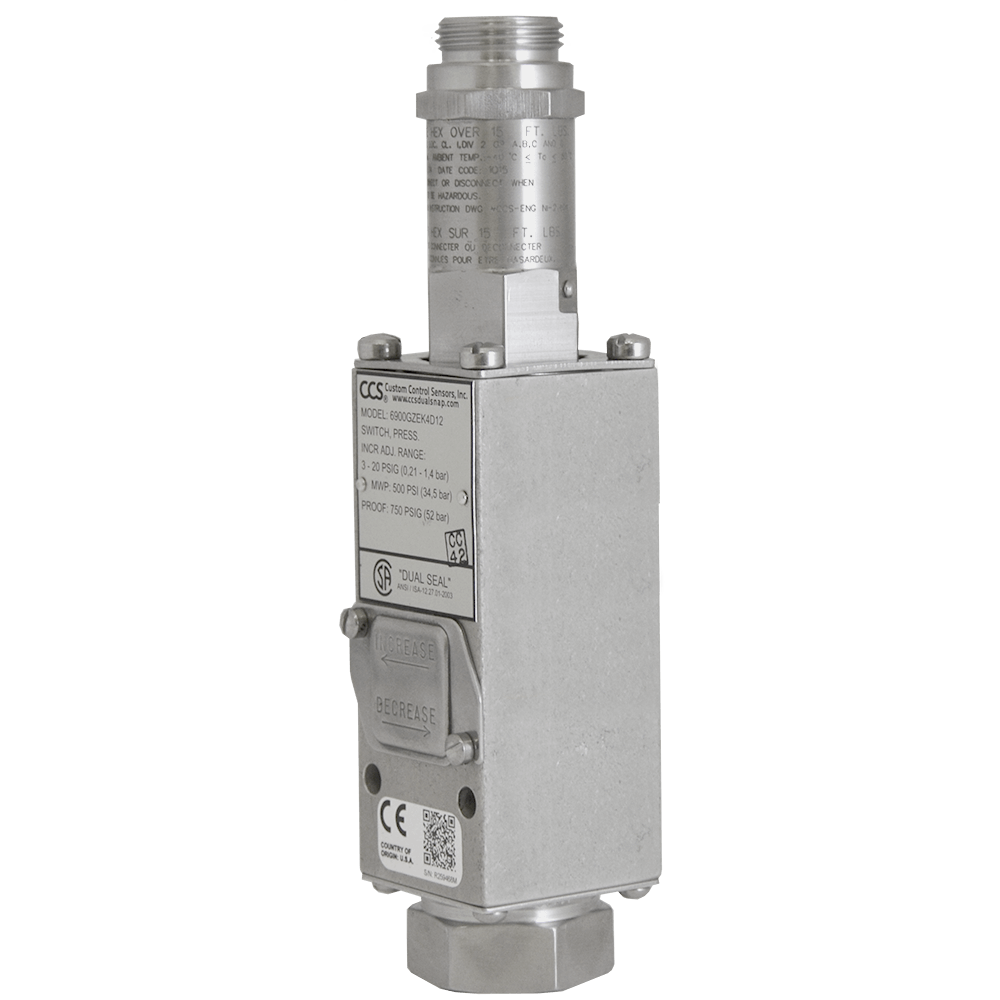

6900GEK Series Pressure Switch

Brand: Custom Control Sensors, LLC
Does not ship to OH, United States
Features
  • Turck® electrical connection for easy “plug and play” in Class I, Division 2 applications.
  • Turck® connector provides superior ingress protection.
  • No electrical junction box required.
  • Highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle pioneered by CCS’ engineers.
  • Engineering based on aerospace technology.
  • Rigid, compact, and internally adjustable for convenient field set point adjustment.
  • Repeatable and stable set points.
  • Vibration- and shock-resistant.
  • High cycle life.
  • High over-pressure capability (System and Proof).
  • Hermetically sealed electrical assembly for environmental protection.
  • NO ELECTRICAL JUNCTION BOX REQUIRED

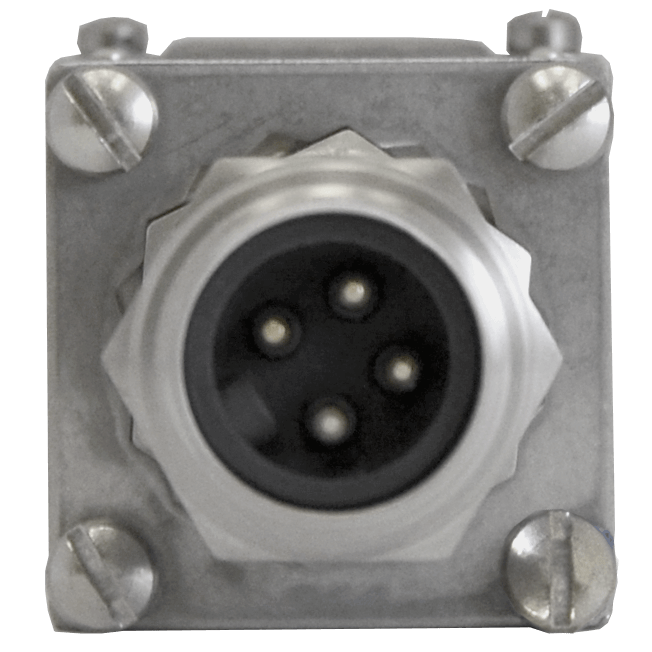

  • 4- or 6-Pin Turck Connector Electrical Connection
The hazardous locations CCS Dual-Snap 6900GEK Series  comes standard with a Turck® electrical connection for easy “plug and play” in Class I, Division 2 applications.

The 6900GEK is designed with high vibration and shock resistance, utilizing Dual Snap® disc spring technology, ensuring high accuracy and repeatability.

  • Adjustable Set Point Range
    • Increasing
      • psig   3 - 3400
      • kPa     20.7 - 23,442.15
      • bar     0.21 - 234
    • Decreasing
      • psig   1 - 3180 psig
      • kPa     6.9 - 21,925.3
      • bar     0.07 - 219
  • Deadband - Approximate: 2 - 220 psi, 13.8 - 1516.8 kPa, 0.14 - 5.2 bar
  • System Pressure - Maximum: 500 - 5000 psig, 3447.38 - 34,473.75 kPa, 34.5 - 345 bar
  • Proof Pressure: 750 - 7500 psig, 5171.07 - 51,710.63 kPa, 51.7 - 517 bar
  • Wetted Materials

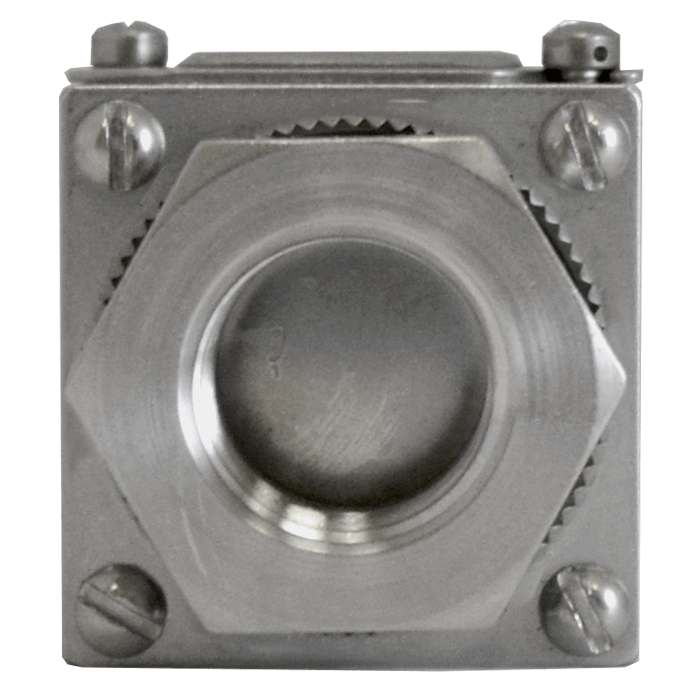

    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NEMA
Features
  • Turck® electrical connection for easy “plug and play” in Class I, Division 2 applications.
  • Turck® connector provides superior ingress protection.
  • No electrical junction box required.
  • Highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle pioneered by CCS’ engineers.
  • Engineering based on aerospace technology.
  • Rigid, compact, and internally adjustable for convenient field set point adjustment.
  • Repeatable and stable set points.
  • Vibration- and shock-resistant.
  • High cycle life.
  • High over-pressure capability (System and Proof).
  • Hermetically sealed electrical assembly for environmental protection.
  • NO ELECTRICAL JUNCTION BOX REQUIRED
  • 4- or 6-Pin Turck Connector Electrical Connection
The hazardous locations CCS Dual-Snap 6900GEK Series  comes standard with a Turck® electrical connection for easy “plug and play” in Class I, Division 2 applications.

The 6900GEK is designed with high vibration and shock resistance, utilizing Dual Snap® disc spring technology, ensuring high accuracy and repeatability.

  • Adjustable Set Point Range
    • Increasing
      • psig   3 - 3400
      • kPa     20.7 - 23,442.15
      • bar     0.21 - 234
    • Decreasing
      • psig   1 - 3180 psig
      • kPa     6.9 - 21,925.3
      • bar     0.07 - 219
  • Deadband - Approximate: 2 - 220 psi, 13.8 - 1516.8 kPa, 0.14 - 5.2 bar
  • System Pressure - Maximum: 500 - 5000 psig, 3447.38 - 34,473.75 kPa, 34.5 - 345 bar
  • Proof Pressure: 750 - 7500 psig, 5171.07 - 51,710.63 kPa, 51.7 - 517 bar
  • Wetted Materials
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • Dual Seal - ANSI/ISA - 12.27.01-2003
  • CRN, CE Mark, NEMA
