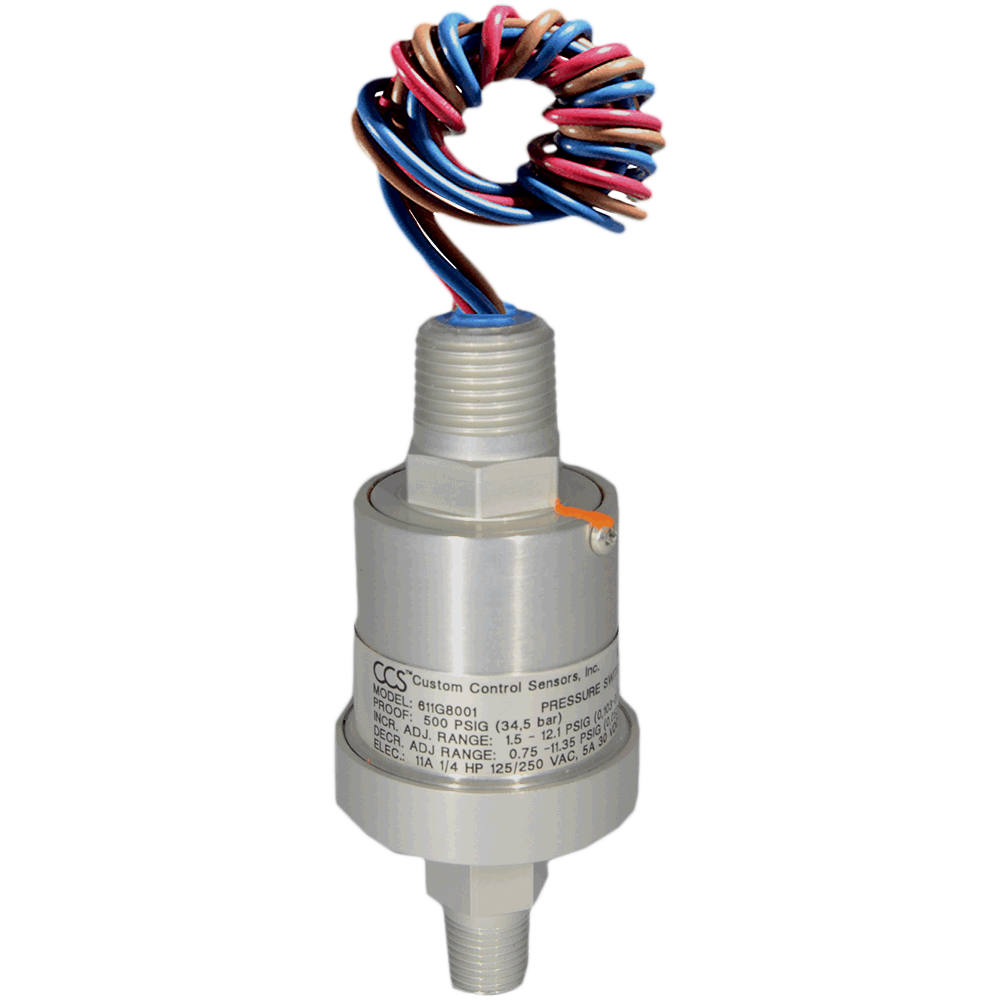

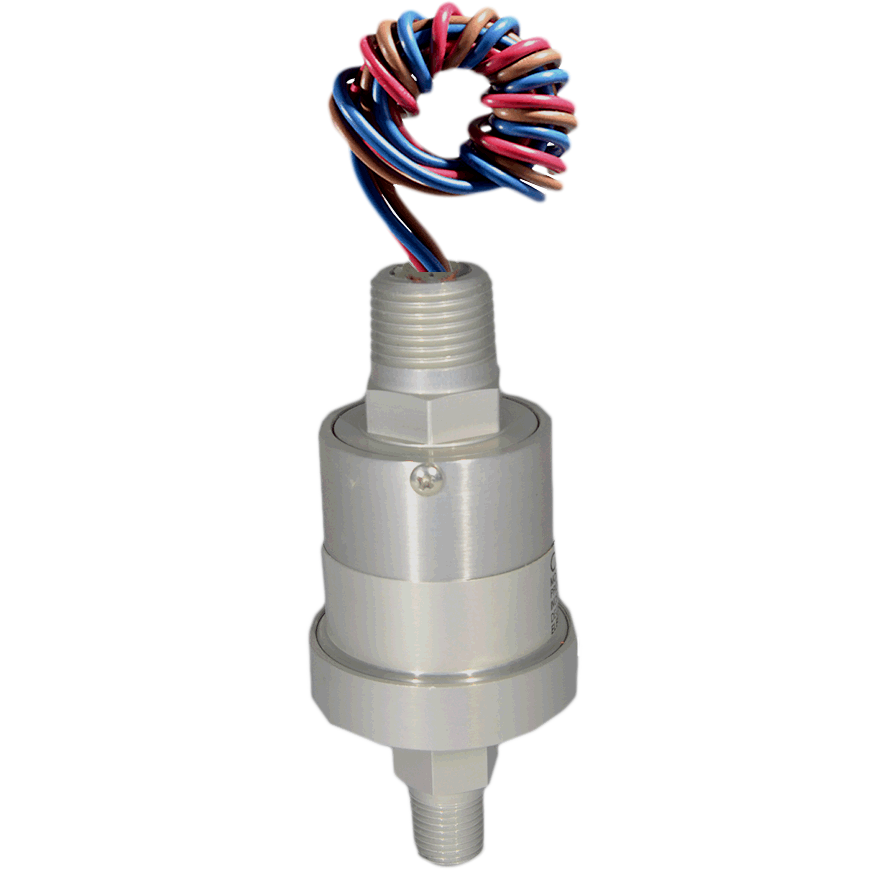

611GZE8100 Series Pressure Switch

Brand: Custom Control Sensors
Features
  • Fixed Set Point Range:
    • Increasing: 3 to 180 psig, 20.68 to 1241.06 kPa, 0.21 to 12.41 bar
    • Decreasing: 1 to 170 psig, 6.9 to 1172.11 kPa, 0.069 to 11.72 bar
  • Deadband: Approximately 2 to 10 psi, 13.79 to 68.95 kPa, 0.138 to 0.69 bar
  • System Pressure (Maximum): 250 to 500 psig, 1378.95 to 3447.38 kPa, 17.2 to 34.5 bar
  • Proof Pressure: 500 to 1000 psig, 3447.38 to 6894.76 kPa, 34.5 to 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Male NPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE
show more
Features
  • Fixed Set Point Range:
    • Increasing: 3 to 180 psig, 20.68 to 1241.06 kPa, 0.21 to 12.41 bar
    • Decreasing: 1 to 170 psig, 6.9 to 1172.11 kPa, 0.069 to 11.72 bar
  • Deadband: Approximately 2 to 10 psi, 13.79 to 68.95 kPa, 0.138 to 0.69 bar
  • System Pressure (Maximum): 250 to 500 psig, 1378.95 to 3447.38 kPa, 17.2 to 34.5 bar
  • Proof Pressure: 500 to 1000 psig, 3447.38 to 6894.76 kPa, 34.5 to 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Male NPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE
11 models matching criteria
611GZE8103
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton View More
  • Adjustable Set Point Range:

    • Increasing: 12 to 30 psi, 82.7 to 206.8 kPa, 0.827 to 2.07 bar
    • Decreasing: 9 to 27 psi, 62.1 to 186.2 kPa, 0.62 to 1.86 bar
  • Deadband: Approximately 3 psi, 21 kPa, 0.21 bar
  • System Pressure (Maximum): 500 psi, 3450 kPa, 34.5 bar
  • Proof Pressure: 1000 psi, 6890 kPa, 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
$538.72 USD
Does not ship to US
611GZEM8101
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 3 to 12 psig, 20.7 to 82.7 kPa, 0.21 to 0.827 bar
    • Decreasing: 1 to 10 psig, 6.9 to 68.9 kPa, 0.069 to 0.69 bar
  • Deadband: Approximately 2 psi, 13.79 kPa, 0.138 bar
  • System Pressure (Maximum): 250 psig, 1723.69, 17.2 bar
  • Proof Pressure: 500 psig, 3447.38 kPa, 34.5 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
$644.28 USD
Does not ship to US
611GZE8105
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton View More
  • Adjustable Set Point Range:

    • Increasing: 30 to 70 psig, 206.8 to 482.6 kPa, 2.07 to 4.83 bar
    • Decreasing: 25 to 65 psig, 172.4 to 448.2 kPa, 1.72 to 4.48 bar
  • Deadband: Approximately 5 psig, 34.5 kPa, 0.345 bar
  • System Pressure (Maximum): 500 psig, 3447.4 kPa, 34.5 bar
  • Proof Pressure: 1000 psig, 6894.8 kPa, 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
$797.98 USD
Does not ship to US
611GZE8107
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton View More
  • Adjustable Set Point Range:

    • Increasing: 70 to 180 psig
    • Decreasing: 60 to 170 psig
  • Deadband: Approximately 10 psi
  • System Pressure (Maximum): 500 psig
  • Proof Pressure: 1000 psig
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
$797.98 USD
Does not ship to US
611GZEM8103
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 12-30 psi, 82.7-206.8 kPa, 0.827-2.07 bar
    • Decreasing: 9-27 psi, 62.1-186.2 kPa, 0.62-1.86 bar
  • Deadband: Approximately 3 psi, 21 kPa, 0.21 bar
  • System Pressure (Maximum): 500 psi, 3450 kPa, 34.5 bar
  • Proof Pressure: 1000 psi, 6890 kPa, 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
$954.01 USD
Does not ship to US
611GZEM8107
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 3 to 12 psig, 20.7 to 82.7 kPa, 0.21 to 0.827 bar
    • Decreasing: 1 to 10 psig, 6.9 to 68.9 kPa, 0.069 to 0.69 bar
  • Deadband: Approximately 2 psi, 13.79 kPa, 0.138 bar
  • System Pressure (Maximum): 250 psig, 1723.69, 17.2 bar
  • Proof Pressure: 500 psig, 3447.38 kPa, 34.5 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
$954.01 USD
Does not ship to US
611GZE8107-7008
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton, Gold Contacts View More
  • Adjustable Set Point Range:

    • Increasing: 70 to 180 psig
    • Decreasing: 60 to 170 psig
  • Deadband: Approximately 10 psi
  • System Pressure (Maximum): 500 psig
  • Proof Pressure: 1000 psig
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • Contacts: Gold
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
$1,098.39 USD
Does not ship to US
611GZE8105-7008
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton, Gold Contacts View More
  • Adjustable Set Point Range:

    • Increasing: 30 to 70 psig, 206.8 to 4825 kPa, 2.07 TO 4.83bar
    • Decreasing: 25 to 65 psig, 172 to 448 kPa, 1.72 to 4.48bar
  • Deadband: Approximately 5 psi, 34.5 kPa, 0.345 bar
  • System Pressure (Maximum): 500 psig, 3447, 34.5 bar
  • Proof Pressure: 1000 psig, 6894 kPa, 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT
  • Contacts: Gold
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
$1,193.09 USD
Does not ship to US
611GZEM8105
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 3 to 12 psig, 20.7 to 82.7 kPa, 0.21 to 0.827 bar
    • Decreasing: 1 to 10 psig, 6.9 to 68.9 kPa, 0.069 to 0.69 bar
  • Deadband: Approximately 2 psi, 13.79 kPa, 0.138 bar
  • System Pressure (Maximum): 250 psig, 1723.69, 17.2 bar
  • Proof Pressure: 500 psig, 3447.38 kPa, 34.5 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory
$1,300.99 USD
Does not ship to US
611GZEM8105-7054
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton, DPDT, 2m Leads View More
  • Adjustable Set Point Range:

    • Increasing: 30 to 70 psig, 207 to 483 kPa, 2.07 to 4.83 bar
    • Decreasing: 25 to 65 psig, 172 to 448 kPa, 1.72 to 4.48 bar
  • Deadband: Approximately 5 psi, 34.5 kPa, 0.345 bar
  • System Pressure (Maximum): 500 psig, 3450, 34.5 bar
  • Proof Pressure: 1000 psig, 6890 kPa, 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT 316 Stainless Steel
    • Diaphragm: 316 Stainless Steel
    • O-Ring: Viton
  • Relay: DPDT
  • Free Leads: 2 meter
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Contact For Inventory

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Saskatchewan
  • CSA
  • cUL
  • EMC
  • IEC Ex
  • PED
  • RoHS
  • RTN
  • UL

Deadband, Approximate

  • bar: 0.138 to 0.69
  • kPa: 13.79 to 68.95
  • psi: 2 to 10

Diaphragm Material

  • Stainless Steel

Electrical - Free Leads

  • 18" (45 cm) Free Leads
  • 18" (45 cm) Teflon Leadwire

Electrical Assembly

  • Hermetic Seal

Electrical Certification

  • ATEX - SIRA Certified for Potentially Explosive Atmospheres. Models 6****Y, II 2 GD Ex D IIC, 08-ATEX-
  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories
  • IECEx - SIRA Certified, SIR 10,0193X (Option Y)

Electrical Connectors

  • 1/2" NPT Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Hazardous Area
  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 7, 9, 13 / IP54, 66
  • NEMA 7
  • NEMA 9

NACE & NIST

  • NACE MR-0175:2003

NPT Connection

  • 1/4" NPT Male

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • 316 Stainless Steel

Proof Pressure

  • bar: 34.5 to 68.9
  • kPa: 3,447 to 6,895
  • psig: 500 to 1,000

Service

  • Sour (Oil & Gas)

Set Point - Decreasing

  • bar: 0.069 to 11.72
  • kPa: 6.89 to 1,172
  • psig: 1 to 170

Set Point - Increasing

  • bar: 0.21 to 12.41
  • kPa: 20.68 to 1,241
  • psig: 3 to 180

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 17.2 to 34.5
  • kPa: 1,724 to 3,447
  • psig: 250 to 500

Typical Applications

  • Boilers & Burners
  • Chemical & Petrochemical Plants
  • Chemical Refining & Processing
  • Degreasers & Evaporators
  • Fluid Management
  • Food Processing
  • Ground Support Equipment
  • Hydraulic & Lubrication Systems
  • Heating & Air Conditioning
  • Manufacturing Process
  • Oil & Gas
  • Pipelines
  • Power Generation
  • Power Plants
  • Pulp & Paper Mills
  • Pumps, Compressors & Turbines
  • Recovery Systems
  • Refineries
  • Reverse Osmosis Systems & Filters
  • Safety Systems
  • Specialized OEM Equipment
  • Steel Mills
  • Utilities
  • Water Treatment, Waste & Sewage Treatment Facilities
