Images are representations only.
Description
Series PT-200 0.5% Industrial Pressure Transmitters are rugged, general-purpose sensors that offer reliable and accurate measurements under harsh conditions. The sensor fitting is machined from a solid piece of 17-4PH SS to provide stable operation when subjected to shock and vibration. PT-200s also incorporate digital compensation and temperature correction for high accuracy and stability.
Features
- Cost effective
- High overpressure capability
- Single piece stainless steel process fitting and sensor
- Choice of three common electrical connections
Configure
PT-200
Output

Common Pressure Ranges

Unit of Measure

Electrical Connection

Process Connection

Specifications
Specifications
Accuracy
- 0.5% (BSFL)
Burst Pressure
- 3.5 x Full Scale
Compensated Temperature
- 0° to 85° C (32° to 185° F)
Current
- Current Draw: < 30 mA
Electrical Connectors
- Cable: 2 feet (0.6 Meter)
- M12 Connector
- Packard
Environmental Protection
- IP65
Loop Resistance
- < 100 ohms
NPT Connection
- 1/4"-18 NPT Male
Operating Temperature
- -10° to 100° C (14° to 212° F)
Output
- 4-20 mA
Overpressure & Static Pressure Limits
- Overpressure: 2 x Full Scale
Pressure Range
- bar: 0 to 689.5
- kPa: 0 to 68,950
- psig: 0 to 10,000
Pressure Type
- Gauge
Sensor, Probe Material
- Stainless Steel
Span & Zero Effect
- Stability (Thermal Shift) Span: ± 0.02% of Full Scale Output / °C (± 0.04% of Full Scale Output / °F)
- Stability (Thermal Shift) Zero: ± 0.01% of Full Scale Output / °C (± 0.02% of Full Scale Output / °F)
Stability
- Long Term: <± 0.5% of Full Scale Output/Year
Storage Temperature
- -20° to 125° C (-4° to 257° F)
Supply Voltage
- 9-32 Vdc
Wetted Materials
- 630 Stainless Steel (17-4PH)
Documentation
Documentation
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products
/PT-500-Pressure-Transmitter/Thumbs/400_main_PT-500-5-PSIG-G-L1-P1-40_Front.png)
PT-500 Pressure Transmitter
Automation Products Group Inc. (APG)
/PT-L9-L13-L14-Pressure-Transducer/Thumbs/400_main_AP_PT-L9-L13-L14_Millivolt-per-Volt_Output_Pressure_Transducer.png)
PT-L9/L13/L14 Pressure Transducer
Automation Products Group Inc. (APG)
/PT-400-Pressure-Transducer/Thumbs/400_main_PT-400-L1-5-PSI-G-E5_Front.png)
PT-400 Pressure Transducer
Automation Products Group Inc. (APG)
/HU-Pressure-Transmitter/Thumbs/400_main_HU-L24-IS-5K_Front.png)
HU Pressure Transmitter
Automation Products Group Inc. (APG)
/PT-L1-L3-L10-L11-L12-L21-Pressure-Transmitter/Thumbs/400_main_AP_PT-L_Pressure_Transducer.png)
PT-L1/L3/L10/L11/L12/L21 Pressure Transmitter
Automation Products Group Inc. (APG)
/PT-510-510W-Submersible-Liquid-Level-Transmitter/Thumbs/400_main_AP_PT-510-510W_Submersible_Liquid_Level_Transmitter.png)
PT-510/510W Submersible Liquid Level Transmitter
Automation Products Group Inc. (APG)

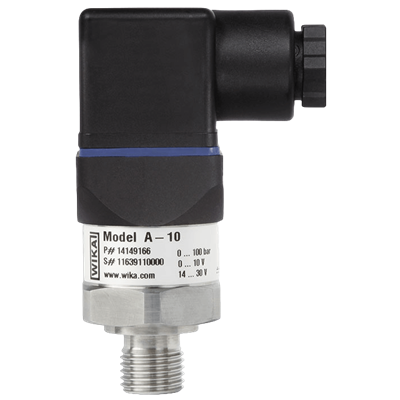

Model A-10 Pressure Transmitter
