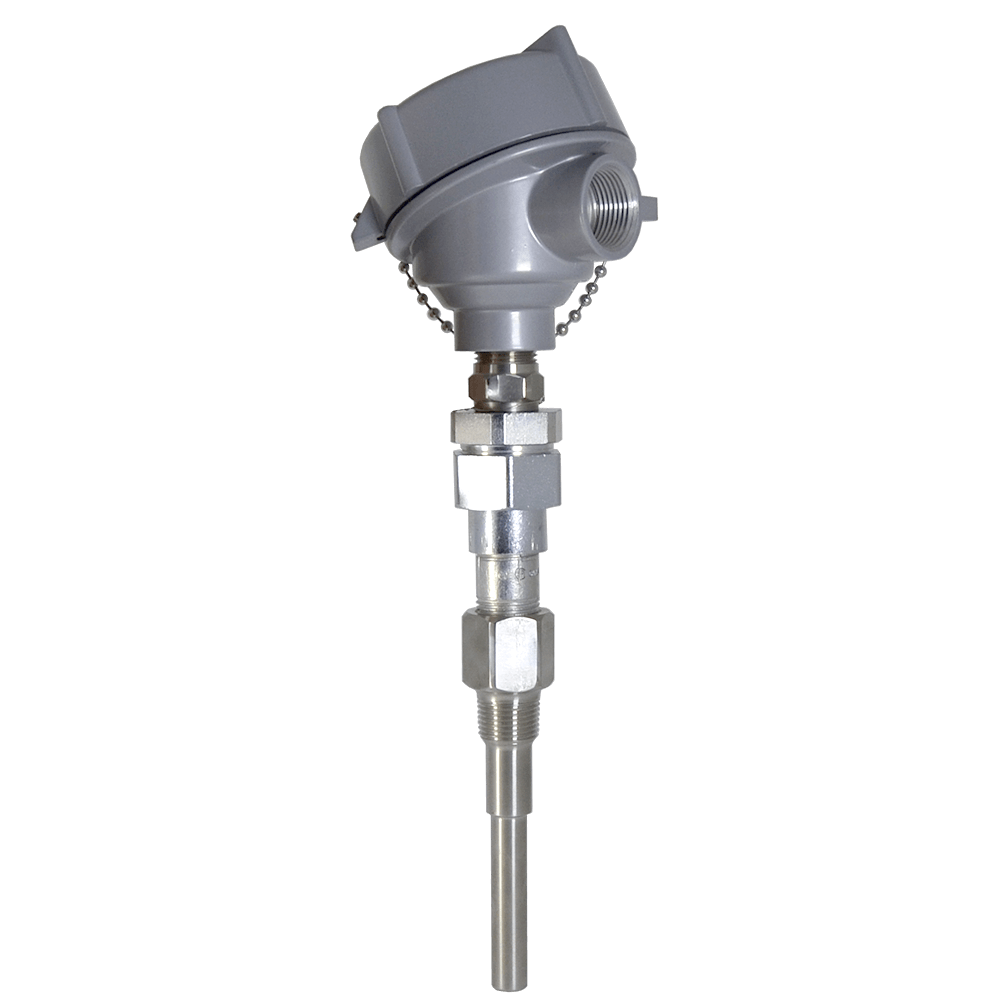

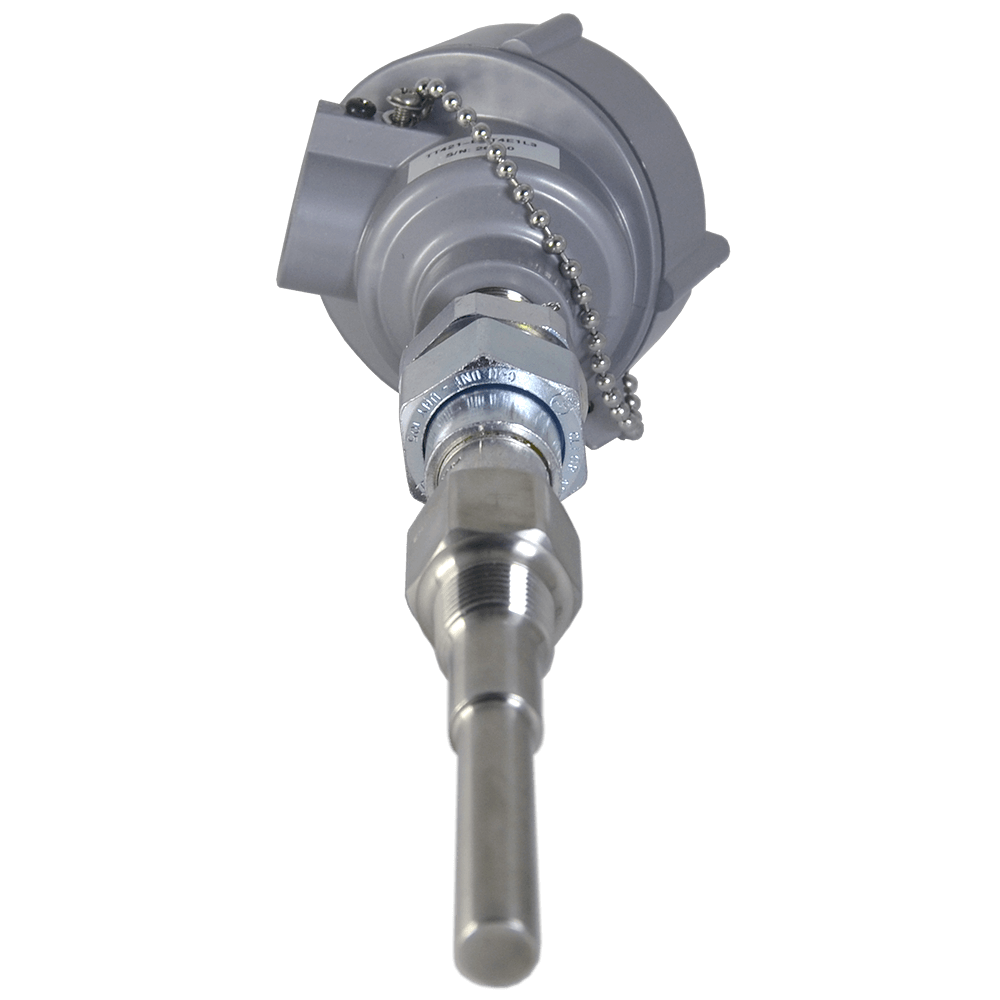

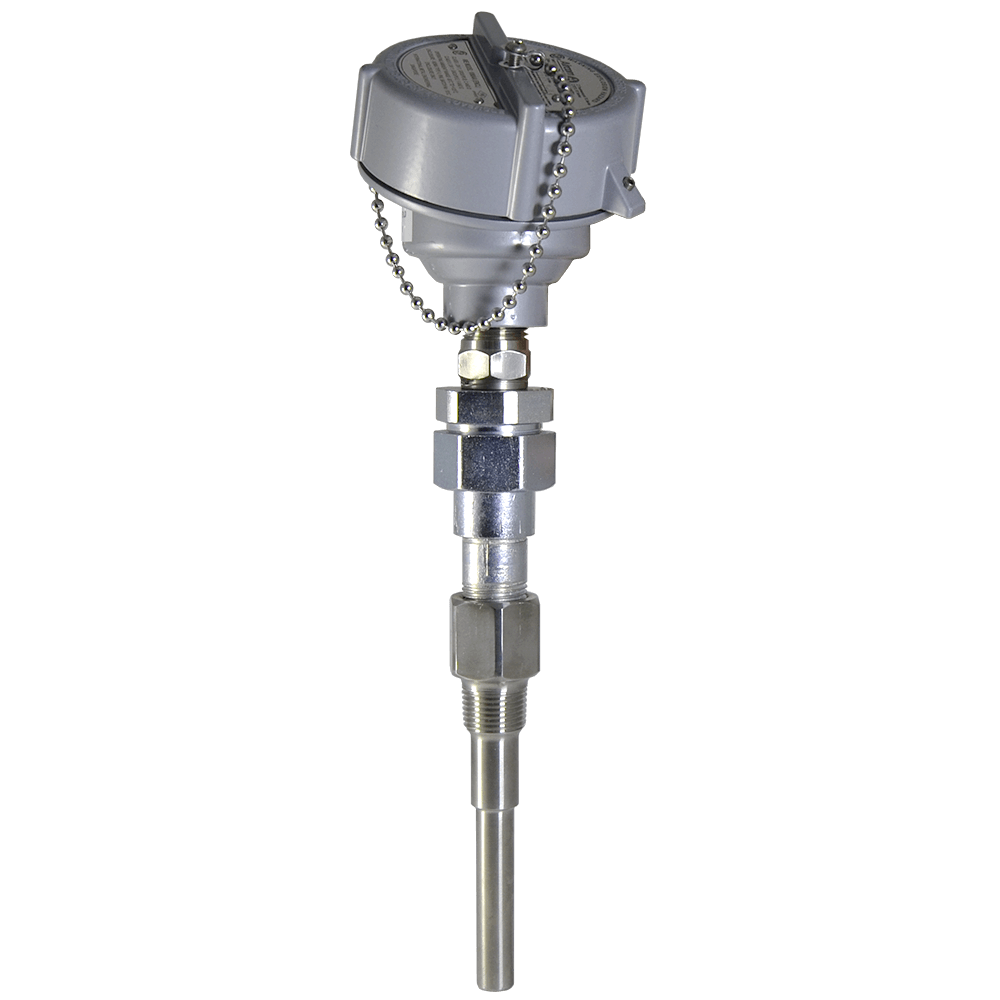

8S Stepped Thermowell Assembly

Brand: Aircom Instrumentation Ltd.
Stepped Thermowell: Custom Lengths
  • Process Connection: 1/2", 3/4" & 1" NPT
  • Materials: 304 or 316 Stainless Steel
  • RTD Rating:
    • Low Temperature -200° to 204° C (-328 to 399° F)
    • High Temperature / High Vibration -200° to 850° C (-328° to 1562° F)
  • Connection Heads
    • 316 Stainless Steel
    • Cast Aluminum
    • Teflon Coated Aluminum
  • Lead Wire Termination
    • 3 Wire with Jumper & Lugs
    • 3 Wire Bare Ended
show more
Images are representations only.
Stepped Thermowell: Custom Lengths
  • Process Connection: 1/2", 3/4" & 1" NPT
  • Materials: 304 or 316 Stainless Steel
  • RTD Rating:
    • Low Temperature -200° to 204° C (-328 to 399° F)
    • High Temperature / High Vibration -200° to 850° C (-328° to 1562° F)
  • Connection Heads
    • 316 Stainless Steel
    • Cast Aluminum
    • Teflon Coated Aluminum
  • Lead Wire Termination
    • 3 Wire with Jumper & Lugs
    • 3 Wire Bare Ended

8S Series

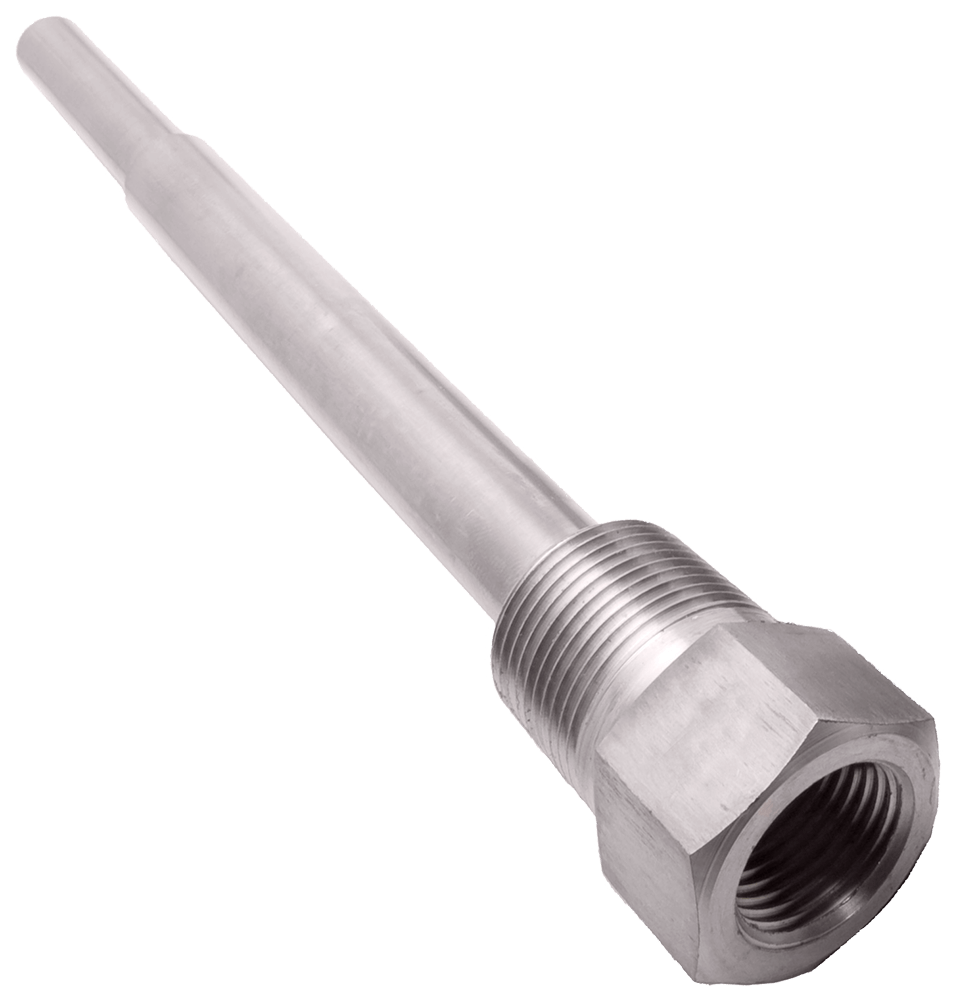

Thermowell

'U' Length

Thread

Material

RTD Temperature Rating

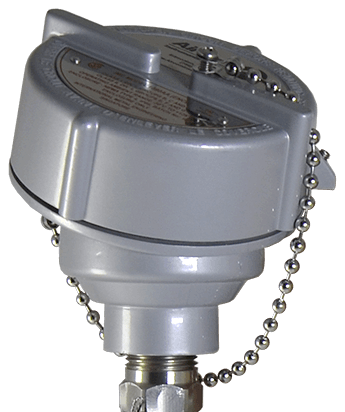

Connection Head

Termination

Terminal Block

Specifications

Accuracy

  • ± 0.1%

Bore Size

  • Thermowell: 0.26" Bore

Bushing

  • Spring Loaded: 1/2" x 1/2" NPT

Materials of Construction

  • Head: 316 Stainless Steel
  • Head: Aluminum
  • Head: Teflon Coated Aluminum
  • Stem: 304 Stainless Steel
  • Stem: 316 Stainless Steel

NPT Connection

  • 1" NPT Male
  • 1/2" NPT Male
  • 3/4" NPT Male

Operating Temperature

  • LT Version: -200° to 240° C (-328° to 464° F)
  • VT Version: -200° to 850° C (-328° to 1562° F)

Sensor, Probe Material

  • 1/4" O.D. Stainless Steel

Temperature Coefficient

  • 0.00385

Termination

  • 3-Wire Bare Ended
  • 3-Wire with Jumper & Lugs
