Hard Seat Multi-Port Valve

Brand: PGI International
Request a Quote
Favorite
Design: Hard Seat Multi-Port Gauge Valve
Inlet Connection: 3/4" NPT Male
Outlet Connection: (3) x 1/2" NPT Female
Features
  • Carbide Ball Seat
  • Teflon Pressure-Core Stem Seal for Low Temperatures
  • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
  • Stainless Steel Body and Bonnet
  • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Non-rotating ball eliminates seat galling and ball creasing
  • Leak free, bubble tight seating
  • 100% Pressure Tested
show more

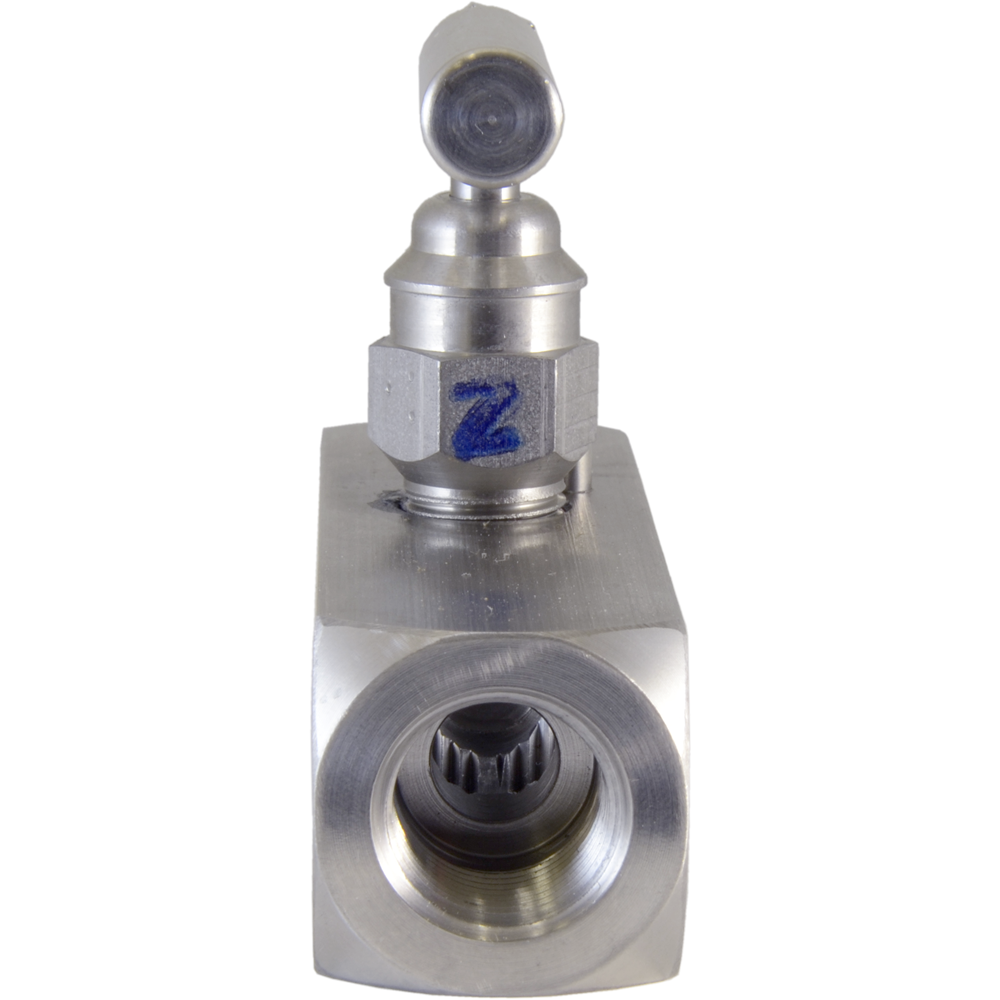

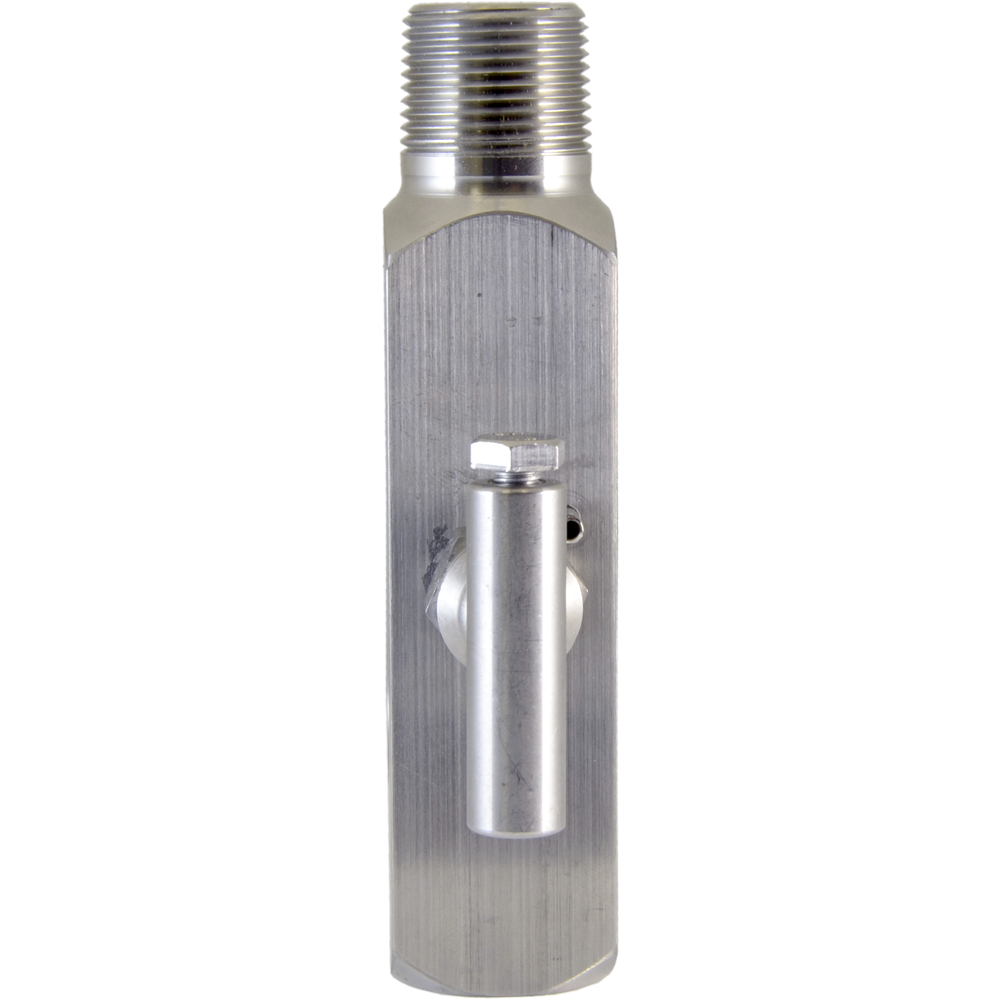

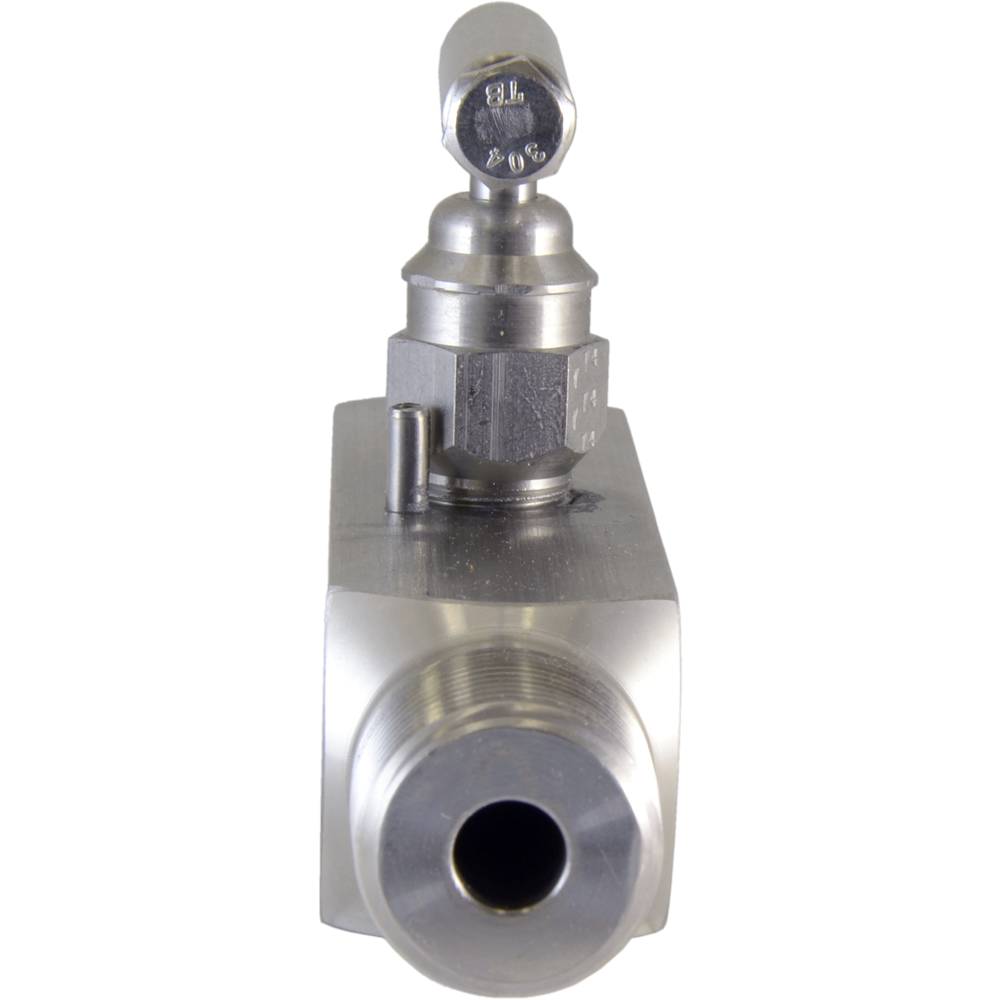

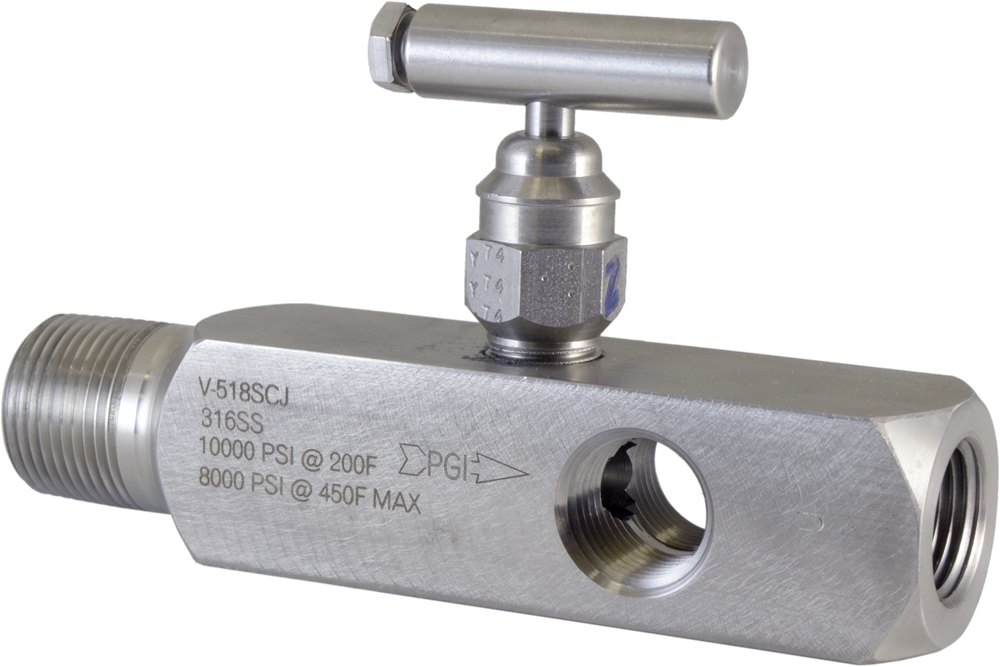

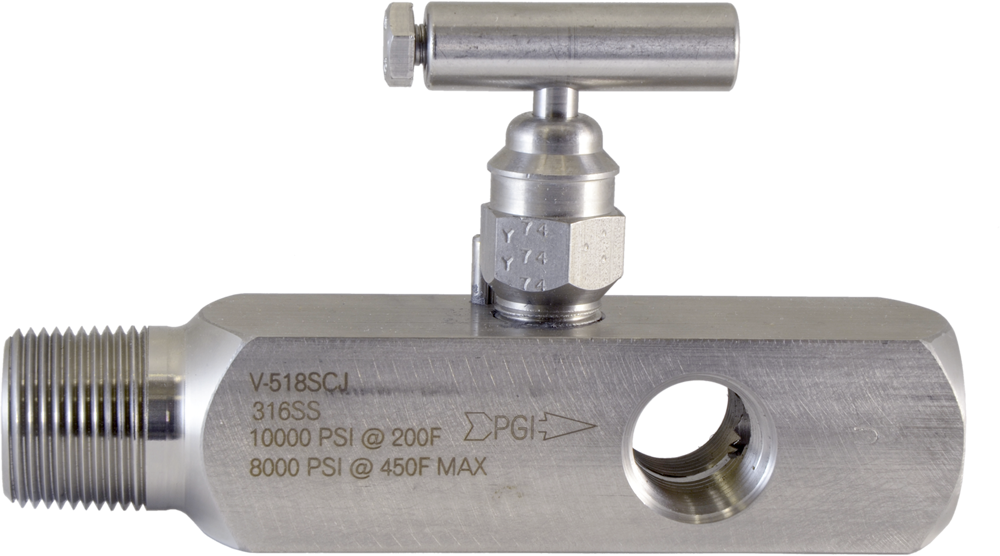

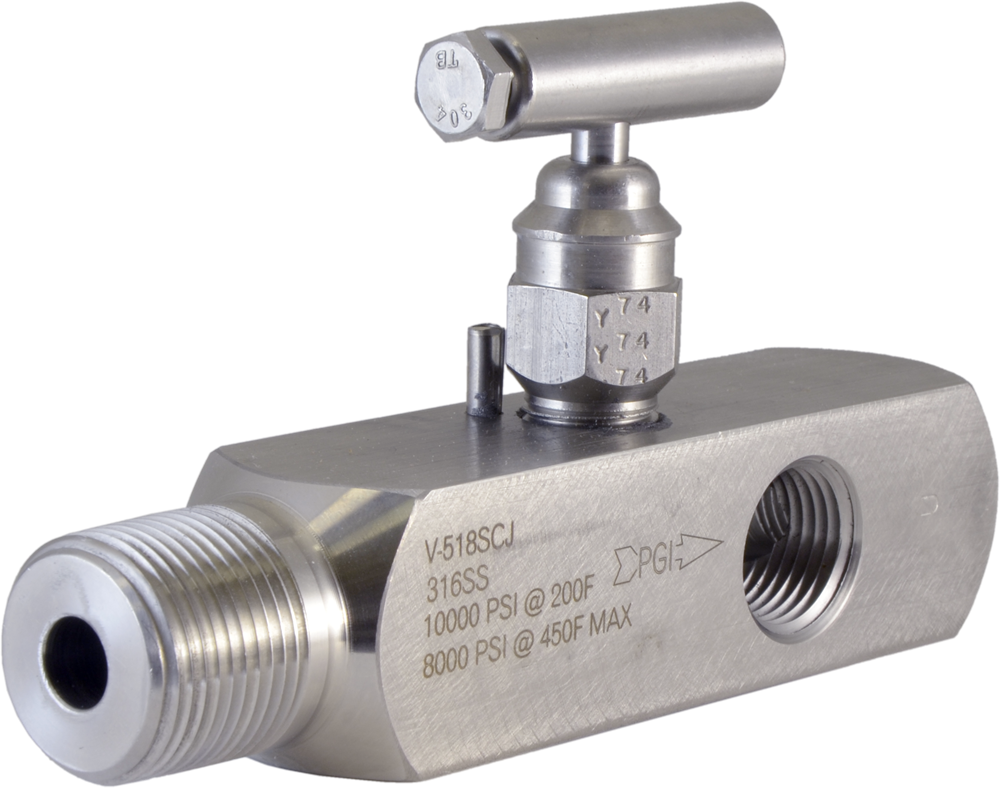

main_V-518SCJ_Front.png 002_V-518SCJ_Left.png 003_V-518SCJ_Right.png 004_V-518SCJ_LeftAngle.png 005_V-518SCJ_RightAngle.png 006_V-518SCJ_Top.png
main_V-518SCJ_Front.png 002_V-518SCJ_Left.png 003_V-518SCJ_Right.png 004_V-518SCJ_LeftAngle.png 005_V-518SCJ_RightAngle.png 006_V-518SCJ_Top.png
Images are representations only.
Design: Hard Seat Multi-Port Gauge Valve
Inlet Connection: 3/4" NPT Male
Outlet Connection: (3) x 1/2" NPT Female
Features
  • Carbide Ball Seat
  • Teflon Pressure-Core Stem Seal for Low Temperatures
  • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
  • Stainless Steel Body and Bonnet
  • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Non-rotating ball eliminates seat galling and ball creasing
  • Leak free, bubble tight seating
  • 100% Pressure Tested
Close

Displaying prices & availability for None, United States in USD. Change location or currency.

V-520-SCJ
PGI Hard Seat Multi-Port Gauge Valve, 1/2" MNPT x 1/2" FNPT, Long Body, 316 SST
Out of Stock
V-530-SCJ
PGI Hard Seat Multi-Port Gauge Valve, 1/2" MNPT x 1/4" FNPT, Straight Valve
Out of Stock
V-532-SCJ
PGI Hard Seat Multi-Port Gauge Valve, 3/4" MNPT x (3) 1/2" FNPT, Long Body
Out of Stock
Close

Hard Seat Multi-Port Valve

Orifice Size

Connection Type, (Inlet, Outlet)

Body Material Option

Seat Material Options

Stem Packing Material Options

Socket Weld

Tag

Stem Material

Mounting Plate

Critical Service

Bonnet Type

View Details

Hard Seat Multi-Port Valve

Out of Stock
Close

Specifications

Brand

Enclosure, Body Material

  • ASTM A479-316 Stainless Steel

Handle Assembly Material

  • ASTM A581 18-8 300 Stainless Steel

Maximum Cv Ratings

  • Cv 0.53 on 0.187" Orifice

NACE & NIST

  • NACE MR-0175, ISO 15156-36

NPT Inlet

  • 3/4" NPT Male

NPT Outlet

  • 1/2" NPT Female

Orifice Size

  • 0.187"

Packing Material

  • Teflon Pressure-Core® Stem Seal for Low Temperatures -45.5° C (-50° F)

Pressure Rating

  • psi: 10,000 at 93° C (200° F)
  • psi: 8,000 at 232° C (450° F)

Process Temperature

  • -45° to 232° C (-50° to 450° F)

Seal Retainer

  • ASTM A479-316 Stainless Steel

Seat/Seal Material

  • 316 Stainless Steel
  • Carbide
  • Ceramic

Stem Material

  • ASTM A479-316 Stainless Steel
Close

Review this product and let us know your experiences

Write a Review
Close

Similar Products

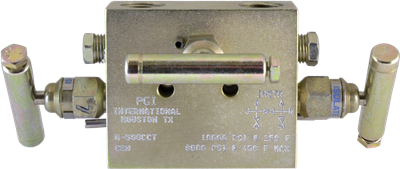

Hard Seat Three Valve Manifold
Hard Seat Three Valve Manifold
PGI International
V-518 Multi-Port Gauge Valve
V-518 Multi-Port Gauge Valve
PGI International

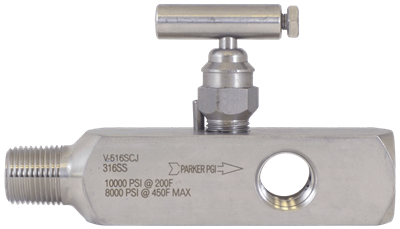

V-516 Multi-Port Gauge Valve
