1500 Series Pilot Solenoid Operated Spring-Return

Brand: Midland-ACS
Request a Quote
Favorite
A range of 3/2 and 5/2 Solenoid Operated Spool Valves in Stainless Steel for use on Gases.
Features
  • Specifically Designed for Severe Environments
  • 3/2 and 5/2 Versions
  • Ambient Temperature Range -20° to 180º C (-4° to 356º F)
  • 316L Stainless Steel Construction
  • Designed for Actuator Control
show more

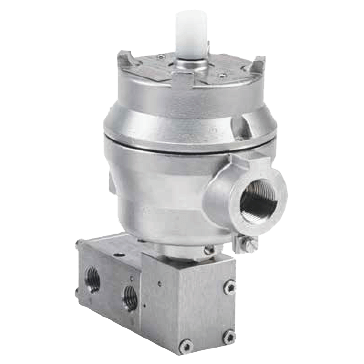

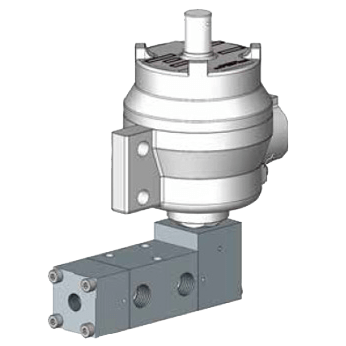

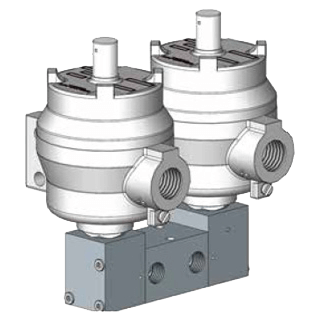

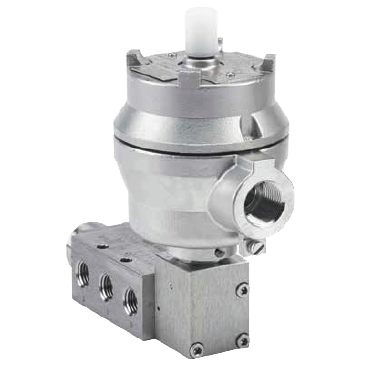

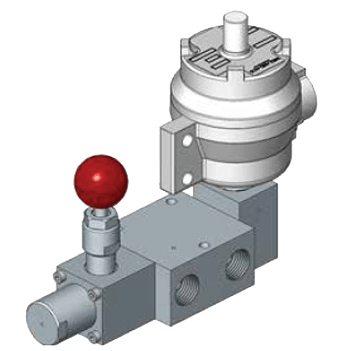

main_MID_1500_SolenoidOperated_A.png MID_1500_SolenoidOperated_B.png MID_1500_SolenoidOperated_C.png MID_1500_SolenoidOperated_D.png MID_1500_SolenoidOperated_E.png
main_MID_1500_SolenoidOperated_A.png MID_1500_SolenoidOperated_B.png MID_1500_SolenoidOperated_C.png MID_1500_SolenoidOperated_D.png MID_1500_SolenoidOperated_E.png
Images are representations only.
A range of 3/2 and 5/2 Solenoid Operated Spool Valves in Stainless Steel for use on Gases.
Features
  • Specifically Designed for Severe Environments
  • 3/2 and 5/2 Versions
  • Ambient Temperature Range -20° to 180º C (-4° to 356º F)
  • 316L Stainless Steel Construction
  • Designed for Actuator Control
Close

1500 Series Soleniod

Function

Mode

Valve Type

Temperature Options

Solenoid

Voltage

View Details

1500 Series Soleniod

Out of Stock
Close

Specifications

Brand

Ambient Temperature Range

  • -20° to 180° C (-4° to 356° F)

Approvals & Certifications

  • ATEX
  • CE
  • CSA
  • EAC
  • IECEx
  • UL

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • IP55
  • IP65
  • IP66
  • IP67
  • NEMA 4
  • NEMA 7
  • NEMA 9

Flow Capacity

  • 5/2 Valves - 42.4 scfm (72 m³/hour)

Media

  • Air
  • Gases - Filtered Lubricated or Non-Lubricated
  • Inert Gas
  • Sweet Natural Gas

NACE & NIST

  • NACE

NPT Connection

  • 1/4” Female NPT Line Port
  • 1/8” Female NPT Pilot Ports

Seat/Seal Material

  • Fluoroelastomer

Spring Material

  • 316 Stainless Steel - Spool

Supply Pressure - Maximum

  • psi: 174 (bar: 12, kPa: 1,200)
Close

Review this product and let us know your experiences

Write a Review
Close

Ask a Question

Write a Question
Close

Similar Products

1600 Series Pilot-Operated Spring-Return
1600 Series Pilot-Operated Spring-Return
Midland-ACS
1500 Series Pilot-Operated
1500 Series Pilot-Operated
Midland-ACS
1650 Series Pilot Solenoid Operated
1650 Series Pilot Solenoid Operated
Midland-ACS
1600 Series Pilot-Operated
1600 Series Pilot-Operated
Midland-ACS
1650 Series Pilot-Operated
1650 Series Pilot-Operated
Midland-ACS
1600 Series Mechanically-Operated Spring-Return
1600 Series Mechanically-Operated Spring-Return
Midland-ACS
1750 Series Pilot Solenoid Operated
1750 Series Pilot Solenoid Operated
Midland-ACS

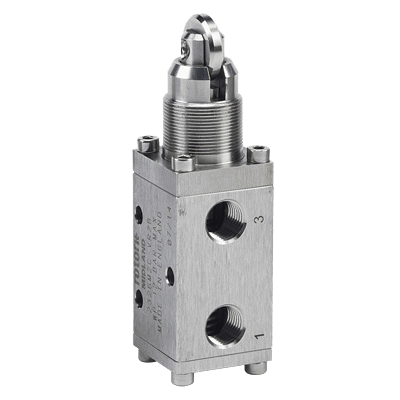

1500 Series Mechanically-Operated Spring-Return
