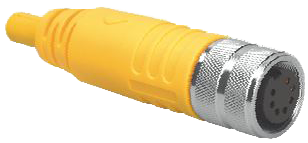

M16 versafast Double Ended Cordset

Brand: Turck, Inc
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickel Plated Brass
      • Nylon
      • 316 Stainless Steel
show more
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickel Plated Brass
      • Nylon
      • 316 Stainless Steel
1 model matching criteria
TURCK M16 versafast Cordset Extension, Male/Female, 14-Pin, 30V, PVC/Black, SST show more
  • 12 Conductor,
  • Male/Female,
  • 14-Pin,
  • 30V,
  • PVC/Black,
  • Stainless Steel
1 In Stock
$452.68USD

Specifications

Brand

Connection Material

  • Nickel-Plated Brass
  • Nylon
  • Stainless Steel

Connection Pin-Out

  • 12-Pin
  • 14-Pin
  • 19-Pin
  • 5-Pin
  • 6-Pin
  • 7-Pin
  • 8-Pin

Connection Style

  • versafast

Connector Shape

  • Right Angle
  • Straight

Environmental Protection

  • IP67

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 10-Wire
  • 12-967: 12 x 22 AWG BN, BU, EH, GN, YE, GY, PK, RD, BK, OG, TN, VT
  • 12-Wire
  • 14-755: 12 x 24 AWG OG, BK, GN, GY, BN, TN, VT, RD, WH, YE, PK, BU
  • 14-836: 10 x 24 AWG GY, GN, BK, GN, PK, YE, WH, RD, VT, BU
  • 19-955: 19 x 22 AWG BU, GY/PK, RD/BU, WH, GN, NK, BN/GN, PK, WH/YE, GN, YE/BN, BU, OG, GY/BN, VT, WH, RD, GY, YE, TN
  • 19-Wire
  • 5-084: 5 x 18 AWG BN, BU, WH, BU, BK, GY
  • 5-Wire
  • 6-085: 6 x 18 AWG BN, BU, WH, BU, NK, GY, PK
  • 6-Wire
  • 7-086: 7 x 18 AWG WH, BN, GN, YE, GY, PK, BU
  • 7-Wire
  • 8-087: 8 x 18 AWG WH, BN, GN, YE, GY, PK, BU, RD
  • 8-Wire
