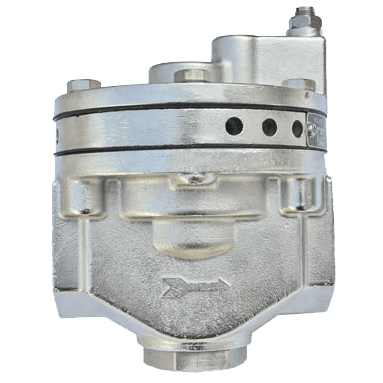

YT-315 Volume Booster

Brand: Young Tech Co., Ltd
The YT-315 Volume Booster Relay is used in pneumatic control valve which receives positioner’s output signal and supply air pressure actuator to reduce response and adjusting time.

  • Supplies constant air pressure at the rate of 1:1.
  • By-passing control enhances safety of control valve.
  • Response to slight changes in input signal, which increases accuracy of output of air pressure to actuator.
  • Built-in 100 mesh screen filters dusts in the air.

  • Supply/Outlet Connection: 3/4" NPT
  • Signal Connection: 1/4" NPT
  • Pressure Ratio: 1:1 Signal:Output
  • Signal and Output Pressure: psig: 101 (bar: 7, kPa: 700, MPa: 0.7)
  • Supply Pressure: psig: 145 (bar: 10, kPa: 1,000, MPa: 1)
  • Flow Capacity:
    • Exhaust: 5.24 Cv
    • Output: 4.91 Cv
  • Material: Stainless Steel
  • Temperature Range:
    • -20° to 70°C (-4° to 158°F)
    • -20° to 120°C (-4° to 248°F)
    • -40° to 70°C (-40° to 158°F)
show more
The YT-315 Volume Booster Relay is used in pneumatic control valve which receives positioner’s output signal and supply air pressure actuator to reduce response and adjusting time.

  • Supplies constant air pressure at the rate of 1:1.
  • By-passing control enhances safety of control valve.
  • Response to slight changes in input signal, which increases accuracy of output of air pressure to actuator.
  • Built-in 100 mesh screen filters dusts in the air.

  • Supply/Outlet Connection: 3/4" NPT
  • Signal Connection: 1/4" NPT
  • Pressure Ratio: 1:1 Signal:Output
  • Signal and Output Pressure: psig: 101 (bar: 7, kPa: 700, MPa: 0.7)
  • Supply Pressure: psig: 145 (bar: 10, kPa: 1,000, MPa: 1)
  • Flow Capacity:
    • Exhaust: 5.24 Cv
    • Output: 4.91 Cv
  • Material: Stainless Steel
  • Temperature Range:
    • -20° to 70°C (-4° to 158°F)
    • -20° to 120°C (-4° to 248°F)
    • -40° to 70°C (-40° to 158°F)

Specifications

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)
  • -20° to 70° C (-4° to 158° F)
  • -40° to 70° C (-40° to 158° F)

Approvals & Certifications

  • CE
  • SIL 3

Enclosure, Body Material

  • 316 Stainless Steel

Flow Capacity

  • Exhaust: 5.24 Cv
  • Output: 4.91 Cv

Independent Linearity

  • ± 1% of Full Scale

NPT Connection

  • 3/4" NPT Female

Ratio

  • 1:1

Signal or Output Pressure - Maximum

  • bar: 7
  • kPa: 700
  • MPa: 0.7
  • psig: 101

Supply Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • MPa: 1
  • psig: 145
