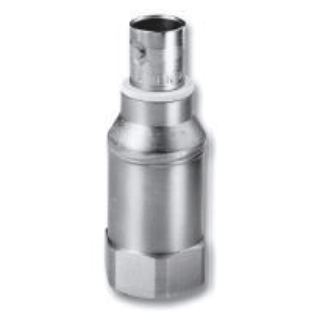

Model 786C General Purpose Industrial Piezoelectric Accelerometer

Brand: Wilcoxon Sensing Technologies
Top exit, BNC connector, case isolated, internally shielded, 100 mV/g general-purpose accelerometer.
Features
  • Corrosion resistant stainless steel case
  • BNC connector
  • IP67 watertight epoxy seal
  • Wide frequency range
show more
Images are representations only.
Top exit, BNC connector, case isolated, internally shielded, 100 mV/g general-purpose accelerometer.
Features
  • Corrosion resistant stainless steel case
  • BNC connector
  • IP67 watertight epoxy seal
  • Wide frequency range

Specifications

Electrical Connectors

  • BNC Connector

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • Sealing: IP67

Frequency

  • Frequency Response (± 10%): 1 to 9,000 Hz
  • Frequency Response (± 3 dB): 0.5 to 14,000 Hz
  • Resonance Frequency, Mounted, Nominal: 30 kHz

Mounting

  • 1/4-28 UNF Tapped Hole

Noise

  • Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 700 µg
  • Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 10 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 100, 1,000 Hz): 5 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range, Vdc > 25 V: 80 G Peak

Sensitivity

  • Base Strain Sensitivity, Maximum
  • Electromagnetic Sensitivity, Equivalent G, Maximum
  • Sensitivity, ± 10%, 25° C (77° F): 100 mV/g
  • Transverse Sensitivity, Maximum

Shock

  • Shock Limit: 5,000 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage, Nominal: 12 Vdc
