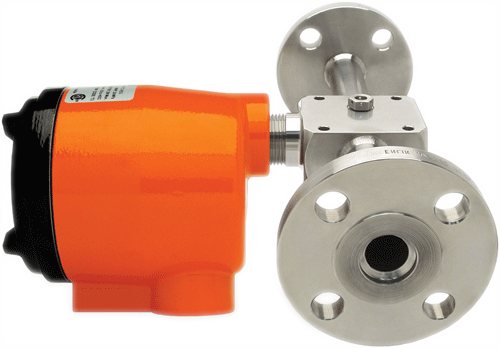

Kayden CLASSIC® 832 Spare Sensor, In-Line Flanged, P52 Series

Brand: Kayden Instruments
  • Replacement Sensor for Kayden CLASSIC 832 Series
  • Process Connection (Flanged)
    • Raised Face or RTJ (Ring-Type Joint)
    • 3/4", 1", 1-1/2", 2", 3", 4"
    • ANSI Rating: 150#, 300#, 600#
  • Flange Material
    • 316/316L Stainless Steel
    • Other Exotic Metals Available
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Sensor Assembly Body Length (Flange Face to Flange Face)
    • Available in 1/2" (1 cm) increments
    • Min. 7" to Max. 72" (18 cm to 182 cm)
  • Material of Construction - Sensor
    • 316/316L Stainless Steel, Nickel Brazed
  • Bleed Port
    • 1/4" Threaded
  • Sensor Orientation
    • Horizontal or Vertical
  • Pipe Schedule
    • Schedule 40, Schedule 80
  • Sensor Connection Type
    • Molex 8-pin
  • Approvals (with 832 Switch)
    • UL, FM, CSA, Single Seal, NACE
show more
Images are representations only.
  • Replacement Sensor for Kayden CLASSIC 832 Series
  • Process Connection (Flanged)
    • Raised Face or RTJ (Ring-Type Joint)
    • 3/4", 1", 1-1/2", 2", 3", 4"
    • ANSI Rating: 150#, 300#, 600#
  • Flange Material
    • 316/316L Stainless Steel
    • Other Exotic Metals Available
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Sensor Assembly Body Length (Flange Face to Flange Face)
    • Available in 1/2" (1 cm) increments
    • Min. 7" to Max. 72" (18 cm to 182 cm)
  • Material of Construction - Sensor
    • 316/316L Stainless Steel, Nickel Brazed
  • Bleed Port
    • 1/4" Threaded
  • Sensor Orientation
    • Horizontal or Vertical
  • Pipe Schedule
    • Schedule 40, Schedule 80
  • Sensor Connection Type
    • Molex 8-pin
  • Approvals (with 832 Switch)
    • UL, FM, CSA, Single Seal, NACE
7 models matching criteria
P52-RA3A121A-I0070-AH0M
KAYDEN® CLASSIC® 832 Series Thermal Flow Sensor, In-Line, 1" 150# RF 316 SST Flanges, A Length (Face to Face) = 7", 1/4" Bleed Port
In Stock 2 - 4 weeks
$2,315.00USD
$9.99 Shipping
P52-RA3A111A-I0070-AH0M
KAYDEN® CLASSIC® 832 Series Thermal Flow Sensor, In-Line, 3/4" 150# RF 316 SST Flanges, A Length (Face to Face) = 7", 1/4" Bleed Port
2 - 4 weeks
P52-RA3A111A-I0070-AV0-M
KAYDEN® CLASSIC® 832 Series Thermal Flow Sensor, In-Line, 1" 150# RF Slip-On 316 SST Flanges, A Length (Face to Face) = 7", 1/4" Bleed Port
Out of Stock
P52-RA3A131A-I0110-AH0M
KAYDEN® CLASSIC® 832 Series Thermal Flow Sensor, In-Line, 1-1/2" 150# RF 316 SST Flanges, A Length (Face to Face) = 11", 1/4" Bleed Port
In Stock 2 - 4 weeks
P52-RA3A142A-I0070-AV1-M
KAYDEN® CLASSIC® 832 Series Thermal Flow Sensor, In-Line, 2" 300# RF 316 SST Flanges, A Length (Face to Face) = 7", 1/4" Bleed Port
Out of Stock
P52-RA3A142A-I0115-AV1-M
KAYDEN® CLASSIC® 832 Series Thermal Flow Sensor, In-Line, 2" 300# RF 316 SST Flanges, A Length (Face to Face) = 11.5", 1/4" Bleed Port
Out of Stock
P52-RA3A143A-I0115-AH1-M
KAYDEN® CLASSIC® 832 Series Thermal Flow Sensor, In-Line, 2" 300# RF 316 SST Flanges, A Length (Face to Face) = 11.5", 1/4" Bleed Port
Out of Stock

P52 CLASSIC® 832 Series Sensor

Sensor Material

Process Connection Flange Type

Flange Size & ANSI Rating

Select your desired ANSI size and pressure class.

Flange Size & ANSI Rating

Select your desired ANSI size and pressure class.

Flange Material

Sensor Assembly Body Length (Flange Face to Flange Face) - 316 Stainless Steel

Bleed Port

Sensor Orientation

Pipe Schedule

Sensor Connection Type

Specifications

Approvals & Certifications

  • CRN - Canadian Registration Number - the Kayden Classic P52 Sensor (832 Series) Does Not have A CRN Number

Bleed Port

  • 1/4" Threaded

Flange Material

  • 316, 316L Stainless Steel

Flange Size - 1" (DN25)

  • 1" (DN25) - 150#
  • 1" (DN25) - 1500#
  • 1" (DN25) - 300#
  • 1" (DN25) - 600#
  • 1" (DN25) - 900#

Flange Size - 10" (DN250)

  • 10" (DN250) - 150#
  • 10" (DN250) - 1500#
  • 10" (DN250) - 300#
  • 10" (DN250) - 600#
  • 10" (DN250) - 900#

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 150#
  • 1-1/2" (DN40) - 1500#
  • 1-1/2" (DN40) - 300#
  • 1-1/2" (DN40) - 600#
  • 1-1/2" (DN40) - 900#

Flange Size - 2" (DN50)

  • 2" (DN50) - 150#
  • 2" (DN50) - 1500#
  • 2" (DN50) - 300#
  • 2" (DN50) - 600#
  • 2" (DN50) - 900#

Flange Size - 3" (DN80)

  • 3" (DN80) - 150#
  • 3" (DN80) - 1500#
  • 3" (DN80) - 300#
  • 3" (DN80) - 600#
  • 3" (DN80) - 900#

Flange Size - 3/4" (DN20)

  • 3/4" (DN20) - 150#
  • 3/4" (DN20) - 1500#
  • 3/4" (DN20) - 300#
  • 3/4" (DN20) - 600#
  • 3/4" (DN20) - 900#

Flange Size - 4" (DN100)

  • 4" (DN100) - 150#
  • 4" (DN100) - 1500#
  • 4" (DN100) - 300#
  • 4" (DN100) - 600#
  • 4" (DN100) - 900#

Flange Size - 5" (DN125)

  • 5" (DN125) - 150#
  • 5" (DN125) - 1500#
  • 5" (DN125) - 300#
  • 5" (DN125) - 600#
  • 5" (DN125) - 900#

Flange Size - 6" (DN150)

  • 6" (DN150) - 150#
  • 6" (DN150) - 1500#
  • 6" (DN150) - 300#
  • 6" (DN150) - 600#
  • 6" (DN150) - 900#

Flange Size - 8" (DN200)

  • 8" (DN200) - 150#
  • 8" (DN200) - 1500#
  • 8" (DN200) - 300#
  • 8" (DN200) - 600#
  • 8" (DN200) - 900#

Flange Type

  • Raised Face (RF)
  • RTJ - Ring Typical Joint

Operating Pressure - Sensor

  • Maximum

Operating Temperature - Sensor

  • -45° to 200° C (-50° to 392° F)

Pipe Schedule

  • Schedule 40
  • Schedule 80

Response Time

  • Approximately 0.5 to 30 seconds

Sensor Assembly Body Lengths

  • Custom Body Lengths: 7" to 72" (18 cm to 182 cm) in 1/2" (1 cm) Increments

Sensor Orientation

  • Horizontal
  • Vertical

Sensor, Probe Connection Type

  • Molex 8-Pin

Sensor, Probe Style

  • InLine

Wetted Materials

  • 316, 316L Stainless Steel with Nickel Brazing
