604GV Series Pressure Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range - Gauge:
    • Increasing: 1.0 to 10 psig, 6.89 to 68.9 kPa, 0.068 to 0.68 bar
    • Decreasing: 0.5 to 9.5 psig, 3.45 to 65.5 kPa, 0.034 to 0.65 bar
    • Deadband: Approximately 0.5 psi, 3.45 kPa, 0.034 bar
  • Adjustable Set Point Range - Vacuum:
    • Increasing: 1.5 to 18 inches Hg, 38 to 457 mm Hg
    • Decreasing: 0.5 to 17 inches Hg, 3 to 493 mm Hg
    • Deadband: Approximately 1.0 Inches Hg, 25 mm Hg
  • System Pressure (Maximum): 500 psig, 1135.54 kPa, 10.3 bar
  • Proof Pressure: 750 psig, 1825.01 kPa, 17.2 bar
  • Wetted Materials:
    • Pressure Port: 1/4" NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CE Mark, CRN, General Purpose
show more
Images are representations only.
  • Adjustable Set Point Range - Gauge:
    • Increasing: 1.0 to 10 psig, 6.89 to 68.9 kPa, 0.068 to 0.68 bar
    • Decreasing: 0.5 to 9.5 psig, 3.45 to 65.5 kPa, 0.034 to 0.65 bar
    • Deadband: Approximately 0.5 psi, 3.45 kPa, 0.034 bar
  • Adjustable Set Point Range - Vacuum:
    • Increasing: 1.5 to 18 inches Hg, 38 to 457 mm Hg
    • Decreasing: 0.5 to 17 inches Hg, 3 to 493 mm Hg
    • Deadband: Approximately 1.0 Inches Hg, 25 mm Hg
  • System Pressure (Maximum): 500 psig, 1135.54 kPa, 10.3 bar
  • Proof Pressure: 750 psig, 1825.01 kPa, 17.2 bar
  • Wetted Materials:
    • Pressure Port: 1/4" NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CE Mark, CRN, General Purpose

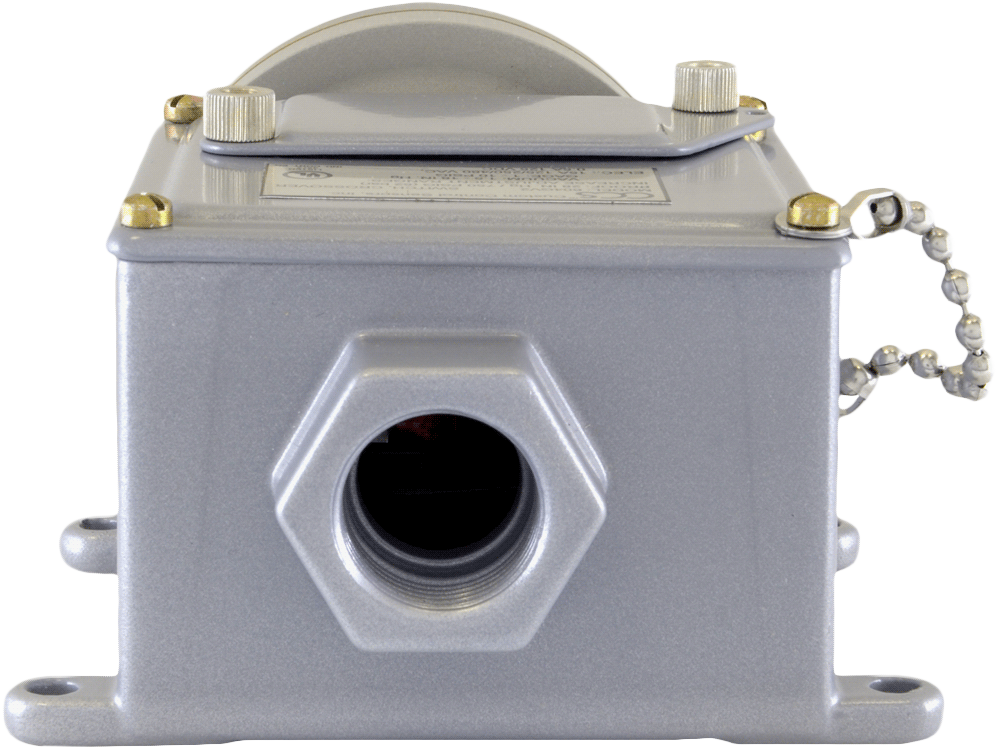

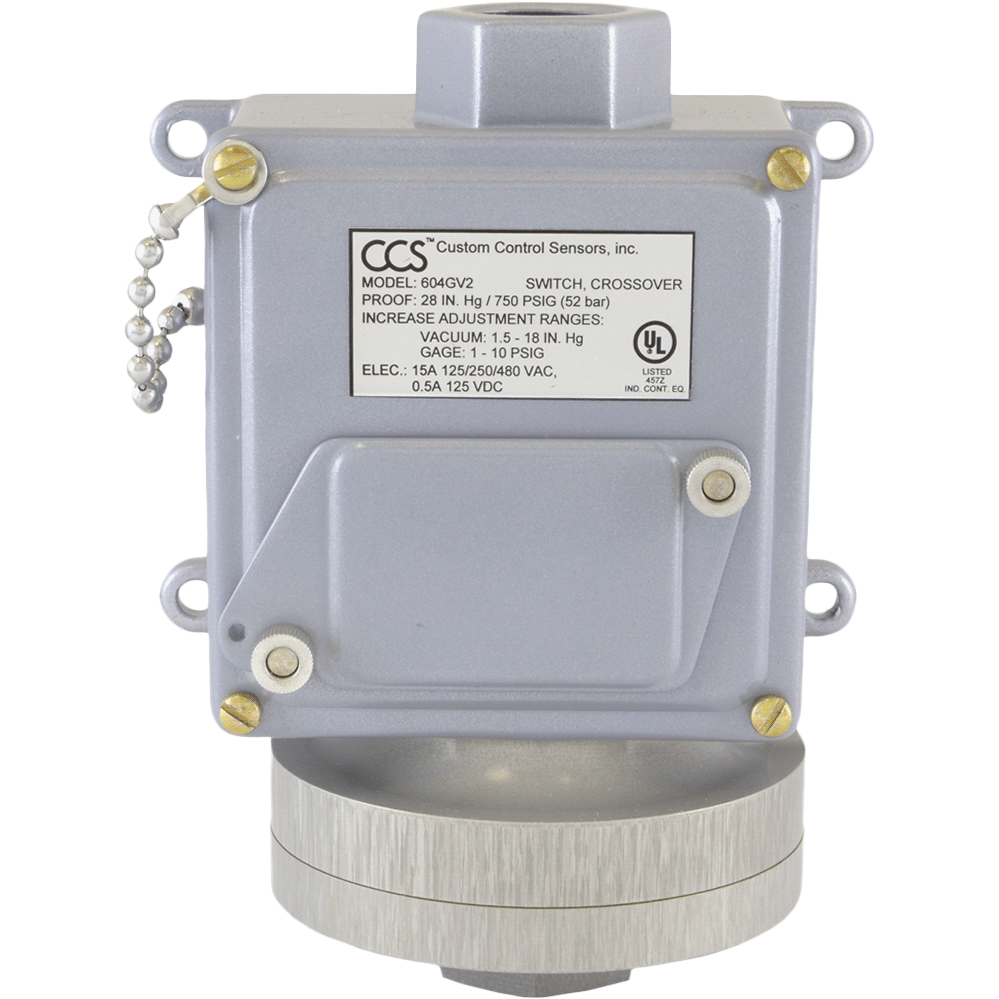

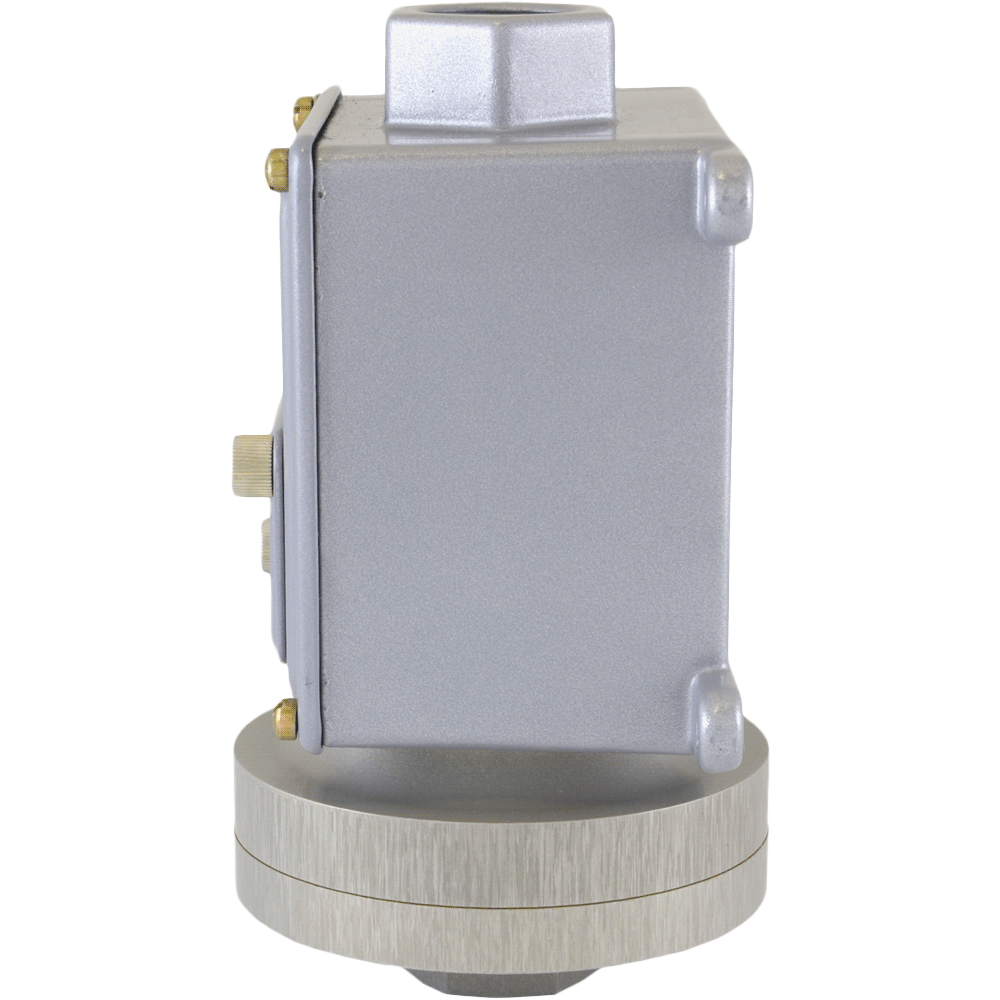

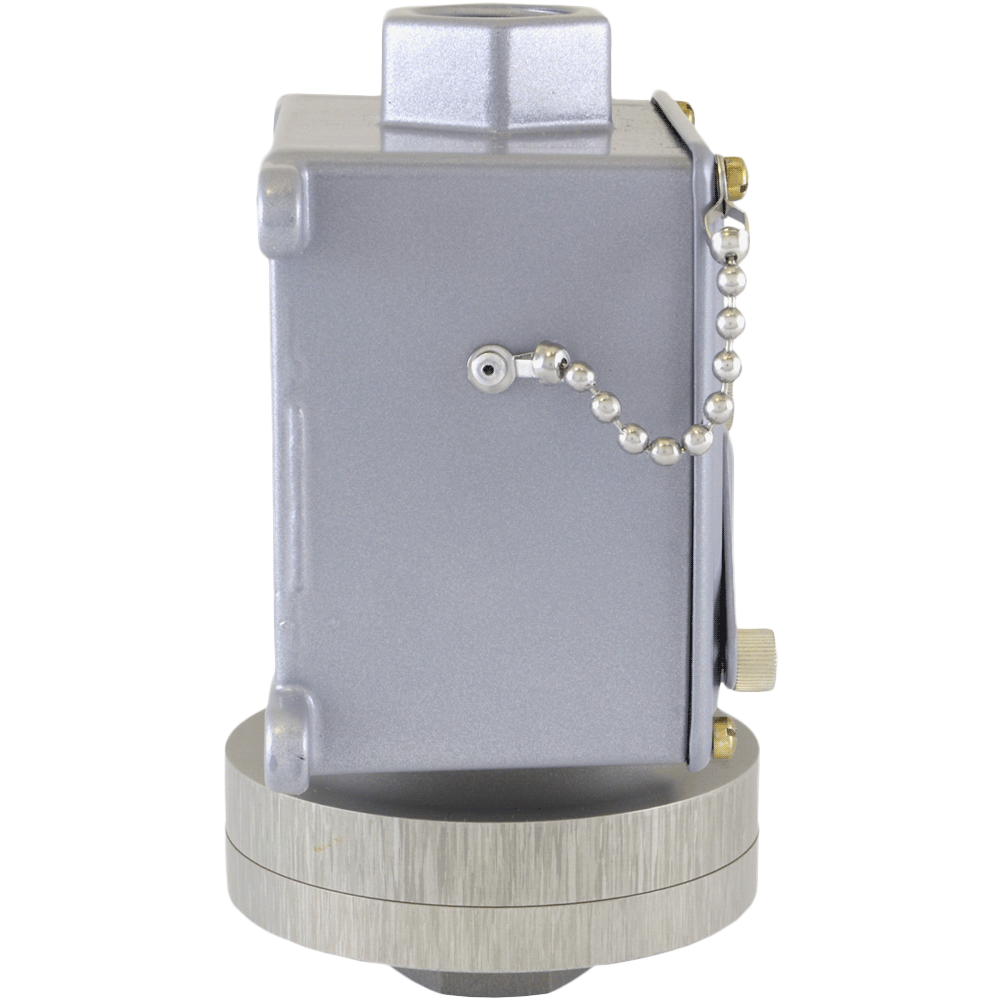

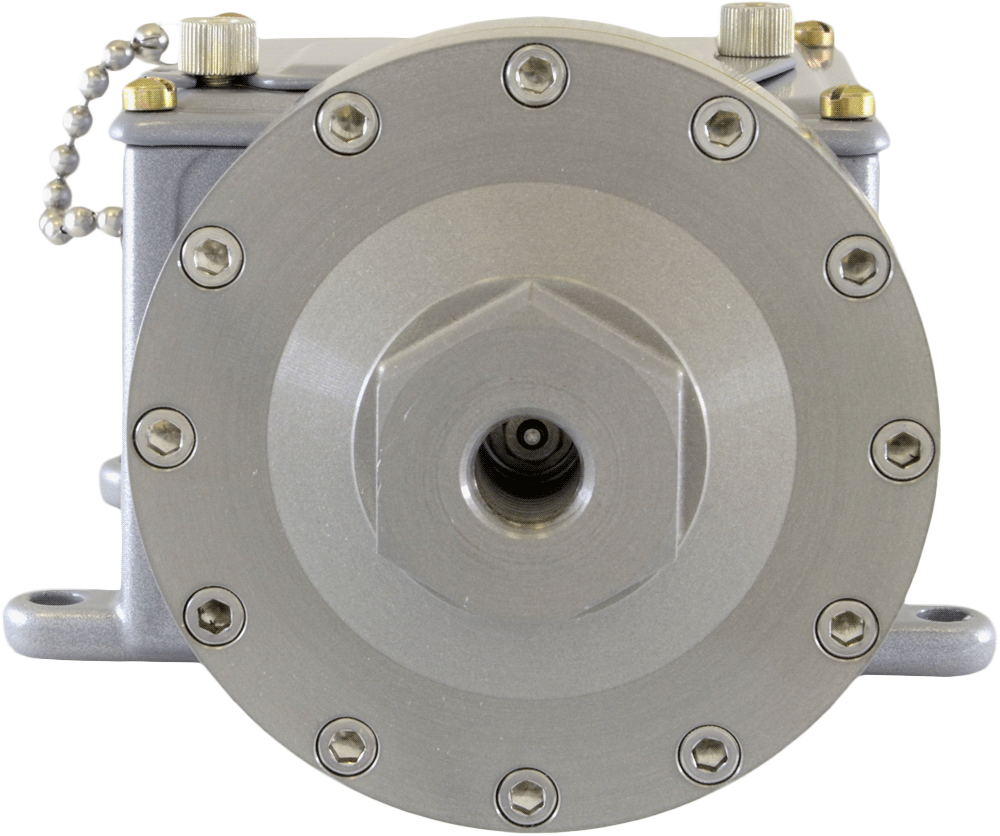

604GV2
CCS DUAL-SNAP Crossover Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Buna-N O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
24 In Stock
$320.00USD
$9.99 Shipping

604GV

Base Model

Process Connection

Diaphragm

O-Ring

Output

Electrical Contacts

Agency Approvals

Paint

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • cUL
  • EMC
  • LVD
  • PED
  • RoHS
  • UL

Deadband, Approximate - Bottom of Range

  • bar: 0.034
  • Inch Hg: 1.0
  • kPa: 2.07
  • mm Hg: 25
  • psi: 0.5

Deadband, Approximate - Top of Range

  • bar: 0.034
  • Inch Hg: 1.0
  • kPa: 2.76
  • mm Hg: 25
  • psi: 0.5

Diaphragm Material

  • Polyimide

Electrical Connectors

  • Terminal Strip - Internal

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 DC, 0.2 A at 250 DC
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N
  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • Aluminum

Proof Pressure

  • bar: 52
  • kPa: 5,171
  • psig: 750

Set Point - Decreasing

  • bar: -0.034 to 0.65
  • Inches Hg: -0.5 to 17
  • kPa: -3.4 to 65.5
  • mm Hg: -12.7 to 432
  • psig: -0.5 to 9.5

Set Point - Increasing

  • bar: -0.068 to 0.68
  • Inches Hg: -1.5 to 18
  • kPa: -6.9 to 68.9
  • mm Hg: -38 to 457
  • psig: -1.0 to 10

Standard Features

  • Internal Case Ground
  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 34.5
  • kPa: 3,447
  • psig: 500
