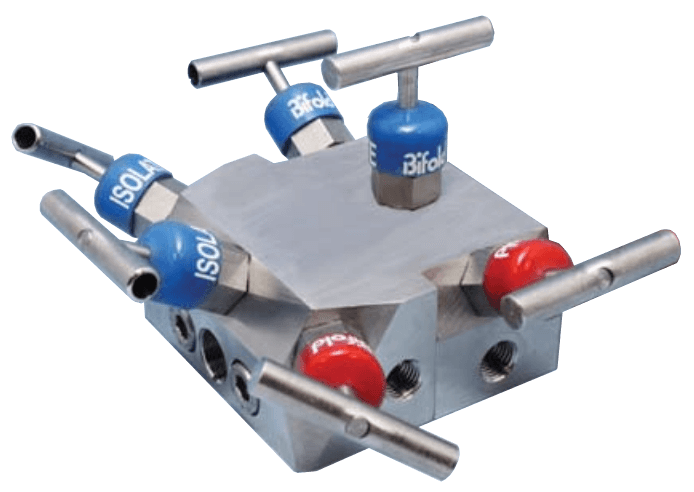

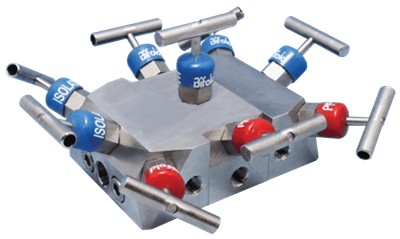

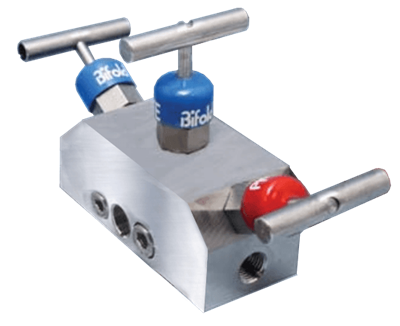

NV06 Double Block & Bleed Two Station Manifold

Brand: Bifold Group
A 6,000 psi / 414 bar or 10,000 psi / 690 bar rated 2 Station Double Block and Bleed Gauge / Instrument Compact Panel Mounted Manifold. The manifold design permits controlled venting of the instrument for calibration and or removal from the circuit, whilst leaving the process intact. This unique design allows direct inline connection to pipe systems, through 1/4" NPT connections, thus eliminating the requirement for additional 'T' and elbow fittings.
Features
  • Each station is a robust one piece body construction
  • Anti-blow out stem
  • Non-rotating, anti-galling tip as standard
  • Viton / RTFE stem sealing - maintenance free
  • Metal to metal seating
  • Back seating needle
  • Unique patented product compact in design to save space and weight
  • European patent granted EP2225485
  • Full material traceability and individual serial number stamped on the valve
  • Unrestricted through the bore
  • Stem seal design prevents galling and contamination
  • Thread milled connections for improved sealing
  • In compliance with NACE MR-01-75 / ISO 15156 as standard
  • Bubble tight shut-off
  • Anti tamper T-Bar option
  • Pressure energised stem sealing
  • Metal to metal body joint to prevent thread contamination
  • Panel mount as standard
