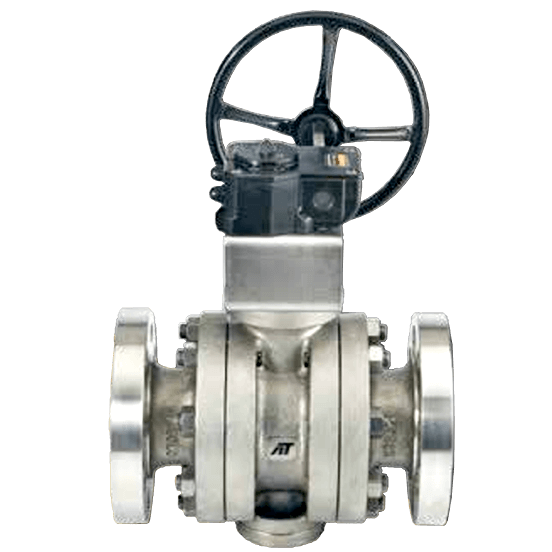

TM Series Trunnion Mounted Ball Valve

Brand: A-T Controls, Inc.
TRUNNION Mounted Ball Valve Series TM3 metal seated valves are designed in accordance with the leading industry standards such as API 6D, API 598 and ASME B16.34.

To ensure product reliability, the valve designs are validated by actual prototype testing that includes a high cycle testing. The valves are produced by employing state-of-the-art manufacturing technology and under strict quality control standards.

METAL SEAT TRUNNION MOUNTED VALVE STANDARDS Product Features  A-T Series TM3 trunnion mounted ball valves are designed for severe service applications such as high temperature and corrosive environments.

The ball and the metal seat contact surfaces are coated with wear resistant materials by HVOF (High Velocity Oxygen Fuel) thermal spraying process. The HVOF coating method is a high-velocity, low-temperature coating process which can provide a strong metal bonding and with minimal impact to the metal deformation.
Features
  • Bi-directional metal seat design
  • Standard SPE (Single Piston Effect) metal seat design with self-relieving features
  • DPE (Double Piston Effect) metal seat design is available
  • Metal seat hard face coatings are available in Stellite®, Tungsten Carbide or Chrome Carbide options
  • Standard metal seat leakage rating is in compliance with ANSI/FCI-70-2 Class V for Stellite® seats. Class VI is standard for Tungsten Carbide and Chrome Carbide coated seats.
  • Standard splined stem connection (6" and larger)
  • Standard graphite stem packing design
  • Trunnion mounted ball valve design for high pressure applications
  • Anti-blowout stem design
  • Anti-static design
  • Fire-safe design in accordance with API 6FA
  • ISO 5211 mounting design
  • Optional drain plug and body purge device available
show more
Images are representations only.
TRUNNION Mounted Ball Valve Series TM3 metal seated valves are designed in accordance with the leading industry standards such as API 6D, API 598 and ASME B16.34.

To ensure product reliability, the valve designs are validated by actual prototype testing that includes a high cycle testing. The valves are produced by employing state-of-the-art manufacturing technology and under strict quality control standards.

METAL SEAT TRUNNION MOUNTED VALVE STANDARDS Product Features  A-T Series TM3 trunnion mounted ball valves are designed for severe service applications such as high temperature and corrosive environments.

The ball and the metal seat contact surfaces are coated with wear resistant materials by HVOF (High Velocity Oxygen Fuel) thermal spraying process. The HVOF coating method is a high-velocity, low-temperature coating process which can provide a strong metal bonding and with minimal impact to the metal deformation.
Features
  • Bi-directional metal seat design
  • Standard SPE (Single Piston Effect) metal seat design with self-relieving features
  • DPE (Double Piston Effect) metal seat design is available
  • Metal seat hard face coatings are available in Stellite®, Tungsten Carbide or Chrome Carbide options
  • Standard metal seat leakage rating is in compliance with ANSI/FCI-70-2 Class V for Stellite® seats. Class VI is standard for Tungsten Carbide and Chrome Carbide coated seats.
  • Standard splined stem connection (6" and larger)
  • Standard graphite stem packing design
  • Trunnion mounted ball valve design for high pressure applications
  • Anti-blowout stem design
  • Anti-static design
  • Fire-safe design in accordance with API 6FA
  • ISO 5211 mounting design
  • Optional drain plug and body purge device available

TM Series

Base Model

Body Material

End Connection

ANSI Class

Pipe Schedule

Valve Size

Ball Material

  • view details
  • view details
  • view details

Ball Type

Stem Material

Seat Material

  • view details
  • view details
  • view details

Seal Material

Packing Material

Port

Fire Proofing

Actuation Adjustment Means

Testing Options

Bypass Pipe

Mounting

Specifications

Approvals & Certifications

  • ANSI 150, 300, 600, 900, 1,500, 2,500
  • API 6FA Firesafe, API 6D
  • ASME B16.34, ASME B16.10, ASME B16.5
  • CE 97/23/EC
  • ISO 10497, ISO 5211, ISO 9001:2008
  • SIL 3

Ball Material

  • 316 Stainless Steel, Tungsten Carbide Coated 316 Stainless Steel, Chrome Carbide Coated 316 Stainless Steel
  • LF2/ENP, A105N/ENP

Enclosure, Body Material

  • A216 WCB, A352 LCB, A352 LCC, A105N, A217 WC6, A217 WC9, A350 LF2
  • CF8M 316, CF3M 316L, CD3MN Duplex, CE3MN Super Duplex, A182 F316

Flange Size - 10" (DN250)

  • 10" (DN250) - 150# (Raised Face, Ring Typical Joint)
  • 10" (DN250) - 1500# (Raised Face, Ring Typical Joint)
  • 10" (DN250) - 2500# (Raised Face, Ring Typical Joint)
  • 10" (DN250) - 300# (Raised Face, Ring Typical Joint)
  • 10" (DN250) - 600# (Raised Face, Ring Typical Joint)
  • 10" (DN250) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 12" (DN300)

  • 12" (DN300) - 150# (Raised Face, Ring Typical Joint)
  • 12" (DN300) - 1500# (Raised Face, Ring Typical Joint)
  • 12" (DN300) - 2500# (Raised Face, Ring Typical Joint)
  • 12" (DN300) - 300# (Raised Face, Ring Typical Joint)
  • 12" (DN300) - 600# (Raised Face, Ring Typical Joint)
  • 12" (DN300) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 14" (DN350)

  • 14" (DN350) - 150# (Raised Face, Ring Typical Joint)
  • 14" (DN350) - 1500# (Raised Face, Ring Typical Joint)
  • 14" (DN350) - 2500# (Raised Face, Ring Typical Joint)
  • 14" (DN350) - 300# (Raised Face, Ring Typical Joint)
  • 14" (DN350) - 600# (Raised Face, Ring Typical Joint)
  • 14" (DN350) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 16" (DN400)

  • 16" (DN400) - 150# (Raised Face, Ring Typical Joint)
  • 16" (DN400) - 1500# (Raised Face, Ring Typical Joint)
  • 16" (DN400) - 2500# (Raised Face, Ring Typical Joint)
  • 16" (DN400) - 300# (Raised Face, Ring Typical Joint)
  • 16" (DN400) - 600# (Raised Face, Ring Typical Joint)
  • 16" (DN400) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 18" (DN450)

  • 18" (DN450) - 150# (Raised Face, Ring Typical Joint)
  • 18" (DN450) - 1500# (Raised Face, Ring Typical Joint)
  • 18" (DN450) - 2500# (Raised Face, Ring Typical Joint)
  • 18" (DN450) - 300# (Raised Face, Ring Typical Joint)
  • 18" (DN450) - 600# (Raised Face, Ring Typical Joint)
  • 18" (DN450) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 2" (DN50)

  • 2" (DN50) - 150# (Raised Face, Ring Typical Joint)
  • 2" (DN50) - 1500# (Raised Face, Ring Typical Joint)
  • 2" (DN50) - 2500# (Raised Face, Ring Typical Joint)
  • 2" (DN50) - 300# (Raised Face, Ring Typical Joint)
  • 2" (DN50) - 600#
  • 2" (DN50) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 20" (DN500)

  • 20" (DN500) - 150# (Raised Face, Ring Typical Joint)
  • 20" (DN500) - 1500# (Raised Face, Ring Typical Joint)
  • 20" (DN500) - 2500# (Raised Face, Ring Typical Joint)
  • 20" (DN500) - 300# (Raised Face, Ring Typical Joint)
  • 20" (DN500) - 600# (Raised Face, Ring Typical Joint)
  • 20" (DN500) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 24" (DN600)

  • 24" (DN600) - 150# (Raised Face, Ring Typical Joint)
  • 24" (DN600) - 1500# (Raised Face, Ring Typical Joint)
  • 24" (DN600) - 2500# (Raised Face, Ring Typical Joint)
  • 24" (DN600) - 300# (Raised Face, Ring Typical Joint)
  • 24" (DN600) - 600# (Raised Face, Ring Typical Joint)
  • 24" (DN600) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 3" (DN80)

  • 3" (DN80) - 150# (Raised Face, Ring Typical Joint)
  • 3" (DN80) - 1500# (Raised Face, Ring Typical Joint)
  • 3" (DN80) - 2500# (Raised Face, Ring Typical Joint)
  • 3" (DN80) - 300# (Raised Face, Ring Typical Joint)
  • 3" (DN80) - 600# (Raised Face, Ring Typical Joint)
  • 3" (DN80) - 900#

Flange Size - 30" (DN750)

  • 30" (DN750) - 150# (Raised Face, Ring Typical Joint)
  • 30" (DN750) - 1500# (Raised Face, Ring Typical Joint)
  • 30" (DN750) - 2500# (Raised Face, Ring Typical Joint)
  • 30" (DN750) - 300# (Raised Face, Ring Typical Joint)
  • 30" (DN750) - 600# (Raised Face, Ring Typical Joint)
  • 30" (DN750) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 36" (DN900)

  • 36" (DN900) - 150# (Raised Face, Ring Typical Joint)
  • 36" (DN900) - 1500# (Raised Face, Ring Typical Joint)
  • 36" (DN900) - 2500# (Raised Face, Ring Typical Joint)
  • 36" (DN900) - 300# (Raised Face, Ring Typical Joint)
  • 36" (DN900) - 600# (Raised Face, Ring Typical Joint)
  • 36" (DN900) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 4" (DN100)

  • 4" (DN100) - 150# (Raised Face, Ring Typical Joint)
  • 4" (DN100) - 1500# (Raised Face, Ring Typical Joint)
  • 4" (DN100) - 2500# (Raised Face, Ring Typical Joint)
  • 4" (DN100) - 300# (Raised Face, Ring Typical Joint)
  • 4" (DN100) - 600# (Raised Face, Ring Typical Joint)
  • 4" (DN100) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 42" (DN1050)

  • 42" (DN1050) - 150# (Raised Face, Ring Typical Joint)
  • 42" (DN1050) - 1500# (Raised Face, Ring Typical Joint)
  • 42" (DN1050) - 2500# (Raised Face, Ring Typical Joint)
  • 42" (DN1050) - 300# (Raised Face, Ring Typical Joint)
  • 42" (DN1050) - 600# (Raised Face, Ring Typical Joint)
  • 42" (DN1050) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 48" (DN1200)

  • 48" (DN1200) - 150# (Raised Face, Ring Typical Joint)
  • 48" (DN1200) - 1500# (Raised Face, Ring Typical Joint)
  • 48" (DN1200) - 2500# (Raised Face, Ring Typical Joint)
  • 48" (DN1200) - 300# (Raised Face, Ring Typical Joint)
  • 48" (DN1200) - 600# (Raised Face, Ring Typical Joint)
  • 48" (DN1200) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 6" (DN150)

  • 6" (DN150) - 150# (Raised Face, Ring Typical Joint)
  • 6" (DN150) - 1500# (Raised Face, Ring Typical Joint)
  • 6" (DN150) - 2500# (Raised Face, Ring Typical Joint)
  • 6" (DN150) - 300# (Raised Face, Ring Typical Joint)
  • 6" (DN150) - 600# (Raised Face, Ring Typical Joint)
  • 6" (DN150) - 900# (Raised Face, Ring Typical Joint)

Flange Size - 8" (DN200)

  • 8" (DN200) - 150# (Raised Face, Ring Typical Joint)
  • 8" (DN200) - 1500# (Raised Face, Ring Typical Joint)
  • 8" (DN200) - 2500# (Raised Face, Ring Typical Joint)
  • 8" (DN200) - 300# (Raised Face, Ring Typical Joint)
  • 8" (DN200) - 600# (Raised Face, Ring Typical Joint)
  • 8" (DN200) - 900# (Raised Face, Ring Typical Joint)

Port

  • Full
  • Reduced (Standard, Regular)

Seat/Seal Material

  • 316 Stainless Steel / Stellite, Tungsten Carbide Coated 316 Stainless Steel, Chrome Carbide Coated 316 Stainless Steel
  • DEVLON
  • PEEK®
  • RTFE (Reinforced Teflon)

Valve Type

  • Manual

Welded Connection

  • 10" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 12" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 14" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 16" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 18" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 2" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 20" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 24" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 3" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 30" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 36" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 4" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 42" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 48" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 6" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
  • 8" Weld End (Pipe Schedule: 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XH, XXH, ANSI Class: 150, 300, 600, 900, 1500, 2500)
