PI73-TS Pressure Intensifier

Brand: Bifold Group
Request a Quote
Favorite
The PI73-TS Intensifier amplifies the inlet pressure to a higher outlet pressure by a predetermined ratio. Pressure in the high pressure line can become reduced as a result of a system leak or the use of the stored (pressure) energy. The PI73-TS restores and maintains that pressure in such instances. Check and changeover valves are integrated within the main body of the intensifier as is the pilot-operated vent valve in the versions in which it is incorporated.
Features
  • Designed to boost the pressure of any water-based or mineral/synthetic oil-based fluid
  • Boosts inlet pressure up to 7 times without external power. The maximum outlet pressure is psi: 20,020 (kPa: 138,000, bar: 1,380)
  • When system pressure is achieved, there is minimal consumption of expensive hydraulic fluid
  • External components manufactured from 316 (standard), or from duplex stainless steels; no painting required for hostile environments
  • Two versions - with and without a pilot-operated vent valve for the high pressure line
    • show more
    main_BI_Marshalsea_PI73-TS_Pressure_Intensifier.PNG 002_BI_Marshalsea_PI73-TS_Pressure_Intensifier.PNG
    main_BI_Marshalsea_PI73-TS_Pressure_Intensifier.PNG 002_BI_Marshalsea_PI73-TS_Pressure_Intensifier.PNG
    Images are representations only.
    The PI73-TS Intensifier amplifies the inlet pressure to a higher outlet pressure by a predetermined ratio. Pressure in the high pressure line can become reduced as a result of a system leak or the use of the stored (pressure) energy. The PI73-TS restores and maintains that pressure in such instances. Check and changeover valves are integrated within the main body of the intensifier as is the pilot-operated vent valve in the versions in which it is incorporated.
    Features
  • Designed to boost the pressure of any water-based or mineral/synthetic oil-based fluid
  • Boosts inlet pressure up to 7 times without external power. The maximum outlet pressure is psi: 20,020 (kPa: 138,000, bar: 1,380)
  • When system pressure is achieved, there is minimal consumption of expensive hydraulic fluid
  • External components manufactured from 316 (standard), or from duplex stainless steels; no painting required for hostile environments
  • Two versions - with and without a pilot-operated vent valve for the high pressure line
    • Close

    Specifications

    Brand

    BSP Connection

    • 1/4" BSP Female

    Cone & Thread Connection

    • 3/8" Female Medium Pressure

    Enclosure, Body Material

    • Stainless Steel

    NPT Connection

    • 1/4" NPT Female

    Pressure Range

    • bar: 0 to 1,380
    • kPa: 0 to 138,000
    • psi: 0 to 20,020

    Seat/Seal Material

    • Nitrile
    • Viton

    Supply Pressure - Maximum

    • bar: 420
    • kPa: 42,000
    • psi: 6,092

    Vent

    • Pilot Operated Vent
    Close

    Review this product and let us know your experiences

    Write a Review
    Close

    Similar Products

    PI39 Pressure Intensifier
    PI39 Pressure Intensifier
    Bifold Group
    PI73-SS Pressure Intensifier
    PI73-SS Pressure Intensifier
    Bifold Group
    3100 & 3105 Slide Valve
    3100 & 3105 Slide Valve
    Bifold Group

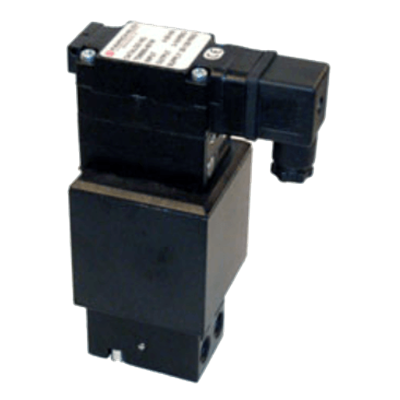

    Model T6100 Lock in Place I/P Pressure Transducer
