38 Series Automated Ball Valve

Brand: A-T Controls, Inc.
Request Information
Favorite
This investment cast 3-way valve can be an economical option for flow patterns that normally require multiple 2-way valves.

Available in L or T port configurations, this valve is excellent for diverting flow within control loop processes.
Features
  • Design: 3-Way General Purpose Automated Valve
  • Size: 1/4" to 2"
  • Port: Reduced
  • Direct Mount: No
  • Pyramidal Stem Packing: No
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE
  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1,000 psi
  • Actuator Type:
    • Pneumatic: Double Acting or Spring Return
    • Electric: On/Off or Modulating
show more
This investment cast 3-way valve can be an economical option for flow patterns that normally require multiple 2-way valves.

Available in L or T port configurations, this valve is excellent for diverting flow within control loop processes.
Features
  • Design: 3-Way General Purpose Automated Valve
  • Size: 1/4" to 2"
  • Port: Reduced
  • Direct Mount: No
  • Pyramidal Stem Packing: No
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE
  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1,000 psi
  • Actuator Type:
    • Pneumatic: Double Acting or Spring Return
    • Electric: On/Off or Modulating
Close

Displaying prices & availability for United States in USD. Change location or currency

7 models matching criteria
38-TX-025/2R2S-XX-L

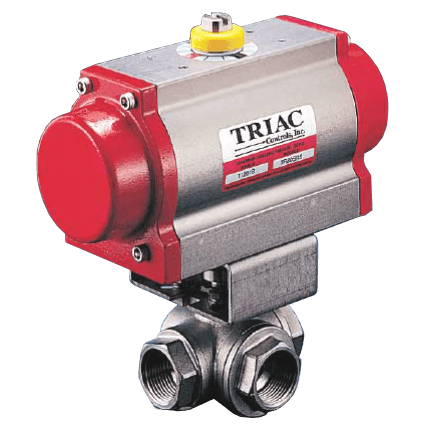

A-T CONTROLS Series 38 3-Way Ball Valve, Threaded, 1/4", Spring Return,RTFE, L-Port View More
  • 38: 3-Way NPT, Regular Port

    • ​​Stainless Steel Body and Trim

  • T: NPT Connections
  • X: Reinforced TFE Seats (RTFE)
  • 025: 1/4" Valve Size
  • 2R2S: 2R40 SR Pneumatic Actuators (Spring Return)
  • XX: No Specials
  • L: L-Port 3-Way Arrangement
2 - 4 weeks
$414.19USD
$19.16 Shipping
38-TX-025/2R2S-XX-T
A-T CONTROLS Series 38 3-Way Ball Valve, Threaded, 1/4", Spring Return,RTFE, T-Port View More
  • 38: 3-Way NPT, Regular Port

    • ​​Stainless Steel Body and Trim

  • T: NPT Connections
  • X: Reinforced TFE Seats (RTFE)
  • 025: 1/4" Valve Size
  • 2R2S: 2R40 SR Pneumatic Actuators (Spring Return)
  • XX: No Specials
  • T: T-Port 3-Way Arrangement
2 - 4 weeks
$414.19USD
$19.16 Shipping
38-TX-0038/2R2S-XX-LT-L
A-T CONTROLS Series 38 3-Way Ball Valve, Threaded, 3/8", Spring Return,RTFE, Accessories View More
  • 38: 3-Way NPT, Regular Port

    • ​​Stainless Steel Body and Trim

  • T: NPT Connections
  • X: Reinforced TFE Seats (RTFE)
  • 0038: 3/8" Valve Size
  • 2R2S: 2R40 SR Pneumatic Actuators (Spring Return)
  • XX: No Specials
  • LT: Low Temperature
  • L: L-Port 3-Way Arrangement
2 - 4 weeks
$495.26USD
$19.16 Shipping
38-TX-100/2R3S-XX-T
A-T CONTROLS Series 38 3-Way Ball Valve, Threaded, 1", Spring Return,RTFE, T-Port View More
  • 38: 3-Way NPT, Regular Port

    • ​​Stainless Steel Body and Trim

  • T: NPT Connections
  • X: Reinforced TFE Seats (RTFE)
  • 100: 1" Valve Size
  • 2R3S: 2R80 Spring Return Actuator
  • XX: No Specials
  • T: T-Port 3-Way Arrangement
1 - 2 weeks
$605.08USD
$19.16 Shipping
38-TX-200/2R6S-XXT
A-T CONTROLS Series 38 3-Way Ball Valve, Threaded, 2", Spring Return,RTFE, T-Port View More
  • 38: 3-Way NPT, Regular Port

    • ​​Stainless Steel Body and Trim

  • T: NPT Connections
  • X: Reinforced TFE Seats (RTFE)
  • 0200: 2" Valve Size
  • 2R6S: 2R300 SR Pneumatic Actuators (Spring Return)
  • XX: No Specials
  • T: T-Port 3-Way Arrangement
2 - 4 weeks
$1,110.66USD
$19.16 Shipping
38-TX-150/WEB1-XX-L

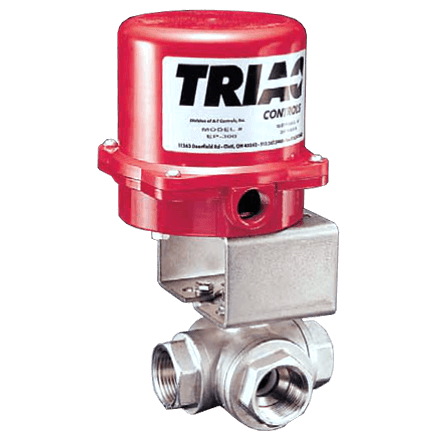

A-T CONTROLS Series 38 3-Way Ball Valve, Threaded,1.5",Electric On/Off, L-Port View More
  • 38: 3-Way NPT, Regular Port

    • ​​Stainless Steel Body and Trim

  • T: NPT Connections
  • X: Reinforced TFE Seats (RTFE)
  • 150: 1-1/2" Valve Size
  • WEB1: WE-690 Electric On/Off Actuator
  • XX: No Specials
  • L: L-Port 3-way Arrangement
2 - 4 weeks
$1,406.19USD
$19.16 Shipping
38-TX-100/XEB1-WX
A-T CONTROLS Series 38 3-Way Ball Valve, Threaded,1",Electric On/Off, c/w ADM101 Control Card View More
  • 38: 3-Way NPT, Regular Port

    • ​​Stainless Steel Body and Trim

  • T: NPT Connections
  • X: Reinforced TFE Seats (RTFE)
  • 100: 1" Valve Size
  • XEB1-WX Electric Actuator:
    • 12 VDC Power Input
    • On / Off
    • 5 Watt Heater & Thermostat
    • 4 Limit Switches
    • Manual Override & Beacon
    • Operating Temp: -4°F to 158°F (-40 Low Temp Available)
    • Explosion Proof, Class 1, Division 1, Groups C & D
    • ATEX, (CSA Pending)

2 - 4 weeks
$1,495.37USD
$19.16 Shipping
Close
Close

Specifications

Brand

Direct Mount

  • No

Enclosure, Body Material

  • 316 Stainless Steel

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1/4” NPT Female
  • 1-1/2” NPT Female
  • 1-1/4” NPT Female
  • 2” NPT Female
  • 3/4” NPT Female
  • 3/8” NPT Female

Options

  • Intrinsically Safe Solenoid & Limit Switches
  • L or T Ports
  • NEMA 4 Solenoid 120 Vac & Switches
  • NEMA 7 Solenoid 120 Vac & Switches

Port

  • Reduced (Standard, Regular)

Pressure Rating

  • 1000 psi

Pyramidal Stem Packing

  • No

Seat / Seal Material

  • RTFE (Reinforced Teflon)

TA-Luft Certified

  • No

Trim Material

  • 316 Stainless Steel

Valve Type

  • Automated
