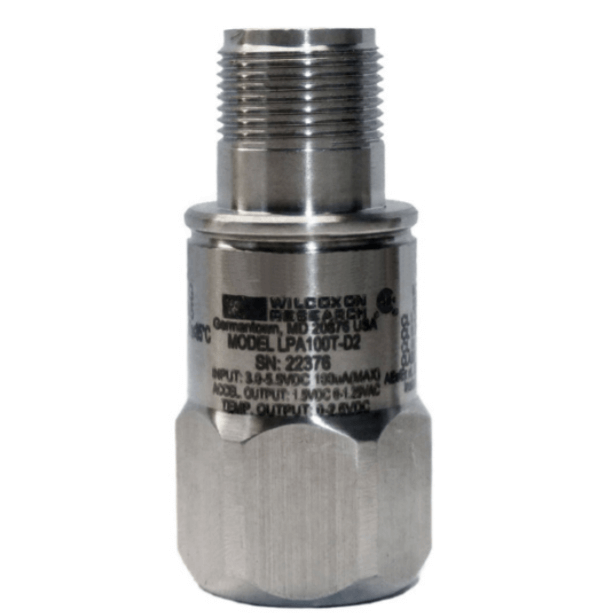

Model LPA100T-D2 Certified Low-Power Low-Voltage Accelerometer

Brand: Wilcoxon Sensing Technologies
The heart of the LPA100T-D2 accelerometer incorporates new technology and innovative designs. Breaking from conventional sensor power, the LPA100T-D2 operates from low voltage (3-5 volts) and consumes less than 300 µWatts. Traditional sensors typically operate at 48 mWatts; the LPA100T-D2 offers 100x energy savings. In addition to low-power consumption, new patented circuitry minimizes settling time to less than ten milliseconds while still preserving 0.3 Hz low end frequency (traditional sensors require up to ten seconds).

The key advantage of a fast settling time when using multiplexed applications (online monitoring systems) is that the entire sensor field can be scanned faster. Since each data point is refreshed more frequently, machinery health can be monitored in real-time. This results in improved asset protection and reliability. The LPA100T-D2 is an ideal solution for wireless, battery-operated or energy harvesting applications due to its low power consumption. A built-in electronic temperature sensor provides additional machinery health data from the mounting location.

The LPA100T-D2 is certified for use in hazardous areas (Class I, Div 2/Zone 2). These are areas where ignitable gases are used but not normally present during daily operation and can only escape through accidental rupture, breakdown or leaks.
Features
  • Certified for use in hazardous areas
  • Ultra low power consumption (300 μW)
  • Operates down to 3 V
  • Fast BOV settling time of <10ms
  • Comes with the industry popular M12 connector
  • Hermetically sealed
  • ESD-protected
  • Reverse wiring protection
  • Manufactured in an approved ISO 9001 facility
  • U.S. Pat. No. 9,269,886 B1
show more
The heart of the LPA100T-D2 accelerometer incorporates new technology and innovative designs. Breaking from conventional sensor power, the LPA100T-D2 operates from low voltage (3-5 volts) and consumes less than 300 µWatts. Traditional sensors typically operate at 48 mWatts; the LPA100T-D2 offers 100x energy savings. In addition to low-power consumption, new patented circuitry minimizes settling time to less than ten milliseconds while still preserving 0.3 Hz low end frequency (traditional sensors require up to ten seconds).

The key advantage of a fast settling time when using multiplexed applications (online monitoring systems) is that the entire sensor field can be scanned faster. Since each data point is refreshed more frequently, machinery health can be monitored in real-time. This results in improved asset protection and reliability. The LPA100T-D2 is an ideal solution for wireless, battery-operated or energy harvesting applications due to its low power consumption. A built-in electronic temperature sensor provides additional machinery health data from the mounting location.

The LPA100T-D2 is certified for use in hazardous areas (Class I, Div 2/Zone 2). These are areas where ignitable gases are used but not normally present during daily operation and can only escape through accidental rupture, breakdown or leaks.
Features
  • Certified for use in hazardous areas
  • Ultra low power consumption (300 μW)
  • Operates down to 3 V
  • Fast BOV settling time of <10ms
  • Comes with the industry popular M12 connector
  • Hermetically sealed
  • ESD-protected
  • Reverse wiring protection
  • Manufactured in an approved ISO 9001 facility
  • U.S. Pat. No. 9,269,886 B1

Specifications

Approvals & Certifications

  • ISO 9001

Approvals & Certifications

  • ATEX II 3 G Ex NA NC IIC T5 Gc Ta = -50° to 85° C
  • CE
  • CSA (C,US) Class I, Division 2, Grade A, B, C, D, Class II, Division 2, Groups E, F, G, Class III Class I Zone 2 AEx, Ex ML IIC T5 -50° C ≤ to ≤ 85° C

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Consumption

  • Ultra Low Power Consumption: 300 µW

Electrical Connectors

  • Cable (J99)
  • Mating Connector: M12 Style, Socket

Element

  • Sensing Element Design: PZT, Shear

Enclosure, Body Material

  • 316L Stainless Steel

Frequency

  • Frequency Response (± 10%): 1 to 9,000 Hz
  • Frequency Response (± 3 dB): 0.3 to 15,000 Hz
  • Frequency Response (± 5%): 3 to 5,000 Hz
  • Resonance Frequency: 30 kHz

Mounting

  • 1/4-28 UNF Tapped Hole

Noise

  • Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 660 µg
  • Electrical Noise, Equivalent G (Spectral: 1,000 Hz): 5 µg/√Hz
  • Electrical Noise, Equivalent G (Spectral: 10 Hz): 60 µg/√Hz
  • Electrical Noise, Equivalent G (Spectral: 100 Hz): 16 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum 1000 Ω

Power Requirement

  • 3-5.5 Vdc
  • No Cable: 100 µA, Maximum

Range

  • Acceleration Range: 25 G Peak

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity, Maximum 0.0002 g/μstrain
  • Electromagnetic Sensitivity, Equivalent G, Maximum 150 µg/gauss
  • Sensitivity Variation with Temperature 120° C (248° F): 10%
  • Sensitivity Variation with Temperature -25° C (-13° F): -10%
  • Sensitivity, ± 5%, 25° C (77° F): 50 mV/g
  • Temperature Sensor (Signal Sensitivity): -10.9 mV / °C
  • Transverse Sensitivity, Maximum 5% of axial

Shock

  • Shock Limit: 5,000 G Peak

Temperature Range

  • Temperature Sensor: -40° to 120° C (-40° to 248° F)

Turn-On Time

  • Bias Output Voltage, Settling Time, 25° C (77° F): < 10 milliseconds

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage: 1.5 Vdc ± 5% (Temperature Effects)
  • Temperature Sensor (Voltage at 0° C (32° F)): 2.1 V
  • Temperature Sensor: 0.77-2.52 V
