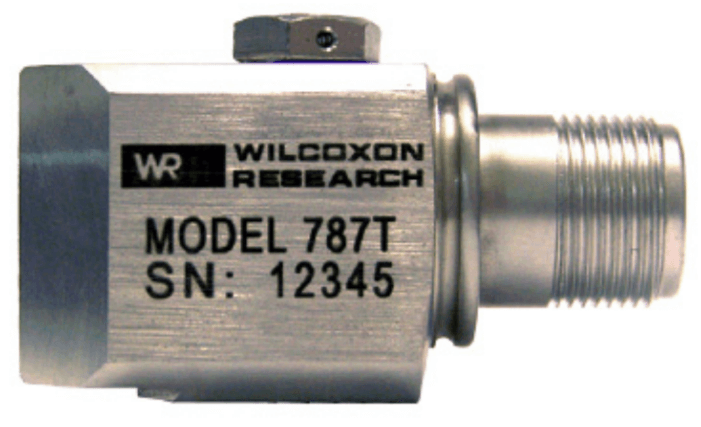

Model 787T General Purpose Accelerometer

Brand: Wilcoxon Sensing Technologies
Side exit, general-purpose, dual output with temperature, 3-pin MIL-C-5015 connector, case isolated, 100 mV/g, ±5% sensitivity tolerance.
Features
  • Measures both acceleration and temperature
  • Rugged design
  • Corrosion resistant
  • Hermetically sealed
  • Case isolated
  • ESD protection
  • Reverse wiring protection
show more
Images are representations only.
Side exit, general-purpose, dual output with temperature, 3-pin MIL-C-5015 connector, case isolated, 100 mV/g, ±5% sensitivity tolerance.
Features
  • Measures both acceleration and temperature
  • Rugged design
  • Corrosion resistant
  • Hermetically sealed
  • Case isolated
  • ESD protection
  • Reverse wiring protection

Specifications

Approvals & Certifications

  • CE

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Cable (3-Conductor, Shielded)
  • Mating Connector: 3 Socket, MIL-C-5015 Style
  • Output Connector: 3-Pin, MIL-C-5015 Style

Element

  • Sensing Element Design: PZT Ceramic, Shear

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • Corrosion-Proof

Frequency

  • Frequency Response (± 10%): 0.7 to 10,000 Hz
  • Frequency Response (± 3 dB): 0.5 to 12,000 Hz
  • Frequency Response (± 5%): 1 to 5,000 Hz
  • Resonance Frequency, Mounted, Minimum: 22 kHz

Mounting

  • 1/4-28 Captive Screw with 0.046" Diameter Safety Wire Hole

Noise

  • Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 700 µg
  • Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 10 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 100 to 1,000 Hz): 5 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum 100 Ω

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range: 80 G Peak

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity, Maximum
  • Electromagnetic Sensitivity, Equivalent G, Maximum
  • Sensitivity, ± 10%, 25° C (77° F): 100 mV/g
  • Transverse Sensitivity: Maximum 5% of axial

Shock

  • Shock Limit: 5,000 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage, Nominal: 12 Vdc
