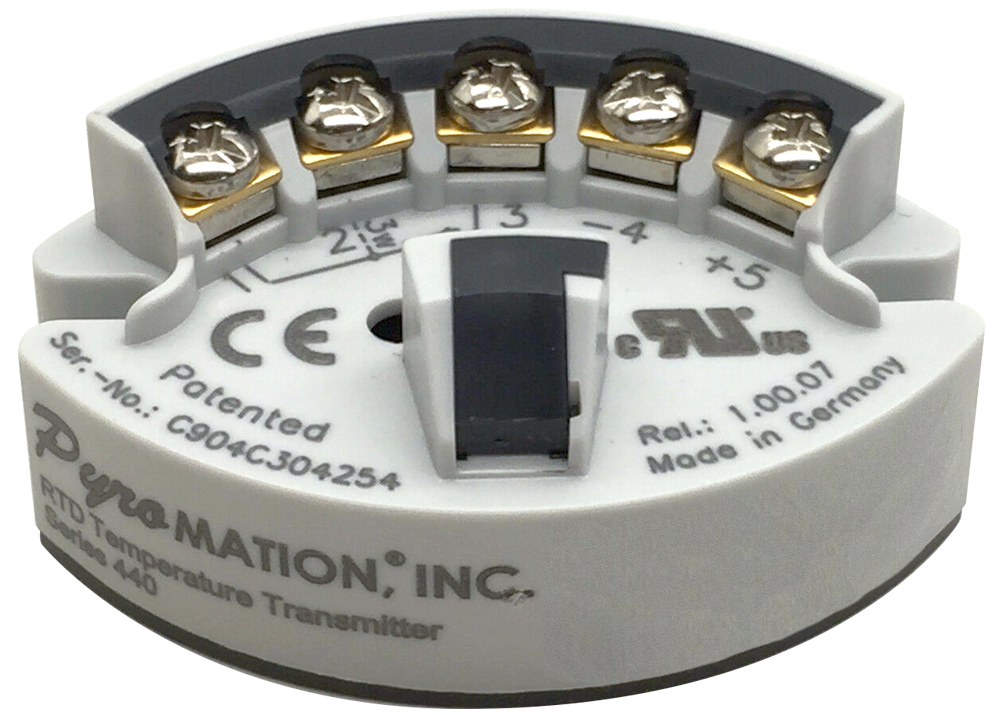

Series 440 Programmable RTD Temperature Transmitter

Brand: Pyromation

Favorite

The Series 440 programmable RTD temperature transmitter is a 2-wire transmitter with an analog output. It has measurement input for Pt100 resistance thermometers (RTD) in 2- or 3-wire connections. Setting up of the transmitter is done using the communication cable. These small units can be mounted in Pyromation connection heads or they can be used for surface mounting by using a 35 mm DIN-rail mounting clip.

Features

Universally PC programmable for Pt100 signals
2-wire technology, (4 to 20) mA analog output
High accuracy in total ambient temperature range
Fault signal on sensor break or short circuit
RFI/EMI Protected, CE marked
cURus, UL Recognized Component
FM, CSA General Purpose and non-incendive for use in hazardous locations
Online configuration during measurement using
SETUP connector
Output simulation


Images are representations only.

Description

Features

Universally PC programmable for Pt100 signals
2-wire technology, (4 to 20) mA analog output
High accuracy in total ambient temperature range
Fault signal on sensor break or short circuit
RFI/EMI Protected, CE marked
cURus, UL Recognized Component
FM, CSA General Purpose and non-incendive for use in hazardous locations
Online configuration during measurement using
SETUP connector
Output simulation

Specifications

Brand

Pyromation

Connection Type

2 Wire
3 Wire

Sensor Cable Resistance

Maximum 11 Ω Per Cable

Sensor Current

≤ 0.6 mA

Output Signal

(4 to 20) mA Or (20 to 4) mA

Transmission As

Temperature Linear

Switch On Delay

Measurement Range

-200° to 650° C
-328° to 1,202° F

Applications

Typical Applications

PC programmable temperature head transmitter for converting Pt100 input signal into an scalable (4 to 20) mA analog output signal
Platinum resistance thermometer (RTD)
Online configuration using PC with SETUP connector
