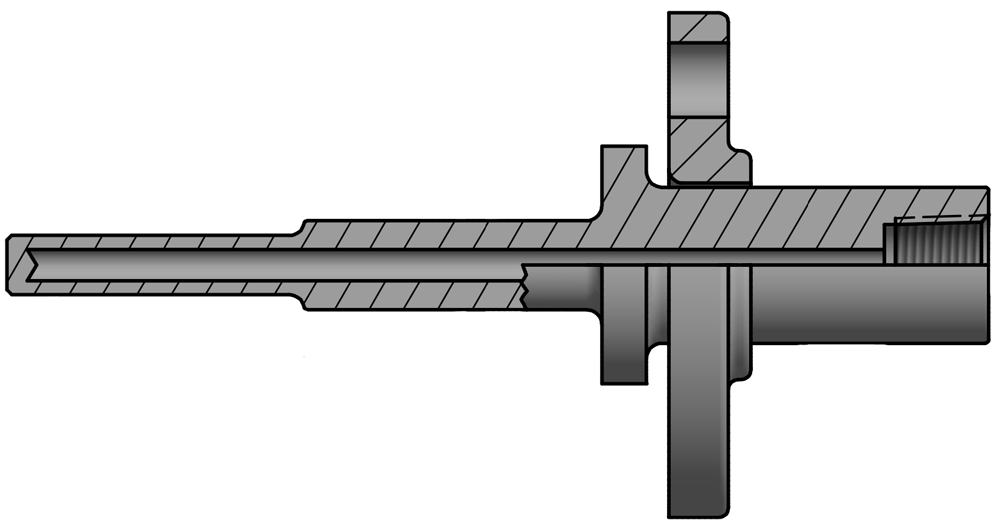

Reduced-Tip Van Stone Thermowell

Brand: Pyromation
Reduced-Tip Van Stone Thermowells are available in a variety of materials, flange sizes, and pressure ratings. They are also offered in various lengths and with optional lagging extensions. Thermowell specifications should be determined based on process conditions which include strength, temperature, pressure and corrosion-resistance requirements.

The Reduced Tip Van Stone thermowell is supplied with a 0.260" bore diameter to accommodate sensing elements with a 0.252" maximum diameter. The stepped construction is normally used in standard-duty applications and increases the speed of response while maintaining mechanical strength. Van Stone thermowells are connected using a separate and reusable lapped backing flange, eliminating the need for expensive flange materials.

These wells are available as separate components or as part of complete sensor assemblies
show more
Reduced-Tip Van Stone Thermowells are available in a variety of materials, flange sizes, and pressure ratings. They are also offered in various lengths and with optional lagging extensions. Thermowell specifications should be determined based on process conditions which include strength, temperature, pressure and corrosion-resistance requirements.

The Reduced Tip Van Stone thermowell is supplied with a 0.260" bore diameter to accommodate sensing elements with a 0.252" maximum diameter. The stepped construction is normally used in standard-duty applications and increases the speed of response while maintaining mechanical strength. Van Stone thermowells are connected using a separate and reusable lapped backing flange, eliminating the need for expensive flange materials.

These wells are available as separate components or as part of complete sensor assemblies

Specifications

Brand

Bore Size

  • 0.260"

Flange Size

  • 1" (DN25)
  • 1-1/2" (DN40)

Pressure Rating

  • Class 150
  • Class 300
  • Class 600
  • Class 900
  • Class 1500

Material of Construction

  • Well cap & chain: 316 stainless steel, Brass

Pipe Size

  • 1", 1-1/2"
