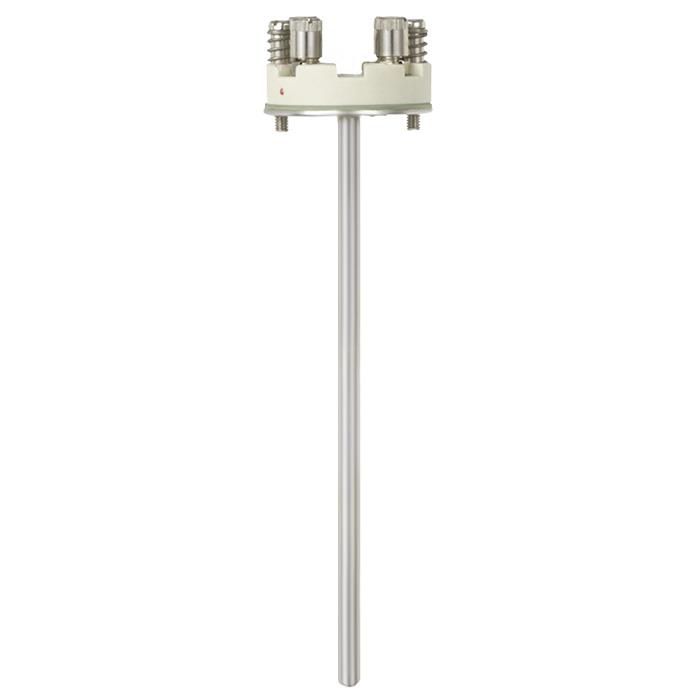

Measuring Insert for Resistance Thermometer - TR11-A

Brand: WIKA Instruments Ltd.
The measuring inserts per DIN 43735 for resistance thermometers described here are designed for mounting in a protective fitting. Operation without thermowell is only recommended in certain applications.

 The measuring insert has been manufactured from a pipe closed on one side. The sensor is located in the tip of the measuring insert. The measuring inserts are delivered with pressure springs to ensure that the measuring inserts are pressed down to the thermowell bottom
Features
  • Application ranges from -50 ... +250 °C (-58 ... +482 °F).
  • Tubular design.
  • Spring-loaded design.
  • Explosion-protected versions.
show more
Images are representations only.
The measuring inserts per DIN 43735 for resistance thermometers described here are designed for mounting in a protective fitting. Operation without thermowell is only recommended in certain applications.

 The measuring insert has been manufactured from a pipe closed on one side. The sensor is located in the tip of the measuring insert. The measuring inserts are delivered with pressure springs to ensure that the measuring inserts are pressed down to the thermowell bottom
Features
  • Application ranges from -50 ... +250 °C (-58 ... +482 °F).
  • Tubular design.
  • Spring-loaded design.
  • Explosion-protected versions.

Specifications

Tube Material

  • Stainless steel 316L
  • Stainless steel 1.4571

Certifications & Approvals

  • DKD/DAkkS calibration
  • CE
  • EAC
  • IECEx
  • INMETRO
  • KOSHA
  • PESO
  • GOST
  • ATEX

Environmental Protection

  • IP00

Output

  • 4-20 mA
  • HART® protocol
  • FOUNDATION™ Fieldbus and PROFIBUS® PA

Typical Applications

  • Replacement measuring insert for servicing
  • For all industrial and laboratory applications
