Description

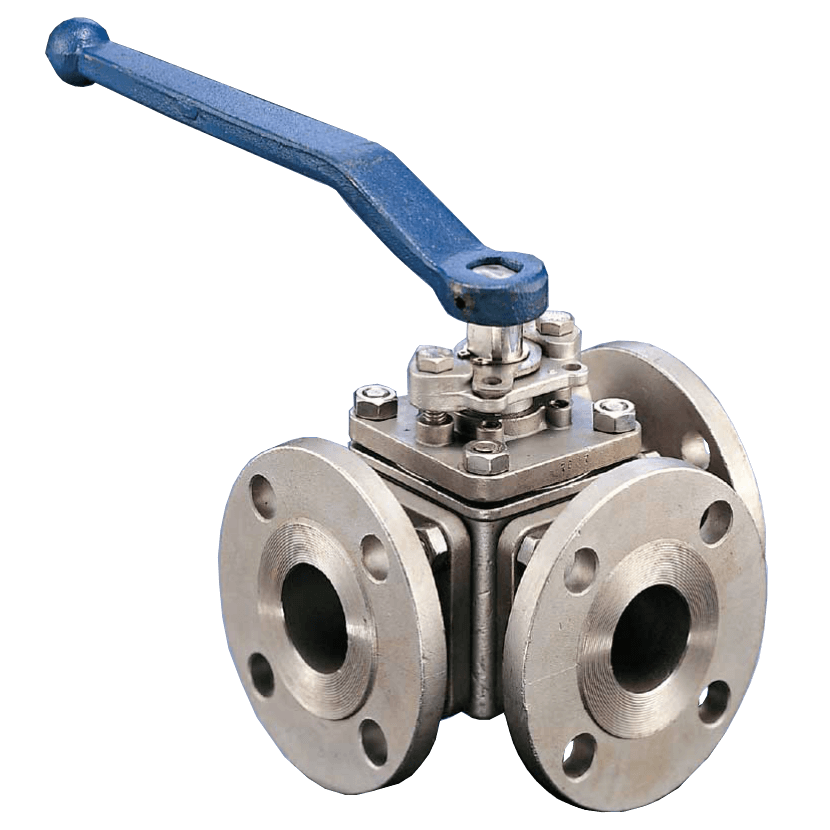

This 3-way ball valve offers diverting and mixing flow patterns, often eliminating the need for two valves.
The full port design is easily automated and is available with various seat materials.
The bolts on side flanges make for easy seat changes as necessary to accommodate your service.
Available in L or T port configurations.
Features- Design: 150# & 300# Flanged General-Purpose 3-Way
- Size: 1-1/2" to 12"
- Port: Full
- Materials of Construction:
- Body: 316 Stainless Steel, WCB
- Trim: 316 Stainless Steel
- Available Seats: Reinforced TFE, PTFE, 50/50%, CTFE
- End Connections: 150# or 300# Flanged Ends
- Maximum Pressure Rating: 285 psi
Configure
Specifications
Specifications
Brand
Direct Mount
- Yes
Enclosure, Body Material
- 316 Stainless Steel
- WCB Carbon Steel
Flange Size - 1-1/2” (DN 40)
- 1-1/2" (DN 40) - 150#
- 1-1/2" (DN 40) - 300#
Flange Size - 10” (DN 250)
- 10" (DN 250) - 150#
- 10" (DN 250) - 300#
Flange Size - 12” (DN 300)
- 12" (DN 300) - 150#
- 12" (DN 300) - 300#
Flange Size - 2-1/2” (DN 65)
- 2-1/2" (DN 65) - 150#
- 2-1/2" (DN 65) - 300#
Flange Size - 2” (DN 50)
- 2" (DN 50) - 150#
- 2" (DN 50) - 300#
Flange Size - 3” (DN 80)
- 3" (DN 80) - 150#
- 3" (DN 80) - 300#
Flange Size - 4” (DN 100)
- 4" (DN 100) - 150#
- 4" (DN 100) - 300#
Flange Size - 6” (DN 150)
- 6" (DN 150) - 150#
- 6" (DN 150) - 300#
Flange Size - 8” (DN 200)
- 8" (DN 200) - 150#
- 8" (DN 200) - 300#
Options
- L or T Ports
Port
- Full
Pressure Rating
- 285 psig: (bar: 19.7, kPa: 1,965)
Pyramidal Stem Packing
- No
Seat / Seal Material
- 50 % Stainless Steel Powder / 50 % Carbon-Filled Teflon
- CTFE (15 % Carbon Steel Powder / 85 % Teflon Seats)
- PTFE (Carbon-Filled Teflon)
- RTFE (Reinforced Teflon)
Standard Features
- Flanged General-purpose 3-Way
TA-Luft Certified
- Yes
Trim Material
- 316 Stainless Steel
Valve Type
- Manual
