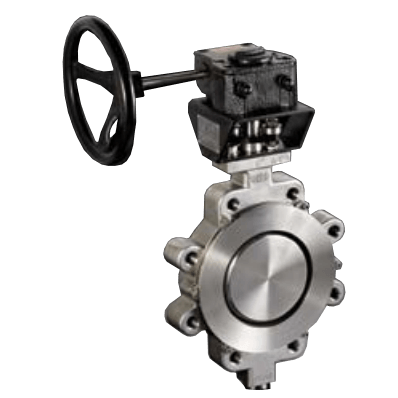

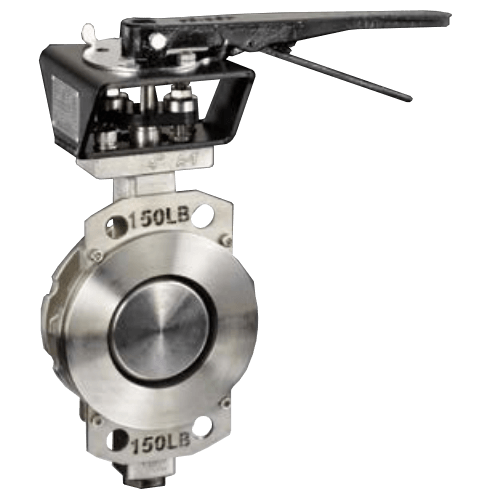

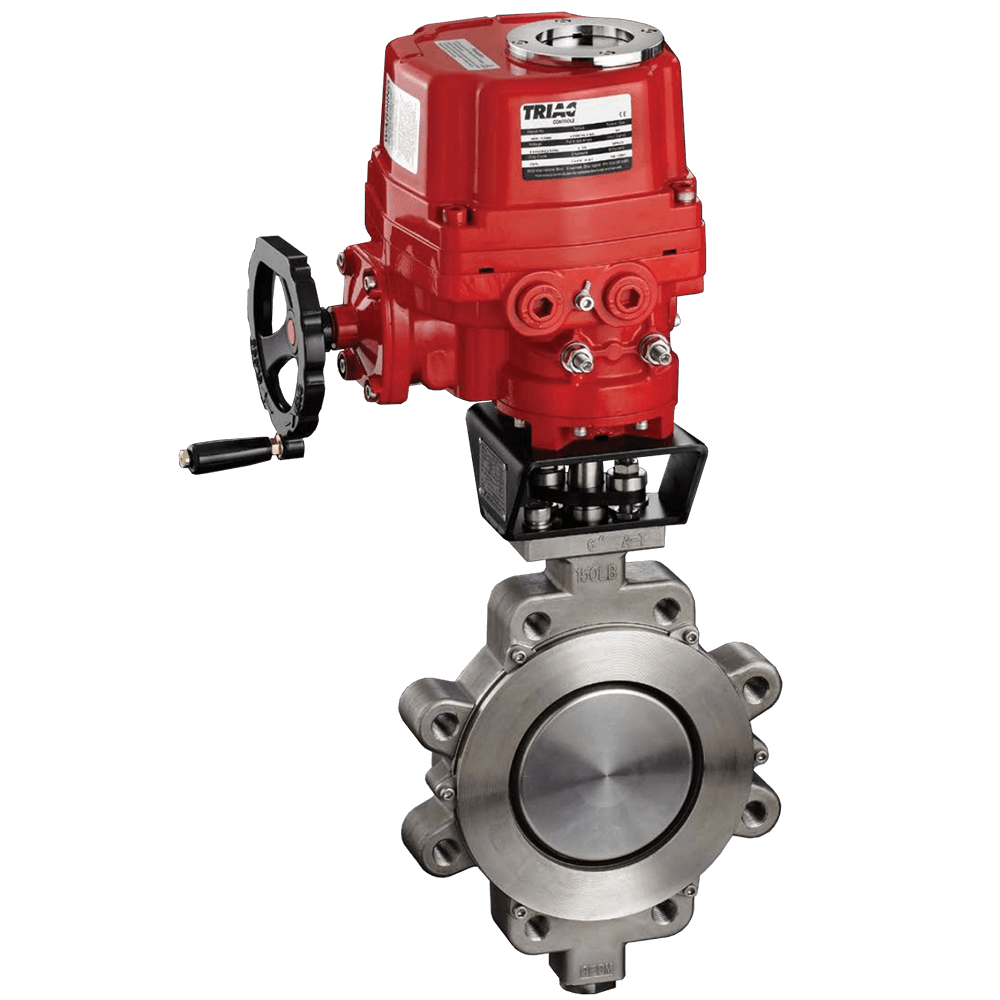

Series P1 Manual Butterfly Valve

Brand: A-T Controls, Inc.
Request Information
Favorite
  • P1S Series - Soft Seat Design

    Soft seat for bubble-tight shutoff of general purpose applications. (PS soft seat material is RTFE. P1S soft seat material is G2TFE).

    P1F Series - Firesafe Seat Design

    Primary soft seat for bubble-tight shutoff backed up by secondary 316L SST firesafe seat.

    Secondary firesafe seat provides Class V shutoff when primary soft seat is compromised in a fire event.

    P1F soft seat material is G2TFE/316L SST.

    P1M Series - Metal Seat Design for Specialized Applications

    316L SST seat for Class V shutoff of high temperature applications.

    Standard disc with this series is 316 SST with HCr.

    P1H Series - Metal Seat Design for High Temperature

    Inconel 625 seat and 316 SST with Stellite disc is recommended for extreme temperatures.
    • Features
    • Available Inventory Includes Sizes 2”-36”. Larger Sizes Available Upon Request
    • Standard Body Materials are 316 SST or WCB. Application Specific Options Include: Alloy 20, Monel, CD3MN, Hastelloy C-276, Inconel 625, Aluminum Bronze, LCB and Others.
    • Refer to Catalog for Standard Seat Materials for Each Series. Application Specific Seat Materials Include: 50/50 STFE, PTFE, TFM-1600 and Inconel 625.
    • Soft and Firesafe Seat Designs Offer Bubble-tight, Bi-directional Shutoff to Full ANSI/ASME Class 150 and 300 Standards. Metal Seat Design Offers Class V Shutoff.
    • Blow Out Proof Stem Design
    • Live Loaded Packing
    • Application Specific Stem Packing
    • Internally Cast Travel Stop
    show more
  • P1S Series - Soft Seat Design

    Soft seat for bubble-tight shutoff of general purpose applications. (PS soft seat material is RTFE. P1S soft seat material is G2TFE).

    P1F Series - Firesafe Seat Design

    Primary soft seat for bubble-tight shutoff backed up by secondary 316L SST firesafe seat.

    Secondary firesafe seat provides Class V shutoff when primary soft seat is compromised in a fire event.

    P1F soft seat material is G2TFE/316L SST.

    P1M Series - Metal Seat Design for Specialized Applications

    316L SST seat for Class V shutoff of high temperature applications.

    Standard disc with this series is 316 SST with HCr.

    P1H Series - Metal Seat Design for High Temperature

    Inconel 625 seat and 316 SST with Stellite disc is recommended for extreme temperatures.
    • Features
    • Available Inventory Includes Sizes 2”-36”. Larger Sizes Available Upon Request
    • Standard Body Materials are 316 SST or WCB. Application Specific Options Include: Alloy 20, Monel, CD3MN, Hastelloy C-276, Inconel 625, Aluminum Bronze, LCB and Others.
    • Refer to Catalog for Standard Seat Materials for Each Series. Application Specific Seat Materials Include: 50/50 STFE, PTFE, TFM-1600 and Inconel 625.
    • Soft and Firesafe Seat Designs Offer Bubble-tight, Bi-directional Shutoff to Full ANSI/ASME Class 150 and 300 Standards. Metal Seat Design Offers Class V Shutoff.
    • Blow Out Proof Stem Design
    • Live Loaded Packing
    • Application Specific Stem Packing
    • Internally Cast Travel Stop
    Close
    Close

    Specifications

    Brand

    Actuator Type

    • Gear Operator
    • Handwheel

    Approvals & Certifications

    • API-598/607/609
    • MSS-SP-25, MSS SP-55, MSS SP-67, MSS SP-68

    Approvals & Certifications

    • ATEX 94/9/EC
    • CE 97/23/EC
    • CRN
    • FCI 70-2
    • IEC 61508: 2010

    Bearing Material

    • Bronze
    • Carbon Graphite
    • PTFE Composite

    Cover Material

    • Stainless Steel - Bottom Cover, Belleville Washer Cover

    Disc Material

    • Alloy 20 or Incoloy
    • Aluminum Bronze
    • Carbon Steel (A351 Grade CF8M-316/HCr)
    • Disc Pin: Stainless Steel (A351 Grade CF8M-316 / HCr)
    • Hastelloy C-276
    • Inconel 625
    • Monel

    Enclosure, Body Material

    • 316L Stainless Steel
    • Alloy 20 or Incoloy
    • Aluminum Bronze
    • Carbon Steel (A216-WCB/LCB)
    • Cast Stainless Steel (CD3MN)
    • Hastelloy C-276
    • Inconel 625
    • Monel
    • Stainless Steel (A351 Grade CF8M-316)

    Flange Size - 10” (DN 250)

    • 10” (DN 250) - 150#
    • 10” (DN 250) - 300#

    Flange Size - 12” (DN 300)

    • 12” (DN 300) - 150#
    • 12” (DN 300) - 300#

    Flange Size - 14” (DN 350)

    • 14” (DN 350) - 150#
    • 14” (DN 350) - 300#

    Flange Size - 16” (DN 400)

    • 16” (DN 400) - 150#
    • 16” (DN 400) - 300#

    Flange Size - 18” (DN 450)

    • 18” (DN 450) - 150#
    • 18” (DN 450) - 300#

    Flange Size - 2” (DN 50)

    • 2” (DN 50) - 150#
    • 2” (DN 50) - 300#

    Flange Size - 20” (DN 500)

    • 20” (DN 500) - 150#
    • 20” (DN 500) - 300#

    Flange Size - 2-1/2” (DN 65)

    • 2-1/2” (DN 65) - 150#
    • 2-1/2” (DN 65) - 300#

    Flange Size - 24” (DN 600)

    • 24” (600) - 150#
    • 24” (600) - 300#

    Flange Size - 26” (DN 650)

    • 26” (DN 650) - 150#
    • 26” (DN 650) - 300#

    Flange Size - 28” (DN 700)

    • 28” (DN 700) - 150#
    • 28” (DN 700) - 300#

    Flange Size - 3” (DN 80)

    • 3” (DN 80) - 150#
    • 3” (DN 80) - 300#

    Flange Size - 30” (DN 750)

    • 3” (DN 750) - 150#
    • 3” (DN 750) - 300#

    Flange Size - 32” (DN 800)

    • 32” (DN 800) - 150#
    • 32” (DN 800) - 300#

    Flange Size - 36” (DN 900)

    • 36” (DN 900) - 150#
    • 36” (DN 900) - 300#

    Flange Size - 4” (DN 100)

    • 4” (DN 100) - 150#
    • 4” (DN 100) - 300#

    Flange Size - 40” (DN 1000)

    • 40” (DN 1000) - 150#
    • 40” (DN 1000) - 300#

    Flange Size - 44” (DN 1100)

    • 44” (DN 1100) - 150#
    • 44” (DN 1100) - 300#

    Flange Size - 48” (DN 1200)

    • 48” (DN 1200) - 150#
    • 48” (DN 1200) - 300#

    Flange Size - 5” (DN 125)

    • 5” (DN 125) - 150#
    • 5” (DN 125) - 300#

    Flange Size - 6” (DN 150)

    • 6” (DN 150) - 150#
    • 6” (DN 150) - 300#

    Flange Size - 8” (DN 200)

    • 8” (DN 200) - 150#
    • 8” (DN 200) - 300#

    Flow Rate

    • 1 to 100,500 Cv - ANSI Class 150
    • 1 to 90,450 Cv - ANSI Class 300

    Gasket Material

    • Graphite

    Gland Material

    • 304 Stainless Steel

    Gland Packing Material

    • Carbon Steel - Gland Packing Flange
    • Stainless Steel - Packing Gland Nuts & Studs

    Materials of Construction

    • 304 Stainless Steel - Thrust Bearing
    • 410 Stainless Steel - Thrust Bearing
    • Carbon Steel - Bracket Washer, Bracket, Belleville Washers & Low/Upper Bearing
    • Metaloplast (316 Stainless Steel+RTFE) - Lower/Upper Bearing
    • Stainless Steel - Clamp Plate (Wafer Only), Belleville Washer Cover, Clamps

    Mounting

    • ISO 5211

    Nut & Bolt Material

    • Carbon Steel - Bracket Bolt
    • Stainless Steel - Clamps, Clamp Bolt, Nut, Stud, Packing Gland Nut/Stud/Flange

    Override

    • Manual Override

    Packing Material

    • Graphite
    • PTFE Chevron

    Pressure Range

    • psi: 0 to 740 (kPa: 0 to 5,100, bar: 0 to 51)

    Process Connection Style

    • Lug
    • Wafer

    Ring Material

    • Carbon Steel - Retainer Ring

    Seat / Seal Material

    • Seat Gasket: PTFE
    • Seat: 50/50 STFE
    • Seat: G2TFE
    • Seat: Inconel 625
    • Seat: RTFE
    • Seat: TFM 1600
    • Secondary Seat: 316L Stainless Steel (Firesafe & Metal Seat)

    Shaft Material

    • 630 Stainless Steel (17-4 PH)
    • Inconel 718
    • K-Monel
    • Stainless Steel (XM-19 & Duplex 2205)

    Stem Material

    • 630 Stainless Steel (17-4 PH)
    • K-Monel
    • Stainless Steel (XM-19)

    Temperature Range

    • -73° to 593° C (-100° to 1,100° F)

    Torque

    • 195 to 3,59,988 In/Lbs - ANSI Class 150
    • 195 to 8,98,856 In/Lbs - ANSI Class 300

    Valve Size

    • 2” to 48”
