Images are representations only.

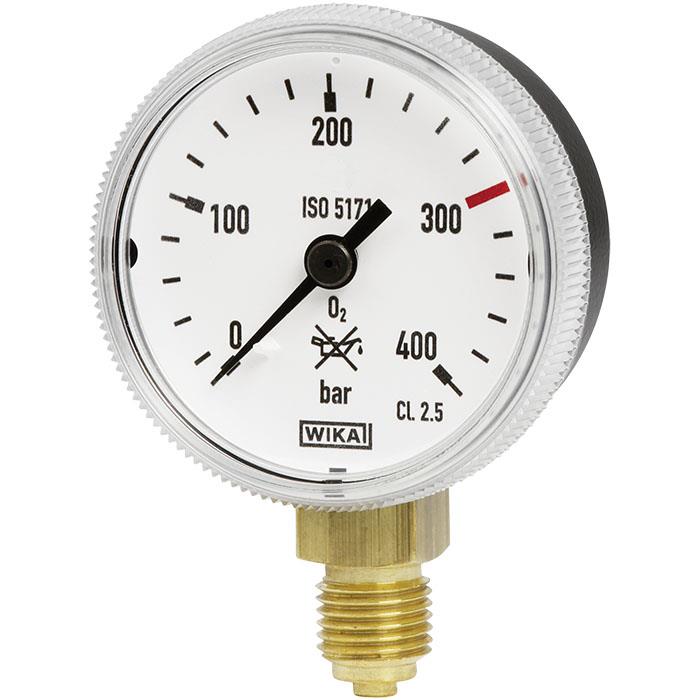

Bourdon Tube Pressure Gauge, Copper Alloy - 111.31

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
Welding gauge ISO 5171, safety version.
Features
  • Safety pressure gauge with solid baffle wall.
  • Reliable and cost-effective.
  • Nominal size 50.
  • Scale ranges up to 0 ... 400 bar.
show more
Welding gauge ISO 5171, safety version.
Features
  • Safety pressure gauge with solid baffle wall.
  • Reliable and cost-effective.
  • Nominal size 50.
  • Scale ranges up to 0 ... 400 bar.
Close

Specifications

Brand

Nominal Size

  • 50 mm

Accuracy Class

  • 2.5

Scale Range

  • 0 to 400 bar

Process Connection

  • 1/4” Male NPT

Process Connection Material

  • Copper Alloy

Connection Location

  • Lower Mount (LM)

Dial Material

  • Plastic, White, with Pointer Stop Pin, Black Lettering

Case Material

  • Zinc Die Cast

Window Material

  • Polycarbonate

Certifications & Approvals

  • CE
  • GOST-R
Close

Typical Applications

  • For equipment and plants for welding, cutting and allied processes
  • Application for oxygen and acetyle
  • Increased safety requirements
Close
