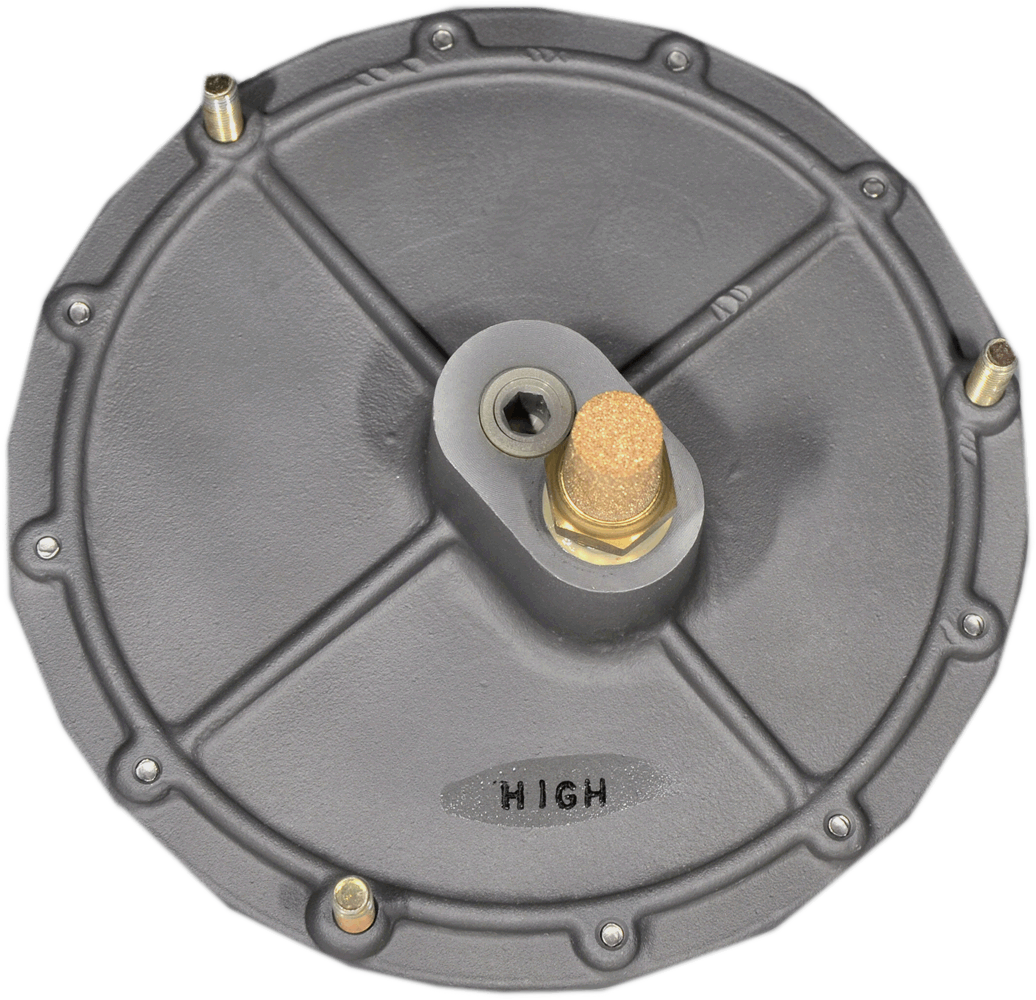

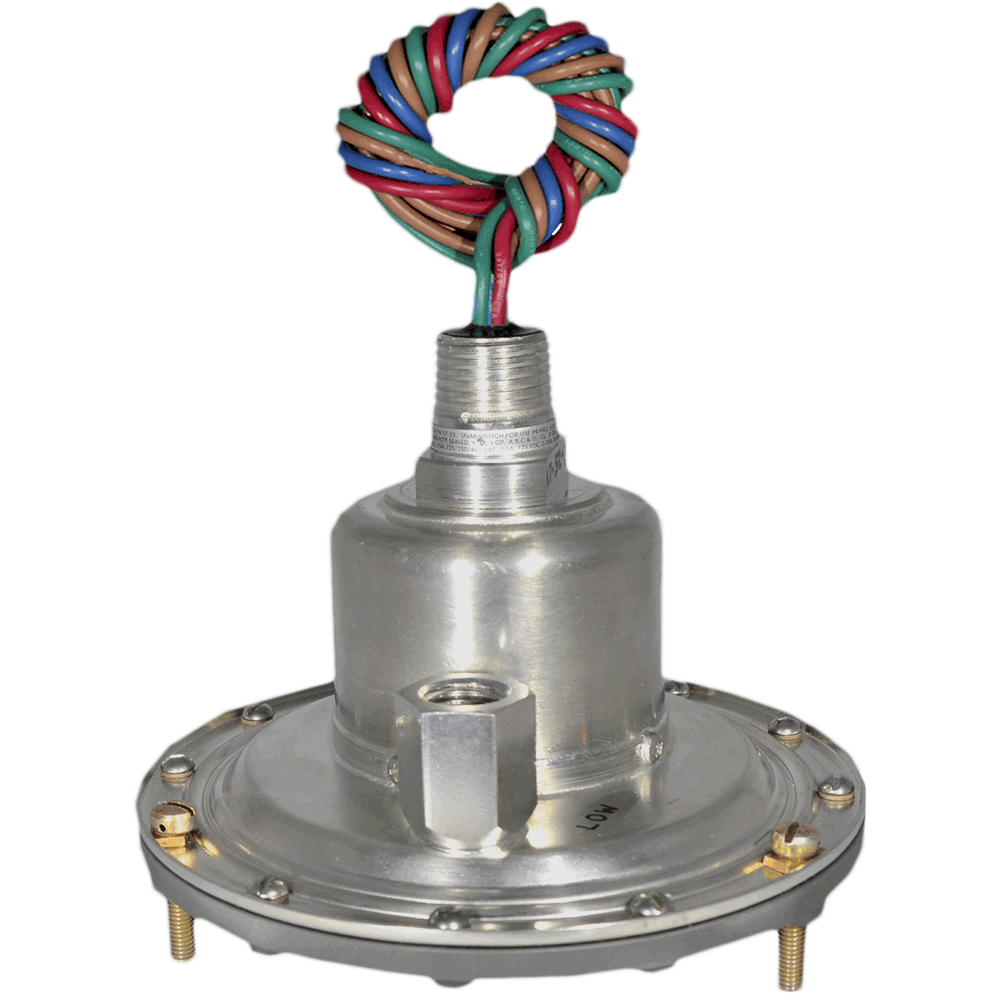

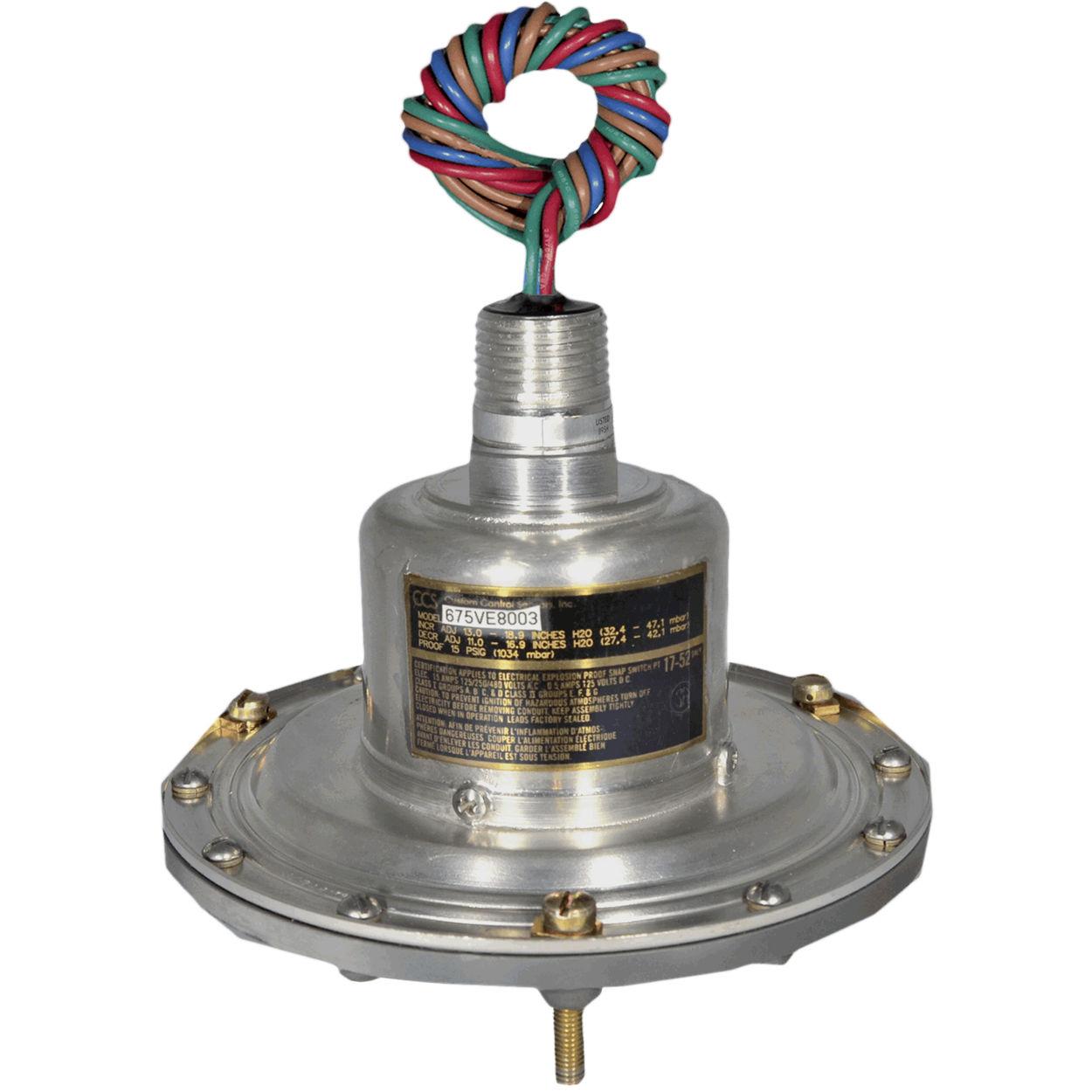

675VE Series Pressure Switch

Brand: Custom Control Sensors, LLC
Does not ship to OH, United States
Features
  • Fixed Set Point Range
    • Increasing
      • Inches H20 1.5 - 30
      • mbar 3.7 - 7.5
    • Decreasing
      • Inches H20 0.8 - 27
      • mbar 1.99 - 67.2
  • Deadband - Approximate
    • At Bottom of Range: 0.7 Inches H20, 1.7 mbar
    • At Top of Range: 3.0 Inches H20, 7.5 mbar
  • System Pressure - Maximum: 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa, 1034 mbar
  • Wetted Materials
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion-Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, Dual Seal
Features
  • Fixed Set Point Range
    • Increasing
      • Inches H20 1.5 - 30
      • mbar 3.7 - 7.5
    • Decreasing
      • Inches H20 0.8 - 27
      • mbar 1.99 - 67.2
  • Deadband - Approximate
    • At Bottom of Range: 0.7 Inches H20, 1.7 mbar
    • At Top of Range: 3.0 Inches H20, 7.5 mbar
  • System Pressure - Maximum: 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa, 1034 mbar
  • Wetted Materials
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion-Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, Dual Seal
Close

Specifications

Brand

Adjustment Type

  • Factory Set (Pre-Set)
  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CE
  • CRN - Canadian Registration Number
  • CRN - N.W. Territories
  • CSA
  • cUL
  • Dual Seal
  • EMC
  • LVD
  • PED
  • RoHS
  • RTN
  • UL

Deadband, Approximate - Bottom of Range

  • inH₂O: 0.7
  • mbar: 1.7

Deadband, Approximate - Top of Range

  • inH₂O: 3.0
  • mbar: 7.5

Diaphragm Material

  • Polyimide

Electrical - Free Leads

  • 18" (45 cm) Free Leads
  • 18" (45 cm) Teflon Leadwire

Electrical Assembly

  • Hermetic Seal

Electrical Certification

  • ATEX - Baseefa Certified for Potentially Explosive Atmospheres. Models 675**Y, II 2 GD Ex d IIC, Baseefa 08-ATEX-0347X. (Option Y)
  • cUL, UL/CSA, Hazardous Areas, Div. 1, 2

Electrical Connectors

  • 1/2" NPT Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.5 A at 125 Vdc, 0.2 A at 250 Vdc
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Hazardous Area
  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 7, 9, 13 / IP54, 66
  • NEMA 7
  • NEMA 9

NPT Connection

  • 1/4" NPT Female

O-Ring Material

  • Buna-N
  • Viton

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

Process Connection Material

  • Aluminum

Proof Pressure

  • kPa: 103.42
  • mbar: 1034
  • psig: 15

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • inH₂O: -0.8 to 27
  • mbar: -1.99 to 67.2

Set Point - Increasing

  • inH₂O: -1.5 to 30
  • mbar: -3.7 to 75

Switch Type

  • DPDT
  • SPDT

System Pressure

  • kPa: 68.95
  • mbar: 689
  • psig: 10
