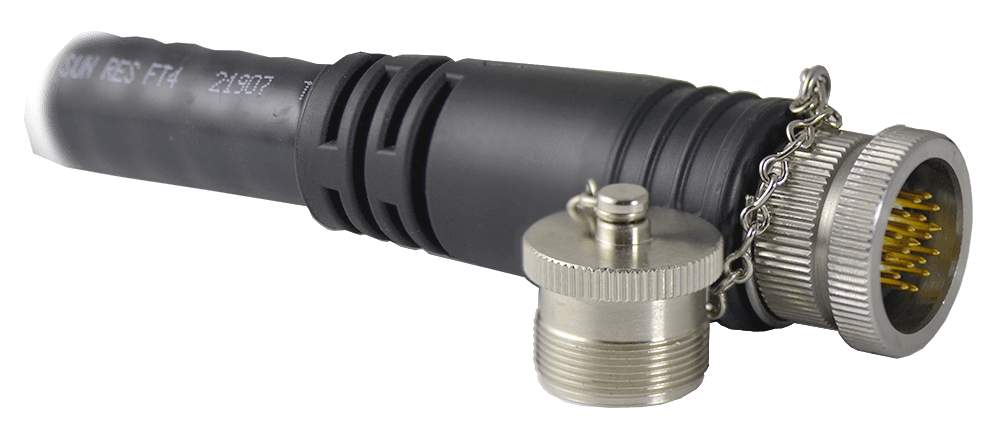

HART multifast Double Ended Cordset

Brand: Turck
Request Information
Favorite
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
show more
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
Close

Displaying prices & availability for Virginia, United States in USD. Change location or currency

90 models matching criteria
P-CSM CKM 19-977-20
TURCK M23 multifast HR Cordset, 2-Wire Analog or HART Ctrl Circuits, Male/Female, 19-Pin, 20m, NCNR View More
  • Process Receptacle:
    • Homerun, 2-Wire Analog or HART Circuits

  • Connector:
    • M23 multifast
    • Male x Female Double Ended
    • Nickel Plated Brass
    • 19 Contacts / 16 x #22, 1 x #18 AWG Wires

  • Wires:
    • (16) x # 22 AWG Circuits
    • (1) x # 18 AWG Ground
    • Blue PVC Jacket
    • Arranged in 8 Shielded, Twisted Pairs with Drain, 1 Ground, 1 Drain

  • Length of Wires:
    • 20 Meters

  • Protection Class:
    • IEC67

  • Approvals:
    • UL: ITC/PLTC/AWM, 105C, 300V
    • CSA: CMG/AWM, 105C, 300V

2 - 8 weeks
$582.70USD
$19.23 Shipping
P-CSM CKM 12-978-5M
TURCK M23 multifast HR Cordset, 2-Wire Analog or HART Ctrl Circuits, Male/Female, 12-Pin, 5m, NCNR View More
  • Process Receptacle:
    • Homerun, 2-Wire Analog or HART Circuits

  • Connector:
    • M23 multifast
    • Male x Female Double Ended
    • Nickel Plated Brass
    • 12 Contacts / 8 x 22 AWG, 1 x 18 AWG Wires

  • Wires:
    • (8) x # 22 AWG Circuits
    • (1) x # 18 AWG Ground
    • Blue PVC Jacket
    • Arranged in 4 Shielded, Twisted Pairs with Drain, 1 Ground, 1 Drain

  • Length of Wires:
    • 5 Meters

  • Protection Class:
    • IEC IP67

  • Approvals:
    • UL: ITC/PLTC/AWM, 105C, 300V
    • CSA: CMG/AWM, 105C, 300V

2 - 8 weeks
P-CSMT CKMT 19-416-10M
TURCK M23 multifast HR Cordset, Male/Female, 19-Pin, 150V, TPU/Plum, 10m, NCNR
2 - 8 weeks
P-CSMT CKMT 19-416-36M
TURCK M23 multifast HR Cordset, Male/Female, 19-Pin, 150V, TPU/Plum, 36m, NCNR
2 - 8 weeks
P-CSMV CKMV 12-978-15M
TURCK M23 multifast HR Cordset, Male/Female, 19-Pin, 150V, PVC/Blue, 15m, NCNR
2 - 8 weeks
P-CSML CKML 19-484-20M
TURCK M23 multifast HR Cordset, Male/Female, 19-Pin, 150V, PVC/Black, 20m, NCNR View More
  • Process Receptacle:
    • Homerun and Analog/HART Circuits

  • Connector:
    • Male x Female Double Ended M23
    • Nickel Plated Brass
    • 19 Contacts / 16 x #22, 1 x #18 AWG Wires

  • Wires:
    • (16) x # 22 AWG Circuits
    • (1) x # 18 AWG Ground
    • Outer Jacket PVC / Black
    • Arranged in 8 Shielded, Twisted Pairs with Drain, 1 Ground, 1 Drain

  • Length of Wires:
    • 20 Meters

  • Protection Class:
    • IEC67

  • Approvals:
    • UL: ITC/PLTC, 105C
    • CSA: CMX/CMG/AWM, 105C, 300V

2 - 8 weeks
P-CSML CKML 19A-419-30M
TURCK M23 multifast HR Cordset, Male/Female, Armored, 19-Pin, 150V, PVC/Black, 30m, NCNR View More
  • Process Receptacle:
    • Homerun and Analog/HART Circuits

  • Connector:
    • Male x Female Double Ended M23
    • Nickel Plated Brass
    • 19 Contacts / 16 x #22, 1 x #18 AWG Wires

  • Wires:
    • (16) x # 22 AWG Circuits
    • (1) x # 18 AWG Ground
    • Outer Jacket PVC / Black
    • Arranged in 8 Shielded, Twisted Pairs with Drain, 1 Ground, 1 Drain
    • Interlocking Aluminum Armour

  • Length of Wires:
    • 30 Meters

  • Protection Class:
    • IEC67

  • Approvals:
    • UL: ITC/PLTC, 105C
    • CSA: ACIC/CMG, CMX-HL 90C, 300V

2 - 8 weeks
P-CSMT CKMT 12-489-1.2M
TURCK M23 multifast HR Cordset, Male/Female, 12-Pin, 250V, PVC/Black, 1.2m, NCNR
2 - 8 weeks
P-CSMT CKMT 19-484-26M
TURCK M23 multifast HR Cordset, Male/Female, 19-Pin, 150V, PVC/Black, 26m, NCNR
2 - 8 weeks
P-CSMT CKMT 19-977-3M
TURCK M23 multifast HR Cordset, Male/Female, 19-Pin, 150V, PVC/Blue, 3m, NCNR
2 - 8 weeks
Show More Models (79)
Close
Close

Specifications

Brand

Approvals & Certifications

  • CSA
  • UL

Connection Material

  • Nickel-Plated Brass
  • Nylon
  • Stainless Steel

Connection Pin-Out

  • 12-Pin
  • 19-Pin

Connection Style

  • multifast

Connector Shape

  • Right Angle
  • Straight

Environmental Protection

  • IP67

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 12-229: 8 x 22 AWG, 4 STP, ITC-ER / dB / PLTC PVC
  • 12-978: 8 x 22 AWG, 4 STP, ITC/PLTC PVC
  • 12-Wire
  • 19-416: 16 x 22 AWG, 8 STP, CIC/CMX CM/ITC/PLTC PUR
  • 19-484: 16 x 22 AWG, 8 STP, ITC-ER/dB/PLTC PVC
  • 19-959: 16 x 22 AWG, 8 STP, ITC/PLTC PVC
  • 19-977: 16 x 22, 8 STP, ITC/PLTC PVC
  • 19A-419: 16 x 22 AWG, 8 STP, ITC/PLTC Armoured PVC
  • 19-Wire
